INSTALLATION AND OPERATION MANUAL

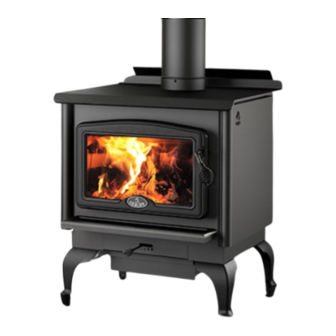

1600
(OB01613 model)
250, rue de Copenhague, St-Augustin-de-Desmoures (Quebec) Canada G3A 2H3
After-sale service: 418-908-8002
This manual is available for free download on the manufacturer's web site. It is a copyrighted
document. Re-sale is strictly prohibited. The manufacturer may update this manual from time to
time and cannot be responsible for problems, injuries, or damages arising out of the use of
information contained in any manual obtained from unauthorized sources.
Printed in Canada
www.osburn-mfg.com
Stove Builder International Inc.
READ AND KEEP THIS MANUAL FOR REFERENCE
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED WOOD
Safety tested according to ULC S627
and UL 1482 Standards
by an accredited laboratory
E-mail:
tech@sbi-international.com
STOVE
45022A
05-07-2018
