Kit Contains:
Four Legs
One Hardware Kit (EL008) Containing:
Four Carriage Bolts 3/8" - 16 UNC x 1 1/4" (HF02)
Four Hex Hd.. Cap Screws 1/4" x 1/2" (HF24)
Four Hex Hd.. Cap Screws 3/8" x 1" (HF81)
Four Flat Washers 3/8" (HF54)
Two Leg Mount Bracket Assemblies
One Ash Drawer Assembly
1.
Place a drop sheet on the floor below and behind the Stove.
2.
Unpack the Stove.
3.
Remove the Legs, Ash Drawer Assembly, Leg Mount Bracket Assemblies, and packing
material from the leg box and ash drawer.
4.
Remove the bottom and side bricks from the Firebox.
5.
Gently turn the Stove on its back.
6.

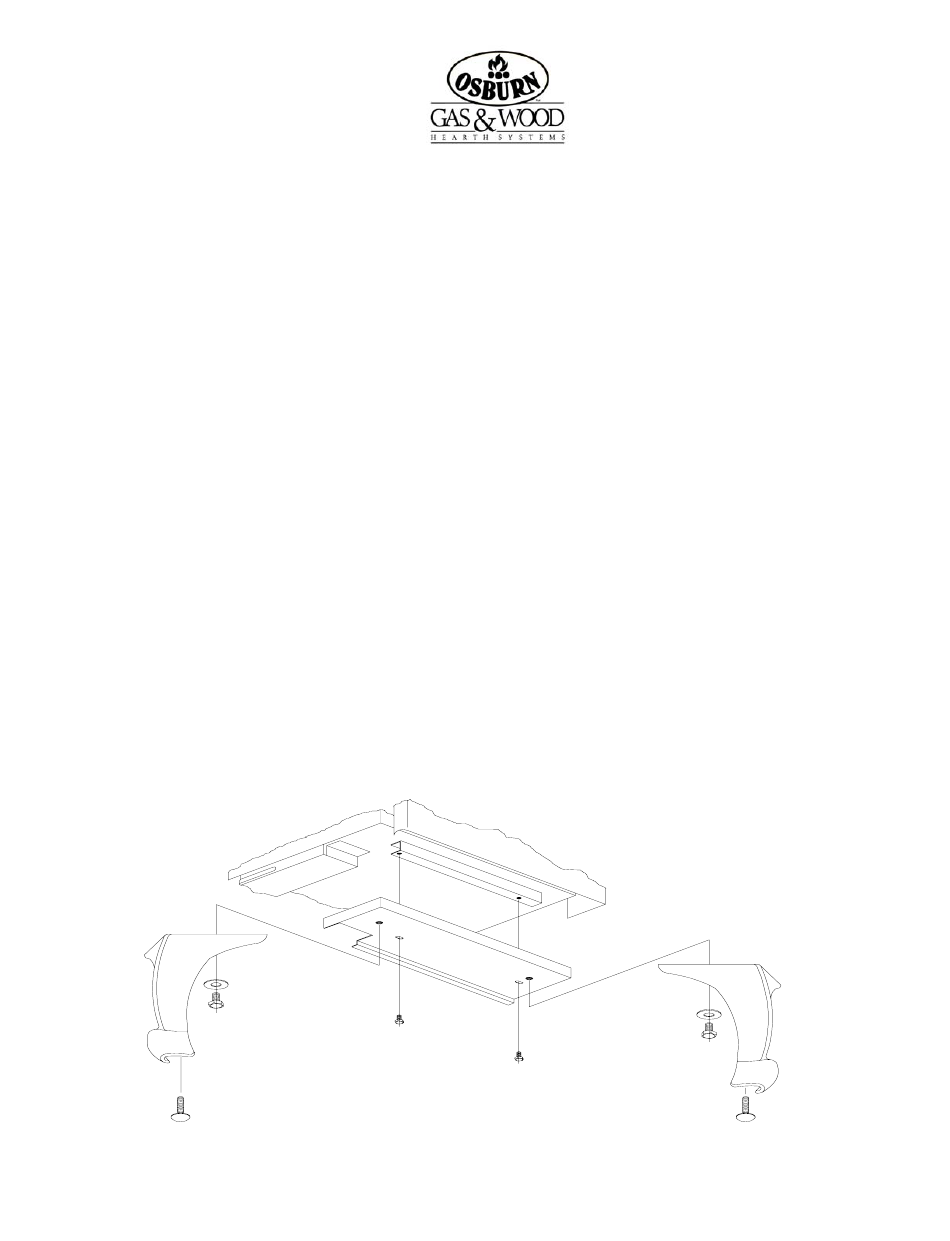

Place the left and right Leg Mounting Brackets up against the bottom of the stove as shown
in Figure 1 below so that the slot holes line up with the threaded holes on the Hearth Legs
(the Hearth Legs are the brackets on the stove bottom).
7.
a) Screw the two Hex Hd.. Cap Screws 1/4" X 1/2" through the slots in the Leg Mount
FABRIQUÉ AVEC FIERTÉ AU CANADA / PROUDLY MADE IN CANDADA
Leg Kit Installation Instructions
OSBURN 1000, 1100 & 1600
45091
Advertisement
Table of Contents
Related Manuals for Osburn 1000
Summary of Contents for Osburn 1000
- Page 1 OSBURN 1000, 1100 & 1600 Leg Kit Installation Instructions Kit Contains: Four Legs One Hardware Kit (EL008) Containing: Four Carriage Bolts 3/8" - 16 UNC x 1 1/4" (HF02) Four Hex Hd.. Cap Screws 1/4" x 1/2" (HF24) Four Hex Hd.. Cap Screws 3/8" x 1" (HF81) Four Flat Washers 3/8"...
- Page 2 When replacing the bricks, note that the bottom brick second from the left, and the Ash Dump Sealing Plate will be replaced with the one 4 1/2" Firebrick and Ash Dump Assembly (to be placed in the Ash Dump hole). Note: This step applies to the 1000 & 1100 models only.
- Page 3 OSBURN 1000, 1100 & 1600 Instructions d’installation des pieds du poêle L’ensemble comprend: quatre pieds quatre boulons à tête bombée, collet carré de 3/8" - 16 UNC x 1 1/4" quatre vis à tête hexagonale de 1/4" x 1/2" quatre vis de blocage à tête hexagonale de 3/8" x 1"...
- Page 4 OSBURN 1000, 1100 & 1600 a) Insérez deux vis de blocage à tête hexagonale de 1/4" x 1/2" dans les fentes du support de montage des pieds et dans les trous filetés des pieds d’âtre et serrez-les. b) Alignez le premier support de montage des pieds de telle façon que ses trois côtés se trouvent sous le fond de la chambre de combustion et que le rebord avant soit de niveau avec le panneau de contrôle d’air (ce panneau peut également être ajusté...
