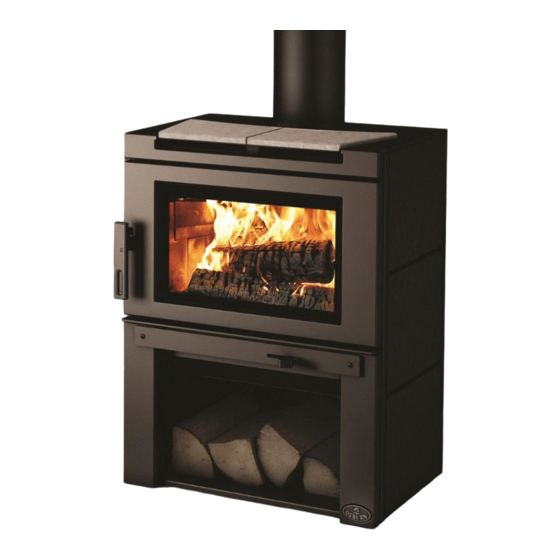

Wood stove
Table of Contents

Advertisement

INSTALLATION AND OPERATION MANUAL
MATRIX


250, rue de Copenhague, St‐Augustin‐de‐Desmaures (Quebec) Canada  G3A 2H3
This  manual  is  available  for  free  download  on  the  manufacturer's  web  site.  It  is  a  copyrighted
document. Re‐sale is strictly prohibited. The manufacturer may update this manual from time to
time  and  cannot  be  responsible  for  problems,  injuries,  or  damages  arising  out  of  the  use  of
information contained in any manual obtained from unauthorized sources.

Printed in Canada
www.osburn‐mfg.com
Stove Builder International Inc.
Tel: (418) 878‐3040     Fax: (418) 878‐3001
READ AND KEEP THIS MANUAL FOR REFERENCE

US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED WOOD
STOVE
Safety tested according to ULC S627,
UL 737 and UL 1482 Standards
by Intertek Testing Services







45592A
05‐03‐2013




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRIX  and is the answer not in the manual?

Questions and answers

Summary of Contents for Osburn MATRIX

  • Page 1              www.osburn‐mfg.com  Stove Builder International Inc.  250, rue de Copenhague, St‐Augustin‐de‐Desmaures (Quebec) Canada  G3A 2H3  Tel: (418) 878‐3040     Fax: (418) 878‐3001  This  manual  is  available  for  free  download  on  the  manufacturer’s  web  site.  It  is  a  copyrighted  document. Re‐sale is strictly prohibited. The manufacturer may update this manual from time to  time  and  cannot  be  responsible  for  problems,  injuries,  or  damages  arising  out  of  the  use  of ...
  • Page 2   Matrix Installation and Operation Manual    THANK YOU FOR CHOOSING THIS OSBURN WOOD STOVE  As  one  of  North  America’s  largest  and  most  respected  wood  stove  and  fireplace  manufacturers,  Stove Builder International takes pride in the quality and performance of all its products. We want  to help you get maximum satisfaction as you use this product.   In the pages that follow you will find general advice on wood heating, detailed instructions for safe  and effective installation, and guidance on how to get the best performance from this stove as you  build and maintain fires, and maintain your wood heating system.  We recommend that our wood burning hearth products be installed and serviced by professionals  ® who are certified in the United States by NFI (National Fireplace Institute ) or in Canada by WETT  (Wood  Energy  Technology  Transfer)  or  in  Quebec  by  APC  (Association  des  Professionnels  du  Chauffage). ...
  • Page 3: Table Of Contents

      Matrix Installation and Operation Manual    Table of content  PART A ‐ OPERATION AND MAINTENANCE  ..........  6   Safety Information  ................  6     Summary of Operation and Maintenance Cautions and Warnings ........  6     General Information .................  7     Matrix Specifications ......................  7     Zone Heating and How to Make it Work for You ..............  9     The Benefits of Low Emissions and High Efficiency  .............  1 0     The SBI Commitment to You and the Environment ............  1 0  ...
  • Page 4   Matrix Installation and Operation Manual    4.4.3 Raking Charcoal  ........................  1 9     4.4.4 Firing Each New Load Hot ....................  2 0     4.4.5 Turning Down the Air Supply ...................  2 0     4.4.6 Building Different Fires for Different Needs ..............  2 1     Maintaining Your Wood Heating System  ......... 24     Stove Maintenance  ......................  2 4     5.1.1 Cleaning Door Glass ...................... ...
  • Page 5 Installation of Single Wall Chimney Connector ...............  4 3     Appendix 1: Reversing the Door Opening and Adjusting the Handle  .. 46   Appendix 2: Installing the Decorative Panels  ........ 48   Appendix 3: Installing the Fresh Air Kit  .......... 51   Appendix 4: Installing the Fire Screen (AC01315) ......... 52   Appendix 5: Installation and Use of the Air Circulation Fan and  Thermodisc .............. 53   Appendix 6: Installation of Secondary Air Tubes and Baffle  .... 55   Appendix 7: Exploded Diagram and Parts List  ........ 57   OSBURN LIMITED LIFETIME WARRANTY  .......... 60         _ ______________________________________________________________________________  5  ...
  • Page 6: Part A - Operation And Maintenance

      Matrix Installation and Operation Manual    PART A ‐ OPERATION AND MAINTENANCE  Please see Part B for installation instructions.  1 SAFETY INFORMATION  1.1 SUMMARY OF OPERATION AND MAINTENANCE CAUTIONS AND WARNINGS  • HOT  WHILE  IN  OPERATION,  KEEP  CHILDREN,  CLOTHING  AND  FURNITURE  AWAY.  CONTACT  MAY CAUSE SKIN BURNS. GLOVES MAY BE NEEDED FOR STOVE OPERATION.   • USING A STOVE WITH CRACKED OR BROKEN COMPONENTS, SUCH AS GLASS OR FIREBRICKS  OR BAFFLES MAY PRODUCE AN UNSAFE CONDITION AND MAY DAMAGE THE STOVE.  • OPEN THE AIR CONTROL FULLY BEFORE OPENING FIRING DOOR.   • THIS STOVE HAS BEEN TESTED FOR USE WITH AN OPEN DOOR IN CONJUNCTION WITH A FIRE  SCREEN (AC01315, SOLD SEPARATELY). THE DOOR MAY BE OPEN OR FIRE SCREEN REMOVED  ONLY  DURING  LIGHTING  PROCEDURES  OR  RELOADING.  ALWAYS  CLOSE  THE  DOOR  OR  PUT  BACK ...
  • Page 7: General Information

      Matrix Installation and Operation Manual    2  GENERAL INFORMATION  2.1 MATRIX SPECIFICATIONS  Fuel Type  Cordwood   Test Standards (safety)  ULC S627, UL 737 and UL 1482  Test Standard (emissions)  EPA Method 28 (40 CFR Part 60)  Heating capacity range*  500 to 2,100 sq. ft. (47 to 195 m )  Maximum heat output**  32 200 BTU/h. (9,4 kW/h)  (EPA test fuel)  Maximum heat output**  75 000 BTU/h. (22 kW/h)   (natural hardwood fuel)  Optimum efficiency  77,2 %   Test Standard (efficiency)  CSA B415.1‐10  Approximate Burn Time  6 to 8 hours  Shipping Weight  535 lb (243 kg)   Firebox Volume  2,4 cu.ft. (0,068 m )   Maximum Log Length  20" east‐west***  Flue Outlet Diameter:   6" (150 mm) diameter (vertical)   Baffle Material  C‐cast    *  Burn  time  and  heating  capacity  may  vary  subject  to  location  in  home,  chimney  draft,  chimney  diameter, locality, heat loss factors, climate, fuels and other variables. ...
  • Page 8   Matrix Installation and Operation Manual        8  _ ______________________________________________________________________________   ...
  • Page 9: Zone Heating And How To Make It Work For You

      Matrix Installation and Operation Manual      2.2 ZONE HEATING AND HOW TO MAKE IT WORK FOR YOU  Your new Osburn Matrix wood stove is a space heater, which means it is intended to heat the area  it is installed in, as well as spaces that connect to that area, although to a lower temperature. This  is called zone heating and it is an increasingly popular way to heat homes or spaces within homes.   Zone  heating  can  be  used  to  supplement  another  heating  system  by  heating  a  particular  space  within a home, such as a basement family room or an addition that lacks another heat source.  Houses of moderate size and relatively new construction can be heated with a properly sized and  located wood stove. Whole house zone heating works best when the stove is located in the part of  the house where the family spends most of its time. This is normally the main living area where  the kitchen, dining and living rooms are located. By locating the stove in this area, you will get the  maximum benefit of the heat it produces and will achieve the highest possible heating efficiency  and comfort. The space where you spend most of your time will be warmest, while bedrooms and  basement  (if  there  is  one)  will  stay  cooler.  In  this  way,  you  will  burn  less  wood  than  with  other ...
  • Page 10: The Benefits Of Low Emissions And High Efficiency

      Matrix Installation and Operation Manual    2.3 THE BENEFITS OF LOW EMISSIONS AND HIGH EFFICIENCY  The low smoke emissions produced by the special features inside the Osburn Matrix firebox mean  that your household will release up to 90 percent less smoke into the outside environment than if  you used an older conventional stove. But there is more to the emission control technologies than  protecting the environment.   The smoke released from wood when it is heated contains about half of the energy content of the  fuel.  By  burning  the  wood  completely,  your  stove  releases  all  the  heat  energy  from  the  wood  instead of wasting it as smoke up the chimney. Also, the features inside the firebox allow you to  reduce  the  air  supply  to  control  heat  output,  while  maintaining  clean  and  efficient  flaming ...
  • Page 11: Fuel

      Matrix Installation and Operation Manual    3 FUEL  3.1 MATERIALS THAT SHOULD NOT BE BURNED   • GARBAGE OF ANY KIND,  • COAL OR CHARCOAL,  • TREATED, PAINTED OR COATED WOOD,  • PLYWOOD OR PARTICLE BOARD,  • FINE PAPER, COLORED PAPER OR CARDBOARD,  • SALT WATER DRIFTWOOD  • MANUFACTURED LOGS CONTAINING WAX OR CHEMICAL ADDITIVES  • RAILROAD TIES  • LIQUIDS SUCH AS KEROSCENE OR DIESEL FUEL TO START A FIRE    3.2 HOW TO PREPARE OR BUY GOOD FIREWOOD  3.2.1 WHAT IS GOOD FIREWOOD?  Good  firewood  has  been  cut  to  the  correct  length  for  the  stove,  split  to  a  range  of  sizes  and  stacked in the open until its moisture content is reduced to 15 to 20 per cent. ...
  • Page 12: Log Length

      Matrix Installation and Operation Manual    only  hardwoods  are  good  to  burn  is  outdated.  Old,  leaky  cast  iron  stoves  wouldn’t  hold  a  fire  overnight  unless  they  were  fed  large  pieces  of  hardwood.  That  is  no  longer  true.  You  can  successfully heat your home by using the less desirable tree species and give the forest a break at  the same time.  3.2.3 LOG LENGTH  Logs should be cut about 1” (25 mm) shorter than the firebox so they fit in easily. Pieces that are  even slightly too long make loading the stove very difficult. The most common standard length of ...
  • Page 13: How To Dry Firewood

      Matrix Installation and Operation Manual    Wood should be split to a range of sizes, from about 3” to 6” (75 mm to 150 mm) in cross section.  Having  a  range  of  sizes  makes  starting  and  rekindling  fires  much  easier.  Often,  the  firewood  purchased  from  commercial  suppliers  is  not  split  finely  enough  for  convenient  stoking.  It  is  sometimes advisable to resplit the wood before stacking to dry.   3.2.5 HOW TO DRY FIREWOOD  Firewood that is not dry enough to burn is the cause of most complaints about wood stoves. The  complaints usually involve a lack of heat and dirty door glass.       Here are some things to consider in estimating drying time:  •...
  • Page 14: Where To Store Wood

      Matrix Installation and Operation Manual    3.2.6 WHERE TO STORE WOOD  This stove has been certified to store logs in the pedestal provided that the following requirements  are met:   The  logs  must  not  exceed  the  inside  edge  (A) of the pedestal.   The heat shield baffle (B) under the firebox  must never be removed.    No  combustible  material  can  be  placed  above the heat shield baffle.    3.2.7 JUDGING FIREWOOD MOISTURE CONTENT  You can find out if some firewood is dry enough to burn by using these guidelines:  • cracks form at the ends of logs as they dry  • as it dries in the sun, the wood turns from white or cream coloured to grey or yellow,  • bang two pieces of wood together; seasoned wood sounds hollow and wet wood sounds dull,  • dry wood is much lighter in weight than wet wood,  • split a piece, and if the fresh face feels warm and dry it is dry enough to burn; if it feels damp, it ...
  • Page 15: Manufactured Logs

      Matrix Installation and Operation Manual    3.3 MANUFACTURED LOGS  Do  not  burn  manufactured  logs  made  of  wax  impregnated  sawdust  or  logs  with  any  chemical  additives. Manufactured logs made of 100% compressed sawdust can be burned, but use caution  in the number of these logs burned at one time. Start with one manufactured log and see how the  stove  reacts.  You  can  increase  the  number  of  logs  burned  at  a  time  to  making  sure  the  temperature never rises higher than 475 °F (246 °C) on a magnetic thermometer for installation on  single wall stove pipes or 900 °F (482 °C) on a probe thermometer for installation on  double wall  stove ...
  • Page 16: Operating Your Stove

      Matrix Installation and Operation Manual    4 OPERATING YOUR STOVE  4.1 THE USE OF A FIRE SCREEN  This stove has been tested for use with an open door in conjunction with a fire screen (AC01315,  sold  separately).  Make  sure  the  fire screen  is  properly  secured  on  the  stove  to  avoid  any risk  of  fire.  When  the  fire  screen  is  used,  it  is  important  not  to  leave  the  stove  unattended  to  respond  promptly ...
  • Page 17: Conventional Fire Starting

      Matrix Installation and Operation Manual    4.3.1 CONVENTIONAL FIRE STARTING  The conventional way to build a wood fire  is  to  bunch  up  5  to  10  sheets  of  plain  newspaper and  place  them  in  the firebox.  Next, place 10 or so pieces of fine kindling  on the newspaper. This kindling should be  very thin; less than 1” (25 mm). Next, place  some  larger  kindling  pieces  on  the  fine  kindling.  Open  the  air  control  fully  and  light  the  newspaper.  If  you  have  a  tall,  straight venting system you should be able ...
  • Page 18: Two Parallel Logs

      Matrix Installation and Operation Manual    4.3.3 TWO PARALLEL LOGS  Place two spit logs in the firebox. Place a few sheets of twisted newspaper between the logs. Now  place some fine kindling across the two logs and some larger kindling across those, log cabin style.  Light the newspaper.   4.3.4 USING FIRE STARTERS  Many people like to use commercial fire starters instead of newspaper. Some of these starters are  made  of  sawdust  and  wax  and  others  are  specialized  flammable  solid  chemicals.  Follow  the  package directions for use.   Gel starter may be used but only if there are no hot embers present. Use only in a cold firebox to  start a fire.  DO  NOT  USE  FLAMMABLE  LIQUIDS  SUCH  AS  GASOLINE,  NAPHTHA,  FUEL  OIL,  MOTOR  OIL,  OR  AEROSOLS TO START OR REKINDLE THE FIRE.  ...
  • Page 19: Ash Removal

      Matrix Installation and Operation Manual    IF YOU MUST OPEN THE DOOR WHILE THE FUEL IS FLAMING, OPEN THE AIR CONTROL FULLY FOR  A FEW MINUTES, THEN UNLATCH AND OPEN THE DOOR SLOWLY.  4.4.2 ASH REMOVAL  Ash should be removed from the firebox every two or three days of full time heating. Do not let  the ash build up in the firebox because it will interfere with proper fire management.   The best time to remove ash is after an overnight fire when the stove is relatively cool, but there is  still some chimney draft to draw the ash dust into the stove and prevent it from coming into the  room.  After ashes have been removed from the stove and placed in a tightly covered metal container,  they  should  be  taken  outside  immediately.  The  closed container  of  ashes  should  be  placed on  a  non‐combustible  floor  or  on  the  ground  well  away  from  all  combustible  materials  pending  final  disposal. Ashes normally contain some live charcoal that can stay hot for several days. If the ashes ...
  • Page 20: Firing Each New Load Hot

      Matrix Installation and Operation Manual    4.4.4 FIRING EACH NEW LOAD HOT  Place the new load of wood on and behind the charcoal, and not too close to the glass. Close the  door  and  open  the  air  control  fully.  Leave  the  air  control  fully  open  until  the  firebox  is  full  of  flames, the wood has charred to black and its edges are glowing red. Firing each load of wood hot  accomplishes a few things:  • drives the surface moisture from the wood,   • creates a layer of char on the wood, which slows down its release of smoke,  • heats the firebox components so they reflect heat back to the fire, and  • heats the chimney so it can produce strong, steady draft for the rest of the cycle.   Although it is important to fire each new load hot to prepare for a clean burn, do not allow the fire  to burn at full intensity for more than a few minutes.  DO NOT LEAVE THE STOVE UNATTENDED WHILE A NEW LOAD IS BEING FIRED HOT.  When  you  burn  a  new  load  of  wood  hot  to  heat  up  the  wood,  the  stove  and  the  chimney,  the  result ...
  • Page 21: Building Different Fires For Different Needs

      Matrix Installation and Operation Manual      4.4.6 BUILDING DIFFERENT FIRES FOR DIFFERENT NEEDS  Using  the  air  control  is  not  the  only  way  to  match  the  stove’s  heat  output  to  the  heat  demand.  Your  house  will  need  far  less  heat  in  October  than  in  January  to  be  kept  at  a  comfortable  temperature. If you fill the firebox full in fall weather, you will either overheat the space or turn ...
  • Page 22   Matrix Installation and Operation Manual    4.4.6.3 High Output Fires for Cold Weather  When  the  heat  demand  is  high  during  cold  weather,  you’ll  need  a  fire  that  burns  steadily  and  brightly. This is the time to use your biggest pieces of hardwood fuel if you have it. Put the biggest  pieces at the back of the firebox and place the rest of the pieces compactly. A densely built fire like  this will produce the longest burn your stove is capable of.  You  will  need  to  be  cautious  when  building  fires  like  this  because  if  the  air  is  turned  down  too  much, the fire could smoulder. Make sure the wood is flaming brightly before leaving the fire to ...
  • Page 23   Matrix Installation and Operation Manual    4.4.6.5 North‐South Fires Versus East‐West Fires  In fireboxes that are roughly square, wood can be loaded so that looking through the glass door  you see the ends of the logs (north‐south) or the sides of the logs (east‐west).   East‐west loads that are built compactly break down slowly when heated, but the amount of wood  you can load is limited because if you put in too many pieces, one may fall against the glass. East‐ west loads are excellent for long, low output fires for relatively mild weather.  North‐south loads break down more quickly, but much more wood can be loaded at a time. This  makes north‐south loading good for high output, long lasting fires for cold weather.    _ _____________________________________________________________________________  2 3 ...
  • Page 24: Maintaining Your Wood Heating System

      Matrix Installation and Operation Manual    5 MAINTAINING YOUR WOOD HEATING SYSTEM  5.1 STOVE MAINTENANCE  Your new stove will give many years of reliable service if you use and maintain it correctly. Some of  the  internal  components  of  the  firebox,  such  as  firebricks,  baffles  and  air  tubes,  will  wear  over  time  under  intense  heat.  You  should  always  replace  defective  parts  with  original  parts  (see  Appendix  7:  Exploded  Diagram  and  Parts  List).  For  firing  each  load  hot  to  begin  a  cycle  as  described above will not cause premature deterioration of the stove. However, letting the stove ...
  • Page 25: Door Adjustment

      Matrix Installation and Operation Manual    5.1.2 DOOR ADJUSTMENT  In order for your stove to burn at its best efficiency, the door must provide a perfect seal with the  firebox. Therefore, the gasket should be inspected periodically making sure to obtain an air tight  fit.  Air  tightness  can  be  improved  with  a  simple  latch  mechanism  adjustment.  To  increase  the  pressure on the gasket, remove one washer (B). To reduce pressure on the door, when putting a  new door gasket for example, put two washers. To adjust:  1. Unscrew the two screws (A) holdind the handle guide (B) and remove/add one spacer (B). 2. Reinstall the latch with the screws (A).  ...
  • Page 26: Replacing The Door Gasket

      Matrix Installation and Operation Manual    5.1.3 REPLACING THE DOOR GASKET  It  is  important  to  maintain  the  gasket  in  good  condition.  After  a  year  or  more  of  use,  the  door  gasket  will  compress  and  become  hard,  which  may  allow  air  to  leak  past  it.  You  can  test  the  condition of the door gasket by closing and latching the door on a strip of paper. Test all around ...
  • Page 27: Cleaning And Painting The Stove

      Matrix Installation and Operation Manual    carefully  in  the  door.  Do  not  over‐tighten  the  screws.  Note  that  the  two  main  causes  of  broken  door glass are uneven placement in the door and over‐tightening of retaining screws.    Do  not  abuse  the  glass  door  by  striking  or  slamming  shut.  Do  not  use  the  stove  if  the  glass  is  broken. To change the glass, perform the same operation described above. ...
  • Page 28: How Often Should You Clean The Chimney

      Matrix Installation and Operation Manual    5.2.2 HOW OFTEN SHOULD YOU CLEAN THE CHIMNEY?  It  is  not  possible  to  predict  how  much  or  how  quickly  creosote  will  form  in  your  chimney.  It  is  important,  therefore,  to  check  the  build‐up  in  your  chimney  monthly  when  getting  used  to  the  new  stove  until  you  determine  the  rate  of  creosote  formation.  Even  if  creosote  forms  slowly  in  your system, the chimney should be cleaned and inspected at least once each year.  ...
  • Page 29: Part B - Installation

      Matrix Installation and Operation Manual    PART B ‐ INSTALLATION  6 SAFETY INFORMATION  6.1 SUMMARY OF INSTALLATION CAUTIONS AND WARNINGS  • THE  INFORMATION  GIVEN  ON  THE  CERTIFICATION  LABEL  AFFIXED  TO  THE  APPLIANCE  ALWAYS  OVERRIDES  THE  INFORMATION  PUBLISHED,  IN  ANY  OTHER  MEDIA  (OWNER’S  MANUAL, CATALOGUES, FLYERS, MAGAZINES AND/OR WEB SITES).  • MIXING  OF  APPLIANCE  COMPONENTS  FROM  DIFFERENT  SOURCES  OR  MODIFYING  COMPONENTS MAY RESULT IN HAZARDOUS CONDTIONS. WHERE ANY SUCH CHANGES ARE ...
  • Page 30: Regulations Covering Stove Installation

      Matrix Installation and Operation Manual    6.2 REGULATIONS COVERING STOVE INSTALLATION  When installed and operated as described in these instructions, the Osburn Matrix wood stove is  suitable for use as a freestanding heater in residential installations. The Osburn Matrix wood stove  is not recommended for installation in a sleeping room of a mobile home.  In  Canada,  the  CSA  B365  Installation  Code  for Solid  Fuel Burning  Appliances  and  Equipment  and  the CSA C22.1 Canadian National Electrical Code are to be followed in the absence of local code  requirements. In the USA, the ANSI NFPA 211 Standard for Chimneys, Fireplaces, Vents and Solid  Fuel‐Burning Appliances and the ANSI NFPA 70 National Electrical Code are to be followed in the  absence of local code requirements.  This  stove  must  be  connected  to  a  chimney  complying  with  the  requirements  for  Type  HT  chimneys  in  the  Standard  for  Factory‐Built  Chimneys  for  Residential  Type  and  Building  Heating ...
  • Page 31: Clearances To Combustible Material

      Matrix Installation and Operation Manual    7 CLEARANCES TO COMBUSTIBLE MATERIAL  The clearances shown in this section have been determined by test according to procedures set  out in safety standards ULC S627 (Canada), UL1482 (U.S.A.) and UL737 (U.S.A.). When the stove is  installed  so  that  its  surfaces  are  at  or  beyond  the  minimum  clearances  specified,  combustible  surfaces will not overheat under normal and even abnormal operating conditions.   No  part  of  the  stove  or  flue  pipe  may  be  located  closer  to  combustibles  than  the  minimum  clearance figures given.    7.1 LOCATION OF THE CERTIFICATION LABEL ...
  • Page 32   Matrix Installation and Operation Manual    Clearances for mobile homes    MOBILE HOME CLEARANCES (DOUBLE WALL PIPE)    CANADA  USA  A  10" (254 mm)  10" (254 mm)  B  17" (432 mm)  17" (432 mm)  C  8" (203 mm)  8" (203 mm)  13½" (343 mm)  13½" (343 mm)  D  27½" (699 mm)  27½" (699 mm)  E  17½" (445 mm)  17½" (445 mm)  F  K  48" (1219 mm)  48" (1219 mm)  L  84" (213 cm)  84" (213 cm)    32  _ _____________________________________________________________________________   ...
  • Page 33   Matrix Installation and Operation Manual                        Clearances to combustible materials and floor protection    _ _____________________________________________________________________________  3 3 ...
  • Page 34: Floor Protector

      Matrix Installation and Operation Manual    7.3 FLOOR PROTECTOR  Your  stove  is  designed  to  keep  the  floor  from  overheating.  It  should  be  placed  on  a  non  combustible  surface  to  protect  the  floor  of  hot  embers  that  could  fall  from  the  stove  during  loading  and  maintenance.  As  shown  in  the  table  below  and  by  the  dotted  area  in  the  figure  Clearances ...
  • Page 35: Table Of Clearance Reduction Percentages

      Matrix Installation and Operation Manual    7.4.1 TABLE OF CLEARANCE REDUCTION PERCENTAGES  Clearances may be reduced      by these percentages    Sides   Top %    Type of shield  and rear %  (ceiling)  Sheet  metal,  a  minimum  of  24  gauge  (0.61 mm) in thickness , spaced out at  67  50  least  25 mm  (1 in)*  by  non‐ combustible spacers    Ceramic  tiles,  or  equivalent  non‐ combustible  material,  on  non‐...
  • Page 36: Shield Construction Rules

      Matrix Installation and Operation Manual    7.4.2 SHIELD CONSTRUCTION RULES  1. Minimum space behind shield: 25 mm (1 in.). In Canada 21 mm (7/8 in).  2. Minimum clearance along the bottom of shield: 25 mm (1 in.).  3. Maximum clearance along the bottom of shield: 75 mm (3 in.).  4. Minimum clearance along the top of shield at ceiling: 75 mm (3 in.).  5. Shield extension beyond each side of appliance: 450 mm (18 in.).  6. Shield extension above appliance: 500 mm (20 in.).  7. Edge clearance for ceiling shields: 75 mm (3 in.).  8. Adhesives  used  in  shield  construction  must  not  ignite  or  lose  adhesive  qualities  at  temperatures likely to be encountered.  9. Mounting hardware must allow full vertical ventilation.  10. Mounting  hardware  must  not  be  located  closer  than  200  mm  (8  in.)  from  the  vertical  centre line of the appliance. ...
  • Page 37: The Venting System

      Matrix Installation and Operation Manual    8 THE VENTING SYSTEM  8.1 GENERAL   The venting system, made up of the chimney and the connecting pipe between the stove and the  chimney,  acts  as  the  engine  that  drives  your  wood  heating  system.  Even  the  best  stove  will  not  function safely and efficiently as intended if it is not connected to a suitable chimney.   The heat in the flue gases that pass from the stove and chimney connector into the chimney is not  waste heat. This heat is what the chimney uses to make the draft that draws in combustion  air,  keeps smoke inside the stove and safely vents exhaust to outside. You can think of heat in the flue  gas as the fuel the chimney uses to make draft.    8.2 SUITABLE CHIMNEYS  Your  wood  stove  will  provide  optimum  efficiency  and  performance  when  connected  to  a  6‐inch  diameter chimney flue system. The connection to a chimney having a diameter of at least 5 inches ...
  • Page 38: Factory-Built Metal Chimneys

      Matrix Installation and Operation Manual    8.2.1 FACTORY‐BUILT METAL CHIMNEYS  These  are  sometimes  referred  to  as  ‘high  temp’  chimneys  because  they  have  the  special  characteristics  to  withstand  the  temperatures that can be created by wood  burning stoves. Factory‐built chimneys are  tested  as  a  system  with  all  the  necessary  components  for  installation.  The  instructions provided with the chimney by  its  manufacturer  are  the  only  reliable  source of installation guidelines. To be safe ...
  • Page 39   Matrix Installation and Operation Manual    8.2.2 FACTORY‐BUILT  METAL  CHIMNEYS  IN MOBILE HOMES  For  use  in  a  mobile  home,  this  stove  is  to  be  connected  to  a  6”  in  diameter  double  wall  factory  built  chimney  conforming  to  CAN/UCL‐S629,  Standards  for  650°C  Factory‐built  chimney.  The  total  length  of  the ...
  • Page 40: Masonry Chimneys

      Matrix Installation and Operation Manual    8.2.3 MASONRY CHIMNEYS  The  stove  may  also  be  connected  to  a  masonry  chimney,  provided  the  chimney  complies with the construction rules found  in  the  building  code  enforced  locally.  The  chimney must have either a clay liner or a  suitably  listed  stainless  steel  liner.  If  the  masonry  chimney  has  a  square  or  rectangular  liner  that  is  larger  in  cross  sectional ...
  • Page 41: The Relationship Between The Chimney And The House

      Matrix Installation and Operation Manual    8.4 THE RELATIONSHIP BETWEEN THE CHIMNEY AND THE HOUSE  Because the venting system is the engine that drives the wood heating system, it must have the  right characteristics. The signs of bad system design are cold backdrafting when there is no fire in  the  stove,  slow  kindling  of  new  fires,  and  smoke  roll‐out  when  the  door  is  opened  for  loading.  There are two guidelines to follow. First, the chimney should be installed up through the heated  space of the house, not out and up an outside wall. Second, the chimney should penetrate the top  of the building at or near the highest heated space.   8.4.1 WHY INSIDE CHIMNEYS ARE PREFERRED  Venting  systems  that  rise  straight  up  from  the  stove  flue  collar  provide  the  best  performance.  Chimneys that rise inside the warm space of ...
  • Page 42: Why The Chimney Should Penetrate The Highest Heated Space

      Matrix Installation and Operation Manual    8.4.2 WHY THE CHIMNEY SHOULD PENETRATE THE HIGHEST HEATED SPACE  When it is cold outside, the warm air in the house is buoyant so it tends to rise. This tendency of  warm air to rise creates a slight pressure difference in the house. Called ‘stack effect’, it produces  a slightly negative pressure low in the house (relative to outside) and a slightly positive pressure  zone  high  in  the  house.  If  there  is  no  fire  burning  in  a  heater  connected  to  a  chimney  that  is  shorter than the warm space inside the house, the slight negative pressure low in the house will  compete against the desired upward flow in the chimney.  There  are  two  reasons  why  the  chimney  in  the  house  at  right  will  cold backdraft when it is cold outside ...
  • Page 43: Air Supply In Conventional Houses

      Matrix Installation and Operation Manual    Note:  Fabric  duct  may  also  be  used,  provided  it  is  suitable  for  HVAC  use  and  meets  the  requirements of ULC‐S110 or UL‐181 Class 1 standards.  It must have a non‐combustible insulation  and be corrosion resistant.  Where a  mobile  home has  been  converted  to a  standard house  by  mounting  it  on  a  permanent  basement foundation, the supply of outdoor air is not required.  8.5.2 AIR SUPPLY IN CONVENTIONAL HOUSES  The  safest  and  most  reliable  supply  of  combustion  air  for  your  wood  stove  is  from  the  room  in  which it is installed. Room air is already preheated so it will not chill the fire, and its availability is ...
  • Page 44   Matrix Installation and Operation Manual    The best flue pipe assembly is one that rises straight up from the stove to the base of the chimney  with no elbows. Straight assemblies are less likely to cause problems like smoke roll‐out when the  door is opened for loading. They are also more stable and easier to maintain than assemblies with  elbows.  Horizontal  runs  of  flue  pipe  should  be  avoided  where  possible  because  they  reduce  chimney draft.      Use 45 degree elbows where possible, instead of 90 degree elbows.  The  rules  below  are  based  on  those  found  in  the  CSA  B365  installation  code.  Please  carefully  follow these installation instruction rules, or those enforced where you live.  •...
  • Page 45   Matrix Installation and Operation Manual    • The assembly should be as short and direct as possible between the stove and chimney. The  use  of  two  45  degree  elbows  is  often  preferable  to  a  single  90  degree  elbow  because  less  turbulence is created in the exhaust flow and they result in less horizontal run.  • Maximum number of 90‐degree elbows: 2.   • Maximum unsupported horizontal length: 1 m (3 feet).  • Galvanized  flue  pipes  must  not  be  used  because  the  coatings  vaporize  at  high  temperatures  and release dangerous gases. Use black painted flue pipes. ...
  • Page 46   Matrix Installation and Operation Manual    APPENDIX 1: REVERSING THE DOOR OPENING AND ADJUSTING THE  HANDLE    The Matrix is equipped with a reversible door in case you prefer a door opening on the other side.  Follow the steps below if you wish to avail yourself of this feature:   Remove the top decorative stones (A). Then the decorative top (B) by lifting the side of the flue  and sliding it towards the back to release it from the front linkage.   Remove the screw (J) and the handle (K) from the air control lever.   Slightly unscrew the screws (F) securing the air control cover (D).   Slightly unscrew the screws securing the cast iron facing (C) and (E) then lift each piece 1/2" in  order to remove them.   Remove supports (G) and (H) by slightly unscrewing the 4 screws (I), then lift each piece 1/2" in  order to remove them.       46  _ _____________________________________________________________________________   ...
  • Page 47   Matrix Installation and Operation Manual     Remove the latch (M) and reinstall the screws (L) that were securing the assembly into the holes. Note: To avoid dropping the door due to its weight, get help from another person to perform the following steps. ...
  • Page 48: Appendix 2: Installing The Decorative Panels

      Matrix Installation and Operation Manual    APPENDIX 2: INSTALLING THE DECORATIVE PANELS    To install the decorative panels follow the steps below:   Remove the top decorative stones (A). Then the decorative top (B) by lifting the side of the flue  and sliding it towards the back to release it from the front linkage.   Slightly loosen the screws (C) securing the decorative panel/stone support (D) and (E) on each  side of the stove without removing them.        48  _ _____________________________________________________________________________   ...
  • Page 49   Matrix Installation and Operation Manual     For the installation of steel panels, insert the bottom decorative trim (F) then complete the assembly by alternating panels (G) and decorative trim (H) by sliding them into the spaces (K) and (L).    For the installation of stone panels, insert the bottom decorative trim (J) then complete the assembly by alternating panels (I) and decorative trim (H) by sliding them into the spaces (K) and (L).
  • Page 50   Matrix Installation and Operation Manual     Tighten screws (C) in order to secure the panels assembly.  Reinstall the decorative top and decorative stones.   50  _ _____________________________________________________________________________   ...
  • Page 51: Appendix 3: Installing The Fresh Air Kit

      Matrix Installation and Operation Manual    APPENDIX 3: INSTALLING THE FRESH AIR KIT     This stove may be connected to a fresh air kit, sold separately.  Parts needed to complete the connection are :  (A) – 49030, COLLAR 4 1/2" A 6 1/2". (2x)  (B) – AC02090, INSULATED FRESH AIR INTAKE PIPE (4' LENGTH / 5'' DIAMETER). (1x)  (C) – 49028, 5" WHITE INTAKE CAP. (1x)  You can purchase the above parts through your Osburn dealer.          _ _____________________________________________________________________________  5 1 ...
  • Page 52: Appendix 4: Installing The Fire Screen (Ac01315)

      Matrix Installation and Operation Manual    APPENDIX 4: INSTALLING THE FIRE SCREEN (AC01315)  Open the door.    Hold the fire screen by the two handles  and bring it close to the door opening.    Lean  the  upper  part  of  the  fire  screen  against  the  top  door  opening  making  sure  to  insert  the  top  fire  screen  brackets  behind  the  primary  air  deflector as in (Detail A).  Lift  the  fire  screen  upwards  and  push  the ...
  • Page 53: Appendix 5: Installation And Use Of The Air Circulation Fan And Thermodisc

    THERMODISC    Your Osburn stove comes with a fan assembly and a thermodisc kit.  The fan assembly is secured  to  the  back  of  the  stove  using  4  screws  (screws  #10  x  ½’’  type  ‘’a’’  pan  quadrex  black.    The  fan  increases  the  flow  of  air  past  heat  exchange  surfaces  and  help  circulate  warm  air  in  the  room. ...
  • Page 54   Matrix Installation and Operation Manual    B  C  A      When  using  the  fan  without  the  thermodisc,  allow  the  stove  to  reach  operating  temperature  (approximately  one  hour),  before  turning  it  on.  The  increased  airflow  from  the  fan  cools  the  firebox and could affect the start‐up combustion efficiency if the fan is turned on too early.  ‐ ‐  CAUTION:  ENSURE  THAT  THE  FAN’S  AND/OR  THE  THERMODISC’S  POWER  CORD  ARE  NOT  IN  CONTACT WITH ANY SURFACE OF THE STOVE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. ...
  • Page 55: Appendix 6: Installation Of Secondary Air Tubes And Baffle

      Matrix Installation and Operation Manual    APPENDIX 6: INSTALLATION OF SECONDARY AIR TUBES AND BAFFLE    1‐ Starting with the rear tube, lean and insert  the right end of the secondary air tube into  the rear right channel hole.  Then lift and  insert the left end of the tube into the rear  left channel.      2‐ Align the notch in the left end of the tube  with the key of the left air channel hole.   Using a « Wise grip » hold the tube and lock  it in place by turning the tube as shown in  DETAIL A.  Make sure the notch reaches the  end of the key way.  3‐ Repeat step 1 and 2 for the other secondary  air tubes.  4‐ To remove the tubes use the above steps in  reverse order.          _ _____________________________________________________________________________  5 5 ...
  • Page 56   Matrix Installation and Operation Manual    Note that secondary air tubes (B) can be replaced without removing the baffle board (A).        Important Notes:  The air tubes are identified for placement as follows:  Model  Type of tube  Matrix stove  Front ► 30 holes of 0.147"  Middle front ► 30 holes of 0.136"  Middle rear ► 20 holes of 0.128"  Rear ► 15 holes of 0.128"    56  _ _____________________________________________________________________________   ...
  • Page 57: Appendix 7: Exploded Diagram And Parts List

      Matrix Installation and Operation Manual    APPENDIX 7: EXPLODED DIAGRAM AND PARTS LIST        _ _____________________________________________________________________________  5 7 ...
  • Page 58   Matrix Installation and Operation Manual    IMPORTANT:  THIS  IS  DATED  INFORMATION.  When  requesting  service  or  replacement  parts  for  your  stove,  please  provide  the  model  number  and  the  serial  number.  We  reserve  the  right  to  change parts due to technology upgrade or availability. Contact an authorized dealer to obtain any  of  these  parts.  Never  use  substitute  materials.  Use  of  non‐approved  parts  can  result  in  poor  performance and safety hazards. ...
  • Page 59   Matrix Installation and Operation Manual    #  Item  Description  Qté 36  30187  ZINC WASHER ID 17/64" x OD 1/2"  1  37  30450  OSBURN DOOR LOGO  1  38  SE24252  RIGHT CAST IRON FRONT BASE FINISH  1  39  PL65667  LATCH ACCESS PLATE  1  40  30131  BLACK METAL SCREW #10  X 1/2" TYPE "A" PAN QUADREX  2  41  SE65659  LEFT DECORATIVE PANEL ATTACHMENT FRAME  1  42  99999  BUILD TO ORDER  1  43  22220  TOP SOAP STONE KIT  1  44  SE65647 ...
  • Page 60: Osburn Limited Lifetime Warranty

    *Pictures required    Shall your unit or a components be defective, contact immediately your OSBURN dealer. Prior to your call make sure  you have the following information necessary to your warranty claim treatment:      Your name, address and telephone number;   Serial number and model name as indicated on the   nameplate fixed to the back of your unit;  Bill of sale and dealer’s name;   Nature of the defect and any relevant information.    Before  shipping  your  unit  or  defective  component  to  our  plant,  you  must  obtain  from  your  OSBURN  dealer  an  Authorization Number. Any merchandise shipped to our plant without authorization will be refused automatically  and returned to sender.  60  _ _____________________________________________________________________________   ...
