SAFLOK™ STEEL STRUCTURE FALL ARREST SYSTEM
This manual is intended to meet the Manufacturer's Instructions requirement of applicable standards defi ned in
Section 1.2 and should be used as part of an employee training program as required by the identifi ed agencies.
WARNING: This product is part of a personal fall arrest system
manufacturer's instructions for each component or part of the complete system. These instructions must be
provided to the user of this equipment. The user must read and understand these instructions or have them
explained to them before using this equipment. Manufacturer's instructions must be followed for proper use and
maintenance of this product. Alterations or misuse of this product or failure to follow instructions may result in
serious injury or death.
1
IMPORTANT: If you have questions on the use, care, or suitability of this equipment for your application,
contact Capital Safety.
IMPORTANT: Record the product identifi cation information from the ID label in the Inspection and Maintenance
Log in Section 9.
DESCRIPTION:

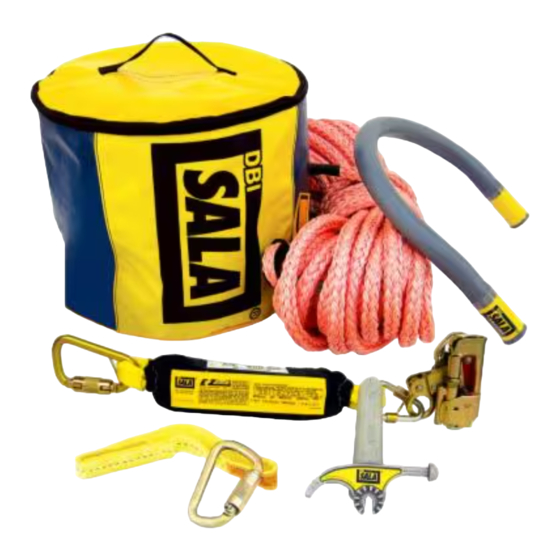

Figure 1 illustrates the components that comprise the Safl ok
Steel Structure Fall Arrest System consists of a dielectric Vertical Lifeline Rope (A) passing through a formed
Anchor Tube (B). The Anchor Tube drapes over steel lattice or steel beam structures and is placed with a
Telescoping Hot Stick (C) and attached Installation/Removal Tool (D) to suspend the lifeline vertically for
attachment of a fall arrest subsystem: Rope Grab (E) with Shock Absorber (F), and Full Body Harness. A Web
Strap (H) is provided to secure the bottom end of the lifeline to the base of the structure.
Item
Description
A
Vertical Lifeline Rope
B
Anchor Tube
C
Telescoping Hot Stick
(purchased separately)
D
Installation/Removal Tool
E
Rope Grab with
F
Shock Absorber
G
Web Strap
H
Carabiner
I
Carrying Bag
2-Rope Grabs:
Model 2104810 comes with Fuji Rope Grab
Model 2104811 comes with Protecta Rope Grab
I
B
A
F
E
G
D
H
1 Fall Arrest System: A system that prevents the worker from colliding with an obstruction or lower level by arresting a fall.
Form: 5903151 Rev: A
USER INSTRUCTION MANUAL:

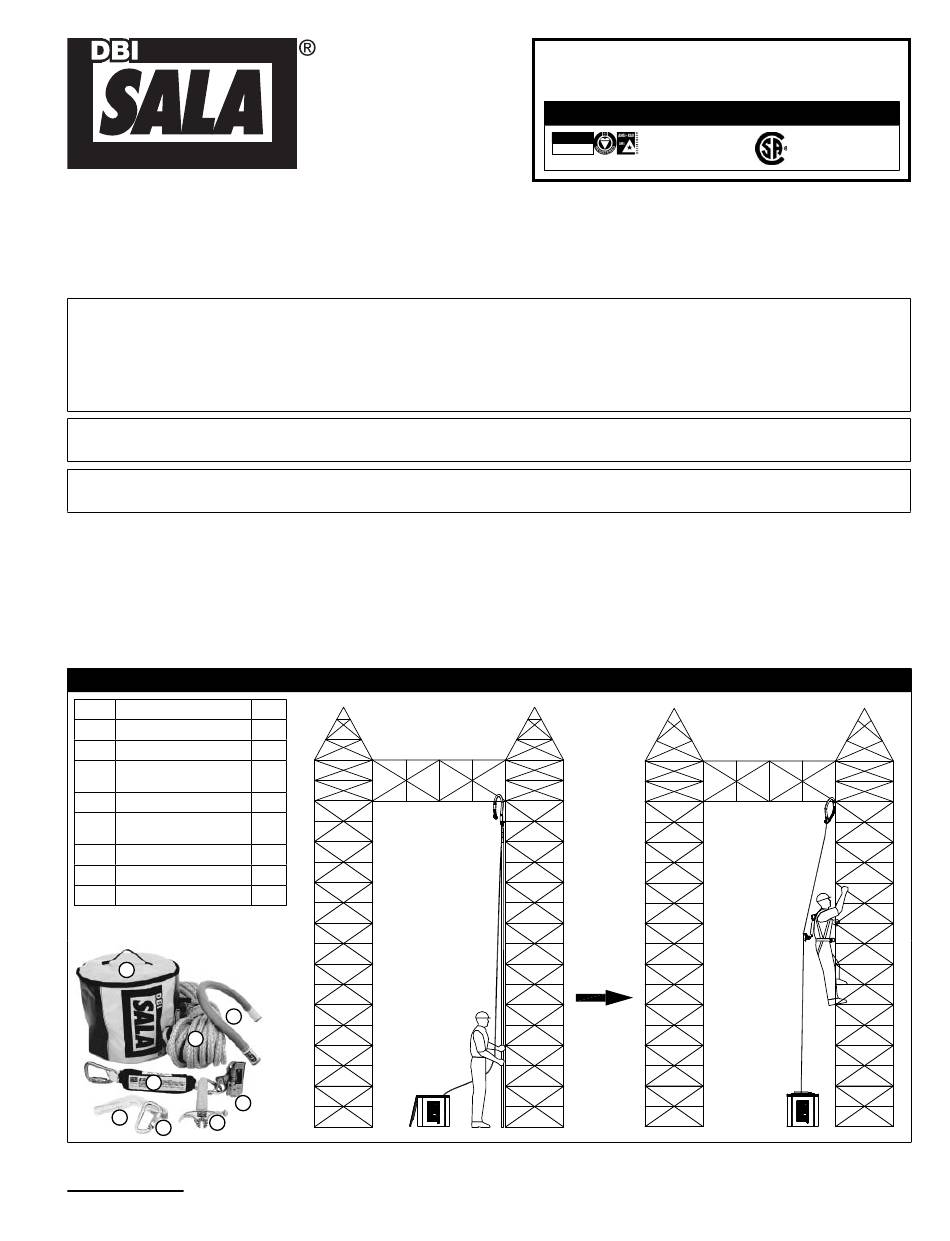

Figure 1 – Safl ok™ Steel Structure Fall Arrest System
Qty.
1
1
0
1
1
1
1
1
1
Safl ok
Steel Structure Fall Arrest System
I S O
2104810
9 0 0 1
ANSI Z359-1
Certificate No. FM 39709
. The user must read and follow the
1
Steel Structure Fall Arrest System. The
™
© Copyright 2011, DB Industries, Inc.
™
Models
2104811
CSA Z259.2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saflok 2104810 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DBI SALA Saflok 2104810

Summary of Contents for DBI SALA Saflok 2104810

  • Page 1 Safl ok ™ Steel Structure Fall Arrest System Models I S O 2104810 2104811 9 0 0 1 ANSI Z359-1 CSA Z259.2.1 Certificate No. FM 39709 USER INSTRUCTION MANUAL: SAFLOK™ STEEL STRUCTURE FALL ARREST SYSTEM This manual is intended to meet the Manufacturer’s Instructions requirement of applicable standards defi ned in Section 1.2 and should be used as part of an employee training program as required by the identifi...
  • Page 2 1.0 APPLICATION PURPOSE: The Safl ok Steel Structure Fall Arrest System is is a Vertical Lifeline System for use as part of a Personal ™ Fall Arrest System (PFAS) when climbing and working on steel structures (I-Beam, Angle Iron, Bar Joist, Lattice Steel, etc.) in powerplants, substations, switchyards, manufacturing facilities, construction sites, etc.
  • Page 3 COMPATIBILITY OF CONNECTORS: Connectors are considered to be compatible with connecting elements when they have been designed to work together in such a way that their sizes and shapes do not cause their gate mechanisms to inadvertently open regardless of how they become oriented. Connectors (hooks, carabiners, and D-rings) must be capable of supporting at least 5,000 lbs.

  • Page 4: System Installation

    3.0 SYSTEM INSTALLATION PLANNING: Plan your Fall Arrest System before using the Safl ok Steel Structure System. Consider all ™ limitations and requirements defi ned in Section 2 and the following logistical aspects: ANCHORAGE: Figure 4 illustrates anchorage of the Vertical Lifeline with the Anchor Tube. The Anchor Tube hangs the Vertical Lifeline securely on the desired structure and shields the rope from potential abrasion with sharp edges.
  • Page 5 SHARP EDGES: Avoid working where the Steel Structure System and attached subsystems will contact or abrade against unprotected sharp edges. Do not loop the Lifeline around small diameter structural members with sharp edges. If working with the Steel Structure System around sharp edges is unavoidable, apply a heavy pad over the exposed sharp edge.

  • Page 6: System Operation

    Hanging the Rope Hanging the Rope Figure 8 – Figure 9 – Step 4. Hang the Anchor Tube over the Structure at the Anchorage Point: Lift up on the Extension Pole slightly and then twist the Anchor Tube into position on the desired anchorage point(s).
  • Page 7 Figure 10 – Safl ok Steel Structure System Use A - Fujii Denko Rope Grab B - Protecta Cobra Rope Grab C - Shock Absorber D - Dorsal D-Ring BEFORE EACH USE: Inspect the components of the Steel Structure System according to the Inspection Guidelines (Section 5.2).
  • Page 8 IMPORTANT: To ensure optimal safety when using the Rope Grab and Vertical Lifeline Rope: • Always protect the lifeline if passing over or around sharp edges. Sharp edges can reduce rope strength by 70% or more. • Keep lifelines clean. •...
  • Page 9 Figure 12 – Protecta Cobra Rope Grab (9505119) Attaching the Rope Grab to the Vertical Lifeline Rope: 1. Ensure the Rope Grab is in the ‘UP’ position with the arrow (A) on the the Rope Grab pointing toward the top of the structure. The Rope Grab incorporates a Gravity-Lock Pin which slides out and prevents the Lifeline Sleeve from mating with the Rope Grab Cam if the Rope Grab is not held upright.
  • Page 10 5.0 INSPECTION FREQUENCY: • Before Each Use: Visually inspect all components of the Safl ok Steel Structure Fall Arrest System per the guidelines defi ned in Section 5.2. Check the labels on theShock Absorber and Vertical Lifeline Rope (see Section 8) to verify that annual inspection is current. If the condition of any component in the system is in doubt, do not use.
  • Page 11 Before Every After Protecta Cobra Rope Grab: Reference Figure 14. Each Use Year a Fall Inspect the Attachment Eye (B) and Locking Cam (A) to ensure that the cam moves freely without hesitation, binding, or sticking. Inspect the Locking Cam (A) and ensure that the teeth are not rounded or worn. Inspect the Locking Cam (A) Lever Spring and Auto-Locking Lever Springs.

  • Page 12: Maintenance, Storage, And Transport

    Before Every After Shock Absorber: Reference Figure 15. Each Use Year a Fall Inspect the condition of the Carabiner (A) and Delta Link (B). They must not be damaged or broken. They should be free of any sharp edges, burrs, cracks, worn parts, or corrosion.

  • Page 13: Specifications

    7.0 SPECIFICATIONS STANDARDS: When installed and used per the requirements and recommendations in this manual, the Safl ok Steel Structure Fall Arrest System meets standards and requirements defi ned in Section 1.2. SYSTEM: CAPACITY: ◊ One User - 310 lbs (140 kg) WEIGHT: ◊...
  • Page 14 8.0 LABELING The following labels must be securely attached and fully legible: ANSI ANSI...

  • Page 15: Inspection And Maintenance Log

    9.0 INSPECTION AND MAINTENANCE LOG SERIAL NUMBER: MODEL NUMBER: DATE PURCHASED: DATE OF FIRST USE: INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...

  • Page 16: Limited Lifetime Warranty

    LIMITED LIFETIME WARRANTY Warranty to End User: D B Industries, Inc., dba CAPITAL SAFETY USA (“CAPITAL SAFETY”) warrants to the original end user (“End User”) that its products are free from defects in materials and workmanship under normal use and service. This warranty extends for the lifetime of the product from the date the product is purchased by the End User, in new and unused condition, from a CAPITAL SAFETY authorized distributor.
