SEALED-BLOK™ SELF RETRACTING LIFELINES
This manual is intended to meet the Manufacturer's Instructions as required by ANSI Z359.1 and The Canadian
Standards Association (CSA), and should be used as part of an employee training program as required by OSHA.
WARNING: This product is part of a personal fall arrest system
manufacturer's instructions for each component or part of the complete system. These instructions must be
provided to the user of this equipment. The user must read and understand these instructions or have them
explained to them before using this equipment. Manufacturer's instructions must be followed for proper use and
maintenance of this product. Alterations or misuse of this product or failure to follow instructions may result in
serious injury or death.
1
IMPORTANT: If you have questions on the use, care, or suitability of this equipment for your application,
contact Capital Safety.
IMPORTANT: Record the product identifi cation information from the ID label in the Inspection and Maintenance
Log in Section 9 of this manual.
DESCRIPTION:

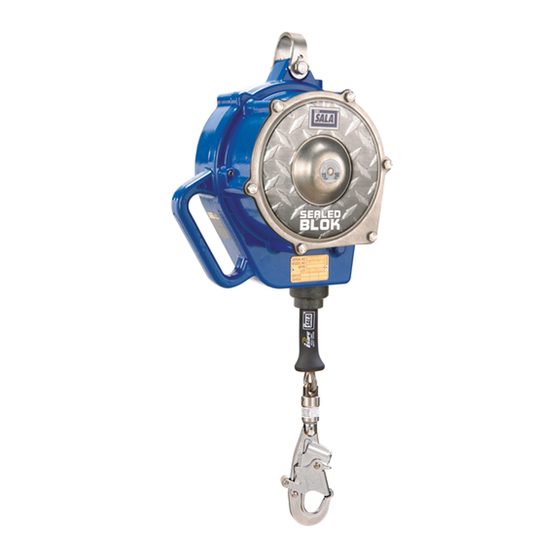

Sealed-Blok™ Self Retracting Lifelines (SRLs) provide fall protection and worker mobility in a sealed enclosure
designed to keep critical components free of dirt, grease, water and chemicals. See Figure 1 for available
Sealed-Blok™ SRL models and features.
A
Anchorage Handle
B
Instruction Label
C
Housing
D
ID Label
E
Cable Guide
F
Lifeline
G Bumper
H
Self Locking Snap Hook
MODEL DESCRIPTIONS: See inside back cover for model descriptions. Model numbers ending with "C" designate CSA certifi ed models
1 Fall Arrest System: A system that prevents the worker from colliding with an obstruction or lower level by arresting a fall.
Form: 5903059 Rev: B
netzerotools.com
netzerotools.com
USER INSTRUCTION MANUAL

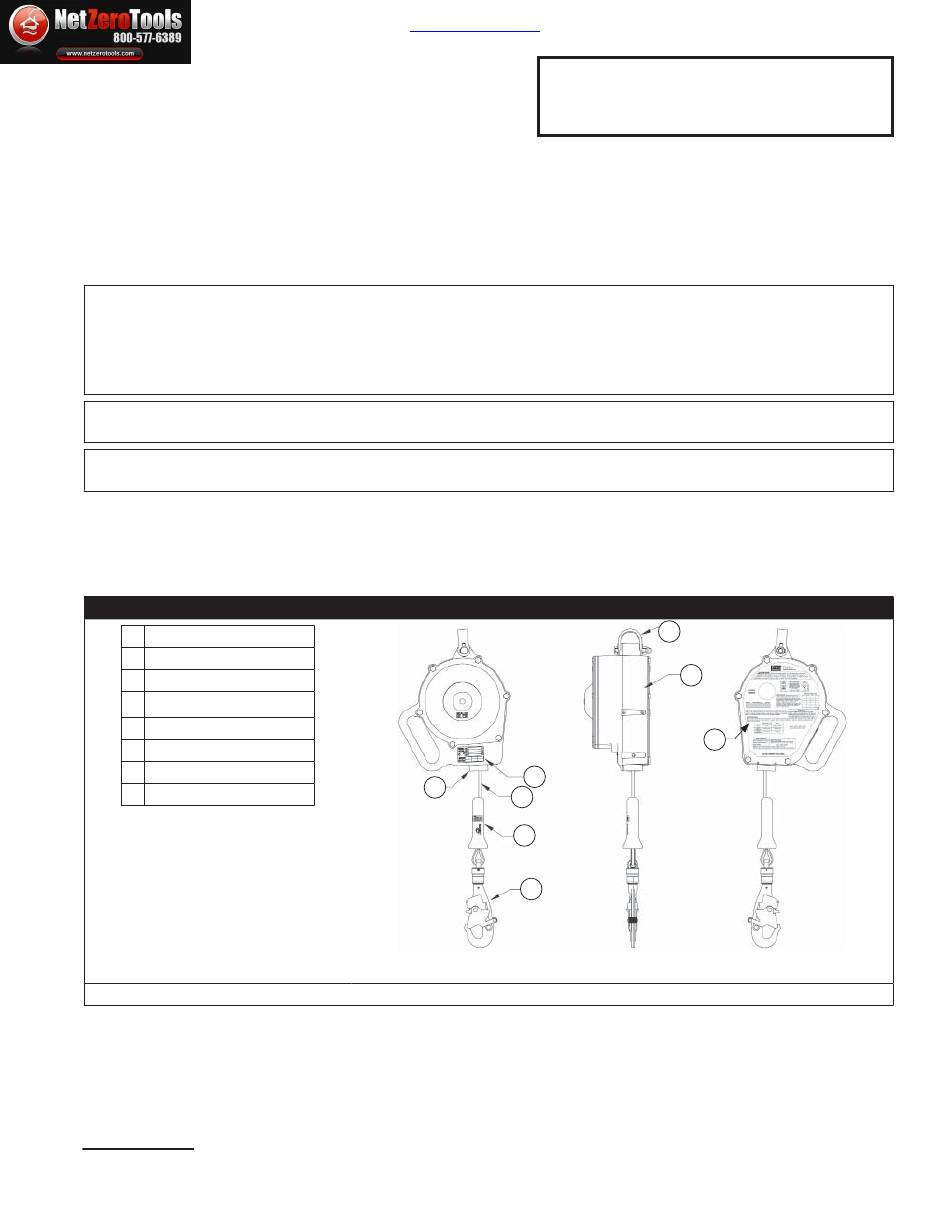

Figure 1 - Sealed-Blok™ Self Retracting Lifelines
E
netzerotools.com
Sealed-Blok™
Self Retracting Lifelines
Model Numbers: (See inside back cover.)
. The user must read and follow the
1
A
C
D
F
G
H
Sealed-Blok™SRL
© Copyright 2011, DB Industries, Inc.
B
Advertisement
Table of Contents
Related Manuals for DBI SALA Sealed-Blok 3400900
Summary of Contents for DBI SALA Sealed-Blok 3400900
- Page 1 netzerotools.com netzerotools.com Sealed-Blok™ Self Retracting Lifelines Model Numbers: (See inside back cover.) USER INSTRUCTION MANUAL SEALED-BLOK™ SELF RETRACTING LIFELINES This manual is intended to meet the Manufacturer’s Instructions as required by ANSI Z359.1 and The Canadian Standards Association (CSA), and should be used as part of an employee training program as required by OSHA. WARNING: This product is part of a personal fall arrest system .
- Page 2 DBI SALA 3400611 Sealed Blok Self Retracting Lifeline 175 Ft. DBI SALA 3400612 Sealed Blok Self Retracting Lifeline 175 Ft. DBI SALA 3400610 Sealed Blok Galvanized Self Retracting Lifeline 175 Ft. DBI SALA 3400979 Sealed Blok Galvanized Self Retracting Lifeline 130 Ft.
- Page 3 netzerotools.com netzerotools.com 1.0 APPLICATION PURPOSE: Sealed-Blok™ Self Retracting Lifelines (SRLs) are designed to be a component in a personal fall arrest system (PFAS). They may be used in most situations where a combination of worker mobility and fall protection is required (i.e. inspection work, general construction, maintenance work, oil production, confi ned space work, etc.).
- Page 4 netzerotools.com netzerotools.com FREE FALL: When used correctly, SRLs will limit the free fall distance to 2 ft. or less per OSHA. To avoid increased fall distances, do not work above the anchorage level. Avoid working where your lifeline may cross or tangle with that of another worker.
- Page 5 netzerotools.com netzerotools.com 2.12 COMPATIBILITY OF COMPONENTS: Unless otherwise noted, Capital Safety equipment is designed for use with Capital Safety approved components and subsystems only. Substitutions or replacements made with non approved components or subsystems may jeopardize compatibility of equipment and may affect safety and reliability of the complete system: •...
-
Page 6: Installation
netzerotools.com netzerotools.com 3.0 INSTALLATION PLANNING: Plan your fall protection system before starting your work. Account for all factors that may affect your safety before, during, and after a fall. Consider all system requirements and limitations defi ned in Section 2. ANCHORAGE: Select an anchorage location with minimal free fall and swing fall hazards (see Section 2). - Page 7 netzerotools.com netzerotools.com BODY SUPPORT: A full body harness must be worn when using DBI-SALA SRLs. For general fall protection use connect to the back (dorsal) D-ring. For situations such as ladder climbing, it may be useful to connect to the front of the harness. This is acceptable provided potential free fall is very short and footing can be easily regained.
- Page 8 netzerotools.com netzerotools.com person other than the user. More frequent inspections by a competent person may be required based on the nature and severity of workplace conditions affecting the equipment and the modes of use and exposure time of the equipment. See sections 5.2, 5.3, and 5.4 for inspection guidelines. Record results in the inspection and maintenance log in section 9.0.
- Page 9 netzerotools.com netzerotools.com Figure 7 - Impact Indicator IMPACT INDICATOR: To inspect the impact indicator, look for exposed color band on hook as shown in Figure 7. If the hook is in the “indicated mode,” an impact loading has occurred. SRLs which have been subjected to impact loading must be removed from service for inspection.
-
Page 10: Maintenance, Service, And Storage
netzerotools.com netzerotools.com 6.0 MAINTENANCE, SERVICE, AND STORAGE Periodically clean the exterior of the SRL using water and a mild soap solution. Position the SRL so excess water can drain out. Clean labels as required. Clean lifeline with water and mild soap solution. Rinse and thoroughly air dry. Do not force dry with heat. An excessive buildup of dirt, paint, etc. - Page 11 netzerotools.com netzerotools.com Figure 10 - Specifi cations 7.1 MATERIALS: Lifeline (Galvanized) 3/16in. dia., 7x19 aircraft wire rope, 4,200 lbs. minimum tensile strength Lifeline (Stainless Steel) 3/16in. dia., 7x19 aircraft wire rope, 3,600 lbs. minimum tensile strength Cable Guide Nylon Housing Cast Aluminum Cable Bumper Urethane...
- Page 12 netzerotools.com netzerotools.com 8.0 LABELING ALL MODELS: Length Label i-Safe Label Front Label Identifi cation Label ANSI MODELS: Housing Labels CSA MODELS: Housing Labels Replace label if it is not securely attached and fully legible. netzerotools.com netzerotools.com...
-
Page 13: Inspection And Maintenance Log
netzerotools.com netzerotools.com 9.0 INSPECTION AND MAINTENANCE LOG SERIAL NUMBER: MODEL NUMBER: DATE PURCHASED: DATE OF FIRST USE: INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:... - Page 14 netzerotools.com netzerotools.com INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...
- Page 15 netzerotools.com netzerotools.com netzerotools.com netzerotools.com...
-
Page 16: Model Numbers
netzerotools.com netzerotools.com 10.0 MODEL NUMBERS ANSI Description Models Models 3400900 3400900C SEALED SELF RETRACTING LIFELINE: 50 feet of 3/16 inch galvanized wire rope, self locking plated steel swiveling snap hook with indicator. 3400901 3400901C SEALED SELF RETRACTING LIFELINE: 50 feet of 3/16 inch stainless wire rope, self locking plated steel swiveling snap hook with indicator. -
Page 17: Limited Lifetime Warranty
netzerotools.com netzerotools.com LIMITED LIFETIME WARRANTY Warranty to End User: D B Industries, Inc., dba CAPITAL SAFETY USA (“CAPITAL SAFETY”) warrants to the original end user (“End User”) that its products are free from defects in materials and workmanship under normal use and service. This warranty extends for the lifetime of the product from the date the product is purchased by the End User, in new and unused condition, from a CAPITAL SAFETY authorized distributor.
