The Ultimate in Fall Protection

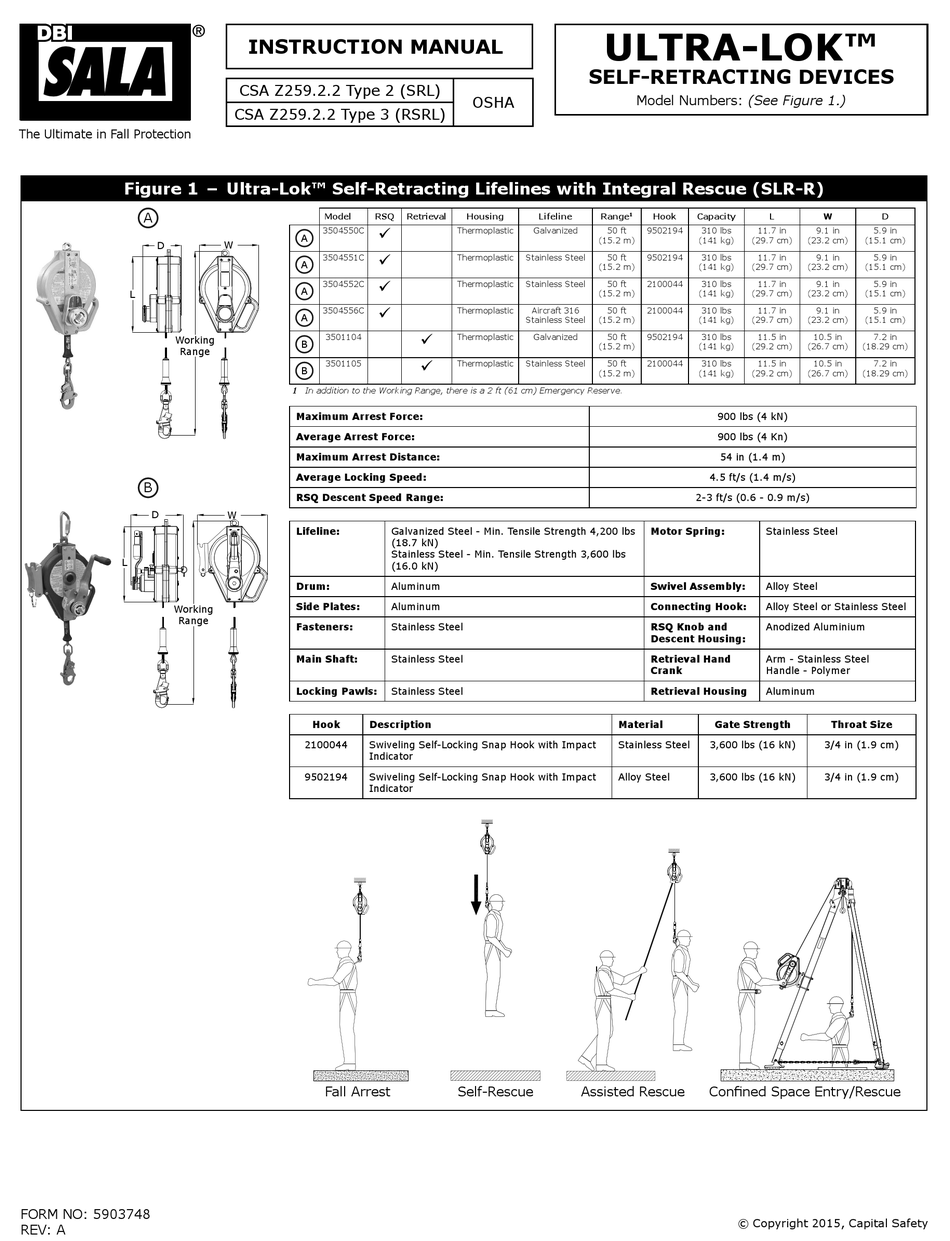

Figure 1 – Ultra-Lok™ Self-Retracting Lifelines with Integral Rescue (SLR-R)
A
D
L
Working
Range
B
D
L
Working
Range
FORM NO: 5903748
REV: A
INSTRUCTION MANUAL
CSA Z259.2.2 Type 2 (SRL)
CSA Z259.2.2 Type 3 (RSRL)
Model
RSQ
3504550C
A
W
3504551C
A
3504552C
A
3504556C
A
3501104
B
3501105
B
1 In addition to the Working Range, there is a 2 ft (61 cm) Emergency Reserve.
Maximum Arrest Force:
Average Arrest Force:
Maximum Arrest Distance:
Average Locking Speed:
RSQ Descent Speed Range:
W
Lifeline:
Galvanized Steel - Min. Tensile Strength 4,200 lbs
(18.7 kN)
Stainless Steel - Min. Tensile Strength 3,600 lbs
(16.0 kN)
Drum:
Aluminum
Side Plates:
Aluminum
Fasteners:
Stainless Steel
Main Shaft:
Stainless Steel
Locking Pawls:
Stainless Steel
Hook
Description
2100044
Swiveling Self-Locking Snap Hook with Impact
Indicator
9502194
Swiveling Self-Locking Snap Hook with Impact
Indicator
Fall Arrest
OSHA
Retrieval
Housing
Lifeline
Thermoplastic
Galvanized
Thermoplastic
Stainless Steel
Thermoplastic
Stainless Steel
Thermoplastic
Aircraft 316
Stainless Steel
Thermoplastic
Galvanized
Thermoplastic
Stainless Steel
Self-Rescue
Assisted Rescue
ULTRA-LOK™
SELF-RETRACTING DEVICES
Model Numbers: (See Figure 1.)
Range
Hook
Capacity
1
50 ft
9502194
310 lbs
11.7 in
(15.2 m)
(141 kg)
(29.7 cm)
50 ft
9502194
310 lbs
11.7 in
(15.2 m)
(141 kg)
(29.7 cm)
50 ft
2100044
310 lbs
11.7 in
(15.2 m)
(141 kg)
(29.7 cm)
50 ft
2100044
310 lbs
11.7 in
(15.2 m)
(141 kg)
(29.7 cm)
50 ft
9502194
310 lbs
11.5 in
(15.2 m)
(141 kg)
(29.2 cm)
50 ft
2100044
310 lbs
11.5 in
(15.2 m)
(141 kg)
(29.2 cm)
900 lbs (4 kN)
900 lbs (4 Kn)
54 in (1.4 m)
4.5 ft/s (1.4 m/s)
2-3 ft/s (0.6 - 0.9 m/s)
Motor Spring:
Stainless Steel
Swivel Assembly:
Alloy Steel
Connecting Hook:
Alloy Steel or Stainless Steel
RSQ Knob and
Anodized Aluminium
Descent Housing:
Retrieval Hand
Arm - Stainless Steel
Crank
Handle - Polymer
Retrieval Housing
Aluminum
Material
Gate Strength
Stainless Steel
3,600 lbs (16 kN)
Alloy Steel
3,600 lbs (16 kN)
Confi ned Space Entry/Rescue
© Copyright 2015, Capital Safety
L
W
D
9.1 in
5.9 in
(23.2 cm)
(15.1 cm)
9.1 in
5.9 in
(23.2 cm)
(15.1 cm)
9.1 in
5.9 in
(23.2 cm)
(15.1 cm)
9.1 in
5.9 in
(23.2 cm)
(15.1 cm)
10.5 in
7.2 in
(26.7 cm)
(18.29 cm)
10.5 in
7.2 in
(26.7 cm)
(18.29 cm)
Throat Size
3/4 in (1.9 cm)
3/4 in (1.9 cm)
