Supplemental Instruction to:
Sealed Self Retracting Lifeline
(See back page for specific model numbers.)
SuPPlEmENTal INSTRuCTION
uSER INSTRuCTION maNual
SEalED SElf RETRaCTINg lIfElINE
Use this Supplemental Instruction with
Sealed Self Retracting Lifeline User Instruction Manual 5902122.
This supplement includes additional information for the following sections:
Descriptions, 3.6 Retrieval System Operation, 3.7 Retrieval Overload Feature, 5.6
.
Inspection Steps f or Retrieval Components, 7 Specifications, and 9 Labels

DESCRIPTIONS

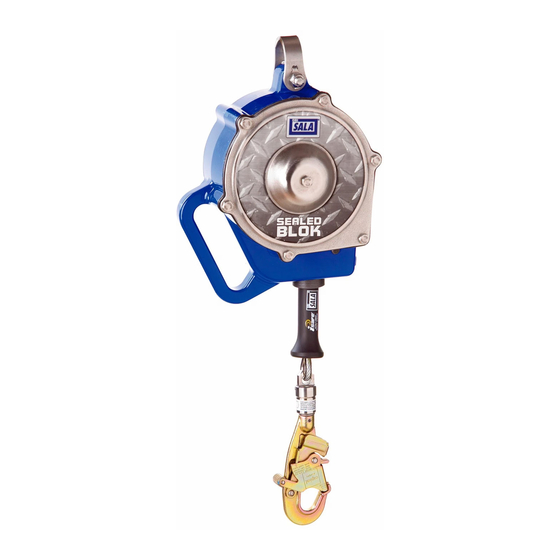

3400800 - SEALED SELF RETRACTING LIFELINE:
30 feet of 3/16 inch galvanized wire rope, self-locking
plated steel swiveling snap hook with indicator.
3400801 - SEALED SELF RETRACTING LIFELINE:
30 feet of 3/16 inch stainless wire rope, self-locking
plated steel swiveling snap hook with indicator.
3400802 - SEALED SELF RETRACTING LIFELINE:
30 feet of 3/16 inch stainless wire rope, self-locking
stainless steel swiveling snap hook with indicator.
3400825 - SEALED SELF RETRACTING LIFELINE:
15 feet of 3/16 inch galvanized wire rope, self-locking
plated steel swiveling snap hook with indicator.
3400826 – SEALED SELF RETRACTING LIFELINE:
15 feet of 3/16 inch stainless wire rope, self-locking
plated steel swiveling snap hook with indicator.
3400827 – SEALED SELF RETRACTING LIFELINE:
15 feet of 3/16 inch stainless wire rope, self locking
stainless steel swiveling snap hook with indicator.
3400850 - SEALED SELF RETRACTING LIFELINE
wITh RETRIEvAL: 30 feet of 3/16 inch galvanized
wire rope, self-locking plated steel swiveling snap hook
with indicator.
3400851 - SEALED SELF RETRACTING LIFELINE
wITh RETRIEvAL: 30 feet of 3/16 inch stainless steel
wire rope, self-locking plated steel swiveling snap hook
with indicator.
3400852 - SEALED SELF RETRACTING LIFELINE wITh RETRIEvAL: 30 ft. of 3/16
inch stainless wire rope, self-locking stainless steel swiveling snap hook with indicator.
3400853 - SEALED SELF RETRACTING LIFELINE wITh RETRIEvAL: 30 feet of 3/16
inch stainless steel wire rope, self-locking plated steel swiveling snap hook with indicator,
mounting bracket included.
Form: 5902408
© Copyright 2008, DB Industries, Inc.
Rev: B
