rebar lanyards for Work PosItIonIng
This manual is intended to meet the Manufacturer's Instructions as recommended by OSHA and
should be used as part of an employee training program.
WarnIng: This product is part of a work positioning system. These instructions must be provided to the user
and the rescuer (see section 8 Termonology). The user must read and understand these instructions before
using this equipment. The user must follow the manufacturer's instructions for each component of the system.
Manufacturer's instructions must be followed for proper use and maintenance of this equipment. Alterations or
misuse of this equipment, or failure to follow instructions, may result in serious injury or death.
IMPortant: If you have questions on the use, care, or suitability of this equipment for your application,
contact DBI‑SALA.
IMPortant: Before using this equipment, record the product identification information from the ID label into
the inspection and maintenance log in section 9.0 of this manual.
Center Connector:
Snap Hook or
Carabiner
Connects to Anchor
Lanyard Legs
Labels
Leg Connector:
Snap Hooks
Connect to
Harness or Belt
Center Connector:
Snap Hook
Connects to Anchor
Leg Connector:
Snap Hooks
Connect to
Harness or Belt
Instructions for the following series products:
User InstrUctIon ManUal
Figure 1 - Rebar Lanyards for Work Positioning
Lanyard Legs
Labels

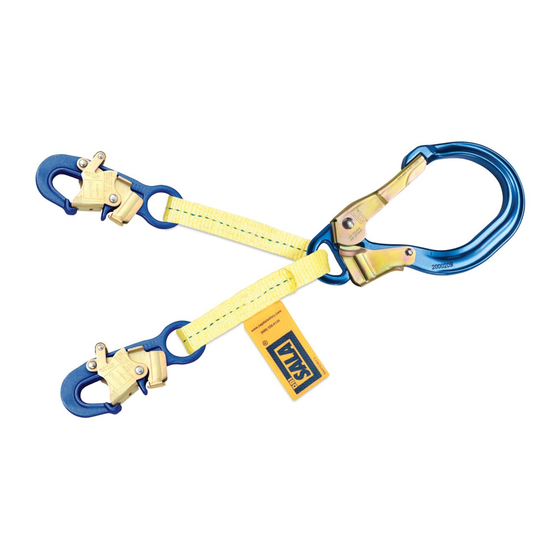

Rebar Lanyards for Work Positioning
(See back page for specific model numbers.)
© Copyright 2007, DB Industries, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DBI SALA 1106150
Summary of Contents for DBI SALA 1106150
- Page 1 Instructions for the following series products: Rebar Lanyards for Work Positioning (See back page for specific model numbers.) User InstrUctIon ManUal rebar lanyards for Work PosItIonIng This manual is intended to meet the Manufacturer’s Instructions as recommended by OSHA and should be used as part of an employee training program.
- Page 2 descrIPtIons The following options are available for positioning lanyards: DoubLe Leg RebaR LanyaRDs Legs: Web or Chain Connection between legs and center: O-ring or swivel Connectors: Leg: 9503175 snap hook, 9500100 swivel snap hook, 9510057 flat snap hook, 2000000 clevis snap hook, 9502116 3600 lb.
- Page 3 systeM reQUIreMents CoMPaTIbILITy oF CoMPonenTs anD subsysTeMs: This equipment is designed for use with DBI-SALA approved components and subsystems. Substitutions or replacements made with non-approved components or subsystems may be incompatible, and may jeopardize the safety and reliability of the complete system.
- Page 4 F. To any object which is shaped or Figure 4 - lnappropriate Connections dimensioned such that the snap hook or carabiner will not close and lock, or that roll-out could occur. anCHoRage sTRengTH: Anchorages selected for work positioning systems shall have a strength capable of sustaining static loads applied in the directions permitted by the system of at least: A) 3,000 pounds (13.3kN)
- Page 5 Figure 5 - Connecting To your body support Double Leg Rebar Lanyard Single Leg Rebar Lanyard Single Leg Rebar Lanyard (Connect one leg to each hip D-ring) with D-ring with Snap Hook single Leg Rebar Lanyards with snap Hook: Connect the snap hook to the front D-ring on your cross-over style full body harness.
- Page 6 WebbIng anD sTITCHIng: Webbing must be free of frayed, cut, or broken fibers. Webbing must be free of knots, tears, abrasions, mold, or discoloration. Webbing must be free of chemical or heat damage, indicated by brown, discolored, or brittle areas. Webbing must be free of ultraviolet damage, indicated by discoloration and splinters along the webbing surface.
- Page 7 labelIng The following labels must be present and fully legible: 10.0 InsPectIon and MaIntenance log DaTe oF ManuFaCTuRe MoDeL nuMbeR InsPeCTIon DaTe InsPeCTIon ITeMs CoRReCTIVe aCTIon MaInTenanCe noTeD PeRFoRMeD Approved by: Approved by: Approved by: Approved by: Approved by: Approved by: Approved by: Approved by: Approved by:...
- Page 8 This instruction applies to the following models: 0650 23380 5900093 5920070 5900050 065 2338 5900094 5920075 590005 0652 23382 590000 5920080 5900052 07052 23383 59000 592008 5900053 20380 23385 590040 5920085 5900054 2038 23386 5920030 5920086 5900055 20382 23387 592003 5920090 5900056 20383...
