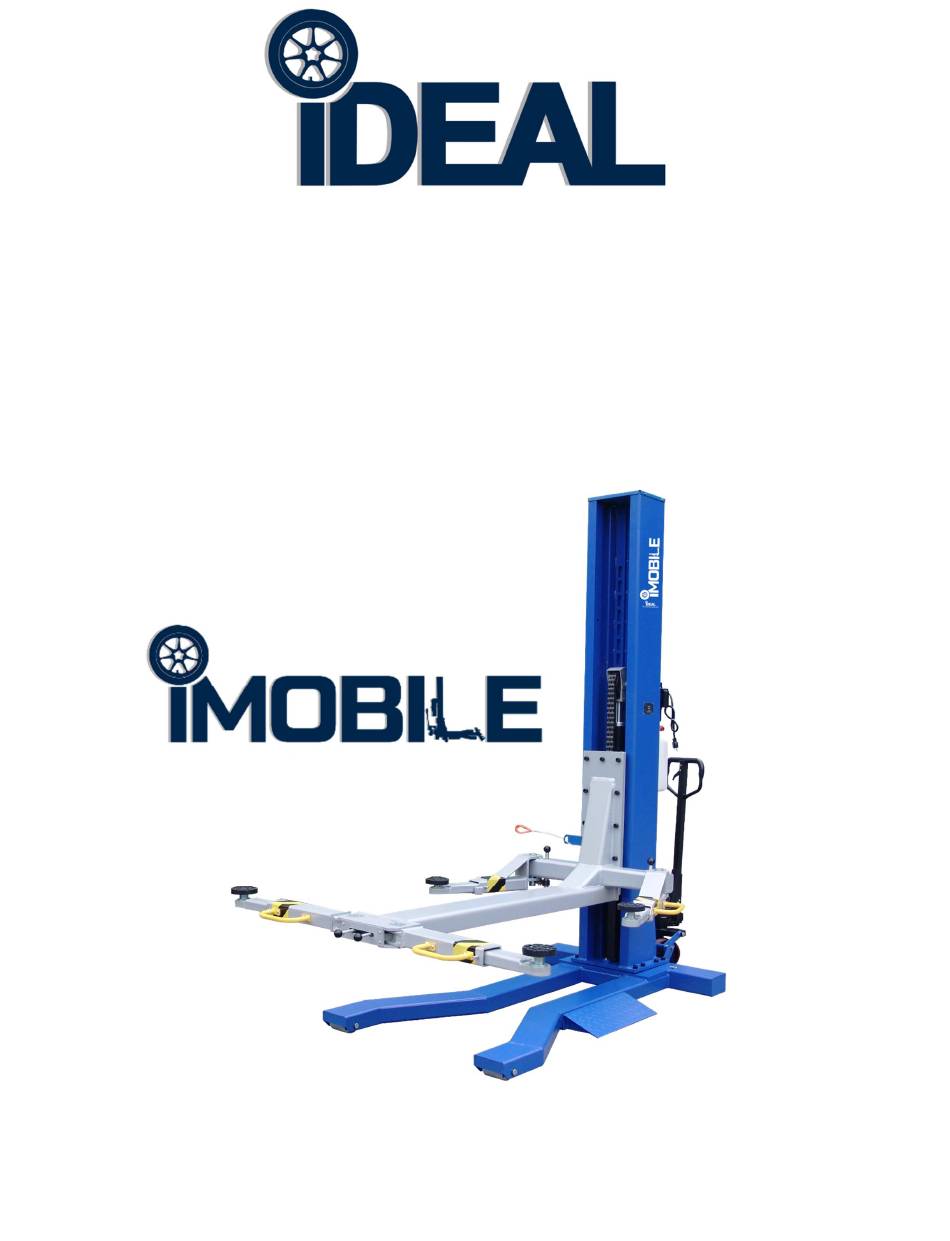

- Page 1 MSC-6KLP ‘Low Profile’ Mobile Single Column Lift 6,000 lb. Capacity (1,500 lbs. Max Capacity per Arm) Installation & Operation Manual Sep 2022...
-
Page 2: Table Of Contents
· Lift Assembly OPERATION INSTRUCTIONS · Lift / Vehicle Positioning, Lifting & Lowering · Inspection, Maintenance & Cleaning · Trouble-Shooting Guide POWER UNIT PRIMING PROCEDURE 115V POWER UNIT ELECTRICAL DIAGRAM EXPLODED VIEWS & PARTS LIST LIMITED WARRANTY MSC-6KLP Sep 2022... -
Page 3: Safety Information
5. Failure by the owner to provide the recommended shelter, mounting surface, electrical supply, and ceiling height could result in unsatisfactory lift performance, property damage or personal injury. 6. The operation of the lift is permitted by authorized persons only. MSC-6KLP Sep 2022... -
Page 4: Safety Instructions
19. Anyone who will be in the vicinity of the lift when it is in use should familiarize themselves with any Caution, Warning, and Safety related decals supplied with this lift, and replace them if they are illegible or missing. MSC-6KLP Sep 2022... -
Page 5: Technical Information
TECHNICAL INFORMATION Product Description The iMOBILE MSC-6KLP 6,000 lb. Low Profile Mobile Single Column Lift is the perfect lift for limited space and situations where lift portability is more important than a floor mounted two post lift. The low profile design and drive-over ramps make ‘drive-over’ vehicle loading possible, while the pallet jack feature also allows the lift to be positioned under the vehicle for loading. - Page 6 Dimensions (MM &INCH) Fig. 1 MSC-6KLP Sep 2022...
-
Page 7: Before Using
/ garage and accommodate the car you intend to lift with it. Make sure you have enough clearance at the top, and enough width to allow walking around. Also, be aware that the electrical power supply requirements are 115 volt, 1 Phase, 20 amps. Main Lift Components power unit Fig. 2 MSC-6KLP Sep 2022... -
Page 8: Installation Instructions
You can move the larger components pieces to the garage or service bay with the forklift. Some of the smaller pieces can be moved by two or more people by carrying them. If you have several people helping, some of the larger pieces can be moved manually. MSC-6KLP Sep 2022... -
Page 9: Lift Assembly
STEP 4 Mount the hydraulic motor pump on the column with bolts and nuts. (Fig. 6) Connect the hose fitting and hose from pump to cylinder. (Figs. 7, 8 & 9) Fig. 7 Fig. 8 Fig. 9 MSC-6KLP Sep 2022... - Page 10 Put the slot of the bearing into the bracket (Fig. 16) then lock it by bolt (Fig. 17 & 18). Fig. 15 Fig. 16 Fig. 17 Fig. 18 The Base Plate with Pallet Jack Assembly is now Complete. MSC-6KLP Sep 2022...
- Page 11 (Figs. 20 - 23) Fig. 19 Fig. 20 Fig. 21 Fig. 22 Fig. 23 STEP 7 Assemble the off side arms & handles to the end of lifting frame. (Figs. 24 & 25) Fig. 24 Fig. 25 MSC-6KLP Sep 2022...
- Page 12 20 Amps. Also ensure power supply incorporates 20 Amp breaker service for safety. If there is any question on the power source requirements, please consult an electrician. The MSC-6KLP Lift is now ready for Operation. (See Operation Instructions in following Pages) MSC-6KLP...
-
Page 13: Operation Instructions
Only add hydraulic fluid to the reservoir with the lift in the fully “down” position. If you fill the reservoir in the “up” position and then lower the lift, there will be too much hydraulic oil in the system and will leak out of the reservoir tank. MSC-6KLP Sep 2022... - Page 14 Lift Positioning Options The MSC-6KLP can conveniently be positioned to raise a vehicle using two different methods: 1. DRIVING THE VEHICLE OVER THE MSC-6KLP BASE UTILIZING THE RAMPS FEATURE: · Ensure Swing Arms are positioned to the outer positions and the Lift is positioned on a flat level surface, able to properly support the load.
-
Page 15: Inspection, Maintenance & Cleaning
Never Add Hydraulic Fluid while Lift is in raised position!! The hydraulic oil is recommended to be replaced every two years. The inside corners of the column & lift arms should be re-greased with general-purpose axle grease every year, or as becomes necessary. MSC-6KLP Sep 2022... -
Page 16: Trouble-Shooting Guide
C. Seals are dry in hydraulic cylinder(s)....Cycle lift up & down. 9. Lift Will Not Lower: A. Lock Release Cable not properly adjusted..Inspect and adjust. B. Defective Release Valve........Inspect and replace. C. Defective safety latch mechanism....Inspect and replace. MSC-6KLP Sep 2022... -
Page 17: Power Unit Priming Procedure
Step 3 – Push the START button for one second, then release for three seconds. Repeat these steps until unit starts pumping fluid. Step 4 – Tighten the check valve plug. YOUR POWER UNIT SHOULD NOW BE PRIMED, READY TO GO. MSC-6KLP Sep 2022... - Page 18 EXPLODED VIEW (VIEW A.) (BASE, COLUMN, POWER UNIT, PALLET JACK & CYLINDER) MSC-6KLP Sep 2022...
- Page 19 EXPLODED VIEW (VIEW B.) (LIFTING FRAME, ARMS, SWIVEL PADS & ADAPTORS) MSC-6KLP Sep 2022...
- Page 20 5206-00024-000 Nut, M24 MSC-6KLP-036 DJ01-00007-M00 Chain MSC-6KLP-037 DJ01-00014-M00 Roller Bearing MSC-6KLP-038 DJ01-20000-M00 Roller Seat MSC-6KLP-039 DJ01-00013-M00 Nut, M27 40A-1 MSC-6KLP-040A.1 DJ01-21000-M00-A-1 *Hydraulic Cylinder MSC-6KLP-041 SJ01-12001-000 90 degree Fitting 42-1 MSC-6KLP-042.1 DJ01-00021-M00-1 *Hydraulic Hose 43-1 MSC-6KLP-043.1 DJ01-00031-M00-1 *Straight Fitting 47-1 MSC-6KLP-047.1...
- Page 21 MSC-6KLP-049 5206-00020-000 Lock Nut, M20 MSC-6KLP-050 5201-00020-000 Nut, M20 MSC-6KLP-051 5101-08030-000 Bolt, M8x30 MSC-6KLP-052 DJ01-00004-M00 Chain Pin MSC-6KLP-053 5404-03020-000 Split Pin, D3x20 MSC-6KLP-054 DJ01-00003-M00 Upper Chain Block MSC-6KLP-055 DJ01-12000-M00 Carriage MSC-6KLP-056 DJ01-00029-M00 Top, Sliding Block MSC-6KLP-057 DJ01-00028-M00 Side, Sliding Block...
- Page 22 MSC-6KLP-096 5301-00010-000 Flat Washer, D10 MSC-6KLP-097 5101-10035-000 Bolt, M10x35 MSC-6KLP-098 DJ01-05000-M00 RH, Mainside Arm MSC-6KLP-099 DJ01-07000-M00 RH, MS Arm Extension MSC-6KLP-100 DJ01-11000-M00 RH, OS Arm Extension MSC-6KLP-101 DJ01-09000-M00 RH, Offside Arm MSC-6KLP-102 DJ01-16002-M00 OS, Swing Arm Pin MSC-6KLP-103 5107-06012-000 Screw, M6x12...
-
Page 23: Limited Warranty
Limited One-Year Warranty: Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
