IDEAL MSC-13K-B Installation, Operation & Service Manual

Mobile column lift set
Hide thumbs Also See for MSC-13K-B:
Table of Contents

Advertisement

Quick Links

Download this manual

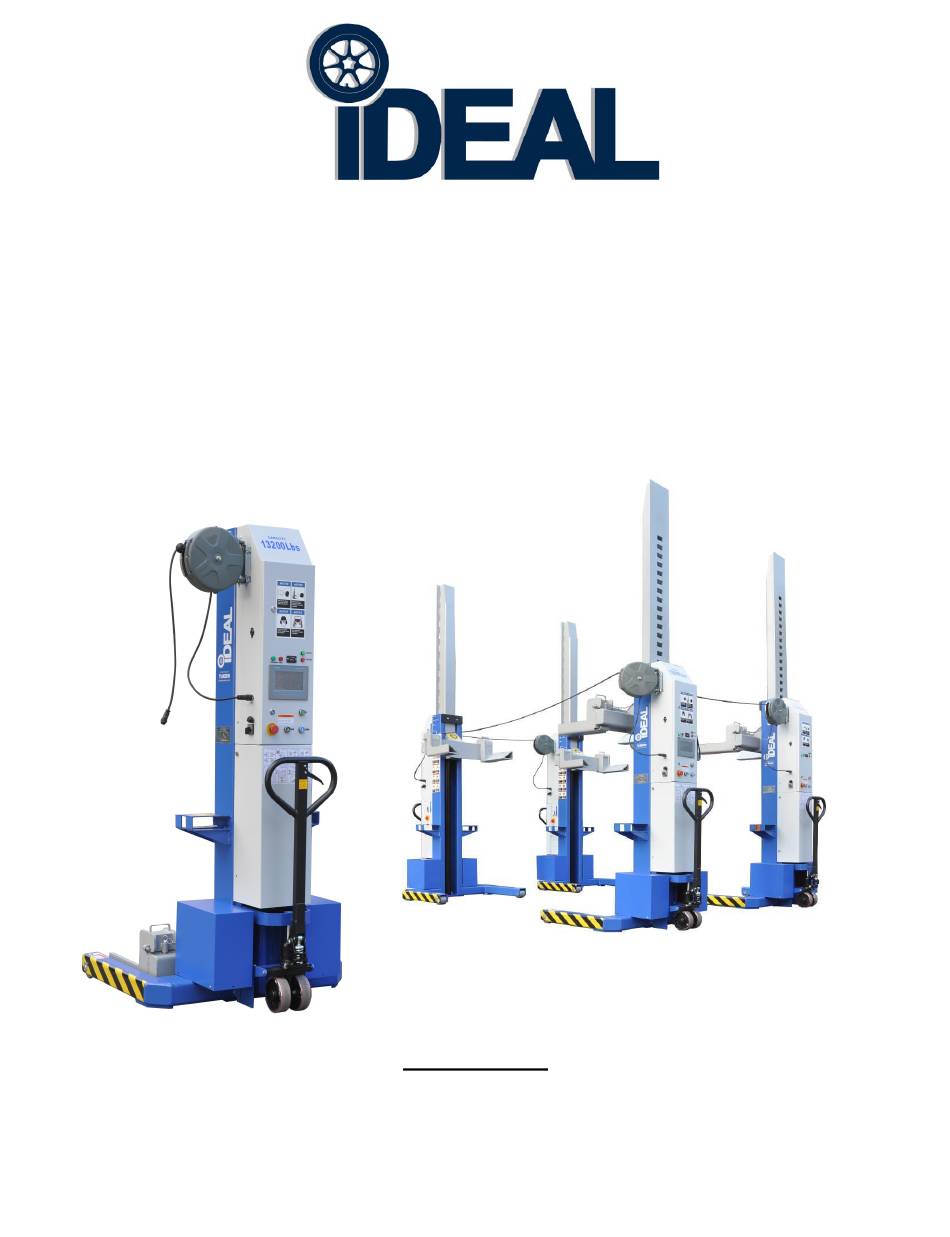

Mobile Column Lift Set
MSC-13K-B
MSC-13K-B-226, MSC-13K-B-452 & MSC-13K-B-678
Capacity 13,200lbs / Each Column
Installation - Operation - Service Manual
IMPORTANT!!
READ MANUAL THOROUGHLY BEFORE INSTALLING, OPERATING,
SERVICING OR MAINTAINING LIFT
Mar. 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSC-13K-B and is the answer not in the manual?

Questions and answers

Related Manuals for IDEAL MSC-13K-B

Summary of Contents for IDEAL MSC-13K-B

  • Page 1 Mobile Column Lift Set MSC-13K-B MSC-13K-B-226, MSC-13K-B-452 & MSC-13K-B-678 Capacity 13,200lbs / Each Column Installation - Operation - Service Manual IMPORTANT!! READ MANUAL THOROUGHLY BEFORE INSTALLING, OPERATING, SERVICING OR MAINTAINING LIFT Mar. 2023...

  • Page 2: Table Of Contents

    Please note that your warranty can be voided if you do not read the manual and understand its content. If you have any questions, concerning operation, safety, or application of your lift, please contact your distributor. MSC-13K-B Mar. 2023...

  • Page 3: General

    1. GENERAL SPECIFICATIONS OEM Item # / Model # 167215B / MSC-13K-B Capacity 13,200 lbs. / Each Column Pressure Relief Valve 2,030 psi Sealed Ex-Works Pump motor 3HP (DC24V, Max 110 Amps) / Each Column Battery charger power Input: 100-140 , 60Hz, Single Phase...
  • Page 4 DIMENSIONS (mm / inch) Fig. 1 MSC-13K-B Lift Dimensions MSC-13K-B Mar. 2023...
  • Page 5 In addition, the control system has been designed so that: · Each lifting column can be operated separately · Any pair of axles can be handled individually MSC-13K-B Mar. 2023...
  • Page 6 • Adjustable Forks The adjustable forks are designed for different vehicles with different wheels. The forks can be adjusted manually to accommodate a wide range of tire sizes. The mechanical lock-pins prevent the forks from moving sideways under load. MSC-13K-B Mar. 2023...

  • Page 7: Set-Up / Installation

    Connect the power cables to batteries. (Fig. 5b) Fig. 5a Fig. 5b NOTE: Ensure to correctly connect terminals: Red / Pos. = (+), Black / Neg. = (-) MSC-13K-B Mar. 2023...
  • Page 8 3. Pull up and pull down the upper & down lock button, the reel can turn aside. (Fig. 6c) 4. Fix the reel on the base by the screw. (Fig. 6d) Fig. 6d Fig. 6e Put the cable plug into the socket. (Fig. 6e) Repeat the above steps for the other three columns MSC-13K-B Mar. 2023...

  • Page 9: Charging Batteries

    While charging, the red CHARGING indicator will be lighted. After the batteries are fully charged (about 10 hours), the green FINISH indicator will be on, and red indicator will go off. Fig. 7a Fig. 7b Fig. 7c Battery Charger Socket Switch Battery Charger Indicator MSC-13K-B Mar. 2023...

  • Page 10: Operation Information

    Control Panels on the columns. The functions of the switches, buttons on the control system are described below. Fig. 8a Main Control Panel - #1 Column Fig. 8b Sub Control Panels - #2, #3 & #4 MSC-13K-B Mar. 2023...

  • Page 11: Control Panel Details

    10. BATTERY INDICATOR: Indicator gauge shows each column’s output voltage / batteries capacity. 11. CABLE PORT: Plug-in port used for communication cable connections. 12. HAND / REMOTE CONTROLLER PORT: (Optional) Plug-in Port used for hand-held remote controller connection. MSC-13K-B Mar. 2023...
  • Page 12 The distance between columns shall be according to the distance between the vehicle’s wheels. Figs. 9a &9b Positioning Columns A set has a maximum lifting capacity of 52,800 lbs. This is the maximum lifting capacity of a standard Set of 4 lifting columns of 13,200 lbs. each. MSC-13K-B Mar. 2023...
  • Page 13 LCD screen is lighted. Wait until the LCD screen changes to the 3rd display, then touch the first left button on the screen to start running of the system. 1st LCD Screen 2nd LCD Screen (NOTE: the following description is applied four column mode.) MSC-13K-B Mar. 2023...
  • Page 14 <3> Some touch screen buttons displayed (4th LCD Screen) may have the same ) pointed to lower ‘F’ buttons below them. function with the arrow ( F1 F2 F3 F4 F5 F6 F7 F8 4th LCD Screen MSC-13K-B Mar. 2023...
  • Page 15 <1> The upper 'in' in red color, means the unit of height reading is in inches. Touch this red color section, it will change to be 'cm' in red color. After exiting this page, the height readings will be displayed in centimeters . MSC-13K-B Mar. 2023...
  • Page 16 HOME Button (F8) to return Home Page Screen (3rd LCD Screen) 7. Check to ensure that the EMERGENCY STOP Buttons for each column are pulled out to be released & disengaged. 8. Touch the START Button (F1) on the screen to continue. MSC-13K-B Mar. 2023...
  • Page 17 Adjust so that the forks at floor height just fit around the tire (to prevent the rim falling through, if tire becomes deflated) (Fig.12) Make sure that the lock-pins are locked into place for each fork set. Fig.12 Adjust Forks to Correctly Fit each Wheel MSC-13K-B Mar. 2023...
  • Page 18 2. Release the lever to position (2) to lower the lift column to the floor after the lift column is positioned. NOTE: Always ensure the pallet lifting mechanism is fully lowered, with the lever to the neutral position (2), when raising a vehicle. MSC-13K-B Mar. 2023...

  • Page 19: Lifting Operation Instructions

    Repeat for the other three columns. 11. If necessary, (for deflated air bag suspension and/or flat tire) press BIAS to choose customized zero-point ( see later chapter). 12. Set the mode to ALL / VEHICLE by pressing or F4 button. MSC-13K-B Mar. 2023...
  • Page 20 (the Red ‘FAULT’ Lamp will light-up), any other Button is pressed, the controls box of the later button will be locked / no function. To unlock the buttons on that column, any button on another column has to be pressed one time. MSC-13K-B Mar. 2023...

  • Page 21: Emergency Stop And Lowering

    -Press any one button will cause only the two columns for same axle to move. NOTE: In WHEEL or AXLE mode, the operation can only be maintained for 5 seconds. To go on, press down the mode button(s) again. MSC-13K-B Mar. 2023...
  • Page 22 13th LCD Screen 3. Press BIAS (F6) Button for 2 to 4 seconds (12th LCD Screen). The system changes into customized height reference system: ‘C-_-‘. The LIFTING MODE will change to ‘ALL / VEHICLE’ automatically (13th LCD Screen). MSC-13K-B Mar. 2023...

  • Page 23: Special Notes

    <4> Disconnect the Comm. Cable from #1 column to #3 and from #2 column to #4. <5> Only Turn ON Power to #2 column, then for #1 main column (14th LCD Screen) 14th LCD Screen 15th LCD Screen <6> After press START or F1 Button, the display becomes 15th LCD Screen. MSC-13K-B Mar. 2023...

  • Page 24: Other Messages

    In FREE MOVEMENT, Max. 5 sec. in single pressing can be carried out. Because of light loading, lowering speed is below Too Light & Too Slowly! 10mm/s. System accelerates the lowering speed automatically 10 Accelerating… in order to reach the floor within 4 minutes. MSC-13K-B Mar. 2023...

  • Page 25: Storing Mobile Column Lifts

    · Examine electrical & communication cables and connectors for signs of damage. · Apply oil to dry cylinder piston shaft. Clean area as required. · Grease all rollers, applying lithium grease using the zerk fittings shown below: Upper Column Rollers Carriage Rollers Base Rollers MSC-13K-B Mar. 2023...
  • Page 26 2. Remove the oil from the tank. 3. Refill with approximately 13.5 Liters of hydraulic oil meeting AW32 or 46, filtrated to 4 micrometer. 4. Check the oil level in oil tanks on each column, add if necessary. MSC-13K-B Mar. 2023...

  • Page 27: Trouble Shooting

    Clean or replace valve. non-return valve. Dirty or damaged lowering Clean or replace valve. or correction valve. Column Defective DC motor Rises by contactor (Emergency Change the contactor with a new one. itself Button does not stop lifting) MSC-13K-B Mar. 2023...
  • Page 28 OFF and ON. unlocked. No power supply. Have fault corrected by qualified electrician. No Power (Power Indicator Main fuse blown. Replace fuse. are Off) Main switch(es) OFF. Set power switch(es) ON. MSC-13K-B Mar. 2023...

  • Page 29: Optical Encoder Alignment

    (4th LCD Screen). 6. Carefully apply the belt back onto encoder gear, double checking that the fully height reading is at 0. If reading is 0, close the upper cover. Optical Encoder Gear Belt (4th LCD Screen) Fig. 17 MSC-13K-B Mar. 2023...

  • Page 30: Hand-Controller (Optional)

    10. HAND-CONTROLLER (Optional) As an option, the MSC-13K-B mobile column lifts can apply one Hand-Controller for every mobile column lift set. (Fig. 18) The hand controller has one EMERGENCY Button and UP, DOWN, PARK Buttons. Fig. 18 Fig. 19 NOTE: Every control box on column has a ‘special plug port’ for the Hand Controller (Fig.

  • Page 31: Battery Charger Information

    2. The CHARGING INDICATOR (#1) will go to On, only if the battery is connected. It will be red when battery is in fast charging mode. When the battery is fully charged, the indicator will go to green. NOTE: If CHARGING INDICATOR (#1) is flashing, the charger has an error. MSC-13K-B Mar. 2023...

  • Page 32: Battery Requirement Information

    12. BATTERY REQUIREMENT INFORMATION · Battery Quantity: 2ea per Column - (Not included with MSC-13K-B) · Battery Dimension: 13" L x 7" W x 12" H · Battery Cover Size: 15" L x 8" W x 14" H · Battery Type: DC Deep Cycle Batteries, 12VDC ·...

  • Page 33: Exploded Views & Parts Lists

    MSC-13K-B EXPLODED VIEWS & PARTS LISTS Column Assembly Optional MSC-13K-B Mar. 2023...
  • Page 34 MSC-13K-B Mar. 2023...
  • Page 35 MSC-13K-B Column Assembly Parts List ITEM M-CODE DESCRIPTION DJ03-02000-000 Carriage 5102-12035-000 Bolt, M12 x 35mm 5202-00012-000 Nut, M12 DJ03-04000-000 Right Lift Fork 5114-05014-000 Screw, M5 x 14mm DJ02-02200-000 Roller DJ02-02004-000 Washer DJ02-00021-000 Plate DJ02-00017-000 Timing Belt 5302-00004-000 Flat Washer, D4...
  • Page 36 Bolt, M10 x 30mm 5603-30030-000 Bearing, D30 x 30mm DJ03-00001-000 Roller DJ03-00002-000 Roller Pin DJ03-03000-000 Left Lift Fork DJ03-05000-000 Hydraulic Cylinder 87-1 5906-00060-000 Dust Ring, D60xD66.8x5mm 87-2 DJ03-05003-000 Guide Belt #1, D65xD60x15mm 87-3 DJ03-05002-000 Guide Ring 87-4 DJ03-05100-000 Cylinder Body MSC-13K-B Mar. 2023...
  • Page 37 5302-00003-000 Flat Washer, D3 5110-03010-000 Screw, M3 x 10mm DJ03-00007-000 Guide Slot DJ03-19000-B00 Battery Base (LH) 116-1 DJ03-20000-B00 Battery Base (RH) DJ03-01004-000 Frame 5102-08014-000 Bolt, M8 x 14mm DJ03-00004-000 Jack Connector Plate DJ03-10000-000 Frame DJ03-00005-000 DJ03-00013-000 Cover MSC-13K-B Mar. 2023...
  • Page 38 MSC-13K-B Control Panel Assembly MSC-13K-B Mar. 2023...
  • Page 39 MSC-13K-B Control Panel Assembly Parts List ITEM M-CODE DESCRIPTION DJ02-20002-000 Button, LA42P (Green, Blue & Black) DJ02-20003-000 Emergency Button, LA42J, Red QK02-20010-UL0 Touch Screen, Simatic HMI KTP700 QK02-20011-C70 Cable 5110-00004-000 Screw, M4 x 12mm 5203-00004-000 Spring Washer, D4 5202-00004-000 Nut, M4...
  • Page 40 LED Lamp Socket QK04-00015-000 LED Lamp Power Cable, RVV2x0.5 Red / Black JK01-00004-000 Cable Nut, M20 DJ02-00007-000 Cable Nut, M25 QK04-00013-M00 Battery Indicator Cable, RVV2x0.5 Red / Black JK01-00008-000 Buzzer, SFM-27 24VDC MSC-13K-B Power Unit / Motor Pump Assembly MSC-13K-B Mar. 2023...
  • Page 41 MSC-13K-B Power Unit / Motor Pump Parts List ITEM M-CODE DESCRIPTION BZ22-05001-F00 DC Motor, 24VDC,2.2KW, 110A BZ01-04008-000 Plug Fitting, 9/16-18UNF 5901-00118-000 O-Ring, D11.8xD1.8 BZ22-04001-F00 Valve Block BZ20-04002-000 Overflow Relief Valve, YF06-00 25Mp 5901-00160-000 O-Ring,D16xD2 5901-00125-000 Circlips, D12 x 1.5mm 5901-00095-000 O-Ring, D9.6xD1.8...

  • Page 42: Limited Warranty

    Top Rail Beam Limited One-Year Warranty: Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges.
