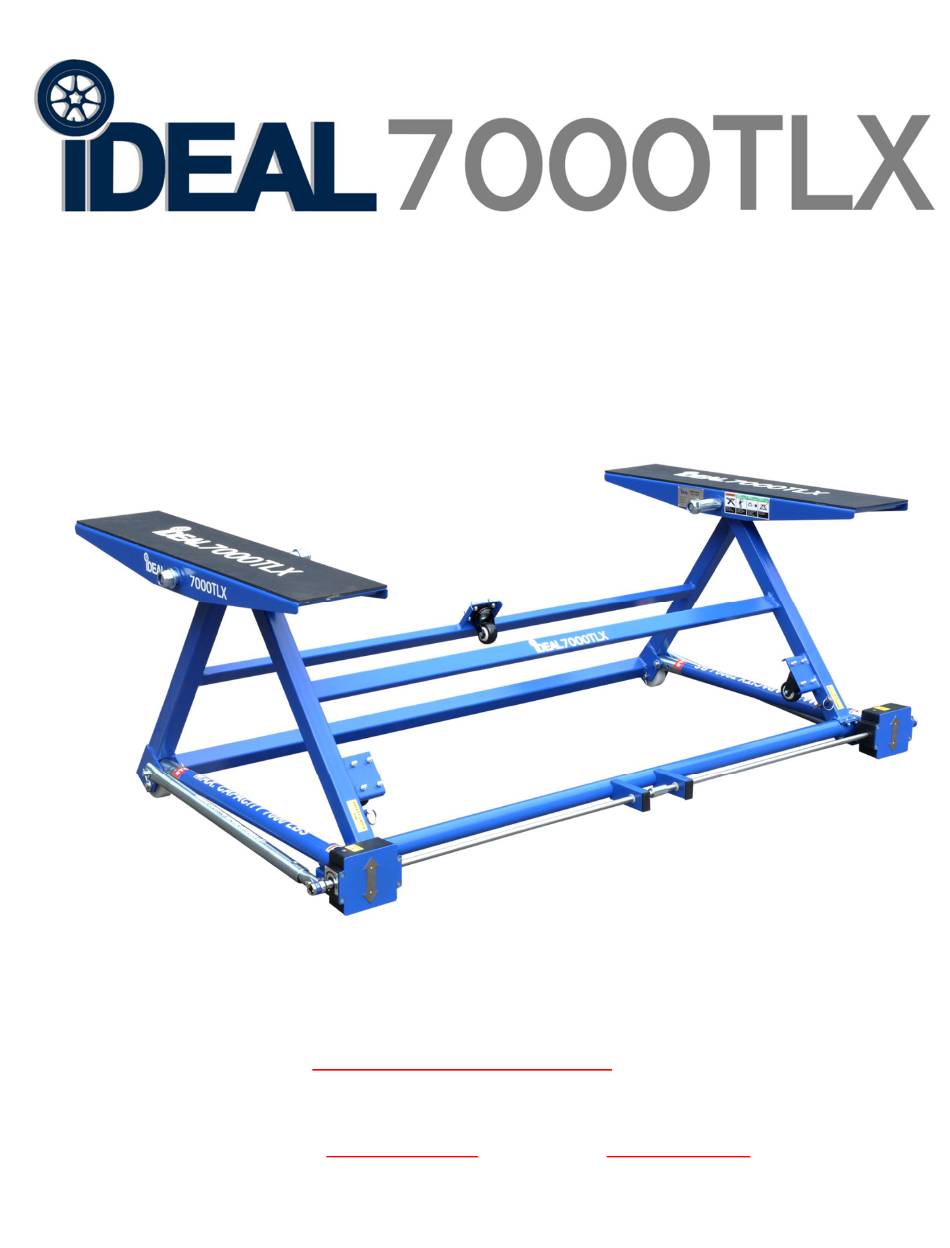

- Page 1 ‘Low Rise / Portable / Storable’ Automotive Tilt Lift 7,000 lb. Capacity Assembly & Operation Manual IMPORTANT NOTICE !! FOR USE WITH UNIBODY CONSTRUCTED VEHICLES ONLY (FRAME CHASSIS MAX WIDTH OF 61” & MIN WIDTH OF 48”) Aug 2021...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION · Note, Caution and Warning · Important Information · Safety Instructions TECHNICAL INFORMATION · Product Description · Specifications BEFORE USING · Site Selection · Surface Condition · Operating Conditions INSTALLATION INSTRUCTIONS · Required Tools · Shipping Crate ·... -
Page 3: Safety Information
SAFETY INFORMATION Note, Caution and Warning This document uses the following notations: Note, Caution and Warning – to alert you to special instructions, tips, or hazards for a given procedure. Please familiarize yourself with the notation explanations described below. Indicates important information that requires special attention, such as a procedure for a specific vehicle, or tips on operating the equipment. -
Page 4: Safety Instructions
Safety Instructions 1. Only trained personnel should operate this lift. All non-trained personnel should be kept away from work area. Never let non-trained personnel come in contact with or operate lift. 2. Do not raise a vehicle on the lift until the installation is completed as described in this manual. 3. -
Page 5: Technical Information
& conveniently be stowed out of the way. The iDEAL 7000TLX consists of a tilt lift assembly, jack stand, platform risers, drill drive adapters, safety lock pins, wall mount storage brackets & manual handle with socket adapter. -
Page 6: Installation Instructions
G. Handle & Socket Adapter (1) H. Wall Storage Bracket (2) I. Jack Stand For Convenience The iDEAL 7000TLX Tilt Lift comes almost fully assembled. Only the Platform Assemblies need to be mounted to the Tilt Lift Frame. (See Assembly Info Next) -
Page 7: Tilt Lift Assembly
Tilt Lift Assembly 1. Raise Frame Arms up so both pivot holes align to each other. Locate Pivot Bars, Flat Washers, Spacers & Nylon Nuts to mount Platforms. (Slightly coat interior of pivot holes with lithium grease.) 2. Insert Pivot Bar into Frame Arm holes. Apply Flat Washers to each side, as shown below. 3. -
Page 8: Tilt Lift Preparation (Lowering)
4. Ensure Platform, Pivot Pin, Washers & Spacers are properly installed to Tilt Lift Frame, as shown below. Once confirmed, apply Nylon Nuts to each end of Pivot Pin to secure Platform assembly to Lift Frame, using 30mm wrench & socket. Duplicate assembly steps 1-4 for opposite Platform. After tightening Nylon Nuts to Pin. - Page 9 3. Once Lift has been lowered, it’s now configured to roll on Casters to easily position under vehicle. You may see some grease on sides of drive shafts as lift raises & lowers. This is normal and the amount of grease will reduce with use. This Completes the iDEAL 7000TLX Tilt Lift Assembly. TLX-7000 Aug 2021...
-
Page 10: Final Preparation & Positioning
Basic Vehicle Layout Positions A. Front Engine / Front Wheel Drive - recommended to position iDEAL Tilt Lift under vehicle so that the gear boxes are positioned about 4” behind the front wheels. B. Front Engine / Rear Wheel Drive - recommended to position the iDEAL Tilt Lift under vehicle so that the gear boxes are positioned about 12”... -
Page 11: Operation Instructions
Select which side of Tilt Lift & vehicle will be best to work from. (See NOTE Info. below) The iDEAL 7000TLX is equipped with twin dual-action gear drives & dual independent safety lock bars & safety pins. The twin dual-action gear drives & dual independent safety lock bars allow for full operation from either side, using the ‘forward &... -
Page 12: To Lower Vehicle
To Lower Vehicle: · Ensure area around & under the lifted / tilted vehicle is clear of any obstructions that may interfere with vehicle coming down. · Carefully, remove Jack Stand from under vehicle. Ensure to locate Stand clear of vehicle & lift. ·... -
Page 13: Tilt Lift Storage
Grease is designed to reduce friction of the gears and screw drives internally. The iDEAL 7000TLX conveniently has Grease Zerks applied to the top each Gearbox for the ease to add grease, when required. - Page 14 EXPLODED VIEWS TLX-7000 Aug 2021...
- Page 15 PARTS LIST ITEM Tux P/N M-REF P/N DESCRIPTION TLX-7000-001 SL03-01000-000 Outer Drive Bar Tube TLX-7000-002 SL03-02000-000 Inner Scissor Frame TLX-7000-003 SL03-03000-000 Outer Scissor Frame TLX-7000-004 SL03-00013-000 Platform Pivot Bar TLX-7000-005 SL03-05000-000 Inner Drive Bar Tube TLX-7000-006 SL03-00014-000 Platform Spacer TLX-7000-007 5301-00020-000 Flat Washer, D20 TLX-7000-008...
- Page 16 TLX-7000-041 SL03-00021-000 TLX-7000-042 SL03-00006-000 Gear Box Cover TLX-7000-043 SL03-21002-FJ2 Plastic Cap TLX-7000-044 SL03-00011-000 Nylon Bushing TLX-7000-045 SL03-07000-000 Linkage Support Tube TLX-7000-046 5206-00008-000 Lock Nut, M8 TLX-7000-047 5206-00006-000 Lock Nut, M6 TLX-7000-048 5301-00006-000 Flat Washer, D6 TLX-7000-049 SL03-00023-000 Swivel Caster TLX-7000-050 5110-06020-000 Screw, M6x20 TLX-7000-051...
-
Page 17: Limited Warranty
Limited One-Year Warranty: Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
