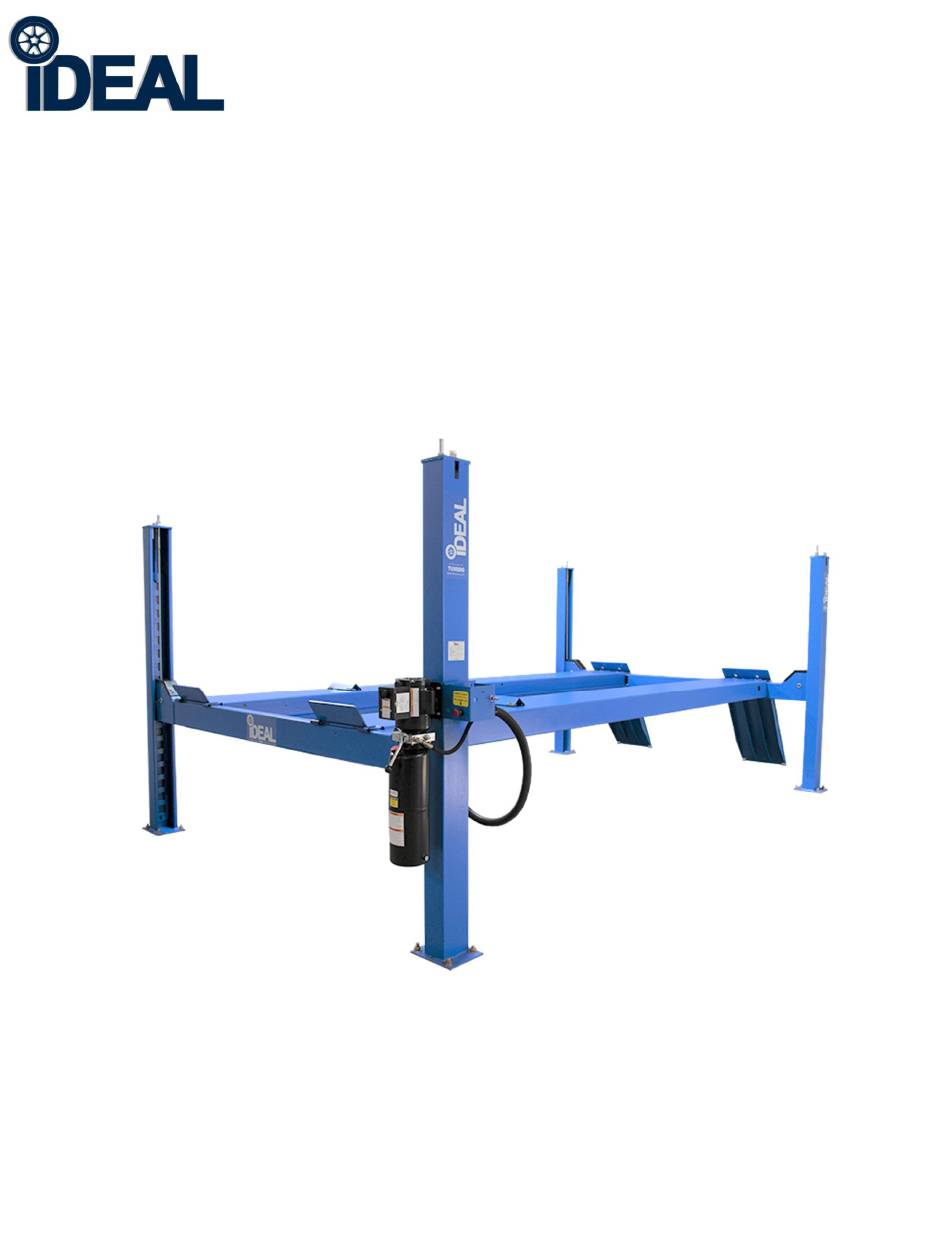

FP14KC-X
Four Post Closed Front
Commercial Vehicle Lift
14,000 lb. Capacity
Installation & Operation Manual
IMPORTANT!!
READ THIS MANUAL THOROUGHLY BEFORE INSTALLING, OPERATING, OR MAINTAINING
THIS LIFT. WHEN DONE WITH INSTALLATION BE SURE TO RETURN DOCUMENTS TO
PACKAGE AND GIVE ALL MATERIALS TO LIFT OWNER / OPERATOR.
FP14KC-X
JAN 2023
Advertisement
Table of Contents
Related Manuals for IDEAL FP14KC-X
Summary of Contents for IDEAL FP14KC-X
- Page 1 FP14KC-X Four Post Closed Front Commercial Vehicle Lift 14,000 lb. Capacity Installation & Operation Manual IMPORTANT!! READ THIS MANUAL THOROUGHLY BEFORE INSTALLING, OPERATING, OR MAINTAINING THIS LIFT. WHEN DONE WITH INSTALLATION BE SURE TO RETURN DOCUMENTS TO PACKAGE AND GIVE ALL MATERIALS TO LIFT OWNER / OPERATOR.
-
Page 2: Table Of Contents
Operation Instructions……………………………………………………………. Page 23 · Vehicle Loading · Raising Lift · Lowering Lift Troubleshooting…………………………………………………………………….. Page 24 Power Unit Priming Procedure.……......………………………….. Page 25 Preventive Maintenance…………………………………………………………. Page 26 Exploded Views & Parts List…………………………………………………… Pages 27 - 33 Limited Warranty Policy………………………………………………………….. Page 34 FP14KC-X JAN 2023... -
Page 3: Safety & Cautions
Drain hydraulic oil from power unit. (Per local codes, depose of used oil responsibly.) c. Lubricate moving parts with grease. Training: · Lift operators must be qualified & trained for safe use & operation of lift as described in Manual. FP14KC-X JAN 2023... -
Page 4: Owners / Employer Responsibilities
The iDEAL FP14KC-X 14,000 lb. Four Post Commercial Service Lift is a high-performance closed front, cable pull vehicle lift designed for Cars, SUVs, Vans & Trucks. The FP14KC-X Service Lift includes the latest in design & safety features including, narrow & wide runway mount positions, extended rise height for greater undercarriage vehicle access, concealed hydraulic / mechanical cable lift system with slack cable safety devices and durable pulley &... -
Page 5: Lift Layout
Lift Layout: Fig 1. FP14KC-X JAN 2023... -
Page 6: Main Lift Components
Stand to the side of bands when cutting, while using gloves & safety glasses. Moving Lift Components: Recommend moving larger lift components to the garage or service bay with the forklift, dolly and/or engine hoist. Smaller pieces can typically be moved by one or two people. FP14KC-X JAN 2023... -
Page 7: Required Tools
It is necessary to leave adequate clearance around the lift’s outer perimeter for safety. Suggested clearance to be 3 ft. (1 meter) minimally. Operating Conditions: Lift is not intended for outdoor use and has an operating ambient temperature range of 41º - 104ºF (5º - 40ºC). FP14KC-X JAN 2023... - Page 8 Clean hole. Run nut down just Tighten nut with carbide tipped below impact section Torque wrench to masonry drill bit per of bolt. Drive anchor 130 ft.-lbs. ANSI standard into hole until nut and B94.12.1977 washer contacts base. FP14KC-X JAN 2023...
-
Page 9: Installation Instructions
Fig 3. Ensure to determine drive-on approach direction, along with centering lift to bay door. 4) Double check all dimensions and make sure that the lift layout is perfectly square. Ensure diagonal measurements are within 1/4” to the inside of each post base plates. Fig 3. FP14KC-X JAN 2023... - Page 10 Fig. 5 4) With the front & rear crossbeams openings aligned with the cable sheaves at each end of the main side runway ends, carefully raise the cross beams to gain access to the underside of each end. FP14KC-X JAN 2023...
- Page 11 6) Slide the cables from the ends of power-side runway and route the cables though the crossbeams referring to the routing diagram in Fig 7. FRONT VIEW REAR VIEW FRONT REAR Fig 7 CAUTION! Ensure the Cables are not twisted during routing and routed on the correct pulleys in Runways. FP14KC-X JAN 2023...
- Page 12 9) Bolt the rear of runways onto the rear crossbeam by aligning the holes in the top of rear crossbeams tube, secure using four M12 x 30mm hex flange bolts. NOTE: The Offside Side Runway can be mounted to the Crossbeams in two positions for either narrow or standard width configurations. Standard width is highly recommended. FP14KC-X JAN 2023...
- Page 13 Racks. Raise the Latch Rack above the Nylon Sliders to insert the Latch Rack into the Nylon Slider’s slots, shown in Figs 12 & 13. Repeat for each Post & Crossbeam end. Latch Rack Raise Latch Rack Latch to insert into the Rack Nylon Sliders. Post Nylon Slider Crossbeam Fig. 12 Fig. 13 FP14KC-X JAN 2023...
- Page 14 9) Secure the Latch Racks to the back of each Post, using the M8 x 12mm Screw & Flat Washer, shown in Fig 17. Latch Rack Cable Guide (Underside) M6 x 12mm M8 x 12mm Screw & Lock Screw & Flat Washer Washer Fig. 16 Fig. 17 FP14KC-X JAN 2023...
-
Page 15: Anchoring Posts
6) With the shims and anchor bolts in place, tighten by securing the nut to the base then turning 2-3 full turns clockwise. Torque anchors to 130 ft-lbs. NOTE: DO NOT use an Impact Wrench to tighten!! FP14KC-X JAN 2023... - Page 16 Fig. 22 4) Remove Breather / Fill Cap to add Hydraulic Oil (SAE-10, AW 32) to Power Unit Reservoir Tank, Add to Min. fill line on Drip Stick, approx.13 to 14 quarts, Fig. 22. Do Not Use ATF!! FP14KC-X JAN 2023...
- Page 17 6) Route Hydraulic Hose extending from Flex Tubing under the Control Bracket & up to the ‘angled back’ 90 degree Power Unit Fitting to connect, Fig 26. Ensure not to overtighten JIC Fitting connections. Corrugated Control Flex Tubing & Bracket Hyd. Hose HP Power Unit Fitting Port Hydraulic Hose Fig. 25 Fig. 26 FP14KC-X JAN 2023...
- Page 18 ‘Inlet’ Air Valve ‘Push’ D6 Airline to (Push Button) Fitting Air Valve Air Valve Airline ‘Quick Disconnect’ ‘Inlet’ Air Fitting Port ‘Outlet’ Port Push ‘Outlet’ Sleeve D6 Airline to T Fitting Fig. 27-A Fig. 27-B Fig. 28 FP14KC-X JAN 2023...
-
Page 19: Power Unit Electrical Connection
OPERATION NOTE: To Lower Lift press the Manual Release Lever to release hydraulic pressure, while at the same time pressing the ‘Red’ Button on the Air Fig 30 Valve to release latches allowing lift to lower without engaging Latch Racks, FP14KC-X JAN 2023... - Page 20 6) Raise lift as high as it will travel (full height). You should hear the locking latches ‘click’ through all 18ea latch slots simultaneously or very close to each other. 7) Lower lift onto the top latch position. FP14KC-X JAN 2023...
- Page 21 · Check that all four latches are engaging the latch racks at the same time. · Check for proper oil level in reservoir tank when lift is fully lowered. · Check for any strange noises during lifting and lowering. The Lift Installation is now Complete. FP14KC-X JAN 2023...
-
Page 22: Operation Safety
WARNING!! Motors and all electrical components are not sealed against the weather and moisture. Install this lift in a protected indoor location. Failure by the owner to provide the recommended shelter could result in unsatisfactory lift performance, property damage, or personal injury. FP14KC-X JAN 2023... -
Page 23: Operation Instructions
If one corner or corners do not properly lower, stop the lowering the operation immediately. Adjustments to Latch Rack and/or Lift Cables may be required, noted in Step 9. FP14KC-X JAN 2023... -
Page 24: Troubleshooting
1. Cross beam ends are rubbing the columns……..(Re-adjustment needed.) 2. Cylinder too tight……..(load lift half capacity and cycle up and down a few times to break in seals.) 3. Possible excessive wear to cable sheaves and shafts…..(Replace as required.) FP14KC-X JAN 2023... -
Page 25: Power Unit Priming Procedure
Step 3 – Push the START button for one second, then release for three seconds. Repeat these steps until unit starts pumping fluid. Step 4 – Tighten the check valve plug. YOUR POWER UNIT SHOULD NOW BE PRIMED & READY TO GO! FP14KC-X JAN 2023... -
Page 26: Preventive Maintenance
Ø Check for excessive wear of cables. Replace, if necessary. Ø Change the hydraulic fluid, as operating temperature, type of service, contamination levels, filtration, and chemical composition of fluid should be considered. If operating in dusty environment shorter interval may be required. FP14KC-X JAN 2023... -
Page 27: Exploded Views & Parts List
Exploded Views (Structure) FP14KC-X JAN 2023... - Page 28 FP14KC-X JAN 2023...
- Page 29 FP14KC-X JAN 2023...
- Page 30 Lock Nut, M6 FP14KCX-042 TT-8861-100-01-14 FP14KCX-043 GB/T91-2000 1.6X20 Split Pin, 1.6mm x 20mm FP14KCX-044 GB5783-2000 M6X30 Bolt, M6 x 30mm FP14KCX-045 GB95-1985 D6 Flat Washer, D6 FP14KCX-046 TT-8861-100-01-17 Slider FP14KCX-047 TT-8861-100-01-16 Cable Pulley (Crossbeam) FP14KCX-048 TT-8861-100-01-18 Plastic Crossbeam Cover FP14KC-X JAN 2023...
- Page 31 Direct Air Connector FP14KCX-087 Corrugated Flex Tubing FP14KCX-088 SPE-6 T-Air Connector FP14KCX-089 Ø6 L=18.3 Air Tubing M6 x 18.3’ FP14KCX-090 GB5781-2000 M8*25 Bolt, M8 x 25mm FP14KCX-091 GB/T 6177.1-2000 M8 Nut, M8 FP14KCX-092 GB95-1985 D8 Flat Washer, D8 FP14KC-X JAN 2023...
- Page 32 Exploded View (Power Unit) PU-220V-FP14KCX FP14KC-X JAN 2023...
- Page 33 Start Capacitor PU-220V-FP14KCX-035 BZ01-05005-000 Running Capacitor PU-220V-FP14KCX-036 5110-04014-D00 Screw, M4 x 14mm PU-220V-FP14KCX-037 BZ02-05302-U00 Rubber Cap PU-220V-FP14KCX-038 BZ02-05305-U00 Switch Support PU-220V-FP14KCX-039 BZ02-05303-U00 Plastic Ring PU-220V-FP14KCX-040 BZ02-05301-U00 Start Micro Switch, 25A PU-220V-FP14KCX-041 5206-00004-000 Lock Nut PU-220V-FP14KCX-042 BZ02-05306-U00 Contactor FP14KC-X JAN 2023...
-
Page 34: Limited Warranty Policy
Limited One-Year Warranty: Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
