Stone CHAMPION 465PM Operator's Manual

Plaster mortar mixer

Advertisement

Quick Links

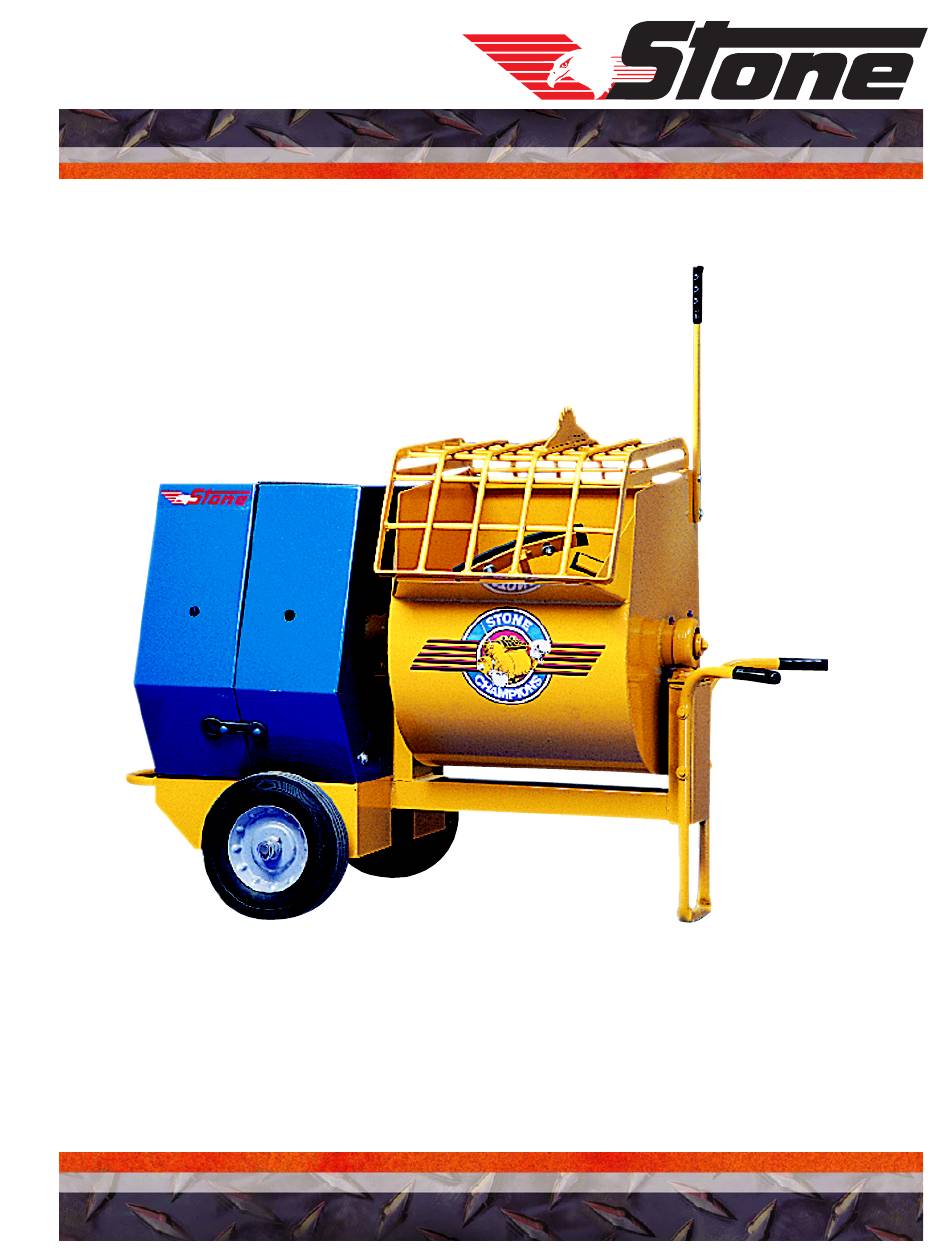

OPERATOR MANUAL
MODELS: 465PM
CHAMPION
®
PLASTER MORTAR MIXER
A 100% employee-owned American manufacturer
REVISION: B 02/2002
P/N 56373

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHAMPION 465PM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stone CHAMPION 465PM

  • Page 1 OPERATOR MANUAL MODELS: 465PM CHAMPION ® PLASTER MORTAR MIXER A 100% employee-owned American manufacturer REVISION: B 02/2002 P/N 56373...
  • Page 3: Table Of Contents

    TABLE of CO N T E N TS 465PM FOREWORD ........................4 LIMITED WARRANTY ....................5 TECHNICAL DATA ......................6 - 8 Specifications........................6 Imperial Torque Chart ..................... 7 Metric Torque Chart ....................... 8 HEALTH & SAFETY ......................9 - 13 INTRODUCTION ......................
  • Page 4: Foreword

    Location of above information: prevention of accidents. 1. Information on S/N tag. Stone Construction Equipment, Inc. is not liable for the function of the machine when 2. Information on engine tag. used in an improper manner and for other than the intended purpose.
  • Page 5: Limited Warranty

    No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective September 2001. Stone Construction Equipment, Inc. Phone: 1-800-888-9926 • 1-716-229-5141 Bred Tough, Technology Born To Work.
  • Page 6: Technical Data

    TECHNICAL DATA Specifications Stone 465PM Mixer – Specifications ) . t . t f . t f & c i r . / p c i r t l e ; s r t u l c i t e r i , s l &...
  • Page 7: Imperial Torque Chart

    TECHNICAL DATA Imperial Torque Chart SAE GRADE 5 SAE GRADE 8 Coarse Thread Coarse Thread SIZE PLATED SIZE PLATED 1/4 – 20 (.250) 6 ft. lbs. 8 Nm 1/4 – 20 (.250) 9 ft. lbs. 12 Nm 5/16 – 18 (.3125) 13 ft.
  • Page 8: Metric Torque Chart

    TECHNICAL DATA Metric Torque Chart Property Class 8.8 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. Property Class 10.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. 1000 Property Class 12.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft.
  • Page 9: Health & Safety

    HEALTH & SAFETY Safety Precautions Before using this equipment, study this entire manual When warning decals are destroyed or missing, contact to become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially replacement.
  • Page 10 HEALTH & SAFETY Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot. •...
  • Page 11 HEALTH & SAFETY Safety Precautions • Never perform any work on the mixer while it is running. • Before working on the mixer, stop the engine and disconnect the spark plug wire(s) to prevent accidental starting. On electric models, disconnect the electric cord at the mixer. •...
  • Page 12 HEALTH & SAFETY Safety Precautions Warning-Eye Protection Always wear splash goggles when operating mixer. • HOT SURFACES • Avoid contact with hot exhaust systems and engines. • Allow all components in the engine compartment to cool before performing any service work. •...
  • Page 13 HEALTH & SAFETY Safety Precautions PRACTICE SAFE MAINTENANCE • Understand service procedure before doing work. Keep area clean and dry. • Never lubricate, service or adjust machine while it is moving. Keep hands, feet, and clothing from power-driven parts. Disengage all power and operate controls to relieve pressure.
  • Page 14: Introduction

    INTRODUCTION Location and Use of Controls Before operating this unit, it is important to familiarize yourself, and any other personnel who will be using it, with the location and proper use of the controls to insure safe and efficient operation. A.
  • Page 15: Operations

    OPERATION 465PM OPERATING FEATURES RUBBER BLADES Your new mixer comes standard with the following Are factory pre-set. Due to local preferences, some features: readjustment may be desired. WARNING QUADRUPLE SHAFT SEAL Provides a life long neoprene and urethane seal system BEFORE WORKING ON MACHINE, MAKE SURE that completely isolates the sealed ball bearings in the ENGINE...
  • Page 16: Start The Engine/Motor Gasoline Engine

    OPERATION 465PM START THE ENGINE/MOTOR GASOLINE TO STOP THE ENGINE / MOTOR ENGINE GASOLINE ENGINES - To improve the engine COLD START - Open the fuel valve under the gas tank service life, move the clutch lever to the 3:00 position all the way.
  • Page 17: Operation

    OPERATION 465PM 4. Add the balance of sand and water. After mixing for the proper length of time (homogeneous DO NOT beat on the drum with a shovel, hammer or mix obtained), discharge the mix from the drum into the other device to break up accumulations of dried mix, as appropriate receptacle by using the dump handle to dump this will dent and damage the drum.
  • Page 18: Maintenance Schedule

    465PM MAINTENANCE SCHEDULE ITEM INTERVAL PART NO. A. ENGINE Daily check the oil levels in the engine and engine reduction unit. The engine warranty is VOID if run without oil . Since there are many options available on this mixer, consult the ENGINE MANUAL for specific recommendation as to oil level, oil type required and frequency...
  • Page 19: Maintenance Chart

    MAINTENANCE CHART 465PM - 19 -...
  • Page 23: California Proposition 65 Warning

    CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
  • Page 24 The Way It Ought To Be. Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 716-229-2363 e-mail: sceny@mcimail.com www: stone-equip.com A 100% employee-owned American manufacturer © 1987 Stone Construction Equipment, Inc. Printed in U.S.A.
