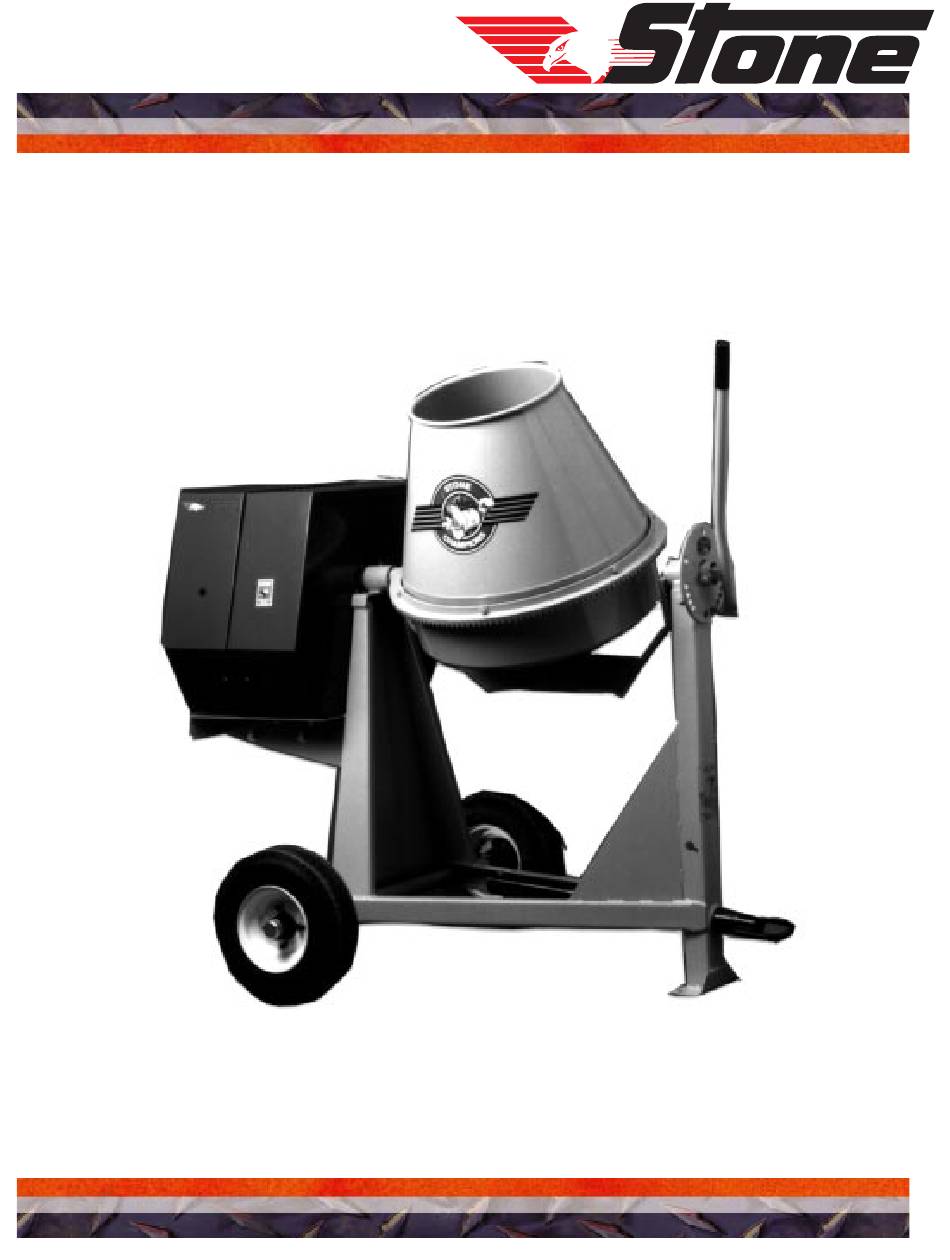

- Page 1 OPERATOR MANUAL MODELS: 45CM & 55CM CONCRETE MIXER A 100% employee-owned American manufacturer REVISION: B 09/2001 P/N 56384...
-
Page 3: Table Of Contents
TABLE of CONTENTS 45CM & 55CM FOREWORD ........................... 4 LIMITED WARRANTY ......................... 5 TECHNICAL DATA ........................6 - 8 HEALTH & SAFETY ........................9 - 13 OPERATIONS ..........................14 - 17 CALIFORNIA PROPOSITION 65 WARNING ................19... -
Page 4: Foreword
Observe the safety rules for operation and the pertinent regulations for the prevention of accidents. Stone Construction Equipment, Inc. is not liable for the function of the machine when used in an improper manner or for other than the intended purpose. -
Page 5: Limited Warranty
No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective April 1, 1998. Stone Construction Equipment, Inc. Phone: 1-800-888-9926 • 1-716-229-5141 Bred Tough, Born To Work. The Fax: 1-716-229-2363 32 East Main Street, P. -
Page 6: Technical Data
TECHNICAL DATA Specifications Stone 45CM & 55CM Mixer – Specifications 45CM 55CM Dimensions Operating Wt. 418 lbs. (w/5hp Honda) 425 lbs. (w/5hp Honda) 189.6 kg 192.8 kg Batch Capacity 1/3 - 1/2 bags 1/2 - 2/3 bags (Bags) Batch Capacity 4 cu. - Page 7 TECHNICAL DATA Imperial Torque Chart SAE GRADE 5 SAE GRADE 8 Coarse Thread, Zinc-Plated Coarse Thread, Zinc-Plated SIZE TORQUE SIZE TORQUE ft. lbs. ft. lbs. 1/4 - 20 (.250) 1/4 - 20 (.250) 5/16 - 18 (.3125) 5/16 - 18 (.3125) 3/8 - 16 (.375) 3/8 - 16 (.375) 7/16 - 14 (.4375)
- Page 8 TECHNICAL DATA Metric Torque Chart Property Class 8.8 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. Property Class 10.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. 1000 Property Class 12.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft.
-
Page 9: Health & Safety
HEALTH & SAFETY Safety Precautions FOLLOW SAFETY INSTRUCTIONS UNDERSTAND SIGNAL WORDS... - Page 10 HEALTH & SAFETY Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • • • • • HOT SURFACES WARNING...
- Page 11 HEALTH & SAFETY Safety Precautions WEAR PROTECTIVE CLOTHING PREPARE FOR EMERGENCIES...
- Page 12 HEALTH & SAFETY Safety Precautions Warning-Eye Protection • Warning-Towing • •...
- Page 13 HEALTH & SAFETY Safety Precautions PRACTICE SAFE MAINTENANCE DISPOSE OF WASTE PROPERLY SAFETY DECALS - FOR THE SAFETY OF YOURSELF AND OTHERS REPLACE ANY DAMAGED OR MISSING SAFETY DECALS.
-
Page 14: Operations
OPERATION 45CM & 55CM BEFORE STARTING WARNING BEFORE WORKING ON MACHINE, MAKE SAFETY CHAIN INSTALLATION SURE ENGINE SPARK PLUG WIRE IS DISCONNECTED, OR, IF ELECTRIC, THAT THE ELECTRIC CORD IS DISCONNECTED, TO PREVENT ANY ACCIDENTAL STARTING. HARDWARE FUEL INSTALLING CHAIN TO MIXER... - Page 15 OPERATION 45CM & 55CM NOTE: ELECTRIC MOTORS - TO STOP THE ENGINE / MOTOR GENERAL MIXING INSTRUCTIONS GASOLINE ENGINES - SAMPLE MIX ELECTRIC MOTORS Mix Volume Cu. Ft. OPERATION Cement (bags) Water (gal.) 1-3/4 2-1/2 3-1/2 4-3/4 Sand (gal./ shovels) Gravel (gal./...
- Page 16 OPERATION 45CM & 55CM CLEANING INSTALLING CHAIN TO VEHICLE WARNING NEVER POUR OR SPRAY WATER ON THE ENGINE OR MOTOR. NEVER PUT HANDS OR ANY OBJECT INTO THE DRUM WHILE THE ENGINE OR MOTOR IS RUNNING. ALWAYS DISCONNECT THE SPARK PLUG WIRE OR ELECTRIC CORD WHEN CLEANING INSIDE DRUM.
- Page 17 MAINTENANCE SCHEDULE 45CM & 55CM A. ENGINE D. YEARLY VOID NOTE: B. WEEKLY C. MONTHLY BELT TENSION WEEKLY - YEARLY Note:...
-
Page 19: California Proposition 65 Warning
CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. - Page 20 The Way It Ought To Be. Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 716-229-2363 e-mail: sceny@mcimail.com www: stone-equip.com A 100% employee-owned American manufacturer © 1995 Stone Construction Equipment, Inc. Printed in U.S.A. GP1M...
