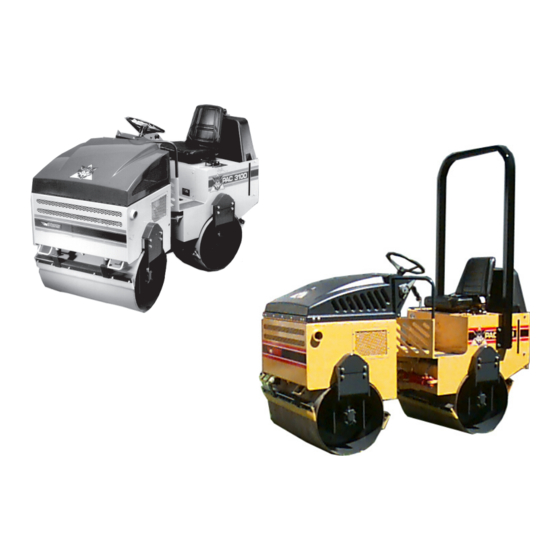

- Page 1 OPERATOR MANUAL MODELS: WolfPac 3100 ™ WolfPac 3100R (ROPS Option) ™ ASPHALT ROLLER A 100% employee-owned American manufacturer REVISION: D 7/2002 P/N 56357...
-
Page 3: Table Of Contents
TABLE of CONTENTS WolfPac 3100 / WolfPac 3100R FOREWORD / WARRANTY INFORMATION ................4 LIMITED WARRANTY ......................... 5 SECTION 1 - TECHNICAL DATA ....................7 - 9 Specifications ......................... 8 - 9 Machine Sound Level Test.................... 9 SECTION 2 - HEALTH & SAFETY - Safety Precautions ............11 - 16 SECTION 3 - OPERATION...................... -
Page 4: Foreword / Warranty Information
Manufacturer: _______________________________ accidents. Battery Type: ________________________________ Stone Construction Equipment, Inc. is not liable for the function of the machine when used in an improper Battery S/N: _________________________________ manner and for other than the intended purpose. -
Page 5: Limited Warranty
No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective September 2001. Stone Construction Equipment, Inc. Phone: 1-800-888-9926 • 1-585-229-5141 Bred Tough, Technology Born To Work. -
Page 7: Section 1 - Technical Data
1. TECHNICAL DATA - 7 -... - Page 8 1. TECHNICAL DATA WolfPac 3100 / WolfPac 3100R 1.1 - Stone WolfPac 3100 - Specifications STONE STONE MODEL WolfPac 3100R WolfPac 3100 Dimensions Dry Wt. 2515 lbs. / 1140 kg. 2240 lbs. / 1018 kg. Operating Wt. 3082 lbs. / 1398 kg.
-
Page 9: Specifications
1. TECHNICAL DATA Specifications/ Machine Sound Level Test 1.1 SPECIFICATIONS Continued BRAKES: SERVICE hydrostatic PARKING manual operation friction RECOMMENDED FUEL gasoline 86 octane min. ELECTRIC 12 volt system battery BCI group 70 550 cca 25 amp charge system HYDRAULIC OIL Mobilfluid 424 (VI-152) SUS225 55CST ISO VG55 capacity 12 gallons /45.4 liters ECCENTRIC OIL... -
Page 11: Section 2 - Health & Safety - Safety Precautions
2. HEALTH & SAFETY - 11 -... - Page 12 2. HEALTH & SAFETY Safety Precautions Before using this equipment, study this entire manual When warning decals are destroyed or missing, contact to become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially replacement.
- Page 13 2. HEALTH & SAFETY Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot. •...
- Page 14 2. HEALTH & SAFETY Safety Precautions • Qualified personnel only. No untrained operators. Serious injury may occur. • Users must be trained to operate this roller. Read the Operator's Manual and Engine Owner's Manual. Learn to operate this roller safely. •...
- Page 15 2. HEALTH & SAFETY Safety Precautions • Keep feet clear of all drums. • Keep work area free of bystanders. • For foot protection, wear steel toe shoes or toe pads. • Caution: Keep away from the machine’s articulation area when the engine is running.
- Page 16 2. HEALTH & SAFETY Safety Precautions • Starting fluid (ether) is highly flammable, do not use or an explosion or fire may result. WEAR PROTECTIVE CLOTHING • Wear close fitting clothing and safety equipment appropriate to the job. • Prolonged exposure to loud noise can cause impairment or loss of hearing.
-
Page 17: Section 3 - Operation
3. OPERATION - 17 -... -
Page 18: Introduction And Operating Principle
3. OPERATION WolfPac 3100 / WolfPac 3100R 3.1 INTRODUCTION & OPERATING PRINCIPLE Congratulations on your purchase of the WolfPac3100 / WolfPac3100R! You've made an excellent choice! The WolfPac3100 is ergonomically engineered to optimize operator interface with the total machine--it's really "user friendly". Besides good visibility to the roll-edge as well as the work surface, you'll find that the controls are exactly in the right places for maximum comfort. -
Page 19: Fuel And Oil
3. OPERATION WolfPac 3100 / WolfPac 3100R 3.2 FUEL & OIL WARNING 3.2.1 Gasoline Fuel ENGINE IS EQUIPPED WITH LOW OIL SHUT- Always use fresh, unleaded gasoline (86 octane min.). DOWN. ROLLER WILL SHUT DOWN IF Fresh gasoline is blended for the season and reduces ENGINE OIL IS LOW. -
Page 20: To Start
3. OPERATION WolfPac 3100 / WolfPac 3100R • forward or reverse will give the greatest amount of Check the fuel level. speed. WARNING • Check the hydraulic fluid level. Use the sight gauge located on the hydraulic tank. NEVER OPERATE ON SLOPES GREATER A 1/4-1/2"... -
Page 21: Parking Brake
3. OPERATION WolfPac 3100 / WolfPac 3100R 3.9 PARKING BRAKE 3.12 BYPASS OPERATION Parking brake only, use the forward/reverse lever to In an emergency or during a breakdown, it may be slow down roller. necessary or desirable to tow the roller. The bypass valve is located on the pump under the hood. -
Page 22: Eccentrics
3. OPERATION WolfPac 3100 / WolfPac 3100R 3.16 ECCENTRICS • To assist edge compaction and confinement, leave 4" uncompacted and allow to cool When vibratory compaction is necessary, engage slightly before finishing. eccentrics by pushing the vibration switch to the ON position. -
Page 23: Section 4 - Maintenance
4. MAINTENANCE - 23 -... -
Page 24: Maintenance Chart
4. MAINTENANCE WolfPac 3100 / WolfPac 3100R 4.1 MAINTENANCE CHART - 24 -... -
Page 25: Roll Over Protective Structures (Rops)
4. MAINTENANCE WolfPac 3100 / WolfPac 3100R 4.2 ROLL OVER PROTECTIVE STRUCTURES • Seat belt. The presence and operability of a (ROPS) seat belt should be noted. The belt should be clean, free of dirt and grease, and the latch Proper inspection and maintenance procedures can should function smoothly. -
Page 27: California Proposition 65 Warning
CALIFORNIA PROPOSITION 65 WARNING: Operation of this equipment and/or engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. - 27 -... - Page 28 The Way It Ought To Be. Stone Construction Equipment, Inc. P .O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 585-229-2363 e-mail: sceny@mcimail.com www: stone-equip.com A 100% employee-owned American manufacturer © 1996 Stone Construction Equipment, Inc. Printed in U.S.A. GP1M...
