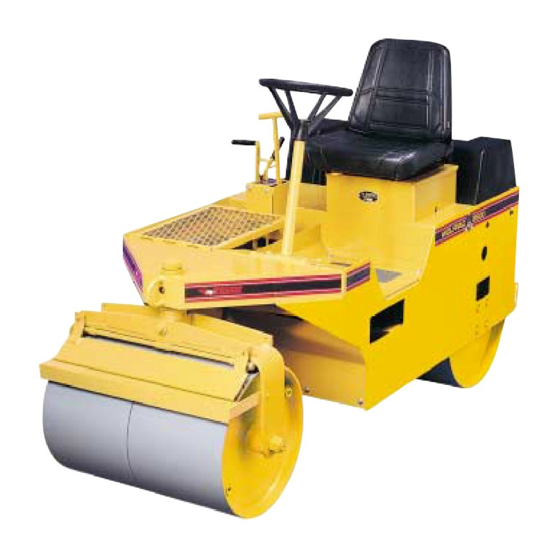

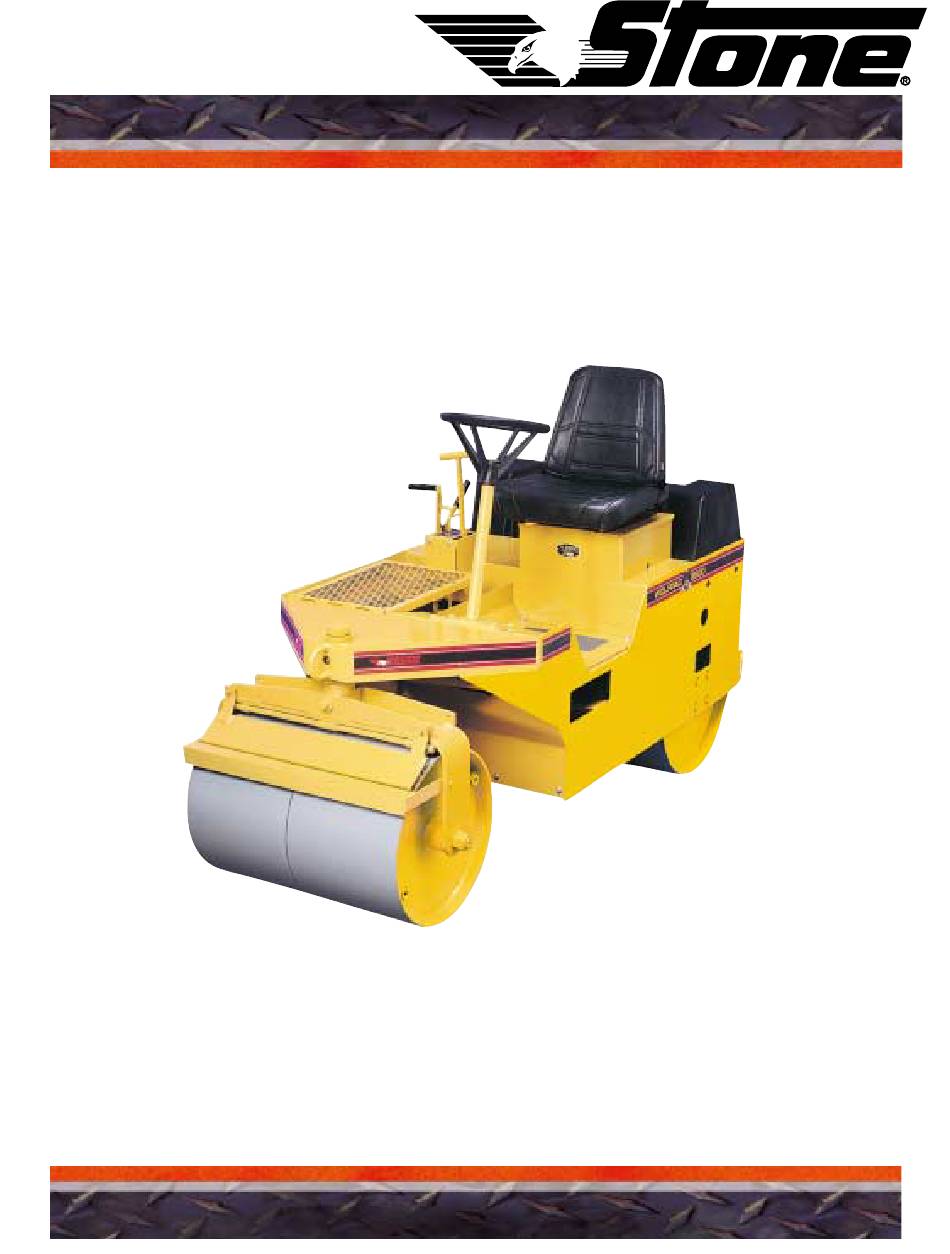

- Page 1 OPERATOR MANUAL MODELS: WolfPac 2500 ™ 1 - 1/4 TON STATIC RIDE ON A 100% employee-owned American manufacturer REVISION: D 4/02 P/N 56382...
-
Page 3: Table Of Contents
TABLE of CONTENTS WolfPac 2500 ™ FOREWORD ............................4 LIMITED WARRANTY ..........................5 SECTION 1 - TECHNICAL DATA ........................ 7 - 9 Specifications ..........................8 Machine Data ..........................9 Engine RPM ..........................9 Machine Sound Level Test ......................9 SECTION 2 - HEALTH & SAFETY ......................11 - 16 SECTION 3 - OPERATION .......................... -
Page 4: Foreword
Fax #: ______________________________ accidents. Stone Construction Equipment, Inc. is not liable for the function of the machine when used in an improper Location of above information: manner or for other than the intended purpose. -
Page 5: Limited Warranty
No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective September 2001. Stone Construction Equipment, Inc. Phone: 1-800-888-9926 • 1-585-229-5141 Bred Tough, Technology Born To Work. -
Page 7: Section 1 - Technical Data
1. TECHNICAL DATA - 7 -... -
Page 8: Specifications
1. TECHNICAL DATA Specifications 1.1 Stone WolfPac 2500 Specifications ® MODEL STONE WolfPac 2500 Dimensions L x W x H 84" x 36" x 56" Weight Total Dry 1585 lbs. Operating Weight 2070 lbs. Weight Ballasted Out 2680 lbs. Front Roller Dia. -
Page 9: Machine Data
Full RPM should not be exceeded and will void the engine warranty. IDLE RPM 1400 MIN FULL RPM 3600 +100 1.4 MACHINE SOUND LEVEL TEST Machine Type: WolfPac 2500 Sound Level Meter Calibration Date: January 2, 1996 Meter Type: Simpson Model 886-2 Type 2 Test Date: January 2, 1996... -
Page 11: Section 2 - Health & Safety
2. HEALTH & SAFETY - 11 -... - Page 12 2. HEALTH & SAFETY Safety Precautions Before using this equipment, study this entire manual When warning decals are destroyed or missing, contact to become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially replacement.
- Page 13 2. HEALTH & SAFETY Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot. •...
- Page 14 2. HEALTH & SAFETY Safety Precautions • Qualified personnel only. No untrained operators. Serious injury may occur. • Users must be trained to operate this roller. Read the Operator's Manual and Engine Owner's Manual. Learn to operate this roller safely. •...
- Page 15 2. HEALTH & SAFETY Safety Precautions • Keep feet clear of all drums. • Keep work area free of bystanders. • For foot protection, wear steel toe shoes or toe pads. • Caution: Keep away from the machine’s articulation area when the engine is running.
- Page 16 2. HEALTH & SAFETY Safety Precautions • Starting fluid (ether) is highly flammable, do not use or an explosion or fire may result. WEAR PROTECTIVE CLOTHING • Wear close fitting clothing and safety equipment appropriate to the job. • Prolonged exposure to loud noise can cause impairment or loss of hearing.
-
Page 17: Section 3 - Operation
3. OPERATION - 17 -... -
Page 18: Introduction And Operating Principle
™ 3.1 INTRODUCTION & OPERATING PRINCIPLE Congratulations on your purchase of the WolfPac 2500! You've made an excellent choice! The WolfPac 2500 is ergonomically engineered to optimize operator interface with the total machine--it's really "user friendly". Besides good visibility to the roll-edge as well as the work surface, you'll find that the controls are exactly in the right places for maximum comfort. -
Page 19: Fuel And Oil
3. OPERATION WolfPac 2500 ™ 3.2 FUEL AND OIL WARNING DO NOT MIX OIL WITH FUEL. The engine has a ENGINE IS EQUIPPED WITH LOW OIL SHUT- separate oil reservoir in the crankcase. Unleaded DOWN. ROLLER WILL SHUT DOWN IF gasoline is recommended for use in the engine since it ENGINE OIL IS LOW. -
Page 20: To Start
3. OPERATION WolfPac 2500 ™ 5. Check throttle, levers and controls for smooth 3.6 PARKING BRAKE operation. Parking brake only, use the forward/reverse lever to 3.4 TO START slow down roller. WARNING 1. Operator must always be seated when roller is running. -
Page 21: Forward/Reverse/Neutral
3. OPERATION WolfPac 2500 ™ 3.9 FORWARD / REVERSE / NEUTRAL 3.14 COCOA MATS / SCRAPERS The forward/reverse lever should be aligned with Cocoa mat, located on both drums, must make uniform "NEUTRAL" on the console when the roller is moving contact across entire width of drum to ensure even neither forward nor backward with the engine running. - Page 22 3. OPERATION WolfPac 2500 ™ • Avoid sharp turns, steer gradually. We suggest the operator take 20 minutes or so to get used to the feel of the unit. • Recommended asphalt rolling should be at 3 m.p.h. or less to achieve a uniform mat. Slow the paver down rather than speed up the roller.
-
Page 23: Maintenance Chart
3. OPERATION WolfPac 2500 ™ 3.16 MAINTENANCE CHART - 23 -... -
Page 27: California Proposition 65 Warning
CALIFORNIA PROPOSITION 65 WARNING: Operation of this equipment and/or engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. - 27 -... - Page 28 The Way It Ought To Be. Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 585-229-2363 e-mail: sceny@mcimail.com www: stone-equip.com A 100% employee-owned American manufacturer © 1989 Stone Construction Equipment, Inc. Printed in U.S.A. GP1M...
