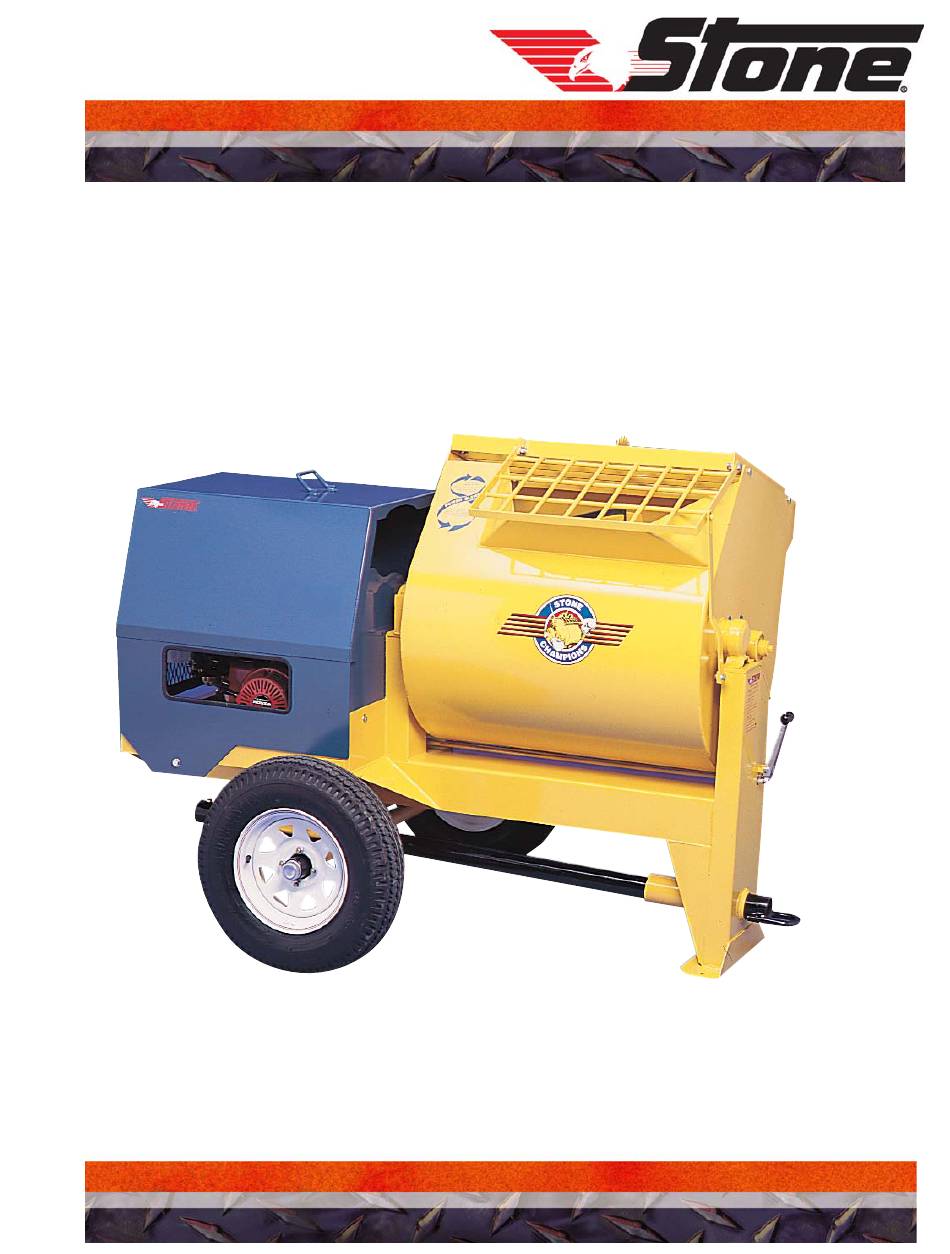

- Page 1 OPERATOR MANUAL MODEL: HM1290 HYDRAULIC MIXER Plaster / Mortar / Fireproofing A 100% employee-owned American manufacturer Revision: D 05/2004 P/N 56325...
-
Page 3: Table Of Contents
Table of Contents HM1290 Table of Contents ........................ 3 User Information ......................... 4 Limited Warranty ........................ 5 Technical Data ....................... 6-10 Specifications........................6 Machine Sound Level ......................7 Operator Controls ....................... 8 Decal Identifiation ......................9 Health & Safety ......................10-11 Operation ........................ -
Page 4: User Information
Location of above information: Stone Construction Equipment, Inc. is not liable for the function of the machine when used in an 1. Information on S/N tag. improper manner or for other than the intended purpose. -
Page 5: Limited Warranty
No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective January 2004. Stone Construction Equipment, Inc. • 8662 Main Street, P. O. Box 150 •... -
Page 6: Technical Data
Technical Data Specifications HM1290 'LPHQVLRQV 2SHUDWLQJ :W *DV OEV .J OEV .J (OHFWULF EDJV %DWFK &DSDFLW\ %DJV %DWFK &DSDFLW\ FXIW FX IW FX P 7RWDO 9ROXPH FX IW FX P... -
Page 7: Machine Sound Level
Technical Data Machine Sound Level Sound Pressure measurements were taken with Simpson model 886-2 type 2 meter, calibrated 1/31/ 98 on the 13HP Honda Test measurements were taken with Quest Tech model VI-100 meter, 1/31/98 Ambient Temperature: 30 F/-1 ° °... -
Page 8: Operator Controls
Technical Data Operator Controls - 8 -... -
Page 9: Decal Identifiation
Technical Data Decal Identification - 9 -... -
Page 10: Health & Safety
Health and Safety Safety Precautions · Before using this equipment, study the entire owner’s manual to be- come familiar with its operation. Do not allow untrained or unautho- rized personnel, especially children, to operate this equipment. Use only factory authorized parts for service. ·... - Page 11 Health and Safety Safety Precautions Warning-Hot Surfaces · Avoid contact with hot exhaust system and engines. · Allow engine to cool before performing any repairs or service. Warning-Ventilation · Never operate any gas powered mixer in a poorly ventilated or enclosed area.
-
Page 12: Operation
Operation Center of Gravity When setting up work area, make sure all other equipment, vehicles, scaffolding, walls and other obstructions are at least 6 feet / 2 meters from mixer. - 12 -... -
Page 13: Operating Features
Operation Operating Features Power Blend Paddle System - Adds a new Your new HM1290 mixer comes standard with dimension to the mixing action. The sharper the following features: angle at which the blades enter the mix divides, separates and recombines in addition to the normal folding and extruding actions. -
Page 14: Before Starting
Lubrication Before Starting Engine Oil - Check the oil level before starting Mixer is shipped completely assembled and ready for the engine. Warranty is VOID if run without operation except for installation of the safety chain. oil. Consult the Engine Manual supplied with this unit for specific instructions and oil recommendations. -
Page 15: To Start And Stop The Engine
Always operate the engine at full throttle when under load. NOTE: These starting instructions are general guidelines only. Since many engine options are available on Stone PM mixers, consult the Engine Manual included with this unit for specific instructions. - 15 -... -
Page 16: To Operate The Mixer
Operation To Operate the Mixer To Dump – Pull the lever on the left side out slowly until correct dumping speed is obtained. WARNING Paddles should be rotating in a clock- wise direction to ALWAYS WEAR SPLASH GOGGLES clean out the drum. WHEN OPERATING THE MIXER. -
Page 17: To Clean The Mixer
Cleaning the Mixer Operation To Lubricate the Mixer Daily Cleaning the Mixer - For consistent perfor- mance, long life and continued high quality 1. Check the oil levels in the engine. If re- mixing of plaster or mortar, thoroughly clean the quired, add a good grade of 10W30 oil. -
Page 19: California Proposition 65
CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. - Page 20 The Way It Ought To Be. Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 585-229-2363 e-mail: sceny@stone-equip.com www: stone-equip.com A 100% employee-owned American manufacturer © 1998 Stone Construction Equipment, Inc. Printed in U.S.A.
