Summary of Contents for Stone CHAMPION 855PMP

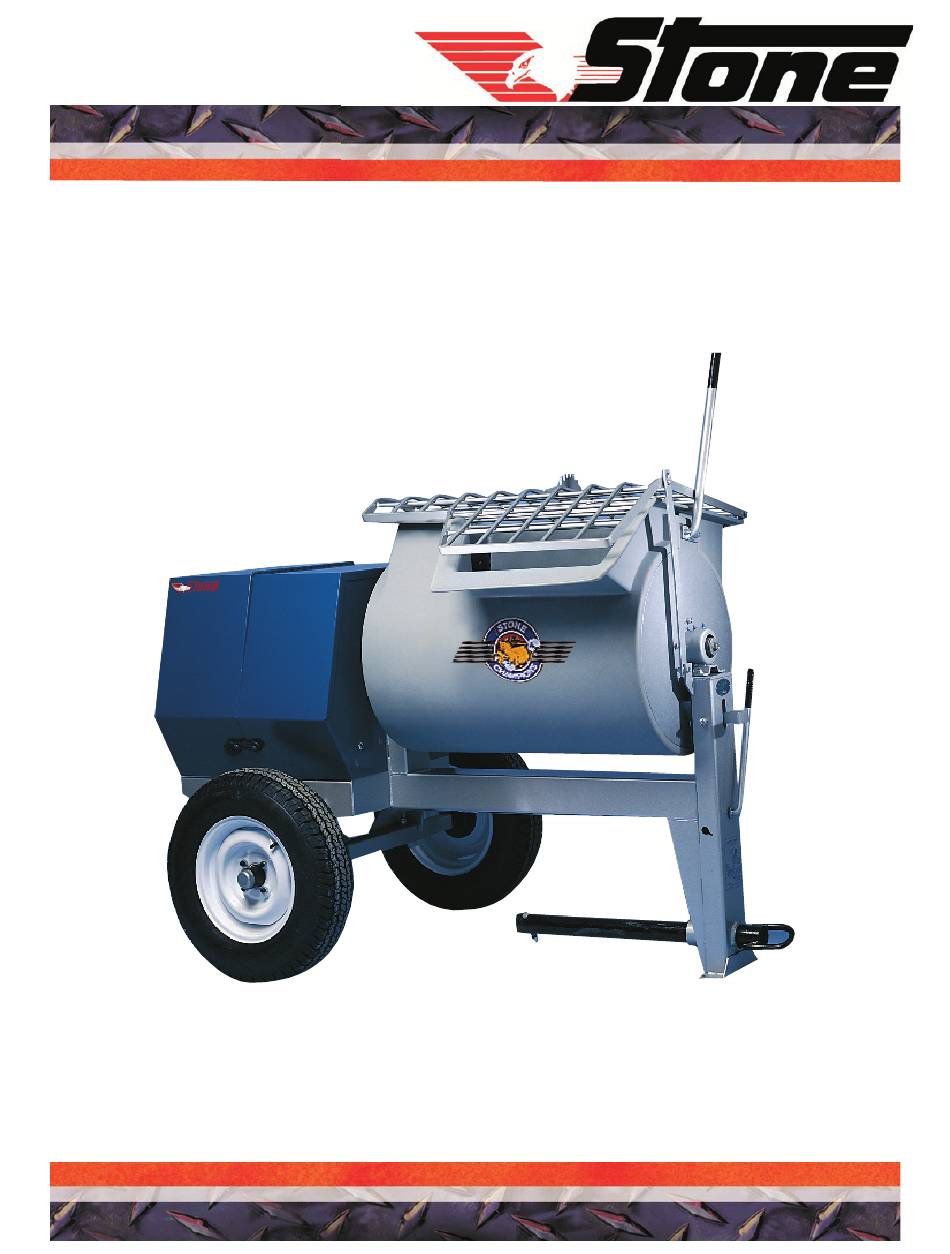

- Page 1 OPERATOR MANUAL MODELS: 855PMP PLASTIC DRUM CHAMPION PLASTER/MORTAR MIXER ® A 100% employee-owned American manufacturer REVISION: B 02/2002 P/N 56363...
-
Page 3: Table Of Contents
TABLE of CONTENTS 855PMP FOREWORD ........................... 4 LIMITED WARRANTY ......................... 5 TECHNICAL DATA ........................6 -8 Specifications ..........................6 Imperial Torque Chart ......................... 7 Metric Torque Chart ........................8 HEALTH & SAFETY ........................9 - 13 OPERATION ........................... 14-18 Location and Use of Controls ..................... 14 Operating Features/Patented Automatic Guard Lifter/Quadruple Shaft Seal/Axle .... -
Page 4: Foreword
Location of above information: Stone Construction Equipment, Inc. is not liable 1. Information on S/N tag. for the function of the machine when used in an improper manner or for other than the 2. -
Page 5: Limited Warranty
No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective April 1, 1998. Stone Construction Equipment, Inc. Phone: 1-800-888-9926 • 1-716-229-5141 Bred Tough, Born To Work. The Fax: 1-716-229-2363 32 East Main Street, P. -
Page 6: Technical Data
TECHNICAL DATA Specifications Stone 855PMP Mixer – Specifications Dimensions Operating Wt. 605 lbs. / 275 kg Batch Capacity 2 1/2 - 3 bags (Bags) Batch Capacity 8 cu. ft. / .23 cu. m. (cu. ft.) Total Volume 9.0 cu. ft. / .25 cu. m. -
Page 7: Imperial Torque Chart
TECHNICAL DATA Imperial Torque Chart SAE GRADE 5 SAE GRADE 8 Coarse Thread Coarse Thread SIZE PLATED SIZE PLATED 1/4 – 20 (.250) 6 ft. lbs. 8 Nm 1/4 – 20 (.250) 9 ft. lbs. 12 Nm 5/16 – 18 (.3125) 13 ft. -
Page 8: Metric Torque Chart
TECHNICAL DATA Metric Torque Chart Property Class 8.8 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. Property Class 10.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. 1000 Property Class 12.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. -
Page 9: Health & Safety
HEALTH & SAFETY Safety Precautions Before using this equipment, study this entire manual When warning decals are destroyed or missing, contact to become familiar with its operation. Do not allow the Manufacturer immediately at 1-800-888-9926 for untrained or unauthorized personnel, especially replacement. -
Page 10: Operation
HEALTH & SAFETY Safety Precautions USE COMMON SENSE WHEN HANDLING FUELS • Transport and handle fuel only when contained in approved safety container. • Do not smoke when refueling or during any other fuel handling operation. • Do not refuel while the engine is running or while it is still hot. •... - Page 11 HEALTH & SAFETY Safety Precautions • Never perform any work on the mixer while it is running. • Before working on the mixer, stop the engine and disconnect the spark plug wire(s) to prevent accidental starting. On electric models, disconnect the electric cord at the mixer. •...
- Page 12 HEALTH & SAFETY Safety Precautions Warning-Eye Protection Always wear splash goggles when operating mixer. • Warning-Towing Warning: Do not tow the mixer with the drum in the dump position. • Mixer may become unstable and tip over when hitting a curb, pothole, or other obstruction.
- Page 13 HEALTH & SAFETY Safety Precautions PRACTICE SAFE MAINTENANCE • Understand service procedure before doing work. Keep area clean and dry. • Never lubricate, service or adjust machine while it is moving. Keep hands, feet, and clothing from power-driven parts. Disengage all power and operate controls to relieve pressure.
-
Page 14: Location And Use Of Controls
OPERATION Location and Use of Controls Before operating this unit, it is important to familiarize yourself, and any other personnel who will be using it, with the location and proper use of the controls to insure safe and efficient operation. A. -
Page 15: Operating Features/Patented Automatic Guard Lifter/Quadruple Shaft Seal/Axle
Operating FeaturesLocation OPERATION and Use of Controls OPERATING FEATURES manual and on the mixer front post to attach the safety chain to the towing vehicle. Your new 855 plastic drum plaster/mortar mixer comes standard with the following features: INSTALLING CHAIN TO MIXER PATENTED AUTOMATIC GUARD LIFTER Lifts the drum guard as the drum is tilted to prevent the mix from being poured through the guard and... -
Page 16: To Start/Disengage Drive Train/Check Drum Dump Latch
Hardware/Drive Train/Start OPERATION the Engine/Motor CHECK DRUM DUMP LATCH RUBBER BLADES Make sure that the drum latch is engaged with the The rubber blades are factory pre-set. Due to local drum in the upright or mixing position. preferences, some readjustment may be desired. On the 855PMP the blades will never rub on the side of the drum. -
Page 17: Operation/Cleaning
OPERATION To Stop/Operation/Cleaning 2. Add half the required amount of sand. ELECTRIC MOTOR SWITCH - Located on the motor. It is used to start and stop the electric mixer. 3. Add the total required amount of mortar mix (cement, lime, etc.). TO STOP THE ENGINE / MOTOR 4. -
Page 18: Warnings
OPERATION Warnings WARNING NEVER POUR OR SPRAY WATER OVER THE ENGINE OR MOTOR. NEVER PUT HANDS OR ANY OBJECT INTO THE DRUM WHILE THE ENGINE OR MOTOR IS RUNNING. ALWAYS DISCONNECT THE SPARK PLUG WIRE ELECTRIC CORD WHEN CLEANING INSIDE DRUM. ALWAYS MAKE SURE GUARD LIFTER IS RECONNECTED TO GUARD BEFORE USING MIXER, DO NOT OPERATE THE MIXER WITH... -
Page 19: Maintenance
Cleaning/Lubrication/ MAINTENANCE Hardware/Towing CLEANING LUBRICATION For consistent performance, long life and continued Fill wheel hub with grease to inside diameter of high quality mixing of plaster or mortar, thoroughly outer races and also fill hub grease cap. Never use clean the mixer inside and out at the end of each grease heavier than 265 A.S.T.M. -
Page 20: Bull Gear Assembly
MAINTENANCE Towing/Bull Gear Assy 1.Hitch attached to the towing vehicle securely. Refer to FRAME AND DRUM ASSEMBLY, STANDARD AXLE ASSEMBLY and SPRING 2.Towpole fully extended and bolted to mixer AXLE ASSEMBLY sections of this manual for parts securely. identification and location. 3.Safety chain hooked up properly (see illustra- tion below or decal on mixer front post). -
Page 21: Maintenance Schedule
MAINTENANCE Schedule A. ENGINE--Daily check the oil levels in the engine and engine reduction unit. The engine warranty is VOID if run without oil . Since there are many options available on this mixer, consult the ENGINE MANUAL for specific recommendation as to oil level, oil type required and frequency of oil changes re- quired. -
Page 22: Maintenance Chart
MAINTENANCE Chart - 22 -... -
Page 23: California Proposition 65 Warning
CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. - Page 24 The Way It Ought To Be. Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 716-229-2363 e-mail: sceny@mcimail.com www: stone-equip.com A 100% employee-owned American manufacturer © 1993 Stone Construction Equipment, Inc. Printed in U.S.A.
