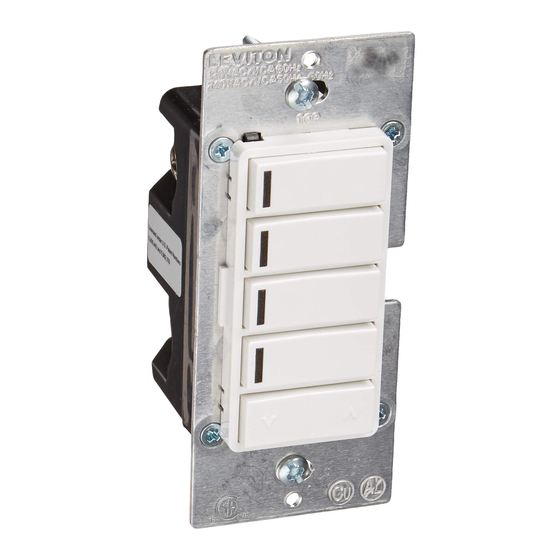

Leviton vizia rf+ VRCZ4 Installation Instructions

WARNINGS AND CAUTIONS

:
• ON/OFF LED for remote load status.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia RF +™ VRCZ4 remote does not control the load, but provides scene applications to operate with Vizia RF +
• Recommended minimum wall box depth is 2-1/2".
INTRODUCTION
Leviton's Vizia RF + TM components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control
of your lighting. Using RF technology allows Leviton to provide the
greatest signal integrity possible. Each module in Leviton's Vizia RF +
component line is a Z-Wave ® enabled device. In a Z-Wave
each device is designed to act as a router. These routers will re-transmit
the RF signal from one device to another until the intended device is
reached. This ensures that the signal is received by its intended device
by routing the signal around obstacles and radio dead spots. The 4-Zone
Controller is compatible with any Z-Wave enabled network, regardless
®
of the manufacturer and can also be used with other devices displaying
the Z-Wave logo.
®

FEATURES

• This is a Z-Wave Controller
®
• Zone/Area control without traveler wires
• Can control ON/OFF dim/bright for up to 4 Zones/Area.
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave ® enabled devices

Tools needed to install your 4-Zone Controller:

Slotted/Phillips Screwdriver Electrical Tape
Pencil Cutters

Changing the color of your 4-Zone Controller:

Your 4-Zone controller includes three color options. The controller ships
with the White frame attached. To change color of frame, proceed as
follows:
Push in
line up tabs
side at tab and press in
to release side to attach
After frame is removed, remove existing push buttons by pressing out
buttons from back of frame and replace them with desired color change
push buttons by pressing in from front of frame. To make IR capable, use
new DIM/BRIGHT button with IR window.
dimmers/switches.
TM

INSTAllING YOUR 4-ZONE CONTROllER

NOTE: Use check boxes when Steps are completed.
WARNING:
Step 1 TO AVOID FIRE, SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power is off
TM
before wiring!
® network,
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble this
configuration, consult a qualified electrician.
1. Line (Hot)
2. Neutral
3. Ground
2
1
3
Preparing and connecting wires:
Step 3
This 4-Zone controller can be wired using side wire terminal
Pliers
Ruler screws or through backwire openings. Choose appropriate wire
stripping specifications accordingly.
Cut
(if necessary)
Side Wire Connection Back Wire (either hole may be used)
Side wire terminals accept Back wire openings use #14-12 AWG
#14 AWG solid wire copper only. solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
4-Zone Controller
Cat. No. VRCZ4
120VAC, 60Hz
INSTAllATION INSTRUCTIONS
WARNINGS AND CAUTIONS
• Can call up four (4) zone ON/OFF with advanced Programmer/Remote (see VRCPG).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Wiring Application:
Step 4
4-Zone Controlller
WH
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Line Neutral wall box wire to terminal screw marked "WH".

Testing your 4-Zone Controller prior to mounting

Step 5
in wall box:
• Restore power at circuit breaker or fuse.
• LED should turn ON, when any button is pressed. If lED does not turn
ON, refer to the TROUBlESHOOTING section.
5/8"
Strip Gage
(1.6 cm)
(measure bare
wire here)

4-Zone Controller Mounting:

Step 6
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
:
Step 7
Hot (Black)
BK
Including 4-Zone Controller into Z-Wave
Step 8
Green
Network:
Ground
Line
120VAC, 60Hz
NOTES:
• If using a non-Leviton Programmer/Remote, refer to the
Neutral (White) Programmer/Remote instruction sheet.
• 4-Zone controllers incuded into a Z-Wave
after you have included all other devices.
• If using VRCPG install checklist go directly to step B.
A) If using a Leviton Z-Wave
press the Menu button and scroll down to System Setup. Press
the center button to select System Setup Menu. Choose Advance
Settings. Press the center button to select Network. Press the center
button to <Include Node>.
B) If using VRCPG Programmer/Remote, you will be prompted to place
• Position all wires to provide room in
4-Zone controller into programming mode.
outlet wall box for device.
C) To access Program mode, press and hold the
• Ensure that the word "TOP" is facing up
left side of buttons 1 and 3 (refer to figure).
on device strap.
Wait 5 seconds until the LED turns Amber.
• Partially screw in mounting screws in
Release the button and the LED will blink
wall box mounting holes.
Amber. You are now in Programming mode.
NOTE: Dress wires with a bend as
NOTE: If the LED on the 4-Zone controller
shown in diagram in order to relieve
turns solid Red while including, there has
stress when mounting device.
been a communication error.
D) While standing close to the 4-Zone controller
(approximately 1 foot), press the center button
on the Programmer/Remote to <Include>
device in the network.
NOTE: Only one device may be included at
any time.
NOTE: If the LED on the 4-scene controller turns solid Red while
including, there has been a communication error.
E) The Primary Programmer/Remote will assign a Home ID, Node ID,
and Name for this device.
NOTE: This information will be stored in the Programmer/Remote to
be used for future reference.
NOTE: You may name or edit the node of this device at this time.
F) The 4-Zone controller is now installed in the network.
Installation may now be completed by
tightening mounting screws into wall box.
Attach wallplate.
DI-000-VRCZ4-00A-X0

Restore Power:

Restore power at circuit breaker or fuse.
Installation is complete.
®
