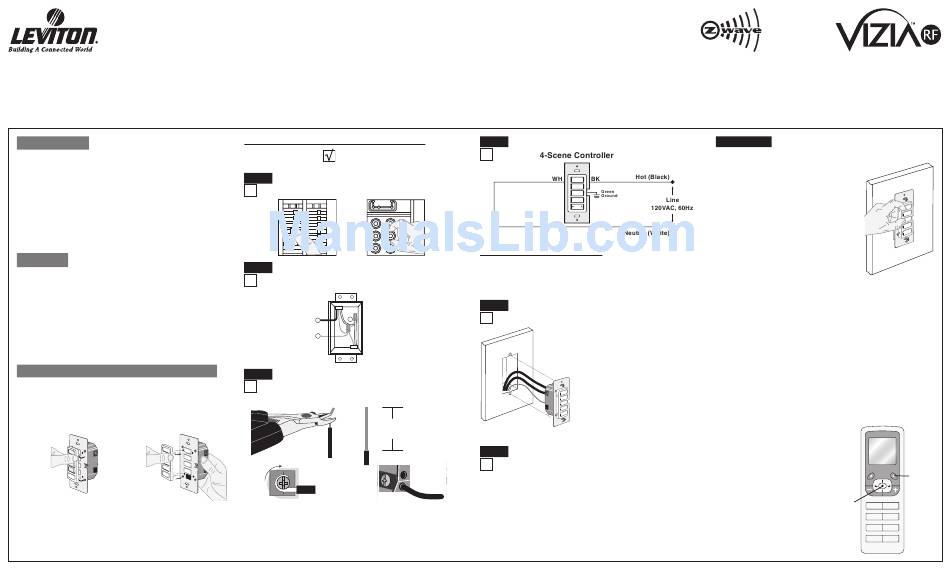

Leviton RZCS4 Installation Instructions

DI-000-RZCS4-00C
WARNINGS AND CAUTIONS :
• ON/OFF LED for remote load control.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia RF RZCS4 controller does not control the load, but provides scene applications to operate with Vizia
TM
• Recommended minimum wall box depth is 2-1/2".
INTRODUCTION
Leviton's Vizia TM RF components are designed to communicate with
each other via Radio Frequency (RF) to provide remote control of your
lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton's Vizia TM RF component
line is a Z-Wave TM enabled device. In a Z-Wave TM network, each device
is designed to act as a router. These routers will re-transmit the RF signal
from one device to another until the intended device is reached. This
ensures that the signal is received by its intended device by routing the
signal around obstacles and radio dead spots. The 4-Scene Controller
is compatible with any Z-Wave enabled network, regardless of the
TM
manufacturer and can also be used with other devices displaying the
Z-Wave TM logo.
FEATURES
• This is a Z-Wave TM Controller
• Scene control without traveler wires
• Can call 4 scenes
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave TM enabled devices
Tools needed to install your 4-Scene Controller:
Slotted/Phillips Screwdriver Electrical Tape
Pencil Cutters
Changing the color of your 4-Scene Controller:
Your 4-Scene controller includes three color options. The controller ships
with the White frame attached. To change color of frame, proceed as
follows:
Push in line up tabs
side at tab and press in
to release side to attach
After frame is removed, remove existing push buttons and replace them
with desired color change push buttons. To change the DIM/BRIGHT
button, before mounting frame, press out DIM/BRIGHT button (bottom)
from back of frame and press in from front of frame new DIM/BRIGHT
button. To make IR capable, replace with a DIM/BRIGHT button that has
the IR window.
RF switches.
TM
INSTAllING YOUR 4-SCENE CONTROllER
NOTE: Use check boxes when Steps are completed.
WARNING:
TO AVOID FIRE, SHOCK OR DEATH; TURN
Step 1
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble this
configuration, consult a qualified electrician.
1. Line (Hot)
2. Neutral
3. Ground
2
1
3
Preparing and connecting wires:
Step 3
This 4-Scene controller can be wired using side wire terminal
Pliers
screws or through backwire openings. Choose appropriate wire
Ruler
stripping specifications accordingly.
Cut
(if necessary)
Side Wire Connection Back Wire (either hole may be used)
Side wire terminals accept Back wire openings use #14-12 AWG
#14 AWG solid wire copper only. solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
4-Scene Controller
Cat. No. RZCS4
120VAC, 60Hz
INSTAllATION INSTRUCTIONS
WARNINGS AND CAUTIONS
• Can call up four (4) scene ON/OFF with advanced Programmer/Remote (see RZCPG).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Wiring Application:
Step 4
WIRING 4-SCENE CONTROllER:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Line Neutral wall box wire to terminal screw marked "WH".
Testing your 4-Scene Controller prior to
Step 5
mounting in wall box:
5/8"
Strip Gage
(1.6 cm)
(measure bare
wire here)
Including 4-Scene Controller into Z-Wave
Step 6
Network:
NOTES:
• If using a non-Leviton Programmer/Remote, refer to the Programmer/
Remote instruction sheet.
• 4-Scene controllers incuded into a Z-Wave
after you have included all other devices.
A) If using a Leviton Z-Wave
press the Menu button and scroll down to System Setup. Press the
center button to select System Setup Menu. Press the center button to
select Network. Press the center button to <Include Node>.
Compatible with
:
Step 6 cont'd
B) If using RZCPG Programmer/Remote, you will be prompted to place
4-Scene controller into programming mode.
C) To access Program mode, press and hold
buttons 1 and 3 (refer to figure). Wait
5 seconds until the LED turns Amber.
Release the buttons and the LED will blink
Amber. You are now in Programming mode.
NOTE: If the LED on the 4-scene controller
turns solid Red while including, there has
been a communication error.
D) While standing close to the 4-Scene
controller (approximately 2-5 ft.), press the
center button on the Programmer/Remote
to <Include> device in the network. NOTE:
Only one device may be included at any
time.
E) The Primary Programmer/Remote will assign a Home ID, Node ID,
and Name for this device.
NOTE: This information will be stored in the Programmer/Remote to
be used for future reference.
NOTE: You may name or edit the node of this device at this time.
F) The 4-Scene controller is now installed in the network.
• Position all wires to provide room in
G) After all devices are included into the network, the controller must
outlet wall box for device.
be updated to allow proper network function. To update controller
• Ensure that the word "TOP" is facing up
proceed as follows:
on device strap.
• I f using a non-Leviton Programmer/Remote, refer to the
• Partially screw in mounting screws in
Programmer/Remote instruction sheet for updating controller.
wall box mounting holes. • I f using Leviton Z-Wave
press the Menu button and scroll down to System Setup. Press
NOTE: Dress wires with a bend as
the center button to select System Setup Menu. Press the center
shown in diagram in order to relieve
button to select Network. Press the center button to select
stress when mounting device.
Update "cntrl". When prompted, press desired button on 4-Scene
• Restore power at circuit breaker or fuse.
controller.
• LED should turn ON.
• W ait until the RZCPG Programmer/
If lED does not turn ON, refer to the
Remote confirms completion. Update
TROUBlESHOOTING section.
is done.
NOTE: If the 4-Scene controller has
TM
been successfully Included in the
network and the user tries to Include
it again without first excluding it from the
network, the controller will retain the first
node ID it had received and ignore the
second.
TM network must be updated
TM Programmer/Remote, Cat. No. RZCPG,
TM
enabled products!
Programmer/Remote, Cat. No. RZCPG,
TM
Menu
Button
Center
1
ON OFF
Button
2
ON OFF
3
ON OFF
4
ON OFF
Programmer/Remote
Cat. No. RZCPG
