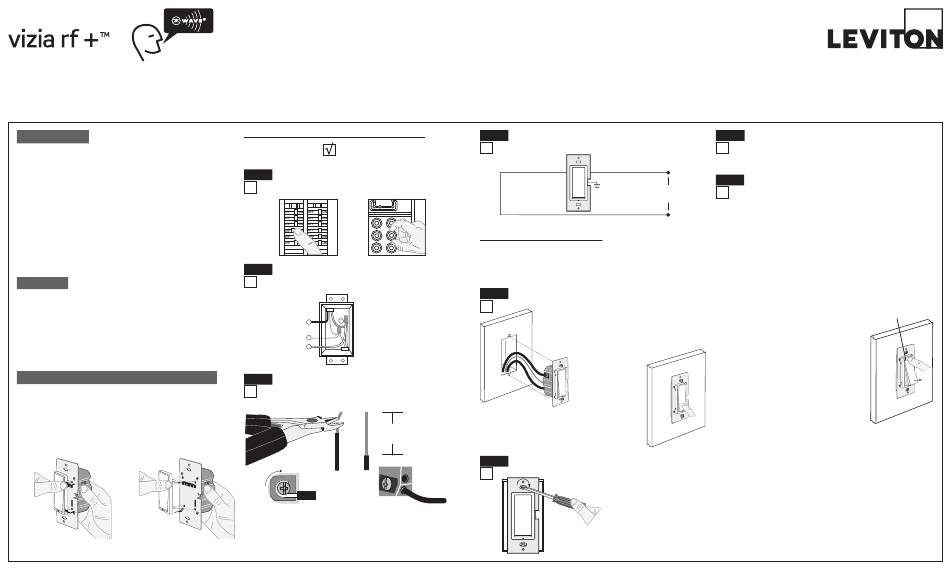

Leviton vizia rf+ VRCS1 Installation Instructions

WARNINGS AND CAUTIONS
:
• ON/OFF LED for 2-way status reporting.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia RF + TM VRCS1 1-Scene Controller does not control the load, but provides remote operation with Vizia RF +
• Recommended minimum wall box depth is 2-1/2".
INTRODUCTION
Leviton's Vizia RF + TM components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control
of your lighting. Using RF technology allows Leviton to provide the
greatest signal integrity possible. Each module in Leviton's Vizia RF +
component line is a Z-Wave ® enabled device. In a Z-Wave
each device is designed to act as a router. These routers will re-transmit
the RF signal from one device to another until the intended device
is reached. This ensures that the signal is received by its intended
device by routing the signal around obstacles and radio dead spots.
This 1-Scene controller is meant to control special scene enabled
Z-Wave ® products. To control groups of devices that are mixed or do
not support scene command class use the Leviton 1-Zone Controller
(VRCZ1). Setting up this device requires specific advanced controller
functionalities, your controller must be able to associate device to groups
and must be able to control the scene controller configuration commands
such as the advanced Programming Remote (VRCPG).
FEATURES
• This is a Z-Wave ® Controller
• 3-way or 4-way control without traveler wires
• Can call 1 scene
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave ® enabled devices
Tools needed to install your 1-Scene Controller
Slotted/Phillips Screwdriver Electrical Tape
Pencil Cutters
Changing the color of your 1-Scene Controller:
Your device may include color options. To change color of the face,
proceed as follows:
line up tabs
Push in
and press in
side at tab
sides one at a
to release
time to attach
TM switches.
INSTAllING YOUR 1-SCENE CONTROllER
NOTE: Use check boxes when Steps are completed.
WARNING: TO AVOID FIRE, SHOCK OR DEATH; TURN
Step 1
TM
OFF POWER at circuit breaker or fuse and test that power is off
® network,
before wiring!
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble this
configuration, consult a qualified electrician.
2
1
3
2
Preparing and connecting wires:
Step 3
This 1-scene controller can be wired using side wire terminal
Pliers
screws or through backwire openings. Choose appropriate wire
Ruler
stripping specifications accordingly.
Cut
(if necessary)
Side Wire Connection Back Wire (either hole may be used)
Side wire terminals accept #14 Back wire openings use #14-12 AWG
AWG solid wire copper only. solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).

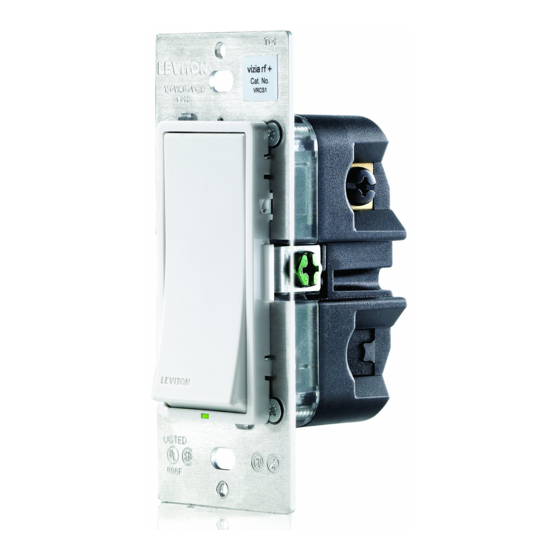

1-Scene Controller/
Virtual Matching Switch Remote
Cat. No. VRCS1
120VAC, 60Hz
INSTAllATION INSTRUCTIONS
WARNINGS AND CAUTIONS
• No traveler wires are needed. Remote controls via radio frequency (RF) technology.
• Can call one (1) scene ON/OFF or area ON/OFF with advanced Programmer/Remote (see VRCPG).
• For a complete set-up, a controller supporting the advanced Z-Wave® scene features is needed, such as the advanced Programming Remote (VRCPG).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Wiring Application:
Step 4
1-Scene Controller
WIRING 1-SCENE CONTROllER:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
Testing your 1-Scene Controller prior to
Step 5
1. Line (Hot)
mounting in wall box:
2. Neutral
3. Ground
• Restore power at circuit breaker or fuse.
• LED should turn ON.
5/8"
If lED does not turn ON, refer to the
Strip Gage
(1.6 cm)
TROUBlESHOOTING section.
(measure bare
wire here)
1-Scene Controller Mounting:
Step 6
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
:
Step 7
Hot (Black)
WH BK
Step 8
Green
Ground
Line
120VAC, 60Hz
NOTES:
• If using a non-Leviton Programmer/Remote, refer to the
Neutral (White)
Programmer/Remote instruction sheet.
• 1-scene controllers included into a Z-Wave
updated after you have included all other devices.
• If using the VRCPG's Install Checklist feature, go directly to Step C.
A) If using a Leviton Z-Wave
press the Menu button and scroll down to System Setup. Press
the center button to select System Setup Menu. Choose Advanced
Settings. Press the center button to select Network. Press the center
button to <Include Node>.
B) If using VRCPG Programmer/Remote, you will be prompted to place
1-scene controller into programming mode.
C) To access Program mode, engage the air-gap
• Position all wires to provide room in
switch by gently pressing the top of the push
outlet wall box for device.
pad until the bottom lifts completely out of the
• Ensure that the word "TOP" is facing up
frame and a click is heard (refer to figure).
on device strap.
Wait 5 seconds and then press the push pad
• Partially screw in mounting screws in
back into the frame and hold push pad until
wall box mounting holes.
the LED turns Amber. Release the push pad
NOTE: Dress wires
and the LED should blink Amber. You are now
with a bend as
in Programming mode.
shown in diagram
NOTE: If the LED on the 1-scene controller
in order to relieve
turns solid Red while including, there has
stress when
been a communication error.
mounting device.
D) While standing close to the 1-scene controller
(approximately 2-5 ft.), press the center
button on the Programmer/Remote to
<Include> device in the network. NOTE: Only
one device may be included at any time.
E) The VRCPG Programmer/Remote will assign a Home ID, Node ID,
and Name for this device.
NOTE: This information will be stored in the Programmer/Remote to
be used for future reference.
NOTE: You may edit the name of this device at this time.
F) The 1-scene controller is now installed in the network.
Installation may now be completed by
tightening mounting screws into wall box.
Attach wallplate.
DI-000-VRCS1-02B
Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
Including 1-Scene Controller into Z-Wave ®
Network:
network must be
®
Programmer/Remote, Cat. No. VRCPG,
®
Gently press top
of push pad
