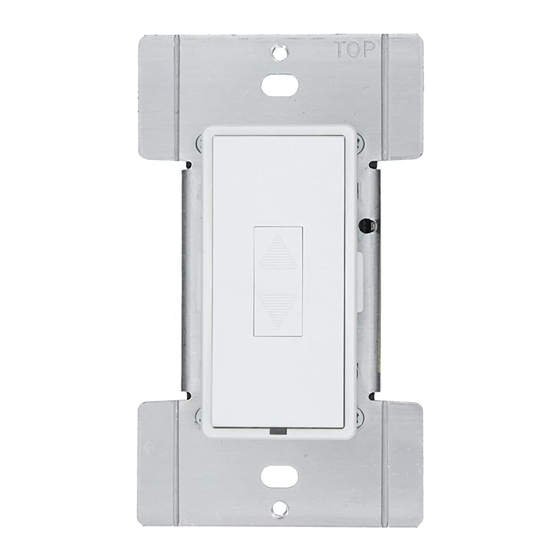

Leviton HXC10 Installation Instructions

Cat. No. HXC1D
WALL MOUNTED CONTROLLER
w/ Single Addressing
Cat. Nos.
HXC1Ø
HXC1A
HXC1D
120VAC, 60 Hz
INSTALLATION INSTRUCTIONS
PK-93027-10-00-0C
LIMITED FIVE YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for
the benefit of anyone else that this product at the time of its sale by
Leviton is free of defects in materials and workmanship under
normal and proper use for five years from the purchase date.
Leviton's only obligation is to correct such defects by repair or
replacement, at its option, if within such five year period the product
is returned prepaid, with proof of purchase date, and a description
of the problem to Leviton Manufacturing Co., Inc., Att: Quality
Assurance Department, 59-25 Little Neck Parkway, Little
Neck, New York 11362-2591. This warranty excludes and there
is disclaimed liability for labor for removal of this product or
reinstallation. This warranty is void if this product is installed
improperly or in an improper environment, overloaded, misused,
opened, abused, or altered in any manner, or is not used under
normal operating conditions or not in accordance with any labels
or instructions. There are no other or implied warranties of any
kind, including merchantability and fitness of a particular purpose,
but if any implied warranty is required by the applicable
jurisdiction, the duration of any such implied warranty, including
merchantability and fitness for a particular purpose, is limited to
five years. Leviton is not liable for incidental, indirect, special, or
consequential damages, including without limitation, damage to,
or loss of use of, any equipment, lost sales or profits or delay or
failure to perform this warranty obligation. The remedies provided
herein are the exclusive remedies under this warranty, whether
based on contract, tort or otherwise.
For Technical Assistance Call:
1-800-824-3005
www.leviton.com
PK-93027-10-00-0C
• Leviton's Decora ® Style design
• Universal design works with 1 and 2-Way Receivers
Leviton Residential Powerline Carrier Components are designed to provide the greatest signal integrity and noise immunity
possible. However, in some environments intense electrical noise can cause interference with the signal. Leviton has developed
hardware and techniques for overcoming this interference when properly applied.
LEVITON'S DHC DEVICES FEATURE INTELLISENSE, THE RIGHT TYPE OF AUTOMATIC GAIN CONTROL (AGC)
Leviton DHC devices use Intellisense, a special gated-type of AGC, to help eliminate noise problems (refer Figure 1). This circuit
feature is ideal for powerline carrier systems because it only operates during the signal window when receivers listen for command
signals. Noise levels in the signal window are never as high as they are during other portions of the AC power curve. Therefore,
Leviton's Intellisense gated AGC will desensitize a receiver to noise signals with only a minimal reduction in command signal
sensitivity. The result: Problems from noise interference are dramatically reduced without affecting overall system performance.
It is the responsibility of the specifier/installer to test for signal strength and the presence of noise using Leviton test equipment,
Cat. Nos. 6385 (Signal Test Transmitter) and 6386 (Signal Strength Indicator), and to properly apply signal coupling and noise
reduction equipment according to the guidelines provided in the Decora
Troubleshooting Guide.
Leviton specifically denies any warranty of performance, stated or implied, where electrical noise interference exists at the time of
installation, or subsequent to installation by the addition of noise-producing devices or equipment, or where these components
have been installed for non-residential applications. Installation of a Repeater/Coupler is recommended in all DHC systems.
DHC Components are for residential use only. Installation for any other application voids any warranty, stated or implied.
Wall box Transmitter
The HXCxx is a signal transmitter that works in conjunction with DHC receivers. The Wall-Mounted DHC Transmitter is designed to
provide manual control of loads from one or more locations in a home over standard 60Hz 120V wiring.
The HXCxx Transmitter Body incorporates Leviton's exclusive Intellisense™ Automatic Gain Control (AGC) circuitry to deliver
clearer and stronger line signals without affecting signals simultaneously on the line from other transmitters. The resulting
performance reliability exceeds that of any other powerline carrier home automation product line available today.

FCC COMPLIANCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/tv Technician for help.
Rating: 120VAC, 60Hz
Max. Controllers on 1 circuit: 4
Power Consumption: 3W

HXCxx CONFIGURATIONS

HXC1Ø: 1 address, ON/OFF, (1 rocker)
HXC1A: 1 address, ALL ON/ ALL OFF, (1 rocker) - All in House Code
HXC1D: 1 address, ON/OFF, (1 rocker), DIM/BRIGHTEN (inner rocker)
NOTE: Cat. No. HXCxx Wall Mounted Controller is not intended to replace standard wall switches. The Controller requires one
HOT (BLACK), one NEUTRAL (WHITE) conductor and proper grounding for proper operation. Incorrect installation will void warranty.
INSTALLATION INSTRUCTIONS
WARNING:
TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND
REGULATIONS.
WARNING:
IF YOU ARE NOT SURE ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED
ELECTRICIAN.
WARNING:
INSTALL TO CONTROL SCENE DIMMERS AND APPLICABLE DHC RECEIVERS ONLY. DO NOT INSTALL TO
CONTROL ANY LOAD DIRECTLY.
CAUTION: USE THIS DEVICE ONLY WITH COPPER OR COPPER CLAD WIRE. WITH ALUMINUM WIRE USE ONLY
DEVICES MARKED CO/ALR OR CU/AL.
TO INSTALL:
WARNING:
1. TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT
POWER IS OFF BEFORE WIRING!
2. Remove approximately 5/8" (1.6 cm) of insulation from circuit conductors.

FEATURES

• Memory retained after Power Interruption
• Color conversion available

INTRODUCTION

® Home Controls (DHC) Technical Manual and the DHC

DESCRIPTION

SPECIFICATIONS

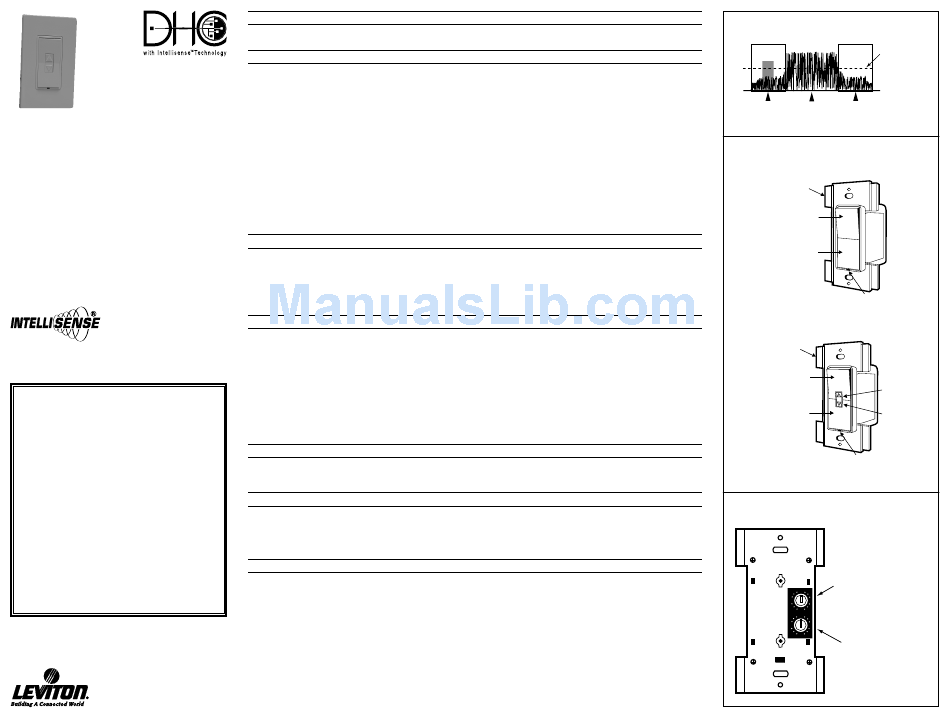

Figure 1 - Intellisense AGC
Signal Window Signal Window
Receiver sensitivity
with Intellisense
gated AGC
Command Signal Gated AGC ignores Noise is not
is picked up High noise levels picked up
outside signal window
Figure 2 - Control Functions
(Cat. No. HXC1Ø and HXC1A)
Mounting Strap
Side Sections
Upper
Rocker
Lower
Rocker
ON/OFF
LED
(Cat. No. HXC1D)
Mounting Strap
Side Sections
Large
Upper
Small
Rocker
Upper
Rocker
Large
Small
Lower
Lower
Rocker
Rocker
ON/OFF
LED
Figure 3 - Indicator Position Diagram
Unit Code
HXC1Ø & -HXC1D config.
1
13 5
9
A
M
E
I
House Code
HXC1Ø, HXC1A
& HXC1D config.
