This user's guide applies to the following part numbers:
Model
Number
mZ b0 0-10 2
Basic Version, 2 Zone, 2 Relay, 120V or 277V
mZ d2 0-10 2
Dimmed Version, 2 Zone, 2 Relay, 120V or 277V
mZ d3 0-10 1
Dimmed Version, 3 Zone, 1 Relay, 120V or 277V
mZb0 0-C0 2
Basic Version, 2 Zone, 2 Relay, 347V
mZd2 0-C0 2
Dimmed Version, 2 Zone, 2 Relay, 347V
mZd3 0-C0 1
Dimmed Version, 3 Zone, 1 Relay, 347V
Features between models vary. As such, not all information in this manual
Daylight Harvesting Made Simple.
Description
applies to all models.
0-10V
Relay
Outputs
Outputs
0
2
2
2
3
1
0
2
2
2
3
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Leviton miniZ mZb00-102
Summary of Contents for Leviton miniZ mZb00-102
- Page 1 Daylight Harvesting Made Simple. This user’s guide applies to the following part numbers: Model Number mZ b0 0-10 2 Basic Version, 2 Zone, 2 Relay, 120V or 277V mZ d2 0-10 2 Dimmed Version, 2 Zone, 2 Relay, 120V or 277V mZ d3 0-10 1 Dimmed Version, 3 Zone, 1 Relay, 120V or 277V mZb0 0-C0 2...
- Page 2 NOTES...
-
Page 3: Table Of Contents
HYSICAL NSTALLATION ONNECT ONNECT ONNECT ONFIGURATION ONFIGURATION ONFIGURATION ONFIGURATION OTES AYLIGHTING OTES ……………………………………………………………….. 20 ARRANTY EFAULT ABLES TABLE OF CONTENTS …………………………………………..…….. 2 ………………………………………..………. 4 OLTAGE ……………………………………………..…. 6 OLTAGE ……………………………………………..…. 8 OLTAGE DIP S – B WITCH ETTINGS LOCK DIP S –... -
Page 4: Step 1 Physical Installation

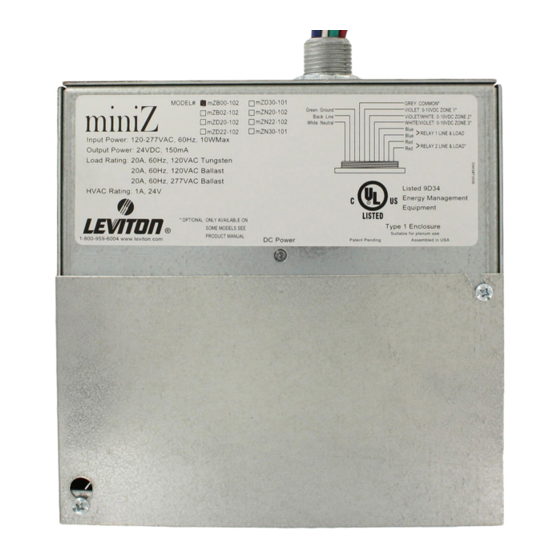

STEP 1 OUNTING EATURES The Power Pack is suitable for plenum use, indoor only, 0 - 40°C, 5 - 95% humidity without condensation. The supply circuit and load circuits of the miniZ Power Pack are pre-wired to the control board. Color coded lead wires are provided for quick connections in a junction box. - Page 5 PHYSICAL INSTALLATION High Voltage Compartment This area cannot be accessed in the field. Lead wires exit the compartment through the top of the enclosure. There are leads supplied for field connections to circuits that energize the miniZ Power Pack and feed the fluorescent fixture circuits.
-
Page 6: Step 2 Connect Line Voltage
STEP 2 Relay 1 Line/Load Ratings: 20A at 120VAC Tungsten/Ballast 20A at 277VAC Ballast 15A at 347VAC (347V Models Only) Normally Open, Electrically held. Color Code: Blue – Line, 12 AWG Blue – Load, 12 AWG Control Power Circuit Voltage Rating: 120 – 277VAC, or 200-347VAC on 347V Models Only Color Code: Black –... - Page 7 CONNECT LINE VOLTAGE Relay 2 Line/Load Ratings: 20A at 120VAC Tungsten/Ballast 20A at 277VAC Ballast 15A at 347VAC (347VModels Only) Normally Open, Electrically held. Color Code: Red – Line, 12 AWG Red – Load, 12 AWG Not available on three zone models. Zone Common Color Code: Gray –...
-
Page 8: Step 3 Connect Low Voltage
STEP 3 Occupancy Sensor Disabled / Emergency Input Label: OCC D ISABLE MERGENCY Set by DIP Switch: Block 1 Number 1 This is a +24V input signal. Function can be set to either mode exclusively. Occupancy Disable Mode When the input goes high (+24V) the Power Pack will disable the Occupancy Sensor input and there will be no change in the current state. -
Page 9: Step 4 Connect Low Voltage
CONNECT LOW VOLTAGE Occupancy Sensor Input Label: OCC, +24V, COM This three position terminal block is dedicated to the connection of the Occupancy Sensor. The Occupancy Sensor signal wire connects to the OCC terminal. This +24V source is shared with all circuits supplied from the +24V power supply rated to a maximum of 120 mA. - Page 10 STEP 4 Label: R N/O, R There is one Low Voltage relay output rated for 1A @ 24V which can be switched between HVAC and Emergency output functionality. This terminal block is connected to the Emergency Output / HVAC relay. Jumper Settings A three (3) position pin header is located adjacent to the terminal block.
- Page 11 CONNECT LOW VOLTAGE Label: S 1; O , +24V, P WITCH 2**; O , +24V, P WITCH **not available on all models There is a maximum of two low voltage switch inputs depending on the model. Switch 1 provides control for Zone 1 and Switch 2 provides control for Zone 2.
-
Page 12: Step 5 Configuration Dip Switch Settings - Block One
CONFIGURATION DIP SWITCH SETTINGS – BLOCK ONE STEP 5 Emergency / Occupancy Sensor Disable DIP Switch: Block 1 Switch 1 Label: E MERG ISABLE This configures the response to a signal (+24V) at the OCC Disable/Emergency input terminal. If the switch is in the off position (EMERG), the response to a connection to common will be to turn all relays on and raise all 0 –... - Page 13 CONFIGURATION DIP SWITCH SETTINGS – BLOCK ONE STEP 6 Local / Auto Cal DIP Switch: Block 1 Switch 5 Label: L OCAL The setting activates the Auto Calibration cycle. For more information, see the discussion on the Auto Calibration feature on page 21. Photocell Slow Response / Fast Response DIP Switch: Block 1 Switch 6 Label: PC S...
-
Page 14: Step 6 Configuration Dip Switch Settings - Block Two
STEP 6 CONFIGURATION DIP SWITCH SETTINGS – BLOCK TWO 2 - DIP S LOCK WITCHES WITCHES SHOWN IN THE WITCH NPUT YPES Set by DIP Switches: Block 2 Number 3 and/or Number 6 Settings: ON = Analog, OFF = Switched There are several modes of switch inputs;... - Page 15 Activating the input shall fade the zone up to full in three (3) seconds. Activating the input shall fade the zone down to off in one (1) second. Two Button Mode (GE Switches, Leviton LV240 Switches) Set by DIP Switch: Block 2 Number 1 and/or Number 4...
- Page 16 STEP 6 CONFIGURATION DIP SWITCH SETTINGS – BLOCK TWO Special Function Leviton Switches (LV200, LV220, LV221, and LV240) Set by DIP Switch: Block 2 Number 1 & 2 or Number 4 & 5 Settings: ON Connections: In this mode the switches should be wired so that the ON, OFF, PILOT, +24V, and COM wires are connected.
- Page 17 CONFIGURATION DIP SWITCH SETTINGS – BLOCK TWO NALOG EHAVIOR WITCHES Set by DIP Switch: Block 2 Number 3 and/or Number 6 Settings: ON = Analog Set by DIP Switch: Block 2 Number 2 and/or Number 5 Settings: ON = 0 – 10 VDC, OFF = 0 – 24 VDC Connections: In this mode, the ON input is connected to +0 –...
- Page 18 STEP 6 Page 16...
-
Page 19: Step 7 Configuration Dip Switch Settings - Block Three
CONFIGURATION DIP SWITCH SETTINGS – BLOCK THREE DIP Switch Block 3 Photocell Maximum Foot Candle DIP Switch HOTOCELL Set by DIP Switch: Block 3 Number 1 to 8 Application – Open Loop Daylight Harvesting ONLY This 8 position DIP switch is used to set the maximum foot candle value of the photocell being used with the system. -
Page 20: Step 8 Configuration Trim Pot Settings
STEP 8 CONFIGURATION TRIM POT SETTINGS AXIMUM Adjust this trim pot to set the upper limit for the 0 – 10 VDC Ballast outputs. The full range of the pot adjusts the upper limit in a range from 6 volts to 10 volts. - Page 21 CONFIGURATION TRIM POT SETTINGS Adjust this trim pot to determine the action taken when the L ) input is active. SHED Application For the basic model, if the pot is positioned between 0 – 30%, relay 1 will be forced off, if set between 30 –...
-
Page 22: Step 9 Notes : Daylighting Configuration
STEP 9 NOTES: DAYLIGHTING CONFIGURATION Setup To setup your device in either open loop or closed loop mode, please reference Step 5, Settings, found on page 11 of this document. This section details with specific calibration and configuration of your miniZ device when in each of these modes. Open-Loop Operation Typical open-loop systems employ a photocell positioned towards the daylight source (window, skylight, etc). -
Page 23: Step 10 Notes : Burn I N & Auto Cal Features
NOTES: BURN IN & AUTO CAL FEATURES IN F EATURE Set by DIP Switch: Block 1 Number 7 = ON The Burn IN feature of the miniZ Power Pack provides an automatic initializing cycle for new fluorescent lamps. The Burn In feature will maintain fluorescent fixtures... -
Page 24: Warranty
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality... - Page 25 WITCH UNCTION MERG ISABLE / PC D ORCE OCAL NABLE OCAL PC S / PC F LOSED WITCH UNCTION S1 – 1 B / 2 B S1 – M S1 – S NALOG S2 – 1 B / 2 B S2 –...
- Page 26 PC O Relay 1 is opened. FFSET Range 0 – 10V. HRESHOLD HRESHOLD HRESHOLD Leviton Lighting Management Systems 20497 SW Teton, Tualatin, Oregon Customer Service – (800) 736-6682 Technical Support – (800) 959-6004 TRIM POTS DIMMING & NETWORK M ODEL...
