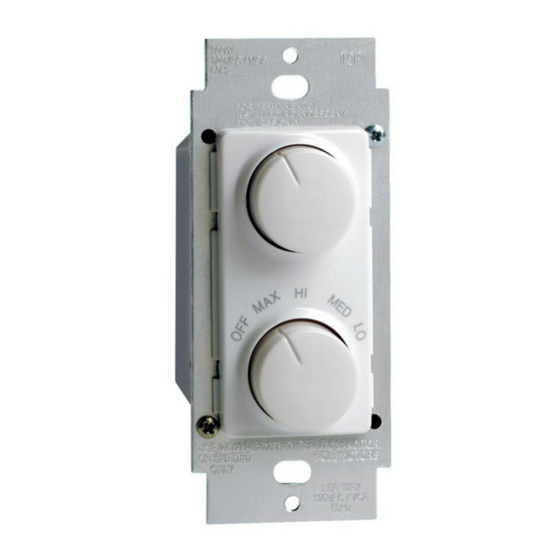

Leviton RTD01-10 Installation Instructions

4 Speed Quiet Ceiling Fan/Light Control – Single Pole (One location)
DI-000-RTD01-02B
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• If you are unsure about any part of these instructions, consult a qualified
electrician.
• To avoid overheating and possible damage to this device and other equipment,
do not install to control a receptacle, fluorescent lighting, a motor- or a
transformer-operated appliance other than appropriate ceiling fans and
incandescent lamps.
Tools needed to install your Fan Speed
Control:
Slotted/Phillips Screwdriver
Pliers
Cutters

Color Change Option:

If a color change kit is provided with your device,
proceed with the following step if you need to change
the color. Otherwise, proceed with the "Installing
Fan Speed/Light Control by itself or with other
devices" section.
Changing the color of your Fan Speed/
Light Control
Your Fan Speed Control includes two color options. The
Control ships with the White frame attached. To change
color of frame, proceed as follows:
Push in side at tab
Press on knob. Line up
to release. Remove tabs on back of frame and
frame and knob. press in side to attach
Installing Fan Speed/Light Control by
itself or with other devices:
If installing Control in a single device application,
proceed with the MULTI-FAN CONTROL section. If
installing Control in a multi-device application,
proceed as follows:
Full Range Dimming Incandescent Lamp Load
INSTALLATION INSTRUCTIONS

MULTI-DEVICE APPLICATION

NOTE: There is NO derating necessary for multi-gang
installations of this Fan Speed Control.
Electrical Tape
Pencil
Ruler

MULTI-FAN CONTROL

Any number of fans of the same type may be
controlled by a single fan speed control provided that
the total amperage of the fans do not exceed the
amperage of the fan speed control.
INSTALLING YOUR FAN SPEED/LIGHT
CONTROL
NOTE: Use check boxes
completed.
Step 1
OFF
OFF
OFF
OFF
OFF
OFF
Cat. No. RTDØ1-1Ø,
Fan Control
Rated: 1.5A-120VAC, 60Hz
Rated: 300W-120VAC, 60Hz
WARNINGS AND CAUTIONS:
• To reduce the risk of fire or electrical shock, this control is to be used with
ceiling fans that are marked as suitable for use with solid-state fan speed control
and is rated 120VAC, total load 1.5 amperes maximum.
• For use on ceiling paddle fans with split-capacitor or shaded pole motors only.
Please refer to manufacture's instructions or rating label on the motor to
confirm type. Use with any other types of motors or equipment may cause
overheating and/or damage to the motors or equipment.
• Disconnect power at circuit breaker or fuse when servicing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use
only devices marked CO/ALR or CU/AL.
√
when Steps are
WARNING:
To avoid fire, shock, or
death; TURN OFF POWER at circuit
breaker or fuse and test that power is off
before wiring!
OFF ON
ON
OFF ON
ON
ON OFF ON
OFF ON
ON
ON OFF ON
ON OFF ON
Step 2 Preparing wires:
• Pull off pre-cut insulation from Control leads.
• Make sure that the ends of the wires from the
wall box are straight (cut if necessary) .
• Remove 5/8" (1.6 cm) of insulation from each
wire in the wall box (shown).
Strip 5/8"
(1.6 cm)
Cut
(if necessary)
Single-Pole Wiring Application:
Step 3
Black
Green
Yellow
Red
Insert wires
straight then twist
clockwise
5/8"
(1.6 cm)
Strip Gage
Neutral
Ground
Electrical
Tape
