Leviton D8000 Installation Instructions

The information in this document is the
exclusive PROPRIETARY property of LEVITON
MANUFACTURING COMPANY, INC. It is disclosed
with the understanding that acceptance or review
by the recipient constitutes an undertaking by
the recipient; (1) to hold this information in
strict confidence, and (2) not to disclose,
duplicate, copy, or use the information, in whole
or in part, for any purpose other than that for
which disclosed. This document is loaned subject
to return upon demand.
C
Copyright 2002 Leviton Mfg, Co. Inc.
Unpublished, All Rights Reserved.
DRAWING INTERPRETATION PER ASME
Installation Instructions
Y14.5 1994
THIRD
ANGLE PROJECTION

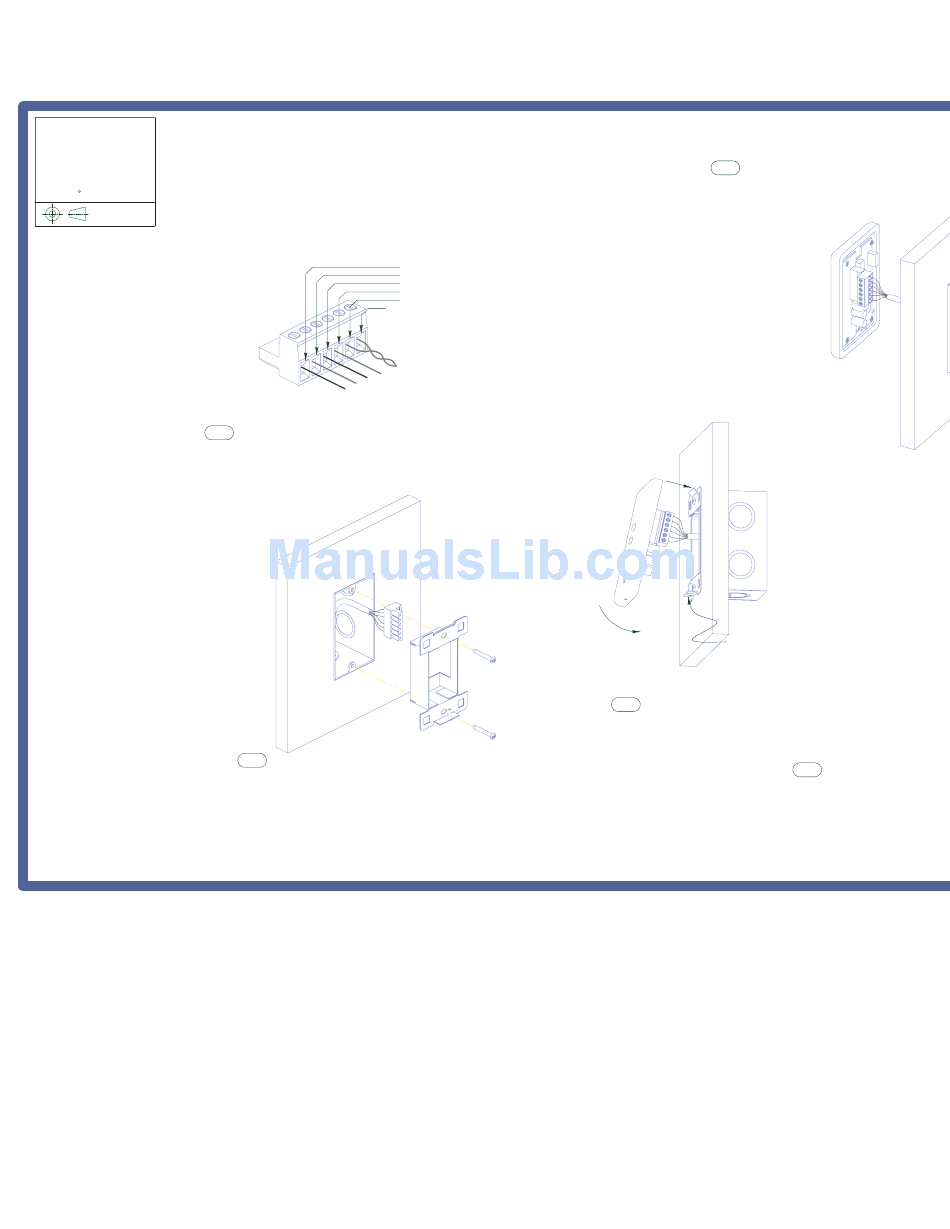

STEP 1
D8000
Entry Station
6
5
4 +12VDC
3
2
PIN1
LOCATE FEMALE CONNECTOR PROVIDED
AND TERMINATE WIRES AS SHOWN.
STEP 2
INSERT THE WIRED CONNECTOR THROUGH THE HOLE IN
THE BACK OF THE WALL STRAP. ATTATCH THE WALL
STRAP TO THE ELECTRICAL BOX AS SHOWN, USING (2)
6-32 X 1" SCREWS PROVIDED.
LOCK
}
OPTIONAL CONNECTIONS
TERM
COM
REM-
}
TWISTED PAIR
REM+
NOTE:
FOR TERMINATION OF THE LAST DEVICE
IN THE RUN, TIE PINS 2 & 5 TOGETHER.
STEP 3 PLUG CONNECTOR ONTO BACK OF THE BUTTON ASSEMBLY
AS SHOWN. PUSH THE WIRE INTO THE WIRE
WAY IN BETWEEN THE SHROUD AND THE BACK
OF THE WALL BOX. ENSURE THE CORRECT LUMA-
NET ID DIP-SWITCH SETTING PRIOR TO INSTALLATION.
RETAINING SCREW SHOULD BE
TURNED ALL THE WAY IN (CLOCK-WISE)
BEFORE WALL PLATE IS SET INTO PLACE.
STEP 4
HOOK THE TOP OF THE WALL PLATE OVER
THE ANGLED TAB ON THE WALL STRAP, AND
ROTATE THE ASSEMBLY BACK INTO PLACE.
RETAINING SCREW ACCES
STEP 5 USE A #1 PHILLIPS SCREWDRIVER WITH A 0.12
TO SEAT THE RETAINING SCREW INTO THE SL
ON THE INSIDE OF THE WALL PLATE BY TURN
IT COUNTER CLOCKWISE. SCREW SHOULD BE
TURNED OUT ONLY UNTIL SNUG.
