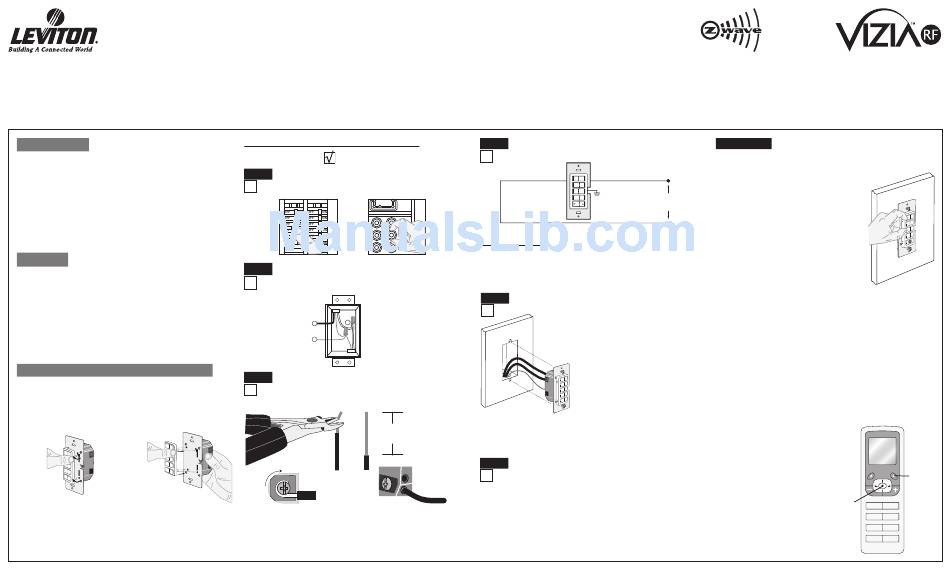

Leviton RZCZ1 Installation Instructions

DI-000-RZCZ4-00A-X1

WARNINGS AND CAUTIONS

:
• ON/OFF LED for remote load control.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia™ RF RZCZ4 remote does not control the load, but provides scene applications to operate with Vizia
• Recommended minimum wall box depth is 2-1/2".
INTRODUCTION
Leviton's Vizia TM RF components are designed to communicate with
each other via Radio Frequency (RF) to provide remote control of your
lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton's Vizia TM RF component
line is a Z-Wave TM enabled device. In a Z-Wave TM network, each device
is designed to act as a router. These routers will re-transmit the RF signal
from one device to another until the intended device is reached. This
ensures that the signal is received by its intended device by routing the
signal around obstacles and radio dead spots. The 4-Zone Controller
is compatible with any Z-Wave™ enabled network, regardless of the
manufacturer and can also be used with other devices displaying the
Z-Wave™ logo.
FEATURES
• This is a Z-Wave™ Controller
• Zone/Area control without traveler wires
• Can control ON/OFF dim/bright for up to 4 Zones/Area.
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave™ enabled devices

Tools needed to install your 4-Zone Controller:

Slotted/Phillips Screwdriver Electrical Tape
Pencil Cutters

Changing the color of your 4-Zone Controller:

Your 4-Zone controller includes three color options. The controller ships
with the White frame attached. To change color of frame, proceed as
follows:
Push in
line up tabs
side at tab and press in
to release side to attach
After frame is removed, remove existing push buttons by pressing out
buttons from back of frame and replace them with desired color change
push buttons by pressing in from front of frame. To make IR capable, use
new DIM/BRIGHT button with IR window.
RF switches.
TM

INSTAllING YOUR 4-ZONE CONTROllER

NOTE: Use check boxes when Steps are completed.
WARNING:
Step 1 TO AVOID FIRE, SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble this
configuration, consult a qualified electrician.
1. Line (Hot)
2. Neutral
3. Ground
2
1
3

Preparing and connecting wires:

Step 3
This 4-Zone controller can be wired using side wire terminal
Pliers
Ruler screws or through backwire openings. Choose appropriate wire
stripping specifications accordingly.
Cut
(if necessary)
Side Wire Connection Back Wire (either hole may be used)
Side wire terminals accept Back wire openings use #14-12 AWG
#14 AWG solid wire copper only. solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
4-Zone Controller
Cat. No. RZCZ4
120VAC, 60Hz

INSTAllATION INSTRUCTIONS

WARNINGS AND CAUTIONS
• Can call up four (4) zone ON/OFF with advanced Programmer/Remote (see RZCPG).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Wiring Application:
Step 4
4-Zone Controlller
WH

WIRING SWITCH:

Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Line Neutral wall box wire to terminal screw marked "WH".
Testing your 4-Zone Controller prior to mounting
Step 5
in wall box:
• Restore power at circuit breaker or fuse.
5/8" • LED should turn ON, when any button is pressed. If lED does not turn
Strip Gage
(1.6 cm) ON, refer to the TROUBlESHOOTING section.
(measure bare
wire here)
Including 4-Zone Controller into Z-Wave
Step 6
Network:
NOTES:
• If using a non-Leviton Programmer/Remote, refer to the Programmer/
Remote instruction sheet.
• 4-Zone controllers incuded into a Z-Wave
after you have included all other devices.
A) If using a Leviton Z-Wave
press the Menu button and scroll down to System Setup. Press the
center button to select System Setup Menu. Press the center button to
select Network. Press the center button to <Include Node>.
Compatible with
:
Step 6 cont'd
B) If using RZCPG Programmer/Remote, you will be prompted to place
4-Zone controller into programming mode.
C) To access Program mode, press and hold the
Hot (Black)
BK
left side of buttons 1 and 3 (refer to figure).
Wait 5 seconds until the LED turns Amber.
Green
Ground
Release the button and the LED will blink
Line
120VAC, 60Hz Amber. You are now in Programming mode.
NOTE: If the LED on the 4-Zone controller
turns solid Red while including, there has
Neutral (White) been a communication error.
D) While standing close to the 4-Zone controller
(approximately 2-5 ft.), press the center button
on the Programmer/Remote to <Include>
device in the network. NOTE: Only one device
may be included at any time.
E) The Primary Programmer/Remote will assign
a Home ID, Node ID, and Name for this
device.
NOTE: This information will be stored in the Programmer/Remote to
be used for future reference.
• Position all wires to provide room in NOTE: You may name or edit the node of this device at this time.
outlet wall box for device.
F) The 4-Zone controller is now installed in the network.
• Ensure that the word "TOP" is facing up
G) After all devices are included into the network, the controller must
on device strap.
be updated to allow proper network function. To update controller
• Partially screw in mounting screws in
proceed as follows:
wall box mounting holes.
• I f using a non-Leviton Programmer/Remote, refer to the
NOTE: Dress wires with a bend as
Programmer/Remote instruction sheet for updating controller.
shown in diagram in order to relieve
• I f using Leviton Z-Wave
stress when mounting device.
press the Menu button and scroll down to System Setup. Press
the center button to select System Setup Menu. Press the center
button to select Network. Press the center button to select Update
"cntrl". When prompted, press desired button on 4-Zone controller.
• W ait until the RZCPG Programmer/Remote confirms completion.
Update is done.
NOTE: If the 4-Zone controller has been
successfully Included in the network and
the user tries to Include it again without first
excluding it from the network, the controller
TM
will retain the first node ID it had received and
ignore the second.
TM network must be updated
TM Programmer/Remote, Cat. No. RZCPG,
TM
enabled products!
Programmer/Remote, Cat. No. RZCPG,
TM
Menu
Button
Center
1
ON OFF
Button
2
ON OFF
3
ON OFF
4
ON OFF
Programmer/Remote
Cat. No. RZCPG
