Inverter Parameters Settings; Connect To Wi-Fi Stick; Connect Wi-Fi Stick Directly Through The Wi-Fi Stick's Hotspot - Kaco blueplanet 25.0 NX3 M3 Manual

2 Inverter Parameters Settings

2.1 Connect to Wi-Fi stick

2.1.1 Connect Wi-Fi stick directly through the Wi-Fi stick's hotspot

If haven't configurated the WLAN network to the Wi-Fi stick yet, you can find the Wi-Fi stick' SSID in WLAN list of your
smart phone. If had configurated the WLAN network to the Wi-Fi stick, but the blue LED light of the Wi-Fi stick doesn't
work, you also can find the Wi-Fi stick's SSID in WLAN list of your smart phone. The password of the Wi-Fi stick's hotspot is
the registration code on the Wi-Fi stick.
 Connect Wi-Fi stick directly through the Wi-Fi stick's hotspot.
1 Open the phone Wi-Fi settings page.
2 Find the Wi-Fi stick's hotspot named the serial number
3 Connect to the hotspot with registration id on the Wi-Fi stick as password.
4 Come back to the app and click on "LOCAL MODE" to choose the Wi-Fi stick.
» Proceed with inverter parameter settings.
.
NOTE
Can't find the smart Wi-Fi dongle in your WLAN list?
Sometimes you can't find the smart Wi-Fi dongle in your WLAN list:
› Close the Mobile Data of phone and come back to app to click on "Scan device" to get the Wi-Fi
Page 5

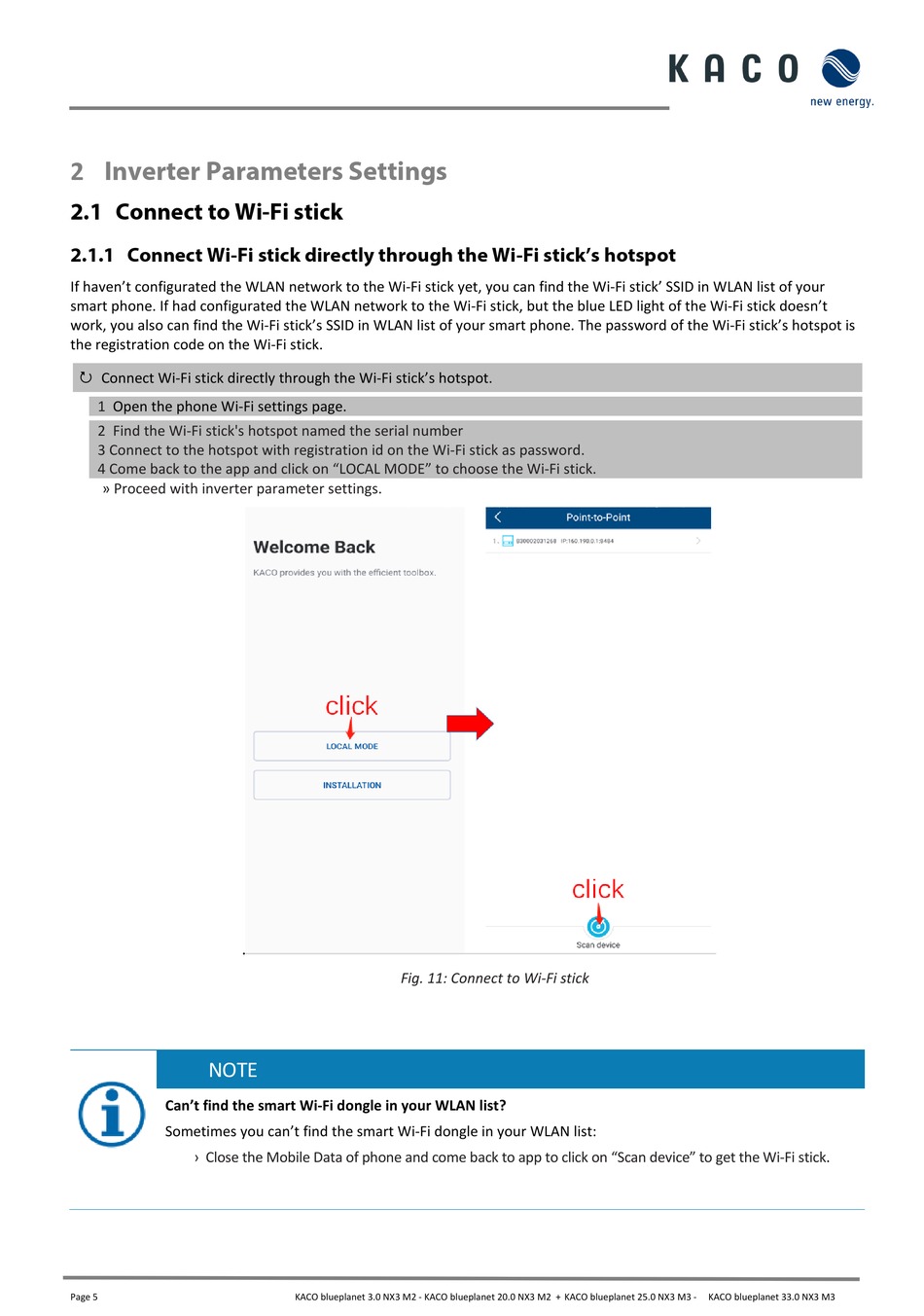

Fig. 11: Connect to Wi-Fi stick
KACO blueplanet 3.0 NX3 M2 - KACO blueplanet 20.0 NX3 M2 + KACO blueplanet 25.0 NX3 M3 -
stick.
KACO blueplanet 33.0 NX3 M3
