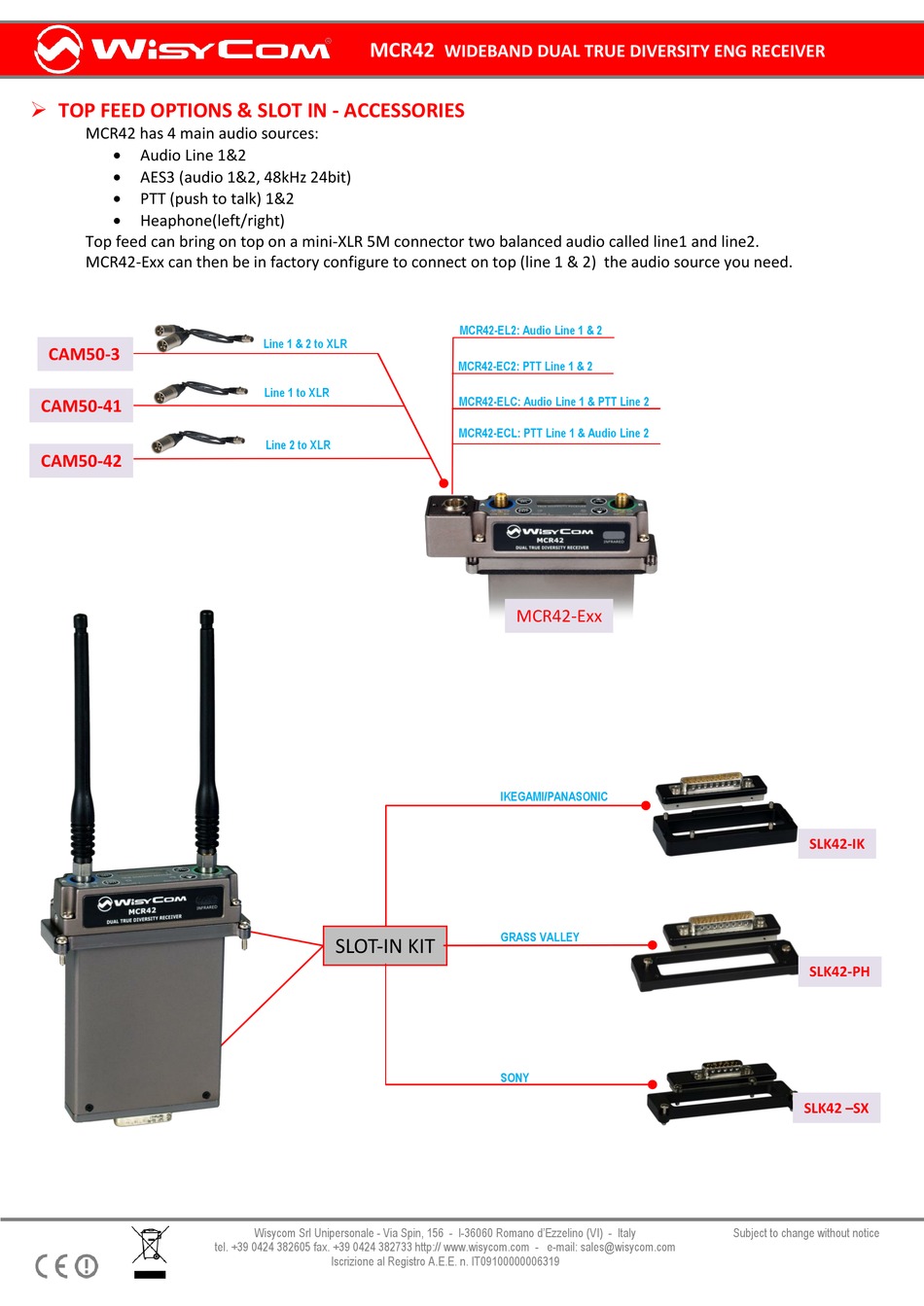

 TOP FEED OPTIONS & SLOT IN - ACCESSORIES
MCR42 has 4 main audio sources:

Audio Line 1&2

AES3 (audio 1&2, 48kHz 24bit)

PTT (push to talk) 1&2

Heaphone(left/right)
Top feed can bring on top on a mini-XLR 5M connector two balanced audio called line1 and line2.
MCR42-Exx can then be in factory configure to connect on top (line 1 & 2) the audio source you need.

CAM50-3
CAM50-41
CAM50-42
MCR41
MCR42
MCR42
Line 1 & 2 to XLR
Line 1 to XLR
Line 2 to XLR
SLOT-IN KIT
Wisycom Srl Unipersonale - Via Spin, 156 - I-36060 Romano d'Ezzelino (VI) - Italy
tel. +39 0424 382605 fax. +39 0424 382733 http:// www.wisycom.com - e-mail: sales@wisycom.com
Iscrizione al Registro A.E.E. n. IT09100000006319
WIDEBAND DUAL TRUE DIVERSITY ENG RECEIVER
MCR42-EL2: Audio Line 1 & 2
MCR42-EC2: PTT Line 1 & 2
MCR42-ELC: Audio Line 1 & PTT Line 2
MCR42-ECL: PTT Line 1 & Audio Line 2
MCR42-Exx
IKEGAMI/PANASONIC
GRASS VALLEY
SONY
SLK42-IK
SLK42-PH
SLK42 –SX
