16
en | Installation
4
5
2.2
Installing the tamper switch rail
1.
2.
3.

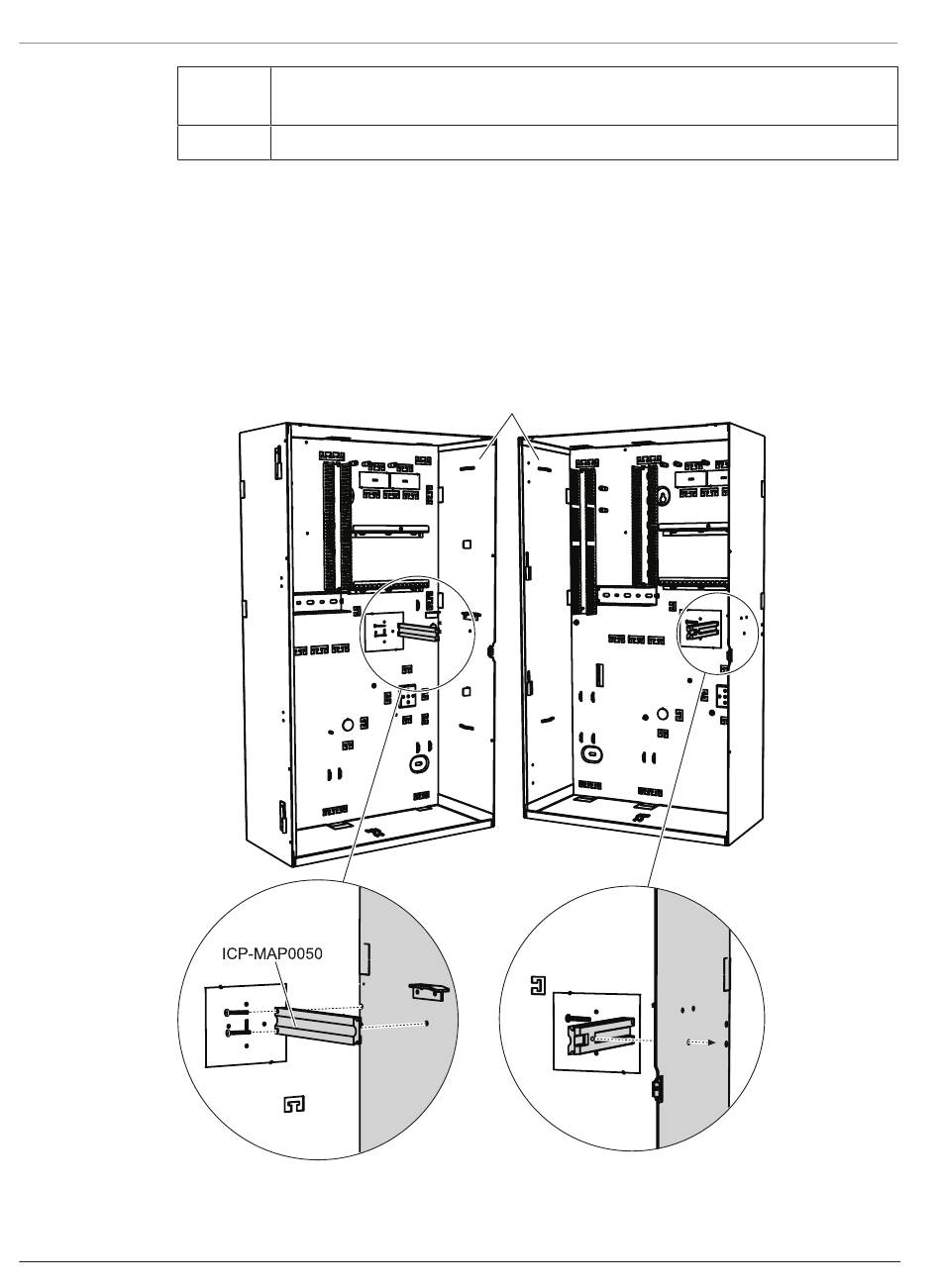

Mounting the tamper switch rail
2018.08 | 23 | F.01U.168.332
Knockout for AC wires (use when AC wires come in from the back of the
enclosure)
Side wall knockouts for wiring
Remove the tamper switch rail from the package.
Mount the tamper switch rail to the inner right side of the enclosure as shown in the
figure below.
Secure the tamper switch rail with the two supplied screws.
Do not mount the tamper switch at this time.
ICP-MAP0111
Installation manual
MAP 5000
Bosch Sicherheitssysteme GmbH
