DMP Electronics 1100INT Series Installation Manual

Description
The DMP 1100INT Series Wireless Key Fob transmitters are available in a Four-Button (1145-4-B-INT), Two-Button
(1145-2-B-INT), or One-Button (1145-1-B-INT) arrangement and are designed to be clipped to a key ring or lanyard.
Key Fob features include a durable water resistant housing, ergonomic button design for ease of use, and a status
feedback LED for visual confirmation. The button status LED responds with specific color-coded LED displays to
indicate system status.
Each button can be individually programmed for one of nine different actions. Key fob programming defaults to the
typical use of the key fob such as Arming, Disarming, and Panic operations. Figure 1 shows the three key fob button
configurations and the table below identifies the default programming for each button. Unique labels are available
to identify the use of each button. See Figure 2.
1145-4-B-INT
4-Button Layout
Top Button LED
Left
Button
Bottom
Button
Front View
1145-1-B-INT
1-Button Layout
One
(Top)
Button

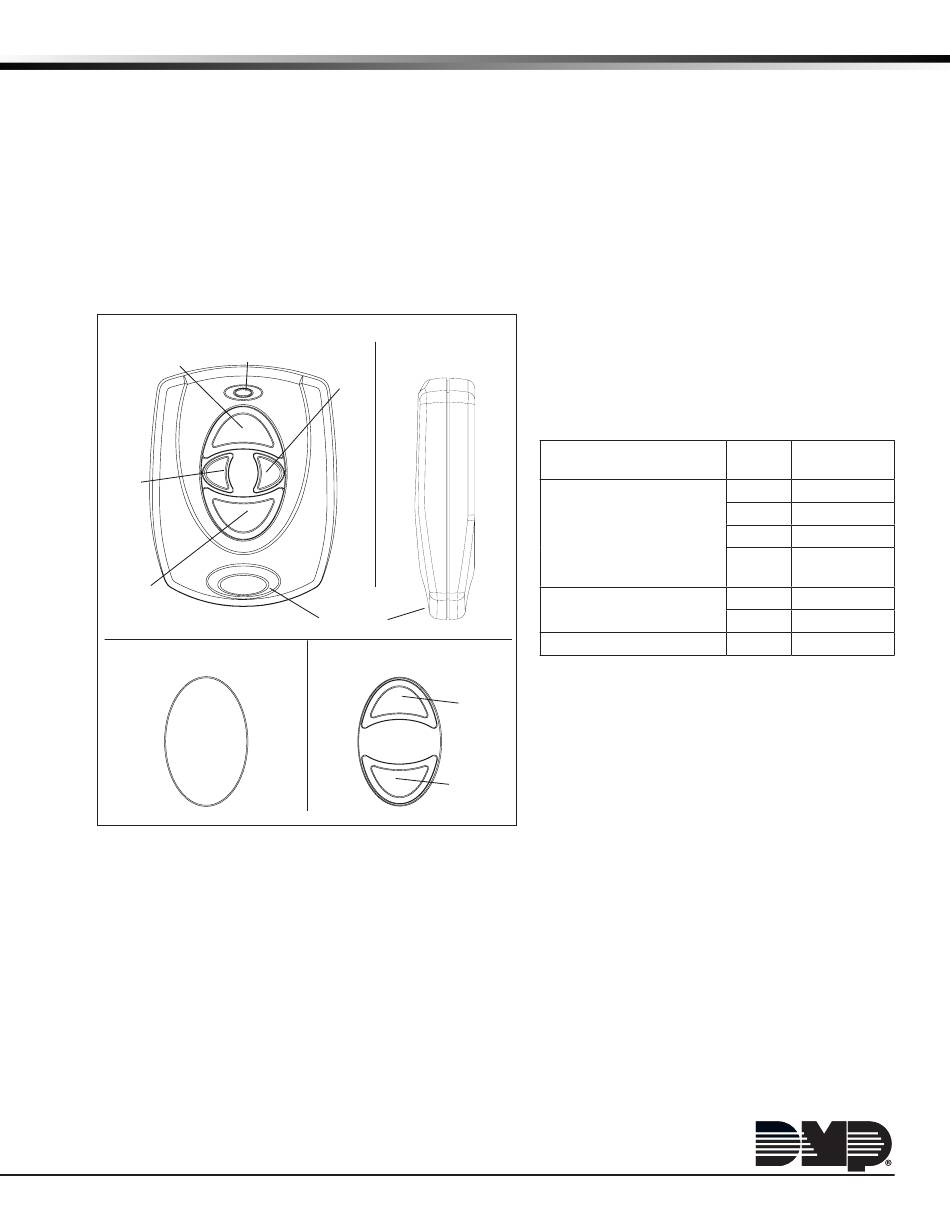

Figure 1: 1100INT Series Key Fob Transmitters
Compatibility
• All DMP 1100INT Series International Wireless Receivers and panels
What is Included
The 1100INT Series Key Fob includes the following items:
• One key fob transmitter (1145-1-B-INT, 1145-2-B-INT, or 1145-4-B-INT)
• One 3.0V lithium coin cell battery
• Peel-off button ID labels
• Serial number label
INST ALLA TION GUIDE
1100INT Series Key Fob Transmitters
Side View All Key Fob
Slot Location
Right
Button
Front
Connect
Key Ring or
Lanyard Here
1145-2-B-INT
2-Button Layout
Button
Bottom
Button
s
Back
Key Fob Model
1145-4-B-INT (Four-Button)
1145-2-B-INT (Two-Button)
1145-1-B-INT (One-Button)
Top
Button Default
Position Programming
Top Arm
Bottom Disarm
Left Panic
Arm Area 1 or
Right
Perimeter
Top Arm
Bottom Disarm
Top Panic
