DMP Electronics 1103INT Installation Manual

1103INT UNIVERSAL TRANSMITTER
Installation Guide

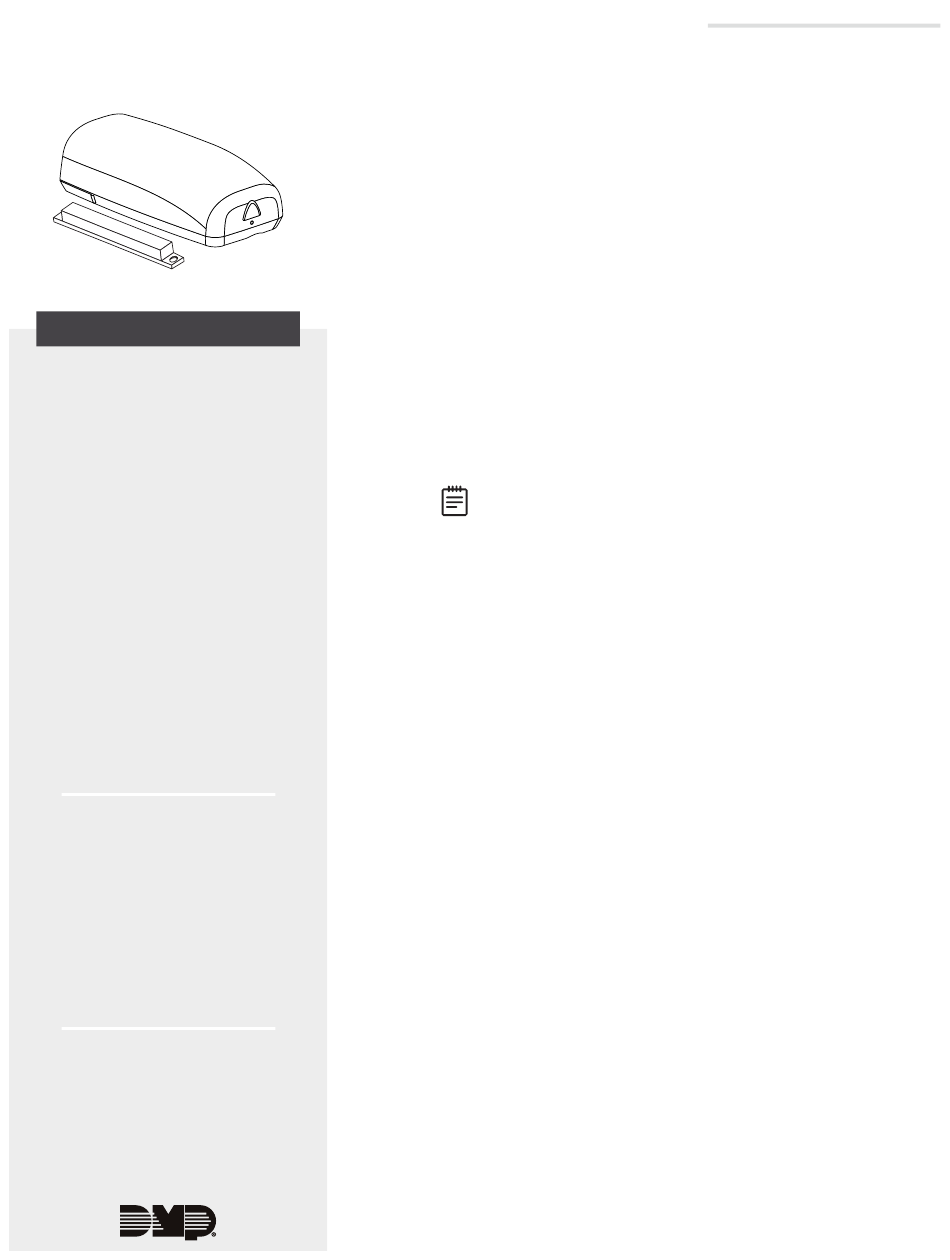

Figure 1: 1103INT Universal Transmitter
GET STARTED
The 1103INT Universal Transmitter
is a two-input transmitter with wall
and case tamper typically used
for burglary door and window
applications. The transmitter has
two internal magnetic reed switches
and an onboard terminal block for
external contact wiring with an
end-of-line resistor. The transmitter
features 128-bit AES encryption.
Both sets of contacts, internal and
external, can be programmed to
operate at the same time. Two
independent zones from one
transmitter.
The transmitter also features
Disarm/Disable functionality. When
this option is set to YES, Zone
Tripped Messages are disabled
when the system is disarmed to
allow for extended transmitter
battery life. Supervision, Tamper,
and Low Battery are the only
messages that are sent to the panel
when the system is disarmed.
Compatibility
• 1100XINT Wireless Receivers
Version 700 and Higher
• 1100DINT Wireless Receivers
Version 700 and Higher
• XT30INT Series Panels Version
693 and Higher
• XTLtouchINT/XTLplusINT Series
Panels Version 693 and Higher
• XR150INT/XR550INT Series
Panels Version 693 and Higher
What is Included?
• One 1103INT Universal
Transmitter
• Magnet with Commercial
Housing
• 3.0 V Lithium CR123A Battery
• Model 312 470K EOL Resistor
• Hardware Pack
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
1. If using an XT Series International Panel, enter 665 (PRO) at
the keypad to access the PROGRAMMER menu. If using an
XR Series International Panel, enter 6653 (PROG).
2. In ZONE INFORMATION, enter the wireless ZONE NO: and
press CMD.
Enter the ZONE NAME and press CMD.
3.
4. Select the ZONE TYPE and press CMD.
5. At the NEXT ZN? prompt, select NO.
6. Select YES when WIRELESS? displays.
Enter the eight-digit SERIAL# and press CMD.
7.
At CONTACT, select either INTERNAL or EXTERNAL.
8.
Note: Use consecutive zone numbers if using both internal
and external contacts. Program the external contact first
if using both internal and external contacts with Disarm/
Disable functionality.
9. If EXTERNAL was chosen in Step 7, chose NO or YES at the
NORM OPEN prompt.
10. Enter the SUPRVSN TIME and press CMD.
11. At DISARM DISABLE, select NO or YES.
12. At the NEXT ZN? prompt, select YES to finish programming
or select NO for additional programming options.
13. In SYSTEM OPTIONS, at 1100 ENCRYPTION, select ALL to
only add encrypted wireless devices to the system. Select
BOTH to allow both encrypted and non-encrypted wireless
devices to be programmed.
14. The default passphrase appears at ENTER PASSPHRASE.
Press CMD to keep the default. Press any select key or
area to change the passphrase and enter an 8-character
hexadecimal string (0-9, A-F).
2
INSTALL THE BATTERY
Use a 3.0 V lithium battery, a DMP Model CR123 battery, or
an equivalent model from Sony or Murata. When setting up a
wireless system, program zones and connect the wireless receiver
before installing the battery.
1. Push the button on the end of the 1103INT and separate
the two halves.
2. Observe polarity and place the battery in the holder and
press it into place.
