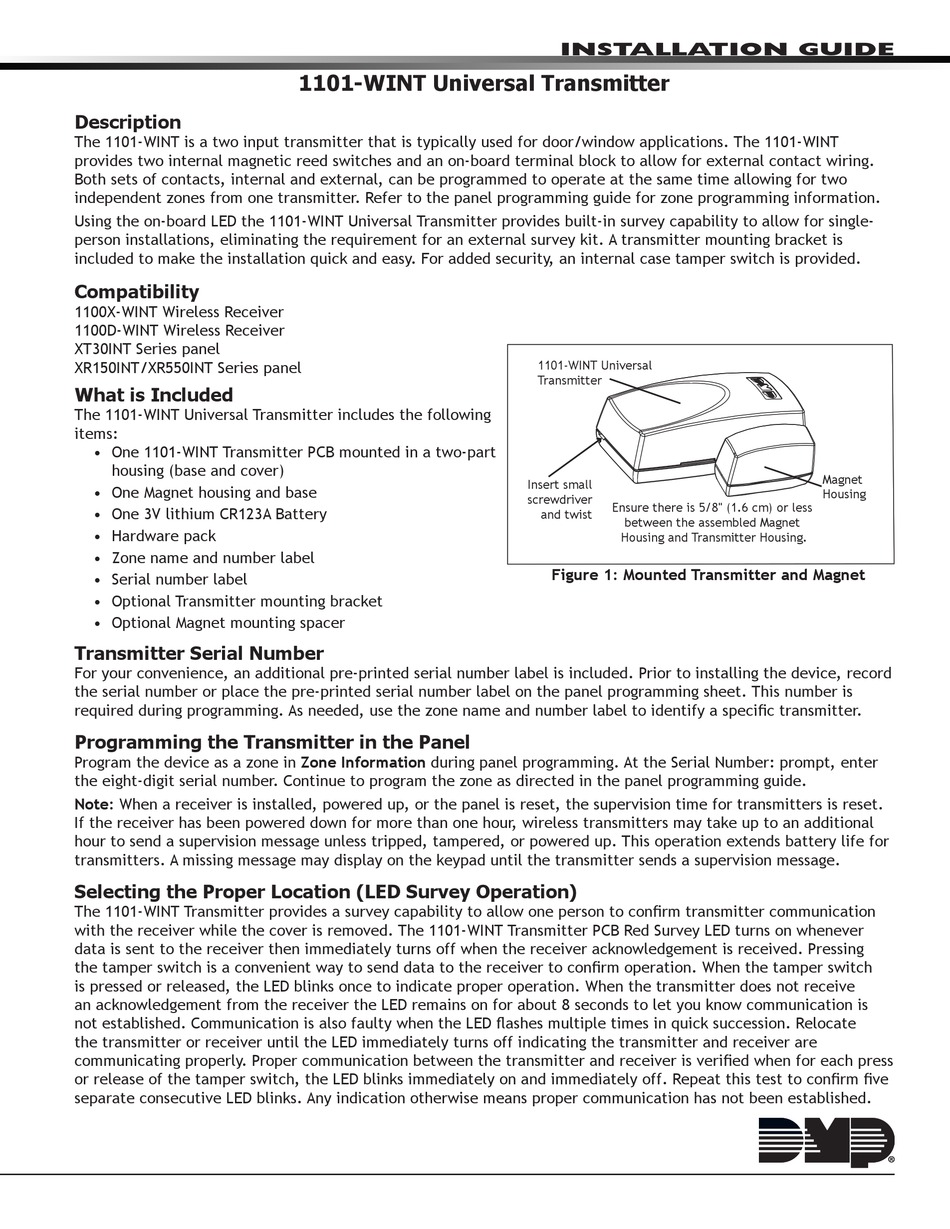

DMP Electronics 1101-WINT Installation Manual

Description
The 1101-WINT is a two input transmitter that is typically used for door/window applications. The 1101-WINT
provides two internal magnetic reed switches and an on-board terminal block to allow for external contact wiring.
Both sets of contacts, internal and external, can be programmed to operate at the same time allowing for two
independent zones from one transmitter. Refer to the panel programming guide for zone programming information.
Using the on-board LED the 1101-WINT Universal Transmitter provides built-in survey capability to allow for single-
person installations, eliminating the requirement for an external survey kit. A transmitter mounting bracket is
included to make the installation quick and easy. For added security, an internal case tamper switch is provided.
Compatibility
1100X-WINT Wireless Receiver
1100D-WINT Wireless Receiver
XT30INT Series panel
XR150INT/XR550INT Series panel
What is Included
The 1101-WINT Universal Transmitter includes the following
items:
• One 1101-WINT Transmitter PCB mounted in a two-part
housing (base and cover)
• One Magnet housing and base
• One 3V lithium CR123A Battery
• Hardware pack
• Zone name and number label
• Serial number label
• Optional Transmitter mounting bracket
• Optional Magnet mounting spacer
Transmitter Serial Number
For your convenience, an additional pre-printed serial number label is included. Prior to installing the device, record
the serial number or place the pre-printed serial number label on the panel programming sheet. This number is
required during programming. As needed, use the zone name and number label to identify a specific transmitter.
Programming the Transmitter in the Panel
Program the device as a zone in Zone Information during panel programming. At the Serial Number: prompt, enter
the eight-digit serial number. Continue to program the zone as directed in the panel programming guide.
Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is reset.
If the receiver has been powered down for more than one hour, wireless transmitters may take up to an additional
hour to send a supervision message unless tripped, tampered, or powered up. This operation extends battery life for
transmitters. A missing message may display on the keypad until the transmitter sends a supervision message.
Selecting the Proper Location (LED Survey Operation)
The 1101-WINT Transmitter provides a survey capability to allow one person to confirm transmitter communication
with the receiver while the cover is removed. The 1101-WINT Transmitter PCB Red Survey LED turns on whenever
data is sent to the receiver then immediately turns off when the receiver acknowledgement is received. Pressing
the tamper switch is a convenient way to send data to the receiver to confirm operation. When the tamper switch
is pressed or released, the LED blinks once to indicate proper operation. When the transmitter does not receive
an acknowledgement from the receiver the LED remains on for about 8 seconds to let you know communication is
not established. Communication is also faulty when the LED flashes multiple times in quick succession. Relocate
the transmitter or receiver until the LED immediately turns off indicating the transmitter and receiver are
communicating properly. Proper communication between the transmitter and receiver is verified when for each press
or release of the tamper switch, the LED blinks immediately on and immediately off. Repeat this test to confirm five
separate consecutive LED blinks. Any indication otherwise means proper communication has not been established.
1101-WINT Universal Transmitter
InstallatIon GuIde
1101-WINT Universal
Transmitter
Insert small
screwdriver
Ensure there is 5/8" (1.6 cm) or less
and twist
between the assembled Magnet
Housing and Transmitter Housing.
Figure 1: Mounted Transmitter and Magnet
Magnet
Housing
