DMP Electronics 1106-WINT Installation Manual

1106-WINT WIRELESS UNIVERSAL
TRANSMITTER
Installation Guide
Tab

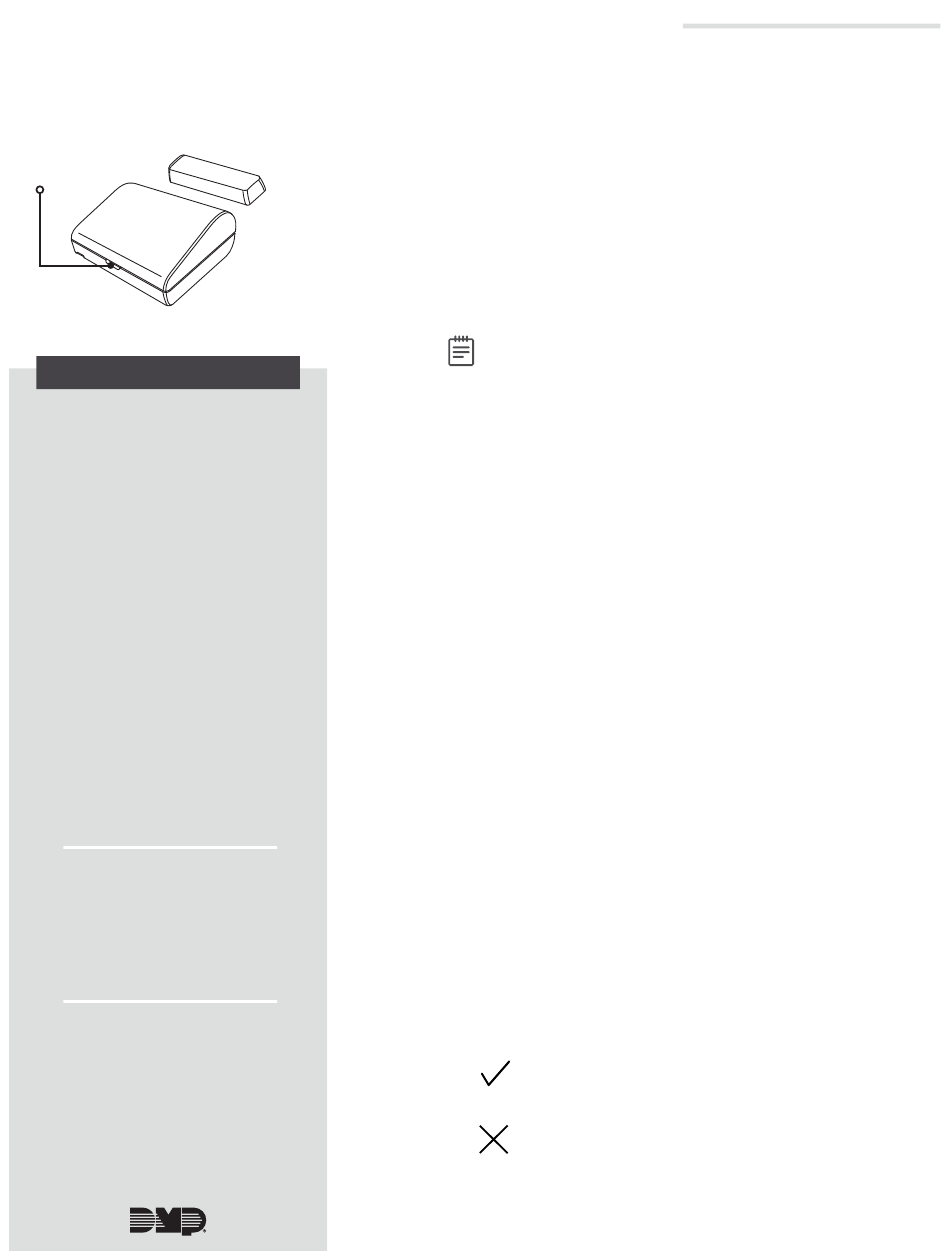

Figure 1: 1106-WINT Wireless
Universal Transmitter
DESCRIPTION
The 1106-WINT Wireless Universal
Transmitter is a wireless, two-input
transmitter typically used for door
and window applications.
The 1106-WINT provides a cover
tamper, magnetic reed switch, and
an on-board terminal block to allow
for external contact wiring.
Both sets of contacts, internal and
external, can be programmed to
operate at the same time. This
allows two independent zones to
operate from a single 1106-WINT.
The 1106-WINT also features
Disarm/Disable functionality. When
this option is set to YES, Zone
Tripped messages are disabled
when the system is disarmed to
allow for extended transmitter
battery life. Supervision, Tamper,
and Low Battery are the only
messages that are sent to the panel
when the system is disarmed.
Compatibility
XT30INT Series Panels,
XR150INT/XR550INT Series Panels,
and all DMP International Wireless
Receivers
What is Included?
• One 1106-WINT Wireless Universal
Transmitter in a two-part housing
• One magnet in a one or two-part
housing
• One 3.0V lithium CR123A battery
• Hardware pack
• Double-sided tape
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
In ZONE INFORMATION, enter the wireless ZONE NO:.
1.
Enter the ZONE NAME.
2.
3. Select the ZONE TYPE.
4. At the NEXT ZN? prompt, select NO.
5. Select YES when WIRELESS? displays.
Enter the eight-digit SERIAL#.
6.
At CONTACT, select either INTERNAL or EXTERNAL.
7.
Note: Use consecutive zone numbers if using both internal
and external contacts.
If EXTERNAL was chosen in Step 7, choose NO or YES at
8.
the NORM OPEN prompt.
9. Enter the SUPRVSN TIME.
10. At DISARM DISABLE, select NO or YES.
11. At the NEXT ZN? prompt, select NO to finish programming
or select YES for additional programming options.
2
INSTALL THE BATTERY
Use a 3.0V Lithium battery, a DMP Model CR123A battery, or an
equivalent model from Sony or Murata. Keep in mind, when setting
up a wireless system, program zones and connect the wireless
receiver before installing the battery.
1. Open the 1106-WINT by inserting a 1/4" flat head
screwdriver in the tab. See Figure 1.
2. Gently pull upwards on the screwdriver handle until the
housing completely opens.
3. Observe polarity and place the battery in the holder and
press it into place.
3
SELECT A LOCATION
The 1106-WINT provides an LED Survey operation to allow one
person to confirm communication with the wireless receiver or
panel while the cover is removed. If installating more than one
1106-WINT at a time, use one 1106-WINT to check all locations.
1. With the cover removed, hold the 1106-WINT in the exact
desired location.
2. Press the tamper switch to send data to the panel and
determine if communication is confirmed or faulty.
Confirmed: If communication is confirmed, for each
press or release of the tamper switch the LED blinks
immediately on and immediately off.
Faulty: If communication is faulty, the LED remains
on for approximately 8 seconds or flashes multiple
times in quick succession. Relocate the 1106-WINT
or wireless receiver until the LED confirms clear
communication.
