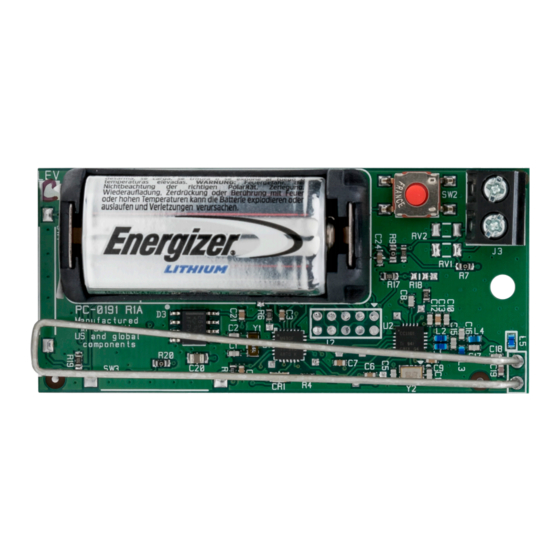

- Page 1 INSTALLATION GUIDE 1102 Wireless Universal Transmitter...
- Page 2 GET STARTED The 1102 Universal Transmitter provides an onboard terminal block as a single input, typically used with external door or window contacts. The contact operates as a single zone. The 1102 features the Disarm/Disable operation to save battery life. When this option is enabled, Zone Tripped messages are disabled when the system is disarmed.
- Page 3 Relocate the transmitter until the LED confirms clear communication. Mount the Transmitter When mounting the 1102, refer to Figure 1 for battery and mounting hole locations. Remove the battery. Place the supplied #4 screw into the mounting hole and secure the transmitter to the surface.
- Page 4 Use a flathead screwdriver to loosen the two screws on the external contact terminal block. Insert external contact wiring into the 1102 terminal block and tighten the screws. Connect the other ends of the wires to the external contact as either normally open (N/O) or normally closed (N/C) without an end‑of‑line resistor.
- Page 5 SPECIFICATIONS Battery Life Expectancy 5 years (normal operation) Type 3.0 V lithium CR123A Frequency Range 905‑924 MHz Dimensions 3.3 L x 1.6 W x 1.0 H in. Housing Material Flame retardant ABS CERTIFICATIONS ▶ FCC Part 15 Registration ID CCKPC0191 ▶ Industry Canada Registration ID 5251A‑PC0191 Underwriters Laboratory (UL) Listed ANSI/ UL 1023...
