CyberData 011307 Installation Quick Reference

Wall Mounting Option
121001A
Screw Accessory Kit
Faceplate
Assembly
Network Cable
to J1 Slot
Open
Ground Lug
Gang Box Mounting Option
121002B
Screw
Accessory Kit
Single Gang Box use two
Two Gang Box use four
Backplate
Network
Faceplate
Cable
Assembly
to J1
Slot
Open
Nut
Mounting
Screw (4x)
Ground Lug
Contacting CyberData
© 2014, CyberData Corporation, ALL RIGHTS RESERVED 930933A
Slot
Closed
Wall Cutout
Drill Holes for Anchors
Nut
Backplate
Network Cable &
Ground Wire are
(Not Provided)
Mounting Screws
Wall Cutout
Wall Cutout
Slot
Closed
Single Gang Box or
Two Gang Box
(Not Provided)
Network Cable &
Ground Wire
(Not Provided)
Drill Holes for Anchors &
Cutout for Single Gang Box
121001A
Screw
Accessory Kit
Screws & Anchors
Quick Reference
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Installation Quick Reference
The IP Endpoint Company Singlewire-enabled

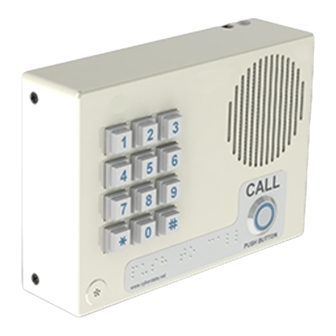

VoIP Indoor Intercom with Keypad
011307
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
Generic PoE Switch
1 2
Door Strike VoIP Intercom VoIP Intercom
Getting Started
• Download the Operations Guide PDF file from the Documents page at:
http://www.cyberdata.net/products/voip/digitalanalog/singlewireintercomindoorkeypadv3/docs.html
• Create a plan for the locations of your Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Intercom Assembly (1) Wall Mounting Kit
(4)#6 x 0.75-inch Sheet Metal Screw
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
3 4 5 6
IP Phone Informacast Server
(1) Gang Box Mounting Kit
(4) #6 Plastic anchor (4) #6 x 3/8-inch Pan Head
Phillips Machine Screw*
* Only two screws are needed
for a single gang box.
930933A © 2014, CyberData Corporation, ALL RIGHTS RESERVED
