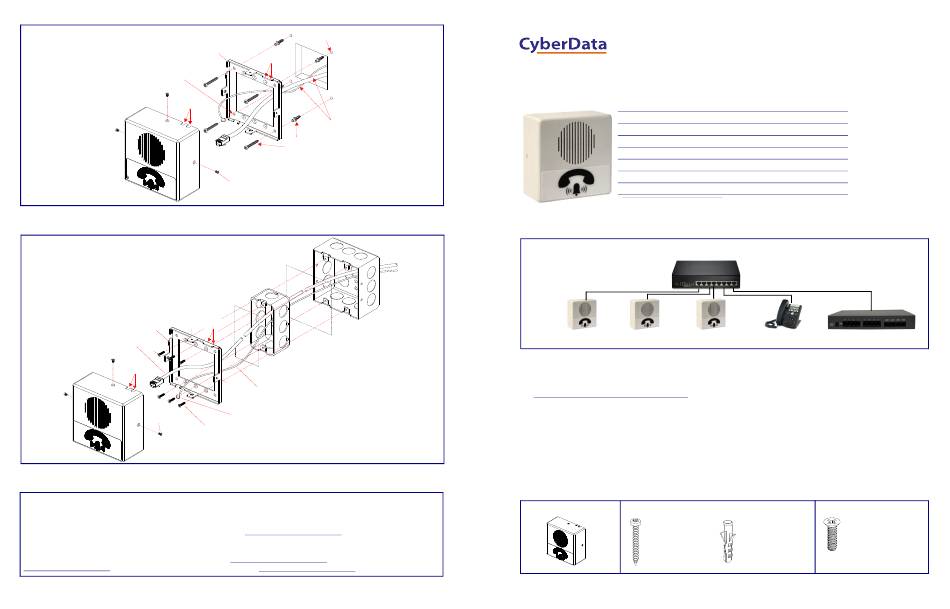

CyberData InformaCast Enabled Office Ringer Installation Quick Reference

Wall Mounting Options
Backplate
Pick One of Four Mounting Hole
for Ground Wire Connection
Cable
Entry
Slot
Gang Box Mounting Options
Backplate
Network Cable
(Not Provided)
Cable
Entry
Slot
Mounting
Screw (3x)
121002B
Screw Accessory Kit
Single Gang Box use two
Two Gang Box use four
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
Pre Drill Holes
(4 Places) on Wall
Cable
Slots
Closed
Wall
Cutout
Network Cable &
Ground Wire
(Not Provided)
121001A
Screw
Accessory Kit
Mounting
Screw (3x)
Cable
Slots
Closed
Wall Cutout
Backplate accept
Single Gang Box
or Two Gang Box
Wall Cutout
Ground Wire
(Not Provided)
Ground Wire Connect to
Any Available Mounting Hole
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931647B Quick Reference
Installation Quick Reference
InformaCast Enabled Office Ringer
The IP Endpoint Company
011311
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
*More installation and mounting 802.3af Compliant Ethernet Switch
options are available in the
Operations Guide.
Office Ringer Office Ringer Office Ringer
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011311
• Create a plan for the locations of your Office Ringers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Office Ringer Assembly (1) Wall Mounting Kit
(4) #6 x 1.25-inch
Sheet Metal Screw
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
IP Phone InformaCast Server
(1) Gang Box Mounting Kit
(4) 6-32 x 0.5-inch flat
(4) Plastic ribbed anchor
undercut Phillips machine
screw
931647B © 2019, CyberData Corporation, ALL RIGHTS RESERVED
