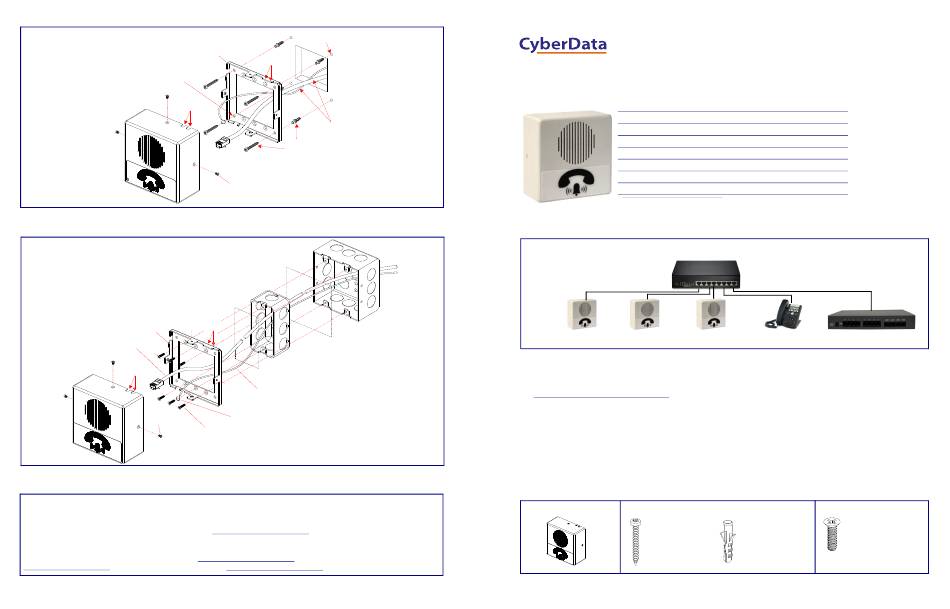

CyberData 011311 Installation Quick Reference

Wall Mounting Options

Backplate
Pick One of Four Mounting Hole
for Ground Wire Connection
Cable
Entry
Slot

Gang Box Mounting Options

Backplate
Network Cable
(Not Provided)
Cable
Entry
Slot
Mounting
Screw (3x)
121002B
Screw Accessory Kit
Single Gang Box use two
Two Gang Box use four
