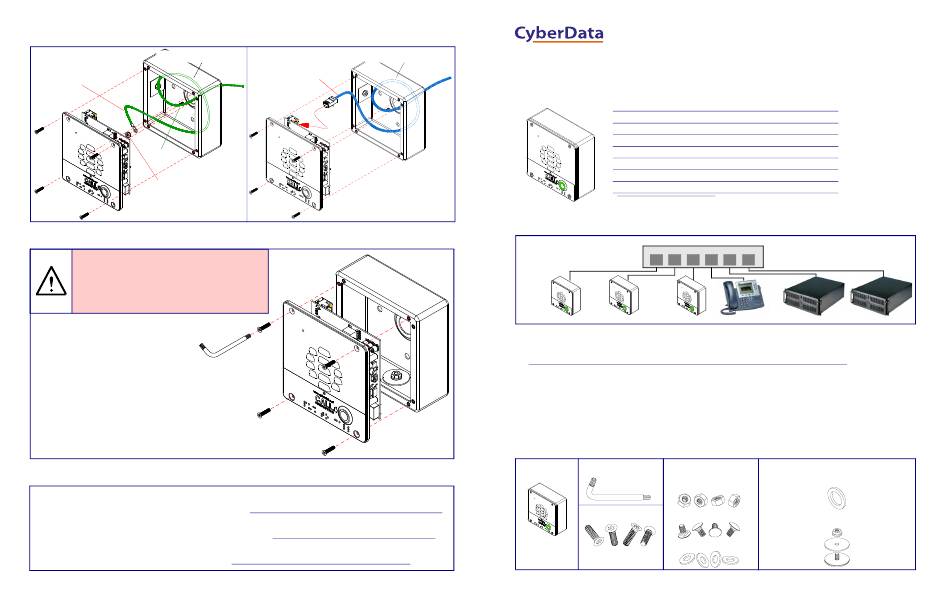

CyberData 011309 Installation Quick Reference

Connecting the Intercom (Service Loop Routing)
Ground Cable Installation
Route cable(s) inside of the Route Cable(s) inside Gang Box to
Creates Service Loop
Gang Box to create the service loop.
Ground Wire
(not provided)
Ground Wire
(Not Provided)
Nut
Ground Lug
Ground Lug
Nut (to Ground Lug
inside of the Gang Box
Securing the Intercom
Caution
Equipment Hazard: Do not use an electric or power
screwdriver to fasten the face plate and PCB assembly to the
gang box. To prevent over-torque damage to the gasket, do
not apply more than 10 inch-pounds force. Over-torquing
will cause the gasket to tear, risk moisture intrusion, and
GENERAL ALERT
effectively void the manufacturer's warranty.
Note: To mount the intercom, use methods
compliant with local electrical codes.
Note: More installation and mounting
information is illustrated in the Operations
Guide.
Contacting CyberData
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
www.CyberData.net
© 2014, CyberData Corporation, ALL RIGHTS RESERVED 930925A
Network Cable Installation Route Cable(s) inside Gang Box to
Route cable(s) inside of the
Gang Box to create the service loop.
Network Cable
(not provided)
Torx Key
Torx Screws
Faceplate &
PCB Assembly
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Web: http://www.cyberdata.net/support/contactsupportvoip.php
RMA Dept: (831) 373-2601 ext. 136
Email: RMA@CyberData.net
RMA Status: http://www.cyberdata.net/support/rmastatus.html
Warranty and RMA information is available at the following website:
http://www.cyberdata.net/support/warranty/index.html
Quick Reference
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
The IP Endpoint Company
Creates Service Loop
Typical System Installation
*More installation and mounting
information is illustrated in the
Operations Guide.
2 Gang Box
VoIP Intercom
Getting Started
• Download the Operations Guide PDF file, from the Documentation web page at:
http://www.cyberdata.net/products/voip/digitalanalog/singlewireoutdoorintercom/docs.html
• Create a plan for the locations of your Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Intercom
Assembly
Quick Reference
Installation Quick Reference

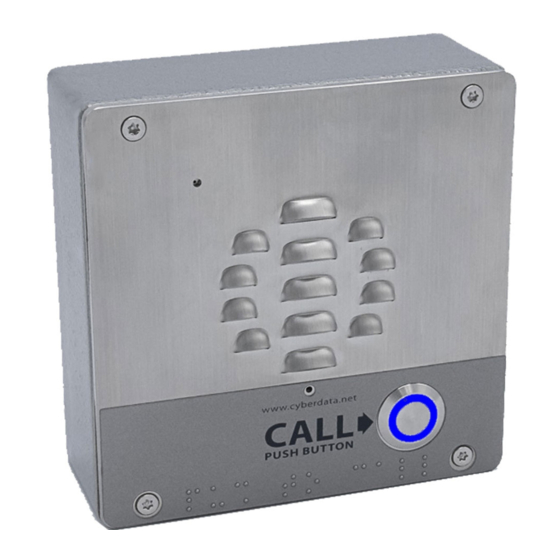

Singlewire InformaCast-enabled
VoIP Outdoor Intercom
011309
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Switch
1 2 3 4 5 6
VoIP Intercom VoIP Intercom IP Phone
(1) T-15H Torx Key Optional Accessories
(for gooseneck mounting)
(4) Carriage bolt nuts
(4) Security Torx Screw
(4) Carriage bolts
(4) Carriage bolt washers
930925A © 2014, CyberData Corporation, ALL RIGHTS RESERVED
IP-PBX InformaCast Server
Optional Accessories
(1) Spacer for half-inch set conduit connector
(1) 531085B hole plug assembly
