Buick, Chevrolet, Lexus,
and for
touch-screen navigation version 1 and 1.1
Video-inserter for rear-view camera input
Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
FBAS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion in drive mode (ONLY for connected video-sources)
Video inputs NTSC compatible
Version 14.02.2023
Video-inserter
CI-RL1-GVIF
Compatible with
Opel
GVIF technology
Land Rover and Jaguar
and two additional video sources
HW CAM (V31)(V64)
und
Toyota
vehicles with
vehicles with
CI-RL1-GVIF
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz CI-RL1-GVIF
Summary of Contents for NavLinkz CI-RL1-GVIF

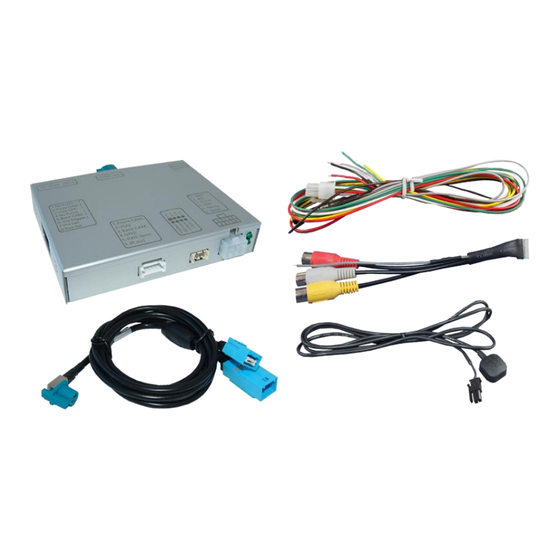

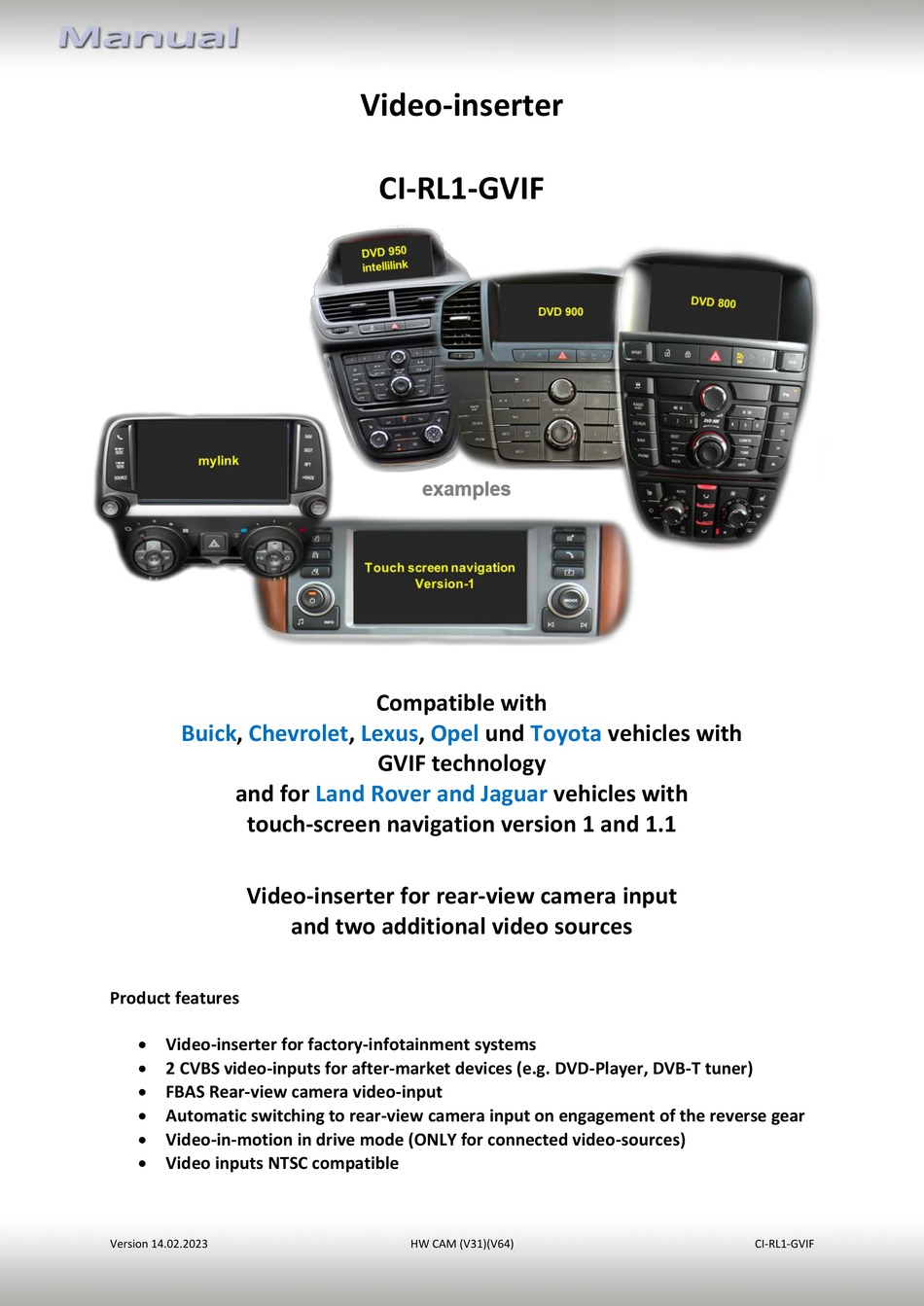

- Page 1 Video-inserter CI-RL1-GVIF Compatible with Buick, Chevrolet, Lexus, Opel Toyota vehicles with GVIF technology and for Land Rover and Jaguar vehicles with touch-screen navigation version 1 and 1.1 Video-inserter for rear-view camera input and two additional video sources Product features Video-inserter for factory-infotainment systems ...
-
Page 2: Table Of Contents
Special case 2: For Lexus/Toyota vehicles– picture is blinking after installation 2.5. Connection - video sources 2.5.1. After-market rear-view camera 2.5.2. Audio-insertion 2.6. Connection – external keypad 2.7. Picture settings 3. Interface operation 4. Specifications 5. Frequently asked questions Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 3: Prior To Installation
Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Meriva B, Mokka A, Zafira C and other vehicles until about model year 2012 Landcruiser, Prius and other vehicles from 2007 with Toyota GVIF-technology. Monitor and head-unit must be System with GVIF separate units and connected with a GVIF-cable. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 5: Connectors - Video Interface
1.3. Connectors – video interface The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 6: Dip-Switch Settings
Try all possible combinations of dip 6-8 to find the best selection picture (quality and size) After each Dip-switch-change a power-reset of the Can-box has to be performed! See following chapters for detailed information. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 7: Enabling The Interface's Video Inputs (Dip 2-3)
Before the final installation, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer, there’s always the possibility of incompatibility. 2.1. Place of connection The interface has to be connected at the rear-side of the factory monitor. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 8: Connection Schema
2.2. Connection schema Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 9: Connection - 6Pin Interface Cable
Note: The connection of the green wire (Reverse signal) will be described in chapter “After- market rear-view camera”. The white wire, can be used by +12V impulse to switch the enabled video sources, same as the keypad (see chapter “video interface-operation”). Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 10: Connection - Picture Signal Cable
Remove the female GVIF connector from the rear-side of the factory monitor and connect it to the male GVIF connector of the picture signal cable. Connect female GVIF connector of the picture signal cable to the male GVIF connector of the factory monitor. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 11: Special Case 1: For Jaguar And Land Rover Vehicles With Touch-Screen Version
Depending on the cable colours of the GVIF interface cable, solder the female GVIF connector of the vehicle harness to the picture signal cable and the GVIF connector of the picture signal cable to the vehicle harness like shown in the diagram above. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 12: Special Case 2: For Lexus/Toyota Vehicles- Picture Is Blinking After Installation
Cut the cable at pin 2 of the upper row from the left side and isolate both ends. Note: Cable colour of pin 2 may vary. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 13: Connection - Video Sources
Connect the video RCA connector of the rear-view camera to the female RCA connector “Camera-IN” of the video cable. (see also “After-market rear-view camera”). Connect the video RCA connectors of additional AV sources to the female RCA connectors „Video IN 1” “Video IN 2”. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 14: After-Market Rear-View Camera
Connect stabile and permanent +12V to the relay’s input connector (30). Note: Don’t forget to set the Dip 5 to ON. In Jaguar and Land Rover vehicles the automatic switching to an after-market rear-view camera is only possible in navigation mode. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 15: Audio-Insertion
Note: Regardless if it’ll be used or not, the external keypad should always be connected! In case of non-using, it should be invisibly hidden together with the video interface. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 16: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available: Brightness Contrast Saturation Position H (horizontal picture position) Position V (vertical picture position) H-SIZE (horizontal picture size) V-SIZE (vertical picture size) Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... -
Page 17: Interface Operation
Stand-by power drain 45mA Power consumption 180mA Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 113 x 25 x 107 mm (W x H x D) Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF... - Page 18 Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF...
- Page 19 Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 14.02.2023 HW CAM (V31)(V64) CI-RL1-GVIF...
