Compatible with

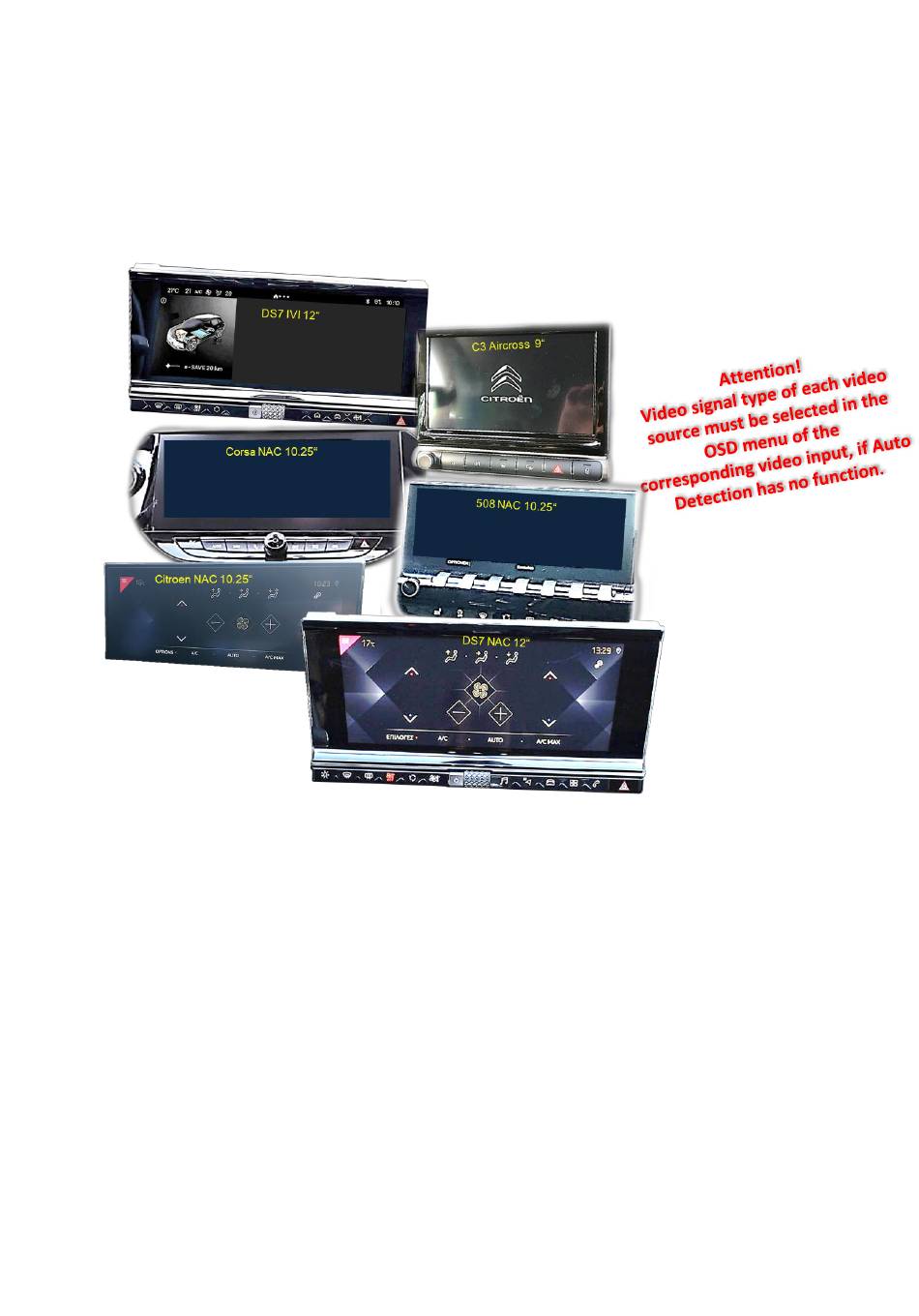

with 7inch, 8inch, 9inch, 10.25inch or 12.3inch monitor

Product features

➢ 1 x CVBS/AHD-input for rear-view camera

➢ 1 x CVBS/AHD-input for front camera

➢ 2 x CVBS/AHD-input for side-cameras or additional after-market video-sources

(e.g., USB-AV-player, DVB-T2 tuner, etc.)

➢ All inputs NTSC and PAL compatible

Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),

960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)

➢

HDV-NAC12 only:

IOS/Android, laptop, streaming stick, DVD-Player, DVB-T2 Tuner, etc.)

Supported HDMI resolutions 720p NTSC (60Hz), 720p PAL (50Hz),

1080p NTSC (60Hz), 1080p PAL (50Hz)

➢

HDV-NAC12 only:

➢ Automatic switching to rear-view camera input while reverse gear is engaged

➢ Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds

➢ Adjustable guide lines (fixed or movable) can be activated for rear-view camera

(movable guide lines not available for all vehicles)

➢ Activatable PDC graphic (not available for all vehicles)

➢ Picture free during the car ride (only for inserted video-sources)

Video inserters

HDV-NAC12 / HDA-NAC12

Citroen, DS, Fiat, Opel, Peugeot

with NAC, RCC or IVI infotainment

and separate head-unit

1 HDMI-input for HD rear-view camera or additional HDMI-sources (e.g.,

Analogue audio output for HDMI source

and

Toyota

vehicles

Need help?

Do you have a question about the HDV-NAC12 and is the answer not in the manual?

Questions and answers

Summary of Contents for NavLinkz HDV-NAC12

Page 1 Video inserters HDV-NAC12 / HDA-NAC12 Compatible with Citroen, DS, Fiat, Opel, Peugeot Toyota vehicles with NAC, RCC or IVI infotainment with 7inch, 8inch, 9inch, 10.25inch or 12.3inch monitor and separate head-unit Product features ➢ 1 x CVBS/AHD-input for rear-view camera ➢...
Page 2 After-market front camera After-market side-cameras 2.8.1 Case 1: Turn signal from CAN-bus 2.8.2 Case 2: Turn signal from analogue signal HDMI rear-view camera or other HDMI-source (only HDV-NAC12) 2.10 Audio-insertion 2.11 Connection - Interface and external keypad 2.12 OSD-menu settings...
Page 3 Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. Apart from using this product in an unmoved vehicle, it should only be used to display fixed menus (for example the MP3 menu of USB devices) or (rear-view) cameras’...
Page 4 Checking the compatibility of vehicle and accessories Requirements Brand Compatible vehicles Infotainments Berlingo3 (K9) from 09/2018 til 03/2024, C3 3.G from 01/2017 til 04/2024, C3 Aircross from 11/2017, C4 (N) from about 2017-05/2018, NAC or RCC with 7inch or 8inch touch C4 Cactus II from 01/2018 til 09/2020, screen.
Page 5 Brand Compatible vehicles Infotainments Combo E from 11/2018 til 11/2023, Corsa F from 07/2019, Navi 5.0 IntelliLink 8inch (NAC low Continental), Crossland X from model year 2017, Multimedia Radio 7inch (RCC Bosch), Grandland X from model year 2017, Multimedia Navi Pro 7inch and Multimedia Mokka B from 09/2020, 8inch Vivaro C from 03/2019,...
Page 6 Limitations Limitations CAN-bus compatibility CAN-bus compatibility of interface may to some vehicles have no or limited compatibility. This can show on installation as well as later. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus. Yet, in this case, some features do not work, see chapter 2.4.2 Analogue connection without CAN-bus.
Page 7 Warnings Damage to head-unit or interface can occur, if interface is installed to older SMEG or SMEG+ head-units (by Magneti Marelli). Damage can also occur if the 4-pin HSD connectors are connected incorrectly. Prior to installation the head-unit version must be identified. The very head-unit can differ in number and colours of the below pictures as there is sub-versions.
Page 8 The interface converts connected after-market sources’ video-signals into a video-signal compatible with the factory monitor. It can then be inserted, using separate trigger options. The interface also reads the vehicle’s CAN-bus signals and uses them for own functions. * HDMI-input only available on HDV-NAC12...
Page 9 Settings - 8dip switch bench (interface functions) Interface box, right side, black Dip position UP = OFF DOWN = Dip Function ON (down) OFF (up) Video 1 / V1-Left enabled disabled Video 2 / V2-Right enabled disabled Frontcamera / V3-Front enabled disabled Rear-view cam type (V4-Rear)
Page 10 Note: On vehicles, where the PDC-graphic due to lack of CAN-bus compatibility cannot be used or is subject to post installation problems, the function cannot be used. In this case set dip 8 = OFF. * HDMI-input only available on HDV-NAC12 Power reset interface after each dip change to activate changes!
Page 11 Settings - 2dip switch bench (monitor definition) Interface box, top side, black Attention: Opposite to other dip benches (8dip and 4dip), the 2dip position here is UP = ON DOWN = OFF! Monitor sizes Dip 1 Dip 2 7inch, 8inch monitor 7inch, 8inch monitor with alternative timing...
Page 12 2 Installation For installation, first switch off the ignition and disconnect the vehicle’s battery following the instructions of the vehicle manufacturer regarding battery disconnection! If disconnecting battery is not suggested, enable vehicle sleep-mode (hibernation mode). In case the sleep-mode does not succeed, the disconnection of battery can be done with a resistor lead.
Page 13 Connection schema...
Page 14 Connection - picture signal cable Connection - picture signal cable 2.3.1 NAC version head-unit (HSD) Connect waterblue female HSD+2 connector to waterblue male HSD+2 connector of interface. Disconnect single black female HSD connector of factory harness from rearside of head-unit and connect it to waterblue male HSD connector of picture signal cable.
Page 15 Connection - picture signal cable 2.3.2 NAC high version (double HSD) Remove the head-unit and disconnect white/black female double HSD connector from rear side. Connect single waterblue female HSD connector of the picture signal cable to the waterblue male HSD connector of the interface.
Page 16 Connection - picture signal cable 2.3.3 IVI und RCC versions Connect waterblue female HSD+2 connector to waterblue male HSD+2 connector of interface. Disconnect black female HSD connector of factory harness at rear-side of head-unit and connect it to waterblue male HSD connector of picture signal cable. Connect waterblue female HSD connector to...
Page 17 Connection – cable sets Connection – harnesses, power supply and CAN-bus or analogue without CAN-bus The interface can be integrated via CAN-bus as well as operated in analogue mode without CAN- bus connection. When integrated via CAN-bus, the interface is switched on by the vehicle CAN-bus and R-gear signal and turn signals are usually recognized.
Page 18 Connection - with CAN-bus 2.4.1 Connection with CAN-bus Connect grey wire 10pin power/CAN cable to vehicle’s CAN-low (see following chapters for place of connection). Connect blue wire 10pin power/CAN cable to vehicle’s CAN-high. (see following chapters for place of connection).
Page 19 Connection - with CAN-bus 2.4.1.1 Place of connection power/CAN - NAC and RCC head-unit Disconnect female PSA Quadlock connector at rear-side of head-unit and click-out green female 22pin section. Connect blue CAN-high wire, grey CAN-low wire and black GND wire of 10pin power/CAN cable to corresponding chambers of female 22pin section of factory harness.
Page 20 Connection - with CAN-bus 2.4.1.2 Place of connection power/CAN - IVI head-unit Connect blue CAN-high wire grey CAN-low wire 10pin power/CAN cable corresponding chambers of black female 12pin connector of vehicle harness. There are two known vehicle pin definition variants displayed above. Tip: If CAN-bus is on chambers 4 and 10, chambers 5 and 11 are usually not occupied.
Page 21 Connection - without CAN-bus 2.4.2 Analogue connection without CAN-bus On analogue connection, blue CAN-high wire grey CAN-low wire 10pin power/CAN cable are not connected. Connect purple wire Manual ACC 20pin interface cable +12V S-contact terminal 86s or ACC terminal 15r of vehicle (e.g., cigarette lighter, glove compartment illumination).
Page 22 The cable carries +12V trigger out power exclusively as long as any of the camera inputs is shown, regardless of whether the switching is by vehicle CAN-bus or by trigger wires (see following chapters for connection). * HDMI-input only available on HDV-NAC12...
Page 23 Power supply outputs 2.5.1 Connection and power-supply - video-sources rear-view camera, front camera and 2 side-cameras Connect male RCA connector of rear-view camera to female RCA connector V4-Reverse 20pin interface cable. Connect male RCA connector of front camera to female RCA connector V3-Front 20pin interface...
Page 24 Power supply outputs 2.5.2 Connection and power-supply - video-sources rear-view camera, front camera and 2 video-sources Connect male RCA connector of rear-view camera to female RCA-connector V4-Reverse 20pin interface cable. Connect male RCA connector of front camera to female RCA-connector V3-Front 20pin interface...
Page 25 HDMI-input* is defined as rear-view camera input by dip 5, V4-Reverse input remains without function! If reverse gear detection of interface by CAN-bus does not work, reverse gear signal has to be connected analogue. * HDMI-input only available on HDV-NAC12...
Page 26 Connect the power cable of vehicle reverse light to relay coil (85) and vehicle ground to relay coil (86). Connect output connector (87) of relay to power cable of rear-view camera, additionally to green wire Trig-Rear. Connect stabile and permanent +12V to input connector (30) of relay. * HDMI-input only available on HDV-NAC12...
Page 27 After-market front camera After-market front camera green wire CAM power 12V (max 3A) can be used to supply power to front camera (and all other cameras connected to the video inputs), as it only carries current for the duration of any camera activation (some cameras are not continuously current-stable).
Page 28 After-market side-camera After-market side-cameras Side-cameras can be connected with switching by CAN-bus or analogue. 2.8.1 Case 1: Turn signal from CAN-bus Basic requirement is that the interface connection is made with CAN-bus. Furthermore, vehicle CAN bus turn signals and their recognition by the interface must be compatible. If so, interface supplies +12V on green wire CAM power 12V (max 3A) 20pin interface cable...
Page 29 After-market side-camera 2.8.2 Case 2: Turn signal from analogue signal When the interface is connected without CAN bus or when the interface is connected with CAN bus and the turn signals from the vehicle CAN bus are not recognised, an analogue activation of the side camera inputs is possible via the +12V switching input wires Trig-Left Trig-Right.
Page 30 CAN-bus or analogue), the image displayed while reverse gear is engaged, and the image of a front camera connected to V3-Front is also displayed for the preset time when reverse gear is disengaged. Power supply can be taken from green wire CAM power 12V (max3A). * HDMI-input only available on HDV-NAC12...
Page 31 Inserted video-signal can be switched simultaneously to any audio mode of the factory infotainment. * HDMI-input only available on HDV-NAC12 2.11 Connection - Interface and external keypad Connect female 4pin connector of keypad to male 4pin connector of 20pin interface cable.
Page 32 OSD menu 2.12 OSD-menu settings OSD-menu settings can be changed by using the 3 keys on rear-side of interface. Pressing MENU key opens the OSD-menu or moves cursor to next menu item. UP (UP) and DOWN (DOWN) change values of current menu item. The individual OSD-menu of every video input is only accessible when this input is displayed, regardless of whether a video-source is connected.
Page 33 OSD menu Menu V3 front Switch bench of 8 dip switches Dip 3 = ON Brightness Brightness Contrast Contrast Item H Horizontal image position Item V Vertical image position Trigger Type of selection of video input front. "Delay" function for front camera. The "Delay" setting is used to determine the automatic switching of a front camera connected to the V3 front input after reverse gear is engaged and...
Page 34 NO: Factory video HDMI* V1-Left V2-Right Factory video * HDMI input only available with HDV-NAC12 Menu HDMI* Switch bench of 8 dip switches (dip 4 = ON, dip 5 = ON/OFF, dip 6 = ON) HDMI AV input (Dip 5 – OFF)
Page 35 V4-Reverse** Factory video Note: The interface only switches after releasing the switch (after long press). * HDMI-input only available on HDV-NAC12 **V4-Reverse can only be selected via the external keypad if the "External SW" function is set to "Yes" in the V4-Reverse menu.
Page 36 4 Specifications BATT/ACC range 9V - 16V Stand-by power drain about 3.4mA Power consumption 250mA @12V Video input 0.7V - 1V Video input signal types CVBS/AHD/HDMI (HDV-version only) Signal standards CVBS/AHD NTSC/PAL Temperature range -40°C to +85°C Dimensions video-box 115 x 25 x 109 mm (W x H x D) 5 FAQ - Troubleshooting interface functions - product-specific Problem Possible reasons...
Page 37 6 FAQ - Troubleshooting Interface functions - general For any troubles which may occur, check the following table for a solution before requesting support from your vendor. Symptom Reason Possible solution Not all connectors have been reconnected to factory head- Connect missing connectors.
Page 38 Symptom Reason Possible solution Camera input picture Use relay or electronics to "clean" reverse gear lamp black. Camera power taken directly power. Alternatively, if CAN-bus box is compatible from reverse gear lamp. with the vehicle, camera power can be taken from Camera input picture green wire of 6pin to 8pin cable.
Page 39 7 Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. 10R-06 5485 Made in China...
