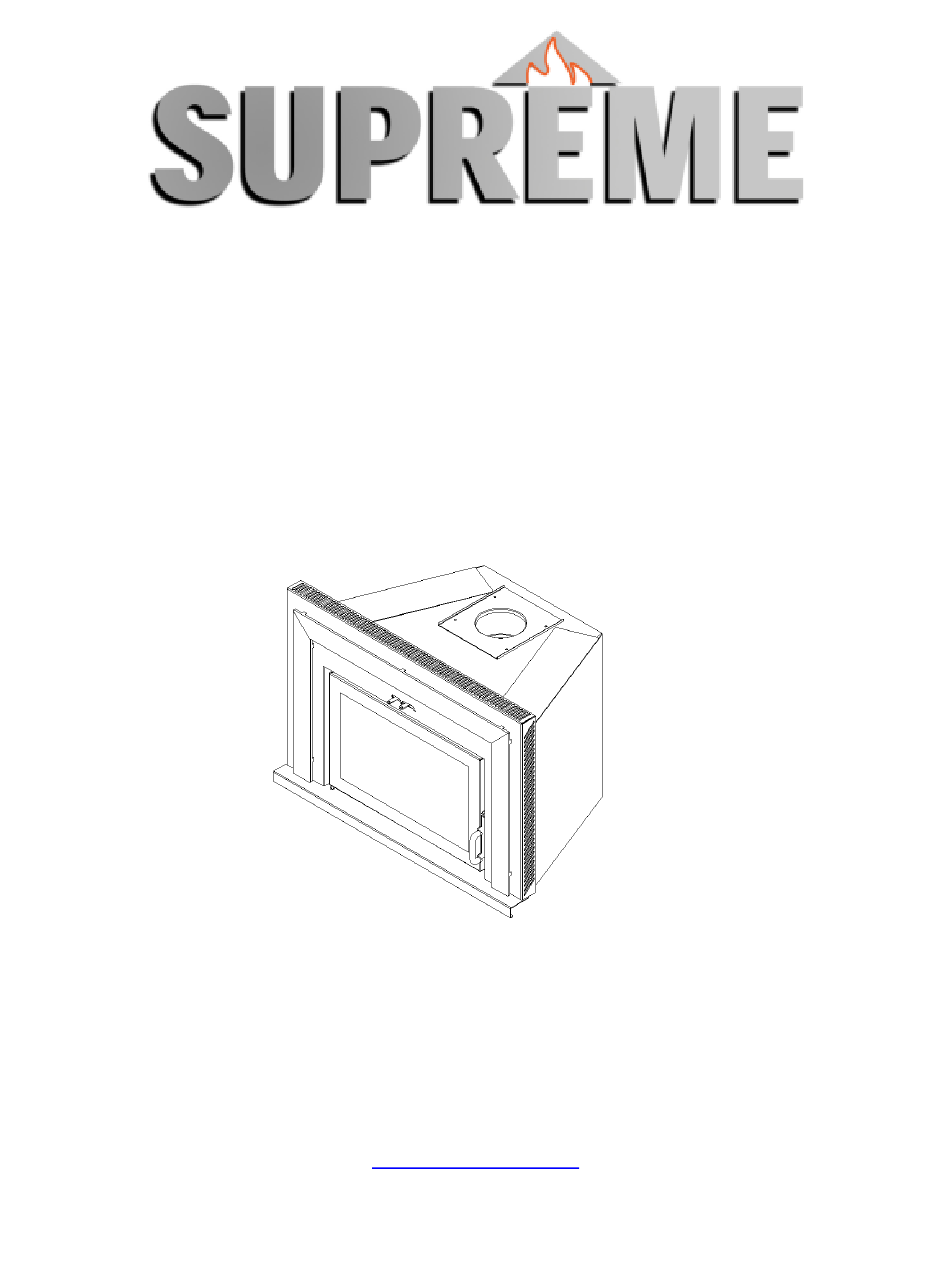

- Page 1 FUSION 18 Owner’s Manual Model Number: 18FN This product is proudly manufactured in North America by SUPREME FIREPLACES INC. 3594 Jarry East, Montreal, QC H1Z 2G4 T: 877-593-4722, F: 514-593-4424 www.supremem.com Revised: February 2018 IMPORTANT: Keep the owner’s manual for future use.
-
Page 2: Table Of Contents
Table of Contents SAFETY ..............................4 COMPONENTS ............................5 Overall Dimensions ..........................5 Specifications ............................6 Combustion Air Control ........................6 Cold Hand Key ............................ 7 Chimney Sweeping Cap ........................7 Door ..............................7 Blowers ............................... 7 Surround ............................. 8 Adjustable Circulating Chamber ...................... - Page 3 Operating the Combustion Air Control ..................... 166 Starting a Fire ............................ 16 Adding a New Load of Wood ......................17 Fan Operation ........................... 17 Barbecue Grill............................ 18 TROUBLESHOOTING ..........................19 Backdraft / Smoking .......................... 19 Over Firing ............................19 MAINTENANCE ............................20 Disposal of Ashes ..........................
-
Page 4: Safety
1 SAFETY SUPREME FIREPLACES INC. congratulates you on purchasing a FUSION 18 wood burning fireplace insert. This insert complies with the ULC S628 and UL 1482 standards. In addition, this wood insert is certified to comply with Phase II particulate emission standards from the US Environmental Protection Agency. -
Page 5: Components
2 COMPONENTS 2.1 Overall Dimensions Figure 1: FUSION 18 Firebox Figure 2: Dimensions of FUSION 18 Firebox Figure 3: Dimensions of FUSION 18 Figure 4: Dimensions of FUSION 18 with Circulating Chamber... -
Page 6: Specifications
2.2 Specifications Adjustable Burn Rate Wood Heater – Non-Catalytic Appliance Type: Fuel Type: Dry Cordwood Maximum Log Length: 18 in (47 cm) Burn Time 6 to 8 hrs Firebox Volume: 1.85 ft (0.053 m Heating Area: 500 to 1,800 ft (45 to 170 m Average Particulate Emissions Rate 1.90 gm/hr... -
Page 7: Cold Hand Key
2.4 Cold Hand Key The Cold Hand Key (Figure 6) is an accessory that comes standard with the FUSION 18 insert. The Cold Hand Key is a tool used to manipulate the Combustion Air Control Levers when it is hot. Figure 6: Cold Hand Key 2.5 Chimney Sweeping Cap The chimney sweeping cap (Figure 7) found at the baffle of the FUSION 18... -
Page 8: Surround
The FUSION 18 wood burning insert is available in three different sizes. Figure 8: Surround Size Options - Small, Medium, and Large (Left to Right) NOTE: SUPREME FIREPLACES INC. reserves the right to alter the dimensions of the surrounds without prior notice. -
Page 9: Metal Tag
2.12 Metal Tag The Metal Tag is found on the front of the metal shipping crate and indicates that alterations have been made to the masonry fireplace to accommodate the FUSION 18 insert. The metal sheet having the Metal Tag is to be installed with two screws at the Bottom of the Circulating Chamber. -
Page 10: Installation Instructions
CAUTION: Read these instructions carefully before starting the installation. Failure to follow these instructions may result in property damage, bodily harm and even death. Modifications of the instructions presented in this section without written authorization from SUPREME FIREPLACES INC. will void the warranty. -
Page 11: Preparing The Firebox For Installation
3.1 Preparing the Firebox for Installation a) Bend the serial number plate horizontally. b) Remove the door by opening it, lifting it, and pulling it towards the bottom until the rod exits from the hinge holes. c) Install the adjustable legs (see Section 2.10). The adjustable legs must extend 1 ¼ inch from the bottom of the firebox. -
Page 12: Liner Adaptor Installation
NOTE: If the width and/or the height of the existing fireplace is/are larger than the maximal width and/or height of the adjustable circulating chamber, extend the width and/or height of the circulating chamber to the maximum and fill the space with Stone Wool. 3.4 Liner Adaptor Installation Insert the 5”... -
Page 13: Surround Installation
Figure 18: Location of Electric Wiring Figure 20: Electric Wiring Diagram 3.7 Surround Installation a) Swivel the certificate plate outwards. b) Install the surround and secure it with four screws, two on either side. c) Install the door by inserting the upper rod into the upper hole and then lowering the lower rod into the lower hole. -
Page 14: Clearances To Combustibles
3.8 Clearances to Combustibles Refer to Figure 21 and Table 2 for the minimum clearances to combustibles: Table 2: Clearances to Combustibles Sidewall from outer edge of 15.5” (394mm) fuel door Side trim from outer edge of 7.5” (190.5mm) fuel door Top trim from top edge of 13.75”... -
Page 15: Operation Instructions
INSERT. The Fusion 18 is not intended to serve as a primary source of heat. A primary source of heat must be available in the home that the Fusion 18 is installed in. Supreme is not responsible for heating costs related to other sources of heat. -
Page 16: Operating The Combustion Air Control
4.3 Operating the Combustion Air Control The burn rate and the heat output are related to the amount of air entering into the firebox. The combustion air control of the FUSION 18 has two components: the Activator and the Burn Rate Selector. When starting the fire or when adding a new charge of wood, the fireplace needs additional air in order to establish a good fire. -
Page 17: Adding A New Load Of Wood
WARNINGS: Over firing the unit may result in overheating and can damage the fireplace and/or result in fire hazards. The maximum firewood load must not exceed 4 medium sized logs (approximately 25 pounds). This fireplace has been designed to burn with the door closed. When the fireplace is being used, the door should remain closed at all times. -
Page 18: Barbecue Grill
FUSION 18 insert. The intense heat from the next combustion cycle cleans the grill and the unit of any cooking residue. DISCLAIMER: SUPREME FIREPLACES INC. is not responsible for the quality nor the outcome of the food cooked in the FUSION 18. -
Page 19: Troubleshooting
5 TROUBLESHOOTING 5.1 Backdraft / Smoking Draft is the force created by a difference in pressure, which moves air from the appliance up through the chimney. It is important to operate the FUSION 18 with proper draft to ensure optimal performance of the unit. Draft is depended on the length of the chimney, local geography, nearby obstructions and other factors. -
Page 20: Maintenance
6 MAINTENANCE 6.1 Disposal of Ashes Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be placed on a non-combustible floor or on the ground, well away from all combustible materials, pending final disposal. -
Page 21: Cleaning Of Glass
6.5 Replacement of Glass SUPREME FIREPLACES INC. uses a high quality 5mm thick Pyroceram III / Keralite ceramic glass that can withstand temperatures up to 1300 F. It is recommended to perform a weekly visual check for any damages or cracks on the glass. -
Page 22: Door Latch Lubrication
d) Using a wedging tool or flat head screwdriver, gently remove the ¾” gasket (along with the silicone) from the door framing. e) Using a wrench, remove the 8 nuts fastened around the door framing. f) Remove the first row of metal brackets (2 small and 2 big) and thin gasket. g) Remove the damage glass and clean thoroughly the door framing from loose glass fragments. -
Page 23: Replacement Parts
6.9 Replacement Parts Refer to the codes from the table below for any replacement parts: Code Description Illustration Wood pull handle (specify color) Pyroceram III / Keralite 5mm thick glass, PYRO_20.25X12 20.25" X 12" Graphite coated square gasket, 0.1875" GSK_19_6 thick, 6' length Graphite coated square gasket, 0.25"... -
Page 24: Warranty
EXCLUSIONS: SUPREME FIREPLACES INC. shall not be responsible for any labor costs for the replacement or repair of any electrical components, painted/plated parts, secondary air burning system, and the combustion air control. The following parts are guaranteed for 1 year: blowers, painted/plated parts, secondary air burning system, soapstone, and door gasket. - Page 25 In the case of a return for repair or replacement, it is the responsibility of the customer to adequately package the component/unit to prevent further damage during transport. Items sent to the SUPREME FIREPLACES INC. without an open warranty claim will be returned to the sender. Warranty claims should be addressed to: SUPREME FIREPLACES INC.
