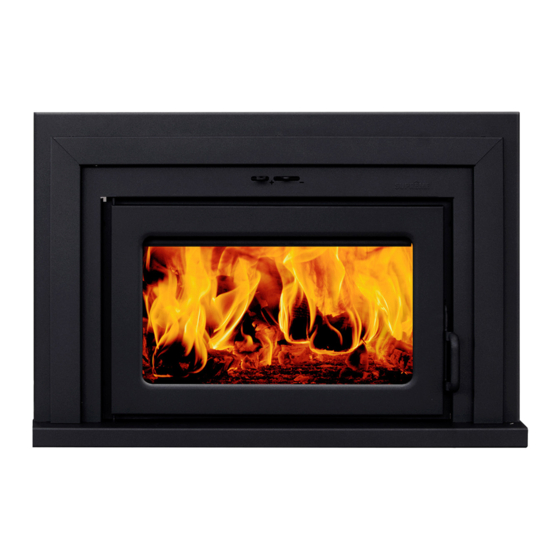

- Page 1 FUSION 18 FUSION 24 Owner’s Manual This product is proudly manufactured in North America by SUPREME FIREPLACES INC. 3594 Jarry East, Montreal, QC H1Z 2G4 T: 877-593-4722, F: 514-593-4424 www.supremem.com Revised: January 2023 IMPORTANT: Keep the owner’s manual for future use.
-
Page 2: Table Of Contents
Table of Contents SAFETY ..............................4 COMPONENTS ............................5 Overall Dimensions – FUSION 18 ....................... 5 Overall Dimensions - FUSION 24 ......................6 Specifications ............................7 Combustion Air Control ........................8 Baffle Secondary Burn Technology ..................... 8 Cold Hand Key ............................ 8 Chimney Sweeping Cap ........................ - Page 3 Operating the Combustion Air Control ....................18 Starting a Fire ............................ 19 4.4.1 FUSION 18 ..........................19 4.4.2 FUSION 24 ..........................19 Adding a New Load of Wood ......................20 4.5.1 FUSION 18 ..........................20 4.5.2 FUSION 24 ..........................20 Blower Kit ............................
-
Page 4: Safety
1 SAFETY SUPREME FIREPLACES INC. congratulates you on purchasing a FUSION wood burning fireplace insert. This insert complies with the ULC 628 and UL 1482 standards. In addition, this wood insert is certified to comply with Phase II particulate emission standards from the US Environmental Protection Agency. -
Page 5: Components
2 COMPONENTS 2.1 Overall Dimensions – FUSION 18... -
Page 6: Overall Dimensions - Fusion 24
2.2 Overall Dimensions - FUSION 24... -
Page 7: Specifications
2.3 Specifications Model: Fusion 18 Fusion 24 Adjustable Burn Rate Wood Heater – Adjustable Burn Rate Wood Heater – Appliance Type: Non-Catalytic Non-Catalytic Fuel Type: Dry Cordwood Dry Cordwood Maximum Log Length: 18 in (47 cm) 23 in (58 cm) -
Page 8: Combustion Air Control
The baffle system (18FN1150 or 24FN1150) of the FUSION insert is located within the upper portion of the firebox (Figure 2-2) and is fastened by 6 bolts (3/8 Hex). SUPREME baffle systems are constructed out a specific grade of stainless steel capable of withstanding high-temperature conditions. The... -
Page 9: Door
Contact your local building official regarding mandatory fresh air kit installations within your area. CAUTION: Only a fresh air kit provided by SUPREME FIREPLACES INC. can be installed onto the fireplace. Substituting the fresh air kit may result in overheating and will void the warranty. -
Page 10: Surround
Figure 2-7: Dimensions of FUSION 18 Surround Options 18FNFA-01-34 (Left) and 18FNFA-01-36 (Right) Figure 2-8: Dimensions of FUSION 24 Surround Options 24FNFA-01-38 (Left) and 18FNFA-01-42 (Right) NOTE: SUPREME FIREPLACES INC. reserves the right to alter the dimensions of the surrounds without prior notice. -
Page 11: Adjustable Circulating Chamber
The width is adjustable from 28” to 32” for the Fusion 18 and 32” to 38” for the Fusion 24. The front height is adjustable from 21.75” to 24.75” with the rear height fixed at 21.75”... -
Page 12: Installation Instructions
CAUTION: Read these instructions carefully before starting the installation. Failure to follow these instructions may result in property damage, bodily harm and even death. Modifications of the instructions presented in this section without written authorization from SUPREME FIREPLACES INC. will void the warranty. - Page 13 Figure 3-1: Minimum Opening Dimensions – Front View Figure 3-2: Minimum Opening Dimensions – Side View NOTE: It is strongly recommended to install a carbon monoxide (CO) and smoke detector near the location of the unit.
-
Page 14: Preparing The Firebox For Installation
3.1 Preparing the Firebox for Installation a) Unfasten and remove the front shipping cover of the unit (Figure 3-3). b) Unfasten and remove the front shipping bracket (Figure 3-4). Note that after removal of the front shipping bracket, the firebox of the FUSION will be able to slide forward. c) Remove the screws from the back of the pallet to free the circulating chamber (Figure 3-4). -
Page 15: Liner Adaptor Installation
NOTE: If the width and/or the height of the existing fireplace is/are larger than the maximal width and/or height of the adjustable circulating chamber, extend the width and/or height of the circulating chamber to the maximum and fill the space with Stone Wool. 3.4 Liner Adaptor Installation Insert the 5”... -
Page 16: Firebox Installation
3.5 Firebox Installation a) Slide the FUSION firebox into the circulating chamber. b) Align the liner adaptor with the flue of the insert (Figure 3-7). c) Insert your hand in the chimney sweeping cap opening and pull the liner down by its handle. d) Use your thumb to bend the 4 tabs of the liner adaptor outward to secure the liner in place. -
Page 17: Clearances To Combustibles
3.7 Clearances to Combustibles Refer to Figure 3-11 and Table 3-2 for the minimum clearances to combustibles: Figure 3-11: FUSION Clearances to Combustibles – Front and Side View Note that the non-combustible hearth must extend a Table 3-2: Clearances to Combustibles minimum of 20”... -
Page 18: Operation Instructions
INSERT. The FUSION is not intended to serve as a primary source of heat. A primary source of heat must be available in the home that the FUSION is installed in. Supreme is not responsible for heating costs related to other sources of heat. -
Page 19: Starting A Fire
FUSION fireplace using a “top-down” approach, which results in a cleaner, more efficient, and longer burn: 4.4.1 FUSION 18 a) Place two logs in the firebox. The logs should sit directly on the hearth. Do not use a fireplace grate. -
Page 20: Adding A New Load Of Wood
The maximum firewood load must not exceed 4 medium sized logs (approximately 25 pounds) for the FUSION 18 and 5 medium sized logs (approximately 30 pounds) for the FUSION 24. This fireplace has been designed to burn with the door closed. When the fireplace is being used, the door should remain closed at all times. -
Page 21: Blower Kit
e) Keep the door of the FUSION slightly unlatched until you see a flame in the firebox. Never leave the door unlatched without constant supervision. f) Completely latch the door. Assure that a flame is maintained. Avoid wood smoldering on top of embers as this will result in a dirty glass, excessive emissions, chimney creosote buildup and poor heat output. -
Page 22: Fresh Air Kit (Optional)
• The air register can be installed above or below the level of the fireplace. • Use the SUPREME FIREPLACES INC. Fresh Air Adapter (ADP4_IN) provided with the unit. • Use the SUPREME FIREPLACES INC. Fresh Air Kit (PEA4). Installation: 1. -
Page 23: Barbecue Grill (Optional)
FUSION insert. The intense heat from the next combustion cycle cleans the grill and the unit of any cooking residue. DISCLAIMER: SUPREME FIREPLACES INC. is not responsible for the quality nor the outcome of the food cooked in the FUSION. -
Page 24: Troubleshooting
(Refer to Section 2.7 for Chimney Sweeping Cap location). • Never load more than 25 lbs for the FUSION 18 and 30 lbs for the FUSION 24 of wood at a time. • Ensure that there is no excess draft. -
Page 25: Maintenance
6 MAINTENANCE 6.1 Disposal of Ashes Ashes should be placed in a metal container with a tight-fitting lid. The closed container of ashes should be placed on a non-combustible floor or on the ground, well away from all combustible materials, pending final disposal. -
Page 26: Cleaning Of Glass
6.5 Replacement of Glass SUPREME FIREPLACES INC. uses a high quality 5mm thick Pyroceram III / Keralite ceramic glass that can withstand temperatures up to 1300 F. It is recommended to perform a weekly visual check for any damages or cracks on the glass. -
Page 27: Door Latch Lubrication
Place the ¾” gasket back into position. Give significant amount of time to allow the silicone to cure before reinstalling the door onto the firebox. Table 4-1: Parts List for Door Assembly Item FUSION 18 Code FUSION 24 Code Description DR3110... -
Page 28: Removal Of Firebox
Refer to the codes from the table below for any replacement parts: Code Description Illustration SFC0032-01 Wood pull handle - metallic black PYRO_ 20.25X12 FUSION 18 Pyroceram III / Keralite 5mm thick glass, 20.25" X 12" PYRO_ 24.875X14.75 FUSION 24 Pyroceram III / Keralite 5mm thick glass, 24.875" X 14.75"... - Page 29 Control or door, cease operating the unit; perform correction/replacement prior to resuming operation. For any electrical component failure, unplug the power source prior to using the unit. Instal only SUPREME FIREPLACES INC. replacement parts; installing substitute parts or materials may alter the performance of the unit and will void the warranty.
-
Page 30: Warranty
Freight related damages of products that are shipped directly from the SUPREME INC. warehouse are covered under warranty if they were indicated on the Bill of Lading from the carrier and SUPREME FIREPLACES INC. is notified within 48 hours. - Page 31 This warranty is void for any product that has been moved from its original installation location. SUPREME FIREPLACES INC. will not be responsible for environmental conditions and drafting issues such as inadequate vents or ventilation, excessive venting configurations or negative air pressures which may or may not be caused by geographic elements, exterior elements and/or mechanical systems such as exhaust fans, furnaces, clothes dryers, etc.
-
Page 32: Certification Label
7.2 Certification Label...
