VOLCANO PLUS
FIREPLACE INSERT, MODEL
«
»
Tested and certified to ULC S628-M93, UL 1482-1996 standards and EPA 28
by Intertek Testing Services
OWNER'S MANUAL
- INSTALLATION
- OPERATION
Save These Instructions for Future Reference
Manufactured by:
3594 Jarry East
Montreal, QC, H1Z 2G4
Tel: (514) 593-4722 Fax: (514) 593-4424
www.supremem.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOLCANO PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SUPREME VOLCANO PLUS

Summary of Contents for SUPREME VOLCANO PLUS

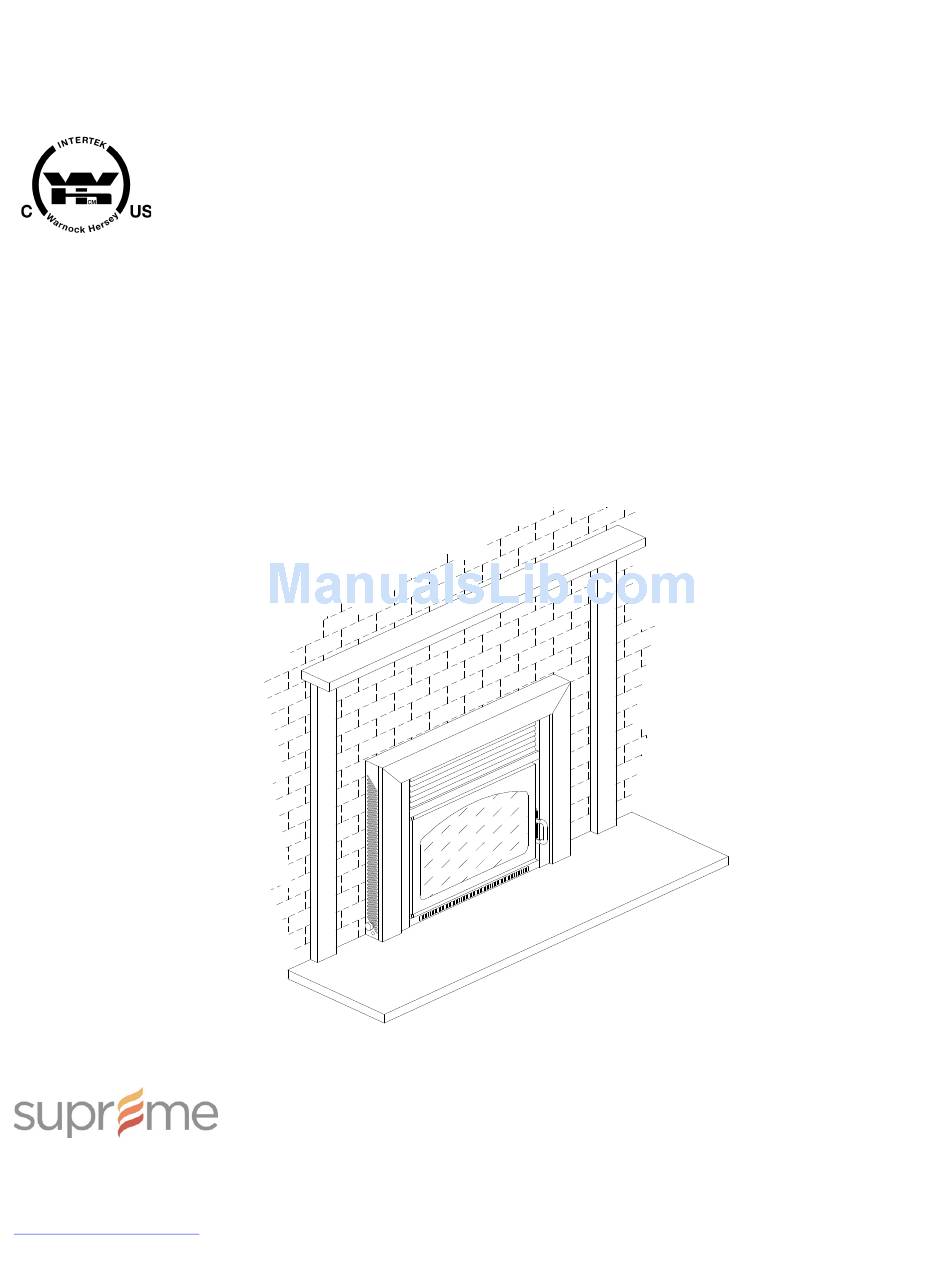

  • Page 1 VOLCANO PLUS FIREPLACE INSERT, MODEL « » Tested and certified to ULC S628-M93, UL 1482-1996 standards and EPA 28 by Intertek Testing Services OWNER’S MANUAL - INSTALLATION - OPERATION Save These Instructions for Future Reference Manufactured by: 3594 Jarry East...
