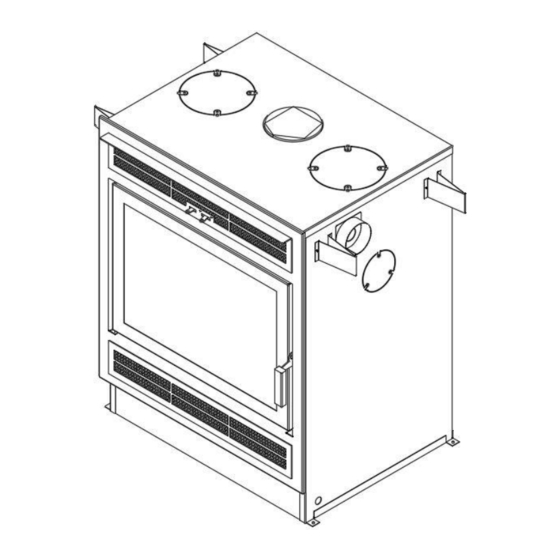

Elegance 40
Owner's Manual
Model Number: 32SF
This product is proudly developed and manufactured in North America by SUPREME FIREPLACES INC.
3594 Jarry East, Montreal, QC H1Z 2G4
T: 877-593-4722, F: 514-593-4424
www.supremem.com
Revised: August 2018
IMPORTANT: Keep the owner's manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ambiance Fireplaces Elegance 40 and is the answer not in the manual?

Questions and answers

Related Manuals for SUPREME Ambiance Fireplaces Elegance 40

Summary of Contents for SUPREME Ambiance Fireplaces Elegance 40

  • Page 1 Elegance 40 Owner’s Manual Model Number: 32SF This product is proudly developed and manufactured in North America by SUPREME FIREPLACES INC. 3594 Jarry East, Montreal, QC H1Z 2G4 T: 877-593-4722, F: 514-593-4424 www.supremem.com Revised: August 2018 IMPORTANT: Keep the owner’s manual for future use.

  • Page 2: Table Of Contents

    Chimney Sweeping Cap ........................4 Door ..............................4 Certification Label ..........................4 Removable Ash Lip ..........................4 SUPREME Radiation Shield Offset ..................... 4 2.10 Blower Kit ............................5 2.11 Optional Hot Air Kit ..........................5 2.12 Optional Fresh Air Kit .......................... 5 INSTALLATION INSTRUCTIONS ......................
  • Page 3 Chase Installation ..........................13 Clearances to Combustibles ......................14 Blower Kit ............................15 OPTIONS ..............................16 Hot Air Kit ............................16 Fresh Air Kit ............................17 OPERATION INSTRUCTIONS ......................... 18 Fuel ..............................18 First Fires ............................18 Operating the Combustion Air Control ....................18 Starting a Fire ............................

  • Page 4: Safety

    SAFETY SUPREME FIREPLACES INC. congratulates you on purchasing an Elegance 40 wood burning fireplace. This manual describes the installation and operation of the Elegance 40 non-catalytic wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May 15, 2015.

  • Page 5: General Information

    GENERAL INFORMATION 2.1 Overall Dimensions...

  • Page 6: Specifications

    2.2 Specifications Adjustable Burn Rate Wood Heater – Non-Catalytic Appliance Type: Fuel Type: Dry Cordwood Maximum Log Length: 24 in (6.09 cm) Burn Time 6 to 12 hrs Firebox Volume: 3.2 ft (0.091 m Heating Area: 1,000 to 2,000 ft (93 to 185 m Average Particulate Emissions Rate 1.47 g/hr...

  • Page 7: Cold Hand Key

    NOTE: The door of the Elegance 40 must remain closed at all times during operation. 2.9 SUPREME Radiation Shield Offset The SUPREME Radiation Shield Offset is a standard component for the Elegance 40 fireplace. Prior to installing the chimney manufacturer’s...

  • Page 8: Blower Kit

    (breaker off) before accessing the electrical wiring of the hot air kit. CAUTION: Only a hot air kit provided by SUPREME FIREPLACES INC. can be installed onto the fireplace. Substituting the hot air kit may result in overheating and will void the warranty.

  • Page 9: Installation Instructions

    Fireplaces, Vents and Solid Fuel-Burning Appliances (USA). CAUTION: Modifications/alterations to the unit/installation without written authorization from SUPREME FIREPLACES INC. are strictly forbidden and will void the warranty. Refer to Section 1 for further safety information. Carefully read the instructions below Figure 3-1: Straight Wall Installation before installing your Elegance 40.

  • Page 10: Chimney Installation

    3.2 Chimney Installation The Elegance 40 is approved with a 6” chimney that is listed under the UL 103 / ULC S629 standards (refer to Table). Note that when connecting a 7” chimney, a 6” to 7” anchor plate adaptor from the same chimney manufacturer must be installed onto the unit.

  • Page 11: Listed Ul 103 / Ulc S629 Approved Chimney Models (Reference Table)

    2. For an installation with the chimney running through the ceiling, install the SUPREME Radiation Shield Offset below the chimney opening prior to installing the radiation shield (refer to Figure 2-1, 3-6, & 3-8).

  • Page 12: Offset Installation

    A 6” chimney liner that complies with ULC S635 M2000 (Canada) or UL 1777 (US) standards must be installed within the existing masonry chimney. Note that the 6CON connector (manufactured by SUPREME FIREPLACES INC.) must be installed to connect the prefabricated chimney to the liner (6CON sold separately).
  • Page 13  Is constructed in accordance with national and municipal building codes.  Is in good condition. Note that repairs must be performed on any cracked or missing bricks.  Is thoroughly cleaned of any soot or creosote.  Is not connected to another appliance such as a furnace, hot water heater, or another fireplace. ...

  • Page 14: Façade Installation

    Repeat for the other outtake. 13. Measure the distance between the flange on top of the unit and the flange of the duct/louver adaptor and cut the 8” semi-rigid insulated duct (SUPREME part number UCAC8) to the necessary length. Repeat for the other outtake.

  • Page 15: Contemporary Façade - Single Linear Front Louver

    12. Measure the lengths of 8” pipe required to connect the unit to the single louver linear grill and adjust to the necessary lengths. Remember to take into consideration the 90 elbows provided in the SUPREME Linear Grill Kit when determining the length of pipe.

  • Page 16: Hearth Extension

    3.5 Hearth Extension The hearth extension of the Elegance 40 must comprise of a non- combustible material, such as steel, cement or mortar, bricks, or ceramic tiles. Note that unidentified materials may be combustible; verify product specifications prior to installation. The hearth extension must extend a minimum of 18”...

  • Page 17: Clearances To Combustibles

    Figure 3-12: Front Chase for Contemporary Linear Louver Figure 3-11: Front Chase for Traditional Façade Option Configuration 3.7 Clearances to Combustibles The clearances below must be respected to ensure safe operation of the unit under normal and extreme conditions. Failure to follow the information below is a safety hazard and may result in property damage.

  • Page 18: Blower Kit

    3.8 Blower Kit The Elegance 40 comes with a high performance 130 CFM blower kit, which has an electrical rating of 115 V, 60 Hz, and 56 W. A variable speed control (rheostat) and a heat sensor (therm-o-disc) are included with the kit. WARNING: Do not install a substitute blower.

  • Page 19: Options

    OPTIONS 4.1 Hot Air Kit The hot air system is an optional kit intended to bring hot air from the fireplace to a remote area using a 250 CFM blower. The system is designed to distribute heat with ducting lengths up to 25’. Note that only an insulated flexible duct capable of withstanding a maximum temperature of 210 F can be installed with this kit.

  • Page 20: Fresh Air Kit

     Use the SUPREME FIREPLACES INC. Fresh Air Adaptor (ADP4)  Use the SUPREME FIREPLACES INC. Fresh Air Kit (UPEA4) or any other fresh air kit with the same specifications and intended for fireplace use. Installation: 1. Cute 4 ½” diameter hole on the exterior wall of an ideal location.

  • Page 21: Operation Instructions

    OPERATION INSTRUCTIONS 5.1 Fuel The Elegance 40 is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods (moisture content below 20%), as compared to softwoods or to green or freshly cut hardwoods. The following are a few signs indicating that firewood is sufficiently dry for use: (a) cracks on the ends and surface of the logs, (b) lighter in weight, and (c) color (yellow/grey).

  • Page 22: Starting A Fire

    The left combustion control lever is the Activator. When starting a fire or adding a new load of wood, the Activator must be pushed in to allow maximum air to enter the firebox. The right combustion control lever is the Burn Rate Selector.

  • Page 23: Adding A New Load Of Wood

    fireplace is deprived of air, it will be necessary to provide a source of fresh air into the dwelling. This may be done by using an air exchanger unit or simply by opening a window or a door near the fireplace partially for a few minutes.

  • Page 24: Troubleshooting

    TROUBLESHOOTING 6.1 Backdraft / Smoking Draft is the force created by a difference in pressure, which moves air from the appliance up through the chimney. It is important to operate the Elegance 40 with proper draft to ensure optimal performance of the unit. Draft is depended on the length of the chimney, local geography, nearby obstructions and other factors.

  • Page 25: Maintenance

    MAINTENANCE 7.1 Disposal of Ashes Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be placed on a non-combustible floor or on the ground, well away from all combustible materials, pending final disposal.

  • Page 26: Cleaning Of Glass

    WARNING: Do not operate the unit with any of the soapstone panels missing. 7.5 Replacement of Door Gasket SUPREME FIREPLACES INC. assembles heat resistant graphite coated gaskets on the doors of all products, allowing for a proper seal of the unit at extreme temperatures (up to 1000 F).

  • Page 27: Replacement Of Glass

    7.6 Replacement of Glass Table 7-1: Parts List of Door Assembly Item Code Description SUPREME FIREPLACES INC. uses a high quality 5mm DR2100-* Door frame assembly thick Pyroceram III / Keralite ceramic glass that can DR_25.75 Horizontal metallic bracket withstand temperatures up to 1300 F.

  • Page 28: Paint

    7.8 Paint Paint touch-ups can be performed on the unit using a high temperature paint (in aerosol spray can format) by Stove Bright®. Refer to your invoice to determine the precise color of your unit. Contact your local hearth shop for further information on purchasing this paint.
  • Page 29 PA5000 Combustion Air Control (specify color) CM0020 Cold Hand Key CPSP0301 Removable Ashlip (specify color) Soapstone Panel 32SF1175 15.75” X 15.75” X 1.25”...

  • Page 30: Warranty

    EXCLUSIONS: SUPREME FIREPLACES INC. shall not be responsible for any labor costs for the replacement or repair of any electrical components, painted/plated parts, secondary air burning system, and the combustion air control. The following parts are guaranteed for 1 year: blowers, painted/plated parts, secondary air burning system, soapstone, and door gasket.
  • Page 31 In the case of a return for repair or replacement, it is the responsibility of the customer to adequately package the component/unit to prevent further damage during transport. Items sent to the SUPREME FIREPLACES INC. without an open warranty claim will be returned to the sender. Warranty claims should be addressed to: SUPREME FIREPLACES INC.
