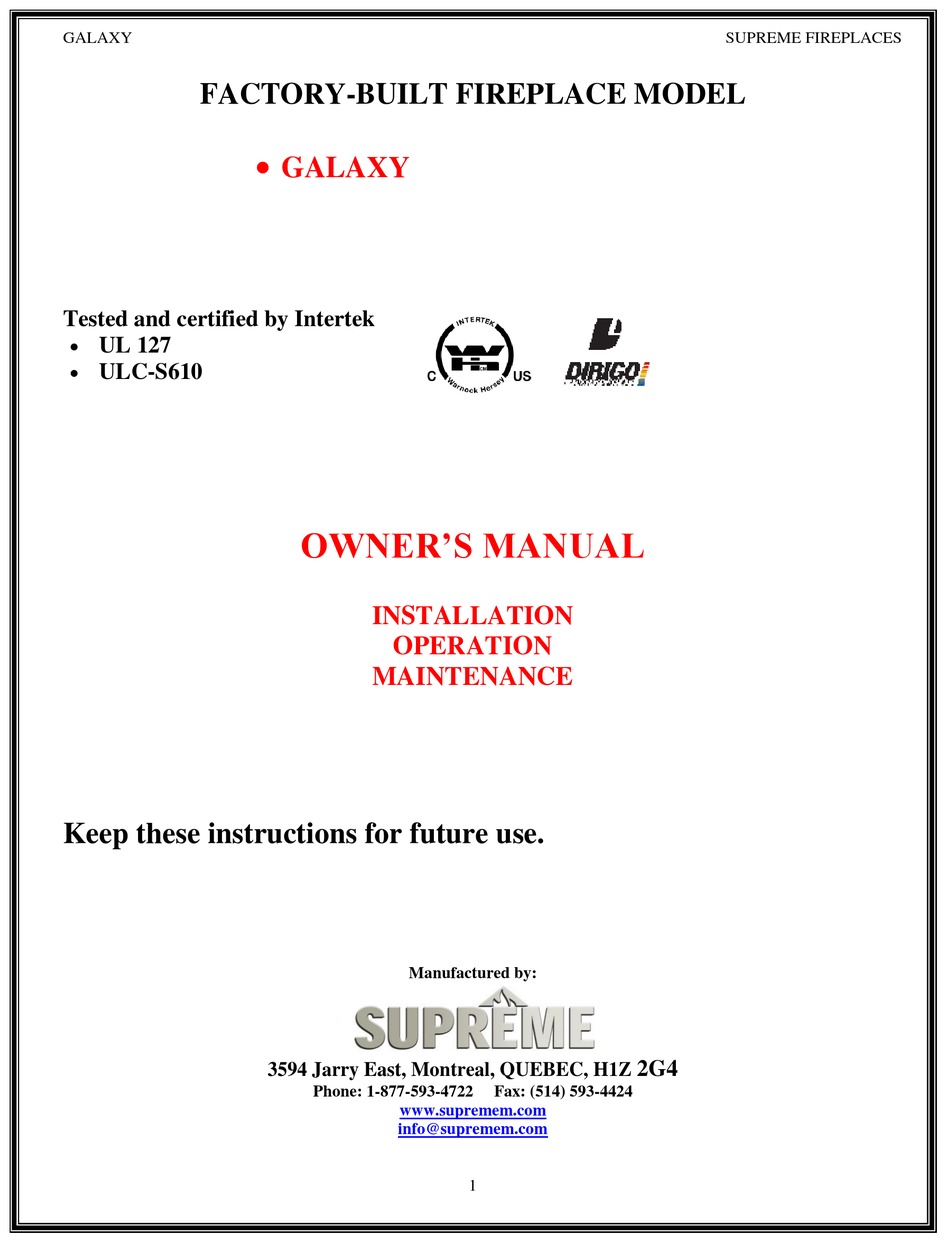

- Page 1 GALAXY SUPREME FIREPLACES FACTORY-BUILT FIREPLACE MODEL GALAXY Tested and certified by Intertek UL 127 ULC-S610 OWNER’S MANUAL INSTALLATION OPERATION MAINTENANCE Keep these instructions for future use. Manufactured by: 3594 Jarry East, Montreal, QUEBEC, H1Z Phone: 1-877-593-4722 Fax: (514) 593-4424 www.supremem.com...
-
Page 2: Table Of Contents
GALAXY SUPREME FIREPLACES TABLE OF CONTENTS …………………………………………………....SAFETY GUIDELINES FOR YOUR GALAXY ……………………………………………………………………....OPERATING INSTRUCTIONS …………………………………………………………………………………………………………… 2.1 Fuel ……………………………………………………………………………………………………. 2.2 First Fires ………………………………………………………………………………. 2.3 The Combustion Air Control ……………………………………………………………… 2.3.1 Operating the Combustion Air Control ………………………………………………………………………………………………... 2.4 Starting a Fire ………………………………………………………………………………. -
Page 3: Safety Guidelines For Your Galaxy
Carefully read these instructions before installing and using the fireplace. The Galaxy is a high efficient fireplace and gets very hot when in use. Contact with the fireplace can cause severe harm. Install a safety screen to keep children and pets out of reach. -
Page 4: Operating Instructions
The Galaxy is not intended to serve as a primary source of heat. A primary source of heat must be available in the home that the Galaxy is installed in. Supreme is not responsible for heating costs related to other sources of heat. -
Page 5: Starting A Fire
GALAXY SUPREME FIREPLACES The right combustion control lever is the Burn Rate Selector (see figure 1). The Burn Rate Selector can slide sideways to achieve different burn rates. When the Burn Rate Selector is positioned to the left, a maximum burn rate is achieved and when it is positioned to the right, a minimum burn rate is set. -
Page 6: Adding A New Load Of Wood
WARNING: Always wear gloves to avoid burns and injuries. To use the barbecue feature of the Galaxy, lower the barbecue grill and place the food on it. The door should remain closed while cooking. When you are done barbecuing, raise the barbecue grill against the backside of the firebox. No cleaning is required. -
Page 7: Maintenance Of The Galaxy
Easy-Light by pushing it inwards. The fire will start without further intervention. DISCLAIMER: SUPREME FIREPLACES INC. is not responsible for the quality nor the outcome of the food barbecued in the Galaxy. -
Page 8: Paint
3.4 Paint The face of the Galaxy could be touched up using Stove Bright high temperature paint in Metallic Black for black fireplaces and Charcoal for charcoal colored fireplaces. Follow the Stove Bright instructions on the can for directions and safety recommendations. -
Page 9: Glass Replacement
The glass door of your fireplace must be treated with care, do not slam the doors shut or build the fire too close to the glass. Do not over fire the Galaxy. Excessive temperatures or impacts may lead to breakage. -
Page 10: Latch Lubrication
An installation drawing should be prepared prior to the installation work. 4.2 Building Your Configuration The Galaxy fireplace can be installed in three different configurations: the classic, the semi-classic and the clean face. - Page 11 GALAXY SUPREME FIREPLACES Figure 12 – Classic, Semi-Classic and Clean Face Installations Figure 13 – Classic, Semi-Classic and Clean Face Parts Required...
-
Page 12: Clean Face Configuration
SUPREME FIREPLACES 4.2.1 Clean Face Configuration The gravity kit is required to be installed with the louverless Clean Face configuration of the Galaxy. Instructions for Gravity Kit Installation: Remove the knockouts from the top of the fireplace. Cut the insulation and remove the knockout below the insulation. Assure that both openings are completely open and you can see all the way down to the top of the firebox. -
Page 13: The Hearth Extension
GALAXY SUPREME FIREPLACES Use non-combustible materials only as shown in the shaded area. Decorative non-combustible materials such as tile, stone and brick must be applied only on a non-combustible base such as cement board or Durock. Figure 16 – Non-Combustible Face 4.4 The Hearth Extension... -
Page 14: Chase Ventilation Options
GALAXY SUPREME FIREPLACES R-Values of common hearth materials: Material Thickness R-Value 4” Brick .800 Brick 2-1/4” .450 Cement Board (Durock) ½” .390 1” Limestone .153 1” Slate .100 1’ Concrete .095 1” Marble .090 1” Granite .083 ¼” Ceramic Tile .020... -
Page 15: Clearances To Combustibles
GALAXY SUPREME FIREPLACES 4.6 Clearances to Combustibles The clearances to combustibles indicated in Tables 1, 2 and 3 below must be respected. Failing to do so can result in a fire or safety hazard. Table 1 – Clearances to Combustibles... -
Page 16: Fan Kit Installation
85°F. The speed of the fans can be adjusted with the variable speed control mounted on the wall. The Galaxy can also be used with the fans turned off or in the occurrence of a power failure. -
Page 17: General Rules
GALAXY SUPREME FIREPLACES 4.8.1 General Rules CAUTION: Follow the chimney manufacturer’s instructions for correct chimney installation, unless otherwise specified in these instructions. Installing an interior chimney system will provide optimal performance. Exterior chimney systems may cause drafting issues and an increased creosote buildup rate. -
Page 18: Chimney Installation Instructions
GALAXY SUPREME FIREPLACES Dura Plus, AC Triple Wall, 6” inner diameter Temp Guard, 1” Solid Pack, 6” inner diameter Metal Fab HS, AC Triple Wall, 6” inner diameter American Metal HSS, AC Triple Wall, 6” inner diameter ... -
Page 19: Angled Wall Radiation Shield
4.8.7 Connection to a Masonry Chimney The Galaxy fireplace can be connected to a masonry chimney. The masonry chimney must comply with the national and local building codes. A stainless steel liner of 6 in. diameter, complying with the standard ULC-S635-M2000 in Canada or UL-1777 in the US, must be installed in the chimney. -
Page 20: Options
The air register could be installed above or below the level where the fireplace is installed. Use the Supreme Fresh Air Kit (part # UPEA4) or any other fresh air kit with the same specifications and intended for fireplace use. -
Page 21: Hot Air System
GALAXY SUPREME FIREPLACES Make a 4 ½ in. hole in the outside wall at the chosen location. Install the air register. Remove the flange from the side of the fireplace (see figure 26). Insert the fresh air adaptor GY2330 (see figure 26). -
Page 22: Replacement Parts
GALAXY SUPREME FIREPLACES 6. REPLACEMENT PARTS CODE DESCRIPTION ITEM PASP1000 Combustion Air Control Pyroceramic Glass for Galaxy DOSP1051 17 x 24 1/4 Wooden Door Handle Thermodisk Fan Speed Control Door Gasket Rope DOSP1071 5/8” x 7’ Glass Gasket Rope DOSP1061 3/8”... -
Page 23: Labels
LISTED FACTORY BUILT FIREPLACE FOYER PRÉFABRIQUÉ HOMOLOGUÉ TESTED TO/TESTÉ SELON: UL-127/ULC-S610 February 2013/Février 2013 MODEL/MODÈLE: GALAXY/GALAXIE ENVIRONMENTAL PROTECTION AGENCY MADE IN CANADA/FABRIQUÉ AU CANADA CERTIFIED/CERTIFIÉ PAR L’AGENCE DE LA PROTECTION DATE MANUFACURED/DATE DE FABRICATION DE L’ENVIRONNMENT... - Page 24 GALAXY SUPREME FIREPLACES...
-
Page 25: Warranty
SUPREME FIREPLACES INC. assume responsibility for them. EXCLUSIONS SUPREME FIREPLACES INC. shall not be responsible for any labor costs for the replacement or repair of any electrical components, painted or plated parts, secondary air burning system, stainless steel panels and the combustion air control.
