SUPREME PLUS Owner's Manual

Installation - operation
Hide thumbs
Table of Contents

Advertisement

Quick Links

FACTORY-BUILT FIREPLACE MODEL
Tested and certified by Intertek
UL 127-1999
•
•
ULC-S610-M87 R-94
Keep these instructions for future use.
•
SUPREME PLUS
OWNER'S MANUAL
- INSTALLATION
- OPERATION
Manufactured by:
3594 Jarry East, Montreal, QC., H1Z
Phone: 1-877-593-4722
www.supremem.com
info@supremem.com
2G4
Fax: (514) 593-4424

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SUPREME PLUS

Summary of Contents for SUPREME PLUS

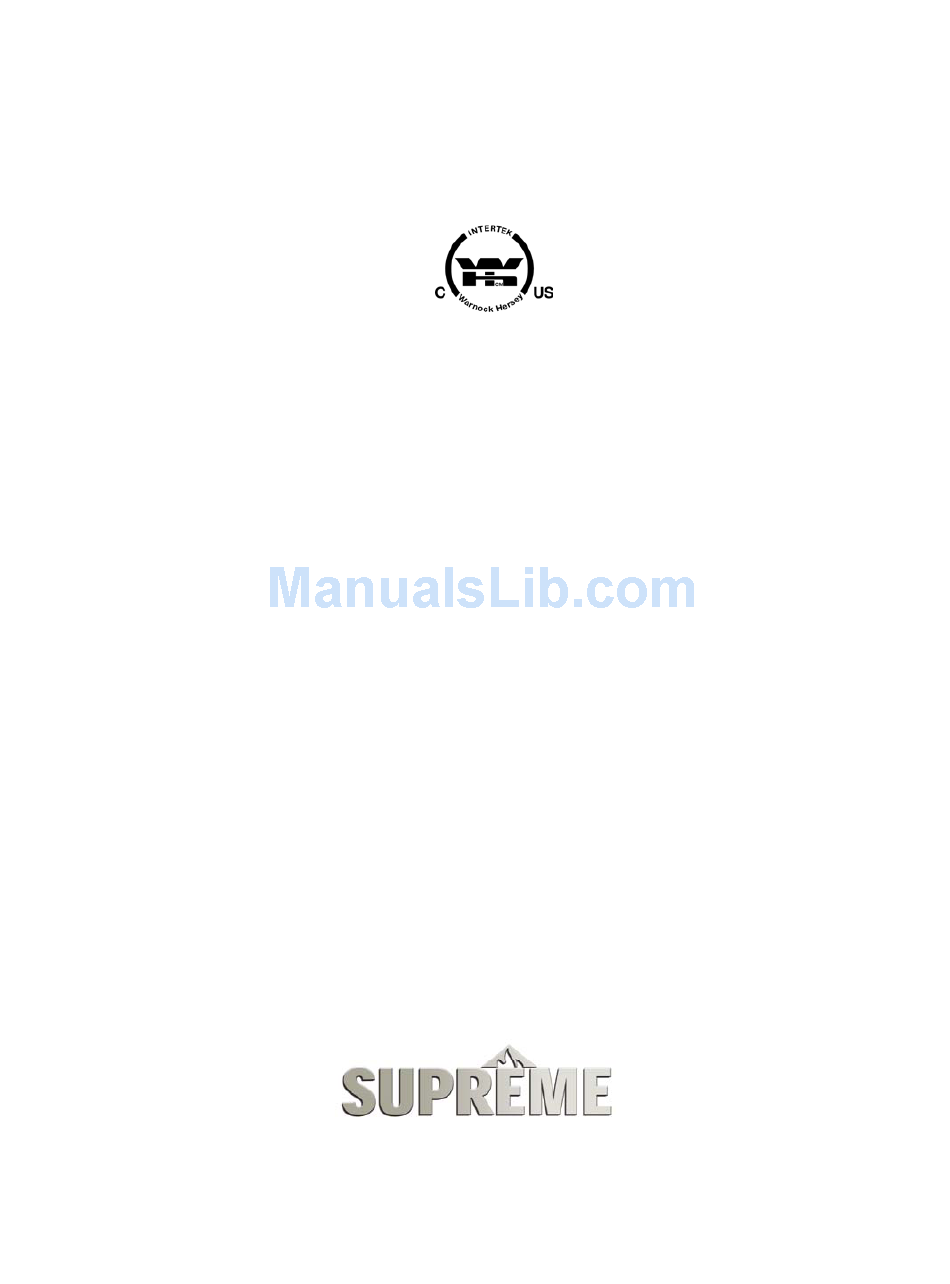

  • Page 1 FACTORY-BUILT FIREPLACE MODEL • SUPREME PLUS Tested and certified by Intertek UL 127-1999 • • ULC-S610-M87 R-94 OWNER’S MANUAL - INSTALLATION - OPERATION Keep these instructions for future use. Manufactured by: 3594 Jarry East, Montreal, QC., H1Z Phone: 1-877-593-4722 Fax: (514) 593-4424 www.supremem.com...

  • Page 2: Warranty Limitations

    (25) years from the date of purchase. This warranty is only intended for the original retail purchaser, given that the product was purchased from SUPREME FIREPLACES INC. or one of its distributors. This warranty is conditional upon correct installation and intended use of our products and does not cover damages caused by misuse of the products.

  • Page 3: Installation Instructions

    Model: Supreme Plus Revised, August 2008 INSTALLATION INSTRUCTIONS Note: Authority having jurisdiction (such as the municipal building department, the fire department, the fire prevention bureau, etc) must be consulted before installation to determine if a building permit is required. CAUTION: Read these instructions carefully before commencing the installation. Failure to follow these instructions may result in property damage, bodily harm and even death.
  • Page 4 Model: Supreme Plus Revised, August 2008 Figure 1 Make sure to seal the gap between the fireplace face and the hearth extension with a metal strip or a sand-cement grout in order to prevent sparks or embers from reaching combustible materials.

  • Page 5: Clearances To Combustibles

    Model: Supreme Plus Revised, August 2008 CLEARANCES TO COMBUSTIBLES Figure 2 WARNING: The hearth extension has to be installed only as illustrated. CLEARANCE TO THE FRONT OF THE FIREPLACE The minimum distance between the front of the fireplace and any combustible material is 5 feet, (152 cm).

  • Page 6: Chimney Installation

    Model: Supreme Plus Revised, August 2008 CHIMNEY INSTALLATION The fireplace has been tested in accordance to ULC S610-M87 R-94 and UL 127-1999 standards for factory-built fireplaces and can be installed with any of the 6 in. chimneys listed in the below table.

  • Page 7: Connection To A Masonry Chimney

    CONNECTION TO A MASONRY CHIMNEY The SUPREME PLUS fireplace can be connected to a masonry chimney. The masonry chimney must comply with the national and local building codes. A stainless steel liner of 6 in. diameter, complying with the standard ULC-S635-M2000 in Canada or UL-1777 in the US, must be installed in the chimney.

  • Page 8: Installation

    Model: Supreme Plus Revised, August 2008 General notes: Before the installation, the masonry chimney must be inspected by authority having jurisdiction to determine the following: 1. if the chimney is constructed in accordance with local building codes and the national building code;...
  • Page 9 Revised, August 2008 BLOWER KIT INSTALLATION A blower kit is supplied with the SUPREME PLUS fireplace. It includes a bracket already fixed to the blower. Do not install a substitute kit as this may result in overheating and risk of fire.

  • Page 10: Fresh Air

    • The air register could be installed above or below the level where the fireplace is installed. • Use a SUPREME FRESH AIR KIT or any other fresh air kit intended for fireplace use. Figure 13 Installation: •...

  • Page 11: Creosote Formation And The Need For Removal

    Model: Supreme Plus Revised, August 2008 OPERATING INSTRUCTIONS Important note: Do not keep the door open while the fireplace is lit. WOOD The fireplace is designed to burn good quality dry cordwood. The optimum log length is 18 in. and preferably split in halves or quarters.

  • Page 12: Starting The Fire

    Model: Supreme Plus Revised, August 2008 To determine the preset amount, the user will have to use the fireplace for several days, placing the control handle at different positions between minimum and maximum. After establishing a position for the control, push the control handle fully inwards and then pull it back when starting a fire in order to maximize the combustion air.

  • Page 13: Removal Of Ashes

    Model: Supreme Plus Revised, August 2008 REMOVAL OF ASHES Regularly empty out the ashtray. The removal of the ashes should be done when the fireplace is cold. To empty the ashtray: 1. Push down the ashes through the openings of the floor plate so that they fall into the ashtray. Do not overfill the ashtray.

  • Page 14: Glass Cleaning

    Model: Supreme Plus Revised, August 2008 To replace a broken glass: CAUTION: Always wear gloves and protective glasses to avoid injuries. 1. Order a pre-cut replacement glass, a door gasket and a glass gasket from your dealer (see NOTE). 2. To remove the door, open the door, lift it and pull it towards the bottom until the rod exits from the hinge holes.

  • Page 15: Replacement Parts

    Model: Supreme Plus Revised, August 2008 REPLACEMENT PARTS C ODE DES C RIPTION ITEM PAS P3000 Primary air control C PS P0140 C PS P0150 S econdary Air pipes C PS P0160 DOS P1051 Glass C eramic 5mm 17x 24.25 in...
