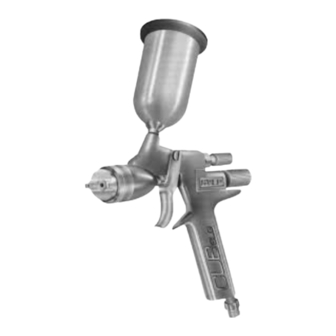

Binks Cub SLG gravity-feed HVLP gun is
the finest touch-up and specialty coatings
gun available today. This gun has been
ergonomically designed to give operators
superb control and comfort over a range of
uses. You feel its excellent balance and
heft as soon as you pick it up. The
gun body is made of the finest forged
aluminum and machined to exacting tol-
erances. Overall quality is reflected in the
gun's lustrous and durable anodized finish.
The Cub SLG is a very efficient spray
gun, transferring 65 percent or more of
fluid to the subject. It fully meets oper-
ating pressures and material transfer
requirements of California's South
Coast Air Quality Management District
regulations as a high volume, low
pressure spray gun. High pressure, low
volume air flow is converted to high
volume, low pressure flows within the
gun body. Special air and fluid nozzles
enable the gun to atomize fluid at low
velocities, creating a soft spray effect
for superior transfer efficiencies.
The Cub SLG gun is especially favored
in the automotive touch-up and detail-
ing industries and is well-suited to other
specialty finishing and small area appli-
cations. Several options in cup size and
fluid nozzle sizes make the gun adapt-
able to a variety of uses. See the Parts
List on page 3 and Fluid Nozzle Table
on page 6 for these options.
This Part Sheet contains an exploded
drawing and detailed parts list to enable
a complete understanding of the gun's
construction. A basic overview of gun
operation, cleaning, care and mainte-
nance, and troubleshooting of common
problems is also provided.
Please be sure to also read the notes
regarding air pressure and volatile
materials safety on page 2.
NOTE
IMPORTANT REGULATORY NOTE regarding
the use of this product appears on page 8.
Binks Cub SLG
GRAVITY-FEED HVLP GUN
3
2
1

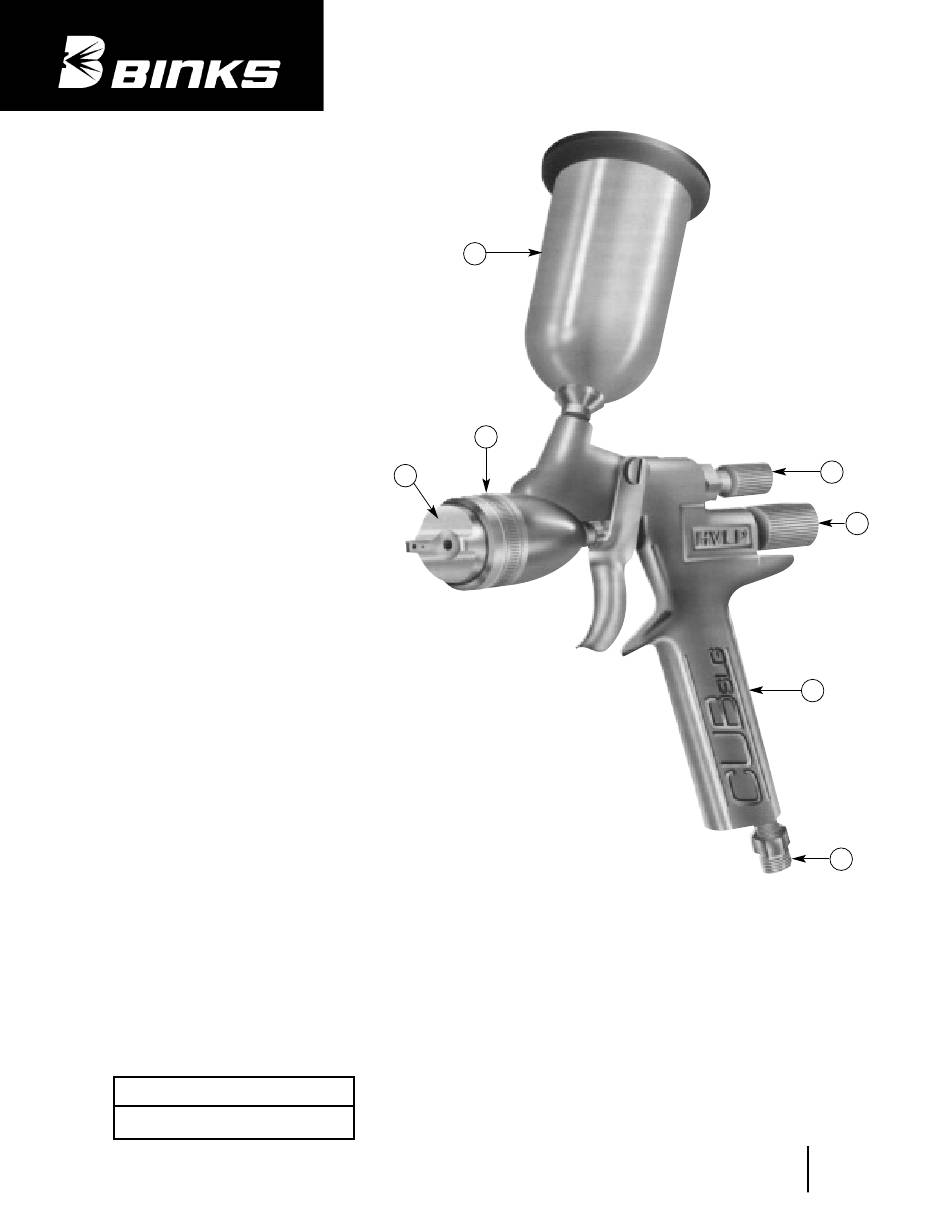

ILLUSTRATION KEY
1. Air Nozzle
2. Retaining Ring
3. Gravity Feed Cup
4. Fan Control
5. Fluid Control Knob
6. Gun Body
7. Air Inlet 1/4 NPS(m)
PACKAGE CONTENTS
Please note your Binks Cub SLG gravity-feed gun package was shipped
with the following contents. If anything in the following list is missing,
call 1-800-992-4657 for a prompt shipment to you of the missing item(s).
DESCRIPTION
Cub SLG Gravity-Feed Spray Gun
4 oz. Cup Assembly ..........................54-4458
Gun Box ............................................4-1727
Cub SLG Part Sheet ..........................2735R-1
4 oz. Cup Assembly Part Sheet........2719
Gunners Mate ..................................54-3871
Small GunBrush ................................54-4133
Gun Brush ........................................82-221
PART NO.
QTY.
1
1
1
1
1
1
1
1
Replaces
Part Sheet
2735R
4
5
6
7
Part
Sheet
2735R-1
