Binks 7E2 Series Service Manual

SERVICE MANUAL
EN

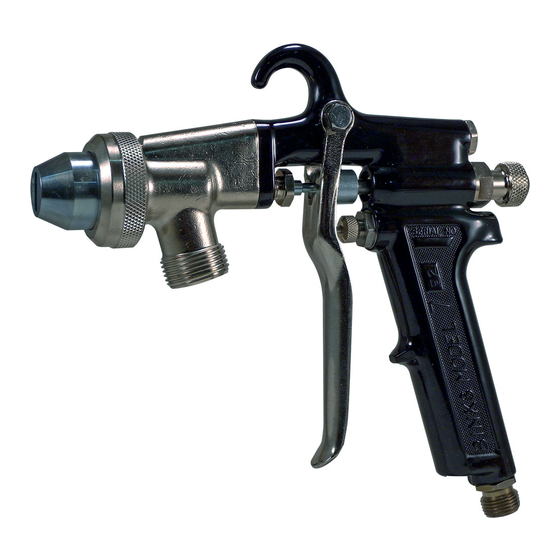

BINKS MODEL 7E2 SPRAY GUN
1
2
STANDARD SET-UPS AVAILABLE
6102-2900-7 7E2 GUN 44SS-1/4
6102-3525-9 7E2 GUN 46SS-391
6102-3600-7 7E2 GUN 45SS-1/4
6102-3601-7 7E2 GUN 45SS-3/8
6102-3602-3 7E2 GUN 45SS-3/8F
See Nozzle Selection Chart on reverse side for
optional set-ups. Please order separately.
NOTE
To prevent back-up of fluid into air passages
when solvent flushing, always remove air
nozzle or shut off air adjusting valve.
ITEM PART
NO. NO. DESCRIPTION
1 * AIR NOZZLE ................................ 1
2 * FLUID NOZZLE ............................ 1
3 20-1237 SET SCREW
4 20-2002 WRENCH
5 54-710 SCREW ....................................... 1
6 54-714 PLUG .......................................... 1
7 54-723 GASKET
8 54-725 SCREW
9 54-726 BODY
10 54-744 STEM
11 54-747† PACKING
12 54-749† GASKET
13 54-750† SPRING
14 54-751 BODY
15 54-759 SCREW
16 54-760 STUD
17 54-788 AIR CONNECTION ....................... 1
18 54-806 CAP ............................................ 1
19 54-839 SPRING
* When ordering, please specify number stamped on nozzle. See nozzle selection chart on reverse side.
•
Optional, please order separately.
† Repair Kit 6-224, please order separately.
77-1341-R17.5 (8/2017)
32
22
30 5
33
23
•
26 36
20
35
3/4 NPS(m)
PARTS LIST
When ordering, please specify Part No.
...... 1
Soc. Hd. 1/4-20 x 1/4
, ... 1
Allen 1/8" Hex (Not Shown)
....................... 1
Fluid Control
.................... 1
Spring Retainer
.......................... 1
Fluid Control
............................... 1
Air Valve
.......................... 1
Air Valve
........................... 1
Air Valve
............................ 1
Air Valve
.............................. 1
Air Valve
.............................. 1
Trigger
................................. 1
Trigger
....................... 1
Fluid Control
16
3
7
15
24
27
31
11
34
10
14
21
6
3/8 NPS(m)
ITEM PART
QTY.
NO. NO.
20 54-864
21 54-1091
22 54-1204
23 54-1205†
24 54-1210
25 54-1213
26 54-1219
27 54-1220
28 54-1221
29 54-1223
30 54-1239
31 54-1244
32 54-1245
33 54-1246†
34 54-1340
35 54-1341
36 54-3264•
37 82-221
1 / 4
18
29
28
19 9 8
25
13
12
17
DESCRIPTION
RETAINER RING ........................ 1
TRIGGER ..................... 1
Four Finger
GUN BODY ................................ 1
PACKING ................... 1
Needle Valve
NEEDLE COLLAR ........................ 1
RING ........................................ 1
NEEDLE..................................... 1
NEEDLE PIN .............................. 1
HOUSING .................. 1
Fluid Control
SCREW ASSEMBLY
Fluid Control
GUN HEAD ................................ 1
PACKING NUT ........................... 1
GUN BODY ASSEMBLY ................ 1
GASKET ...................... 1
Fluid Nozzle
PACKING NUT ................. 1
Air Valve
AIR VALVE ASSEMBLY ................ 1
NEEDLE
Stainless Steel (Optional)
CLEANING BRUSH
(Not Shown)
