Summary of Contents for Binks AA4400A

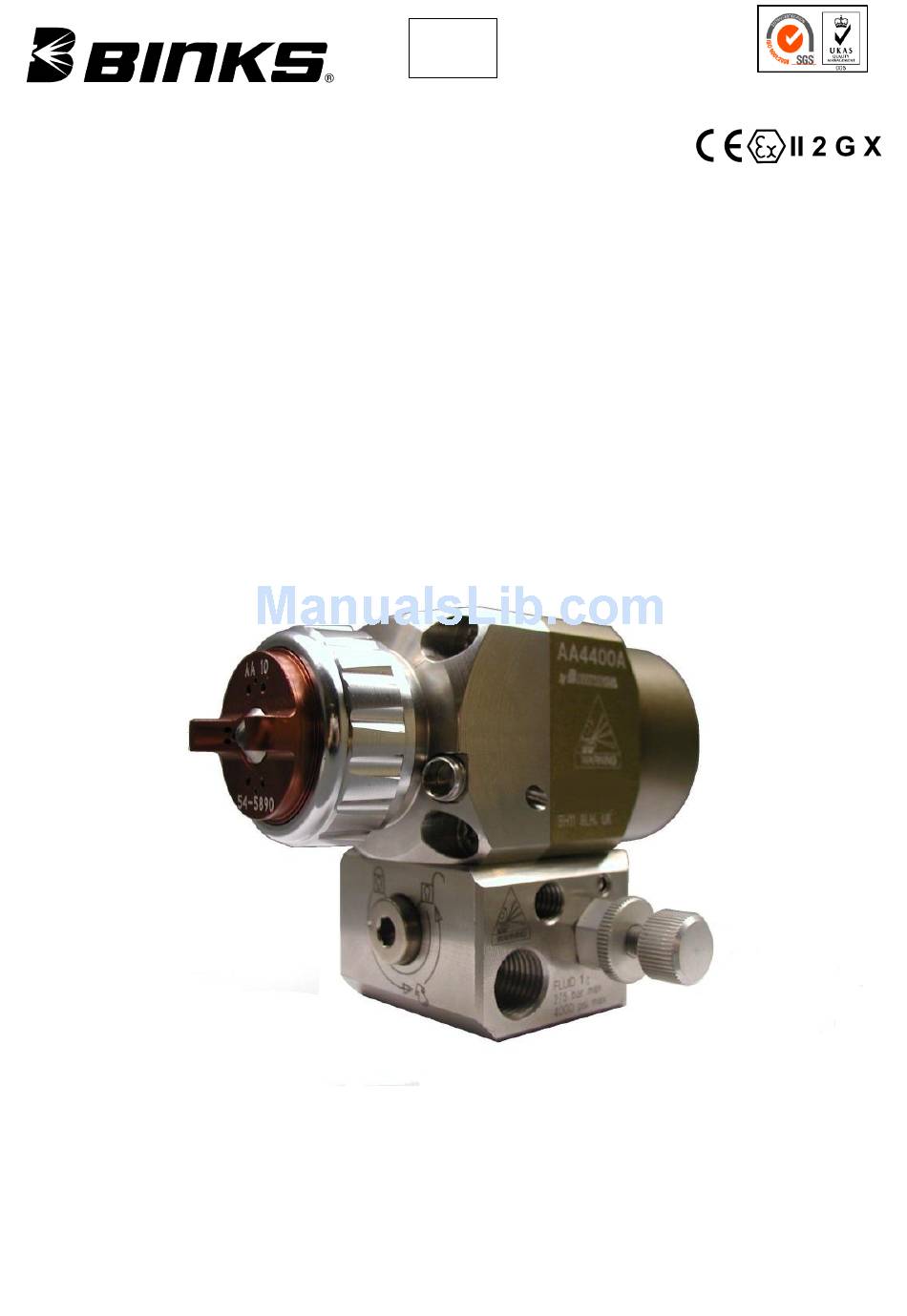

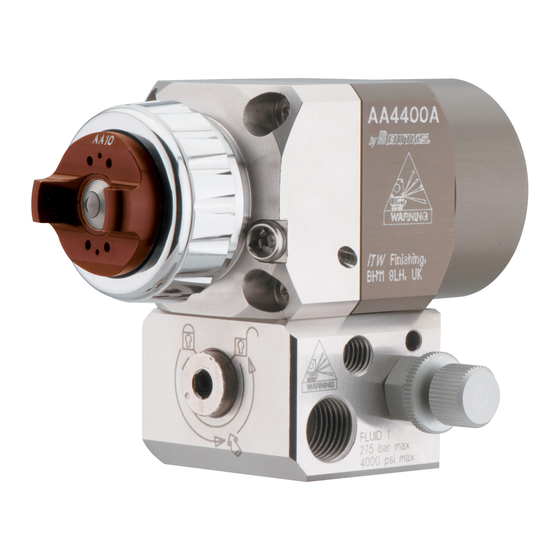

- Page 1 SB-E-2-740 ISS.06 Operation Manual AA4400A – Automatic Air Assisted Airless Spray Gun...
-
Page 2: Table Of Contents
Contents Page 1 - Specification & Materials of construction ........................ 3 2 - SAFETY WARNINGS ..............................4 3 - Model part numbers ..............................5 4 - Airless tip selection chart (Order separately)......................5 5 - Parts ..................................... 6 5.1 Exploded view ................................6 5.2 Parts list .................................. -
Page 3: Specification & Materials Of Construction
We, Finishing Brands UK Limited, Ringwood Rd, Bournemouth, Dorset, BH11 9LH, UK, as the manufacturer of the Spray gun model AA4400A, declare, under our sole responsibility that the equipment to which this document relates is in conformity with the following standards or other normative documents: BS EN 292-1 PARTS 1 &... -
Page 4: Safety Warnings
2 - SAFETY WARNINGS Fire and explosion Solvents and coating materials can be highly flammable or combustible when sprayed. ALWAYS refer to the coating material supplier’s instructions and COSHH sheets before using this equipment. Users must comply with all local and national codes of practice and insurance company requirements governing ventilation, fire precautions, operation and house-keeping of working areas. -
Page 5: Model Part Numbers
B = Spray head + Base G = Spray head only Air controls: Model: Air Cap: M = Manual controls fitted AA44 = AA4400A 10 =AA10 HVLP P = Manual controls removed & plugged Recirculation: U = Base/no recirculation H = Head recirculation... -
Page 6: Parts
5 - Parts 5.1 Exploded view Patents Pending (16) SEAL CARTRIDGE SPA-76 PART NO. DESCRIPTION ‘O’ RING SPA-46X-K4 ‘O’ RING SPA-29X-K4 SPA-95 HOUSING SPA-96-K4 SEAL © 2013 Finishing Brands UK Ltd. -
Page 7: Parts List
5.2 Parts list ASSEMBLY QTY REF. PART NO. DESCRIPTION NO/BASE RECIRC HEAD RECIRC SPA-65 BODY AIR VALVE PISTON ‘O’ RING S-28224X-K4 PISTON SPA-68-K PISTON ASSY (2(x2), 3(x2), 4 & 5) ‘O’ RING SPA-45X-K2 ‘O’ RING S-28219X-K4 ‘O’ RING S-28220X-K2 SPA-67 END CAP SPA-13 PISTON SPRING... -
Page 8: Fluid Connections And Options
6 - Fluid connections and options Filter No recirculation 1/4” NPS Supply RH No recirculation Supply LH Base recirculation Supply RH or LH Head recirculation Supply RH or LH Important: Protective coatings have been used for storage protection. Flush the equipment with appropriate solvent before use. ©... -
Page 9: Dimensions & Connections
7 - Dimensions & connections (all dimensions in mm) A – Fluid inlet 1/4” NPS (x2) (see fluid connections & options 275 Bar / 4000 psi Maximum B – Trigger/Cylinder M5 4 to 10 Bar / 60 to 145 psi C –... -
Page 10: Air Connection
7.1 Air connection Trigger / cylinder air supply Pattern / length air supply 3/2 valve Pressure regulator 4-10 Bar / 60-145 psi 0-1 Bar / 0-15 psi recommended 10 Bar / 145 psi maximum 8 - Spray set-up Screw pattern and length control knobs fully 1- Airless tip closed. -
Page 11: Gun Section View
9 - Gun section view © 2013 Finishing Brands UK Ltd. -
Page 12: Maintenance
10 - Maintenance Warning – Check all air and fluid pressure is removed before starting maintenance. 10.1 Key to symbols Lubricate with Petroleum Grease Tool type and size required Tighten to specified torque Component direction arrow for dis-assembly and sequence number Note: reverse sequence to assemble 10.2 Spray head removal Note: The spray head is released... -
Page 13: Filter Removal
MAINTENANCE 10.3 Filter Removal 10.4 Head & body separation © 2013 Finishing Brands UK Ltd. -
Page 14: Needle & Seal Removal
MAINTENANCE 10.5 Needle & seal removal 10.6 Piston removal © 2013 Finishing Brands UK Ltd. -
Page 15: Spray Head
MAINTENANCE 10.7 Spray head 10.8 Air cap, tip & indexing A – Air cap index ring allows the cap to be rotated at 45º intervals. It can be removed and not used allowing free rotation. B – Head index plate, can be rotated at 15º... -
Page 16: Manifold
MAINTENANCE 10.9 Manifold © 2013 Finishing Brands UK Ltd. -
Page 17: Accessories
11 - Accessories Cleaning Brush x 3 Tip cleaners x 12 4900-5-1-K3 DSG-4003 Filter ¼” NPS M-F Gun cleaning kit 100 Micron 400 Bar KK-4584 Housing+filter - 54-3655 Filter element - 54-1835 Airless hose 6.4mm bore ¼ Remote air adaptor x 2 NPS F, 325 Bar MWP Replaces AGG-403 7.5m - H-5818...
