- Page 1 OWNER'S MANUAL English "FALCON" SERIE: F380 F420 F480 MODELS: F380H* F420H* F480H* Base version: F380 F420 F480 Tender Deluxe version: F380T F420T F480T H* – boat tube is made of HYPALON (Du Pont registered trademark) coated fabrics.
-
Page 2: Table Of Contents
The CE marking indicates that the inflatable boat meets the requirements of the Recreational Craft Directive 2013/53/EU Certifying Body: Name of Manufacturer: INTERNATIONAL MARINE CERTIFICATION BRIG Ltd. INSTITUTE Lozovskaya 88, Rue Abbe Cuypers 3 / B-1040Bruxelles / Belgique Dergachy 62303 Notified Body : 0609 Kharkovskaya obl. -
Page 3: Danger Levels
DANGER LEVELS. The manual contains warnings, identified as follows: A note like this indicates that there is serious riskthat is likely to cause death or permanant serious injury, if appropriate precautions are not taken. A note like this indicates the existence of risk that may cause death or injury, if appropriate precautions are not taken. -
Page 4: Identification Plate
IDENTIFICATION PLATE. Builder's Plate: Boat Type according to ISO 6185 Model of the boat Boat Design Categories according to Directive 2013/53/EU Maximum propulsion power rating for the boat Maximum Passengers capacity for the boat Maximum recommended load is including weight of the max The rated tube pressure value is engine, passengers and cargo onboard, but excluding the 0.15 bar (2.2 psi). -
Page 5: Safety Regulations
SAFETY REGULATIONS. This manual contains recommendations and basic rules of conduct for using the boat in complete safety.Although it is not possible to offer safety information for all potential situations, in general it is recommended that you: Regularly check which safety requirements are in force. Maintain the boat and the onboard plants in optimum condition. -
Page 6: Beaufort Wind Scale And Corresponding State Of The Sea, After Few Hours Of Wind, Away From The Coast
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast. State of the sea Force Denomination Knots Km/h m/sec and wave height in meters Calm <1 <1 0-0.2 Calm Light Air 0.3-1.5 Calm Light Breeze 6-11... -
Page 7: Remember Fire Danger Always
REMEMBER FIRE DANGER ALWAYS. Fire may be caused by: Crew nagligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if maintenance has not been performed as required. Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons. Easly flammable products must not be kept aboard. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS. The basic parameters and dimensions of the boats comply with the data specified in the following tab le. All dimensions measurements indicated have a tolerance of +/- 3%, weight measurements indicated have a tolerance of +/- 5%. Parameter F380 (F380H) F420 (F420H) F480(F480H) -
Page 9: Complete Set
COMPLETE SET for Base and Tender Deluxe versions for F380 F420 F480. Base Tender Deluxe 1. Inflatable boat 2. Front step-plate with navigation lights 3. Hard tube ends 4. Front removable cushion 5. Foot pump 6. Paddles 7. Set of spare parts and repair kit (coated fabric for repair, glue set for repair) 8. -
Page 10: General View Of The Boats 1

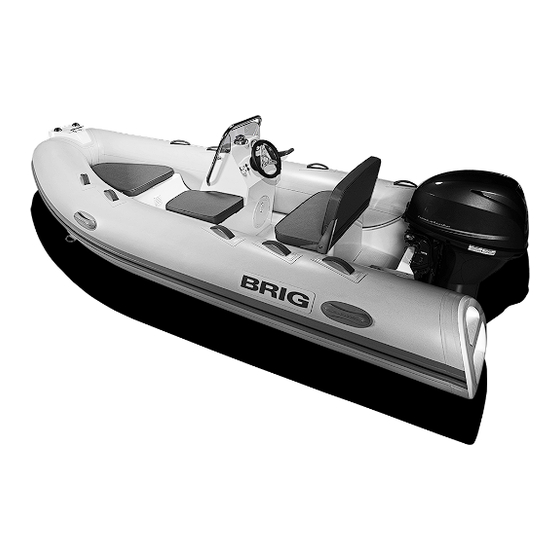

GENERAL VIEW of the BOATS. BASE version Boat General View (see Fig.1). 1 - Inflatable tube 2 - Inflation valves 3 - Rigid bottom with transom 4 - Outboard engine mountingplate 5 - Bow compartment 6 - Lifting eyes 7 - Handles 8 - Rigid end of the tube 9 - Rubbing strake 10 - Oars... - Page 11 TENDER DELUXE version Boat General View (see Fig.2). 1 - Inflatable tube 2 - Inflation valve 3 - Rigid bottom with transom 4 - Outboard engine mountingplate 5 - Bow compartment 6 - Lifting eyes 7 - Handles 8 - Rigid end of the tube 9 - Rubbing strake 10 - Tender container with seat 11 - Towing eye...
-
Page 12: Steering Console
STEERING CONSOLE. Steering Console for Tender Deluxe Version. The Steering console consists of the following main components (Fig.3): 1- console body, that comprises the overhead part , hinged with lower part . 2 - cushion; 3 - lock; 4 - instruments (compass, speedometer, fuel gauge etc.) 5 - windscreen;... -
Page 13: Tender Container For Tender Deluxe Version 1
Tender Container is intended for placing of two passengers and for installation of storage battery, oars etc. They may be mounted on the rigid deck of the “BRIG” boats Tender Deluxe versions and other boats. Tender Container includes: the locker, soft seat and lock to fixing the sat (see Fig.4). -
Page 14: Inflation/Deflation Boat Tube
Inflation/deflation boat tube. The inflation valve (see Fig.5) has two positions of sliding part A corresponding to its two conditions (modes): – sliding part A is withdrawn - operation condition of the valve (compartment air filling mode); – sliding part A is recessed - valve in condition "OPEN" (compartment air discharge mode). -
Page 15: Preparation For Exploitation 1
PREPARATION FOR EXPLOITATION. In order to set the boat in the operation condition perform as follows: Unfold the inflatable balloon. Apply the foot pump to fill the afterbody of the compartments with air to the pressure being slightly below its rated value (the balloon will be completely straightened). -
Page 16: Fuel System 1
FUEL SYSTEM. Fuel system forTENDER DELUXE version ( Fig.7). 1 - Fuel tank 33L 2 - Fuel filling neck 3 - Fuel level sensor 4 - Ventilation holes 5 - Drain hose with drain pipe 6 - Inspection hatch 7 - Fuel level instrument 8 - Feeding fuel hose Fig.7 —... - Page 17 Pre-filter and fuel valve must be installed by authorized representative specialists only. Do not modify fuel system. Any modification, repair and planned maintenance of the fuel system may be made by authorized representative specialists only. Always check that there are no leaks in the fuel systems Do not smoke when refueling.
-
Page 18: Maintenance 1
MAINTENANCE. Main conditions of long service life is right and careful servicing. Avoid excessive increasing of pressure in the board, especially from heating by the sun rays. After exploitation take off sand and dirt from boat surface, and carefully dry it. ... - Page 19 IT IS FORBIDDEN to bring the tube pressure up to the value exceeding the rated one (0.15 bar(2.2pci)) IT IS STRICTLY FORBIDDEN to drag the boat across a rough surface. For each particular water area the local shipping regulations are in force. You may apply for information to the appropriate water transport and shipping directorate, as well as to the water police.
- Page 20 All passengers should put on life-saving jackets CHILDREN and non-swimmers MUST BE A FLOATATION DEVICE AT ALL TIMES. Always check that floatation devices for children are of the rigt size and that they are operational. Arrange the cargo to be carried uniformly inside the boat, all items being reliable secured on the bottom of the boat. When sailing with an outboard engine the steersman should shift his body forward in the course of acceleration to prevent the boat forebody from raising under the force of upthrust waves.
- Page 21 Towing At towing the towing rope length should not be at least 3 lengths of the boat. The steersman of the towed boat should be assisted by another crew member to monitor the process of towing. In this case, certain communication gestures should be agreed upon beforehand. The rope being secured to both boats in a manner ensuring its immediately, single-motion release.
- Page 22 In emergency stay in boat In any unexpected situation (engine failure, boat damage, etc.) do not ever leave the boat provided it is still afloat. Even if you believe that the shore is just nearby stay in the boat, since you will be looked for in this particular place and, most probably, will be found. Should the boat become partially flooded throw heavy objects (batteries, fuel tank, engine) overboard to ensure additional floatability.
-
Page 23: Reboarding Means 2
REBOARDING MEANS. All persons on board should always be in life jackets. Before starting the motor, make sure that the safety pin is used. If you are in the water, you can return on board. To do this, there are handles (Fig.1 (7)) on the boat tube that you can use to get back on board. Boats of this model have a low freeboard. -
Page 24: Warning Signs And Labels
WARNING SIGNS AND LABELS. In accordance with ABYC standards, warning signs and labels are installed on your boat (if applicable). Do not remove warning signs and labels. Always check their suitability. If the warning signs are damaged and you cannot read the text or symbols, you must order new ones from your dealer. Check with your dealer for the correct warning signs and labels mounting location. - Page 25 W ARNING. LEAKING FUEL Place of installation: on the hull near of the fuel filler. All models. Failure to follow these warnings could cause SEVERE INJURY or DEATH WARNING. ROTATING PROPELLER Place of installation: from the outside of the boat transom. All models.
- Page 26 NOTE: The inflatable boat was delivered with the following equipment installed: 1.Fuel tank Stamp and signature 2.Electric system Stamp and signature 3.Drain system Stamp and signature 4.Bilge pump Stamp and signature Stamp and signature 5.Steering system Stamp and signature 6.Engine power system 7.Engine installation, test and Stamp and signature c om pletio n...
- Page 27 — 27 — F380 F420 F480 - 2020 2357D.01...
- Page 28 MODEL SERIAL No. UA-QRK Date of manufacture Quality inspection stamp — 28 —...
